GTX 12

THREE-WAY LINE ARRAY MODULE

148 dB max SPL

4 x 6” neo midrange drivers, 2” v.c.

2 x 3” titanium dome, neo compression drivers

2 x 12” neo woofers, 3.5” v.c.

90° x 10° 4PATH waveguide

Designed to operate with XPS 16K amplifier (4 XPS channels powering up to 3 modules)

Durable and lightweight cabinet construction, polyurea coating

Heavy duty, powder coated, custom perforated front grille

2 x P-COM 8 pole bayonet connectors (Gold coated, CA-COM compatible, IP 68)

GTX 12

THREE-WAY LINE ARRAY MODULE

148 dB max SPL

4 x 6” neo midrange drivers, 2” v.c.

2 x 3” titanium dome, neo compression drivers

2 x 12” neo woofers, 3.5” v.c.

90° x 10° 4PATH waveguide

Designed to operate with XPS 16K amplifier (4 XPS channels powering up to 3 modules)

Durable and lightweight cabinet construction, polyurea coating

Heavy duty, powder coated, custom perforated front grille

2 x P-COM 8 pole bayonet connectors (Gold coated, CA-COM compatible, IP 68)

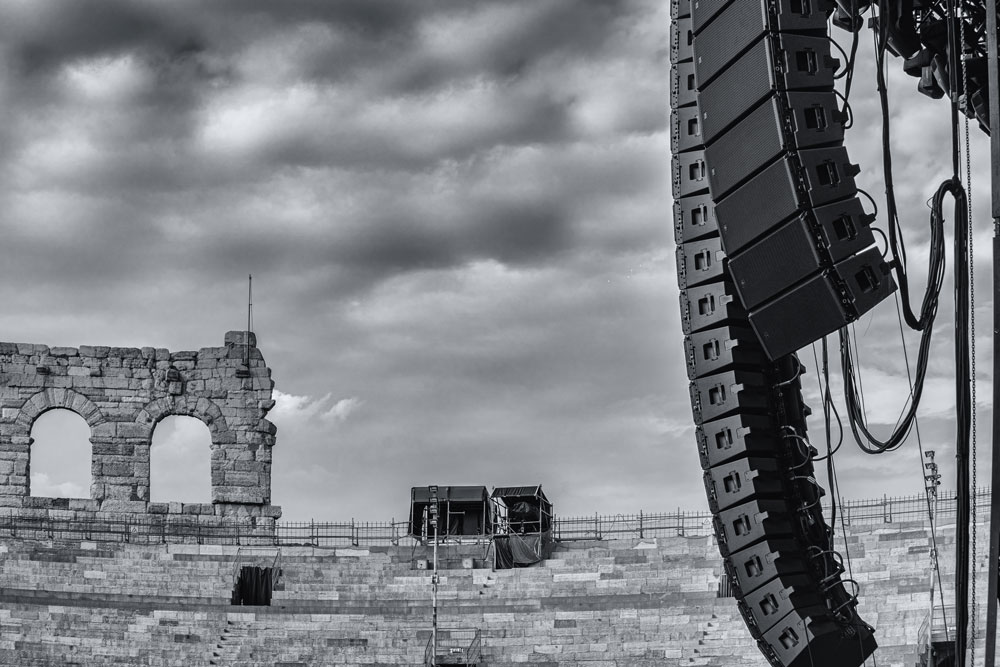

The GTX 12 is a 3-way line array module for large-scale, high-demanding touring and install applications, indoors and outdoors. Equipped with eight best-in-class transducers, it offers excellent playback quality and optimized directivity. Up to 24 GTX 12 modules can be suspended on a single fly-bar.

UNLEASHING THE POWER OF PRECISION

THE TOUR SOUND SOLUTION

GTX 12 evolved from TT+ AUDIO’s continued effort to deliver powerful and trustworthy sound reinforcement systems for demanding sound providers. Whether for large concerts, festivals or permanent installations, the GTX 12 system delivers the best possible audio experience, surpassing any product TT+ AUDIO has ever created.

THE POWER OF SYMMETRY

The symmetrical multi-ply enclosure design and component topology produce consistent coverage from left to right. Symmetrical component positioning and special DSP crossover filtering provide constant directivity and perfect continuity of the hemicylindrical wave directivity without lobes and discontinuities. Frequency modulations are avoided by the optimized active crossover design.

POLYUREA COATING ADVANTAGES

All TT+ AUDIO enclosures are finished with a highly durable polyurea coating that provides excellent waterproofing and corrosion protection and withstands abrasion, impacts, and mechanical stress. Its extreme elasticity maintains flexibility even in low temperatures - perfect for enclosures prone to vibrations such as high-power subwoofers. It also exhibits strong chemical resistance and does not emit any VOCs (volatile organic compounds), making it environmentally friendly and safe for human health.

LAMINAR FLOW PORTS

With classic bass reflex ports, the air flow becomes turbulent, and the vortices become audible. All GTX / GTS loudspeakers have vented ports designed to achieve optimized aerodynamic (laminar flow) behavior of the air motion, resulting in increased efficiency, reduced distortion, and improved sound quality.

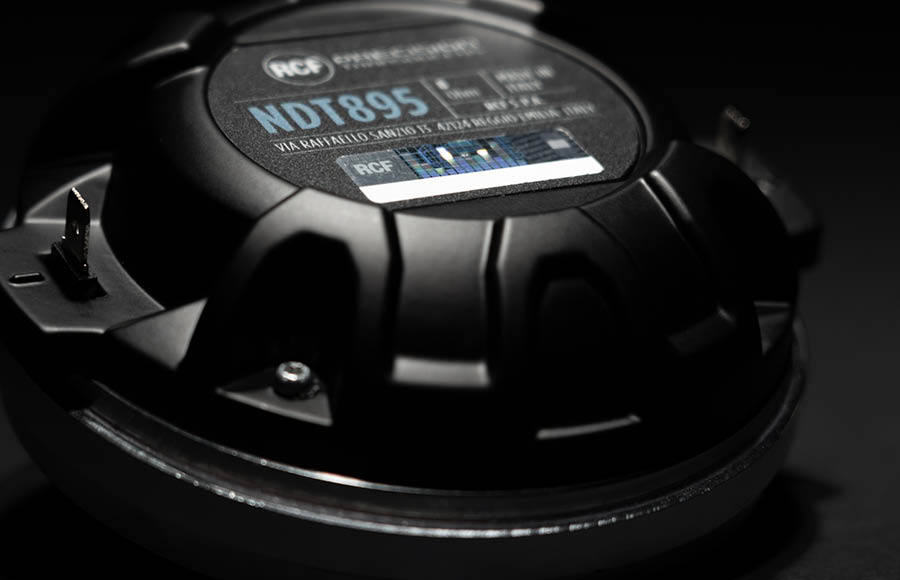

HIGH FREQUENCY

Boasting two 3” rugged titanium dome compression drivers with a high flux density neodymium magnet, a 3-inch voice coil and the exceptional capabilities of the 4PATH waveguide, the HF section effectively capitalizes on its low crossover point, resulting in a phase-coherent coverage of 90° x 10°.

MID FREQUENCY

Critical mid-range frequencies rely on the high output design of the four 6-inch neodymium midrange transducers with 2” voice coils in coplanar configuration, with minimal power compression characteristics and low harmonic distortion.

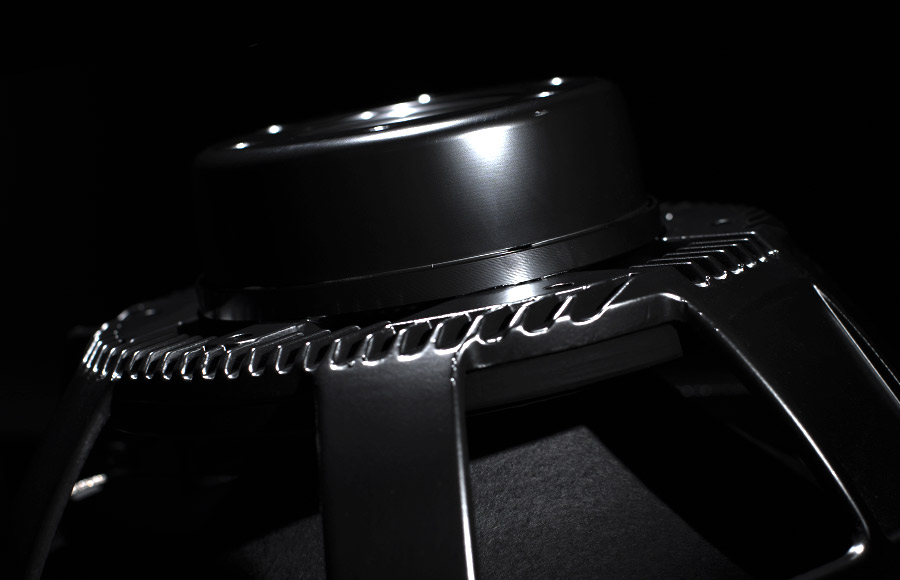

LOW FREQUENCY

Two 12” HyperVented woofers with 3.5” inside-outside voice coils and high-grade neodymium magnets are the solid foundation of the GTX 12. High-damping cone materials and an extremely fast motor section provide remarkable dynamic range and detailed reproduction.

ENCLOSURE AND RIGGING HARDWARE

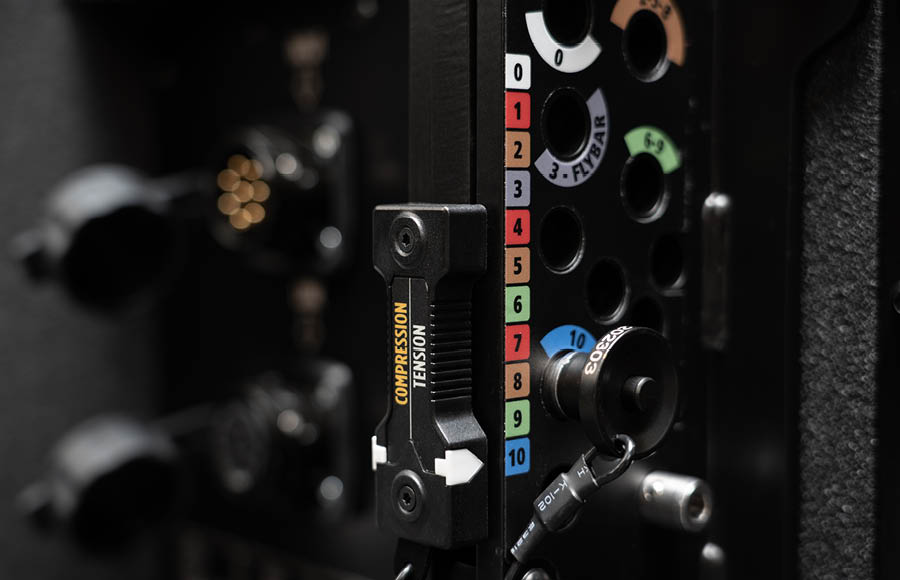

The sturdy weather-resistant birch multi-ply enclosure with durable polyurea coating features optimized hardware for speed and efficiency, providing streamlined suspension with anti-rattle front locks and a unique captive rear hinge bar mechanism that slips into the angle preset position when hoisting (Tension Mode) or pulling back the array (Compression Mode). The optional cart (Model# KRT-WH001) allows for the transport of four GTX 12 enclosures, with custom-designed protective covers for safe handling.
