GS 60
GARDEN SPEAKER
- Body made of linear low-density polyethylene
- Coaxial transducer with 5,25"oofer and 1,20'' tweeter
- Suitable for installation on different surfaces
- Can be used in constant voltage lines 100V / 70V or in low impedance (8 ohm)












Merkmale
- Body made of linear low-density polyethylene
- Coaxial transducer with 5,25"oofer and 1,20'' tweeter
- Suitable for installation on different surfaces
- Can be used in constant voltage lines 100V / 70V or in low impedance (8 ohm)
- Protection grade IP56

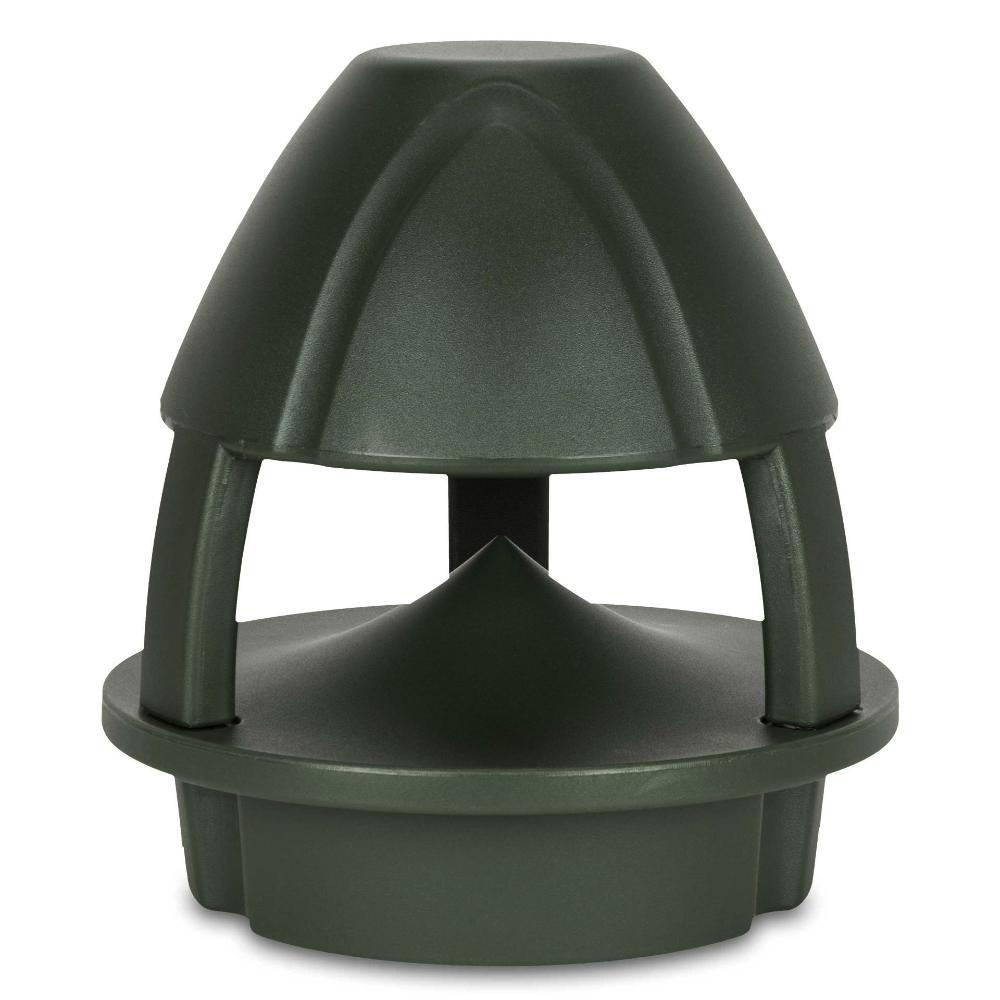

GS 60 is an outdoor speaker suitable for gardens that includes a 5” coaxial loudspeaker and an internal transformer for 100V / 70V constant voltage lines. GS 60 can be placed on several surfaces, such as wood, concrete or into the ground.
Part number:
13133084
GS 60
EAN 8024530012090
Spezifikationen
Spezifikation
Frequenzgang (-10dB):
60 Hz ÷ 20000 Hz
Max SPL @ 1m:
111 dB
System-Empfindlichkeit:
90 dB
Power sektion
Nominalimpedanz:
8 ohm
Leistungsaufnahme:
60 W
Paek Power:
240 W PEAK
Enpfohlener Verstärker:
120 W
Schallwandler
Dome Tweeter:
1.3''
Woofer:
5.5''
Input/Output sektion
Transformator mit Konstantspannung:
70/100 V
Auswahl der Leistung 1:
32 W - 313 ohm
Auswahl der Leistung 2:
16 W - 625 ohm
Auswahl der Leistung 3:
8 W - 1250 ohm
Auswahl der Leistung 4:
4 W - 2500 ohm
Auswahl der Leistung 5:
2 W - 5000 ohm
Auswahl der Leistung 6 (100V):
1 W - 10000 ohm
Standardkonformität
IP Schutzgrad:
IP 56
Physikalische daten
Gehäuse Material:
PE Low Density
Farbe:
Green
Größe
Höhe:
409 mm / 16.1 inches
Durchmesser:
365 mm / 14.37 inches
Versandinformationen
Verpackung Höhe:
460 mm / 18.11 inches
Verpackung Breite:
440 mm / 17.32 inches
Verpackung Tiefe:
440 mm / 17.32 inches
Verpackungsgewicht:
5.74 kg / 12.65 lbs
Downloads
RCF-Produkte werden ständig verbessert. Alle Spezifikationen können daher ohne vorherige Ankündigung geändert werden.
