Merkmale
  • High Quality 2-way passive loudspeaker

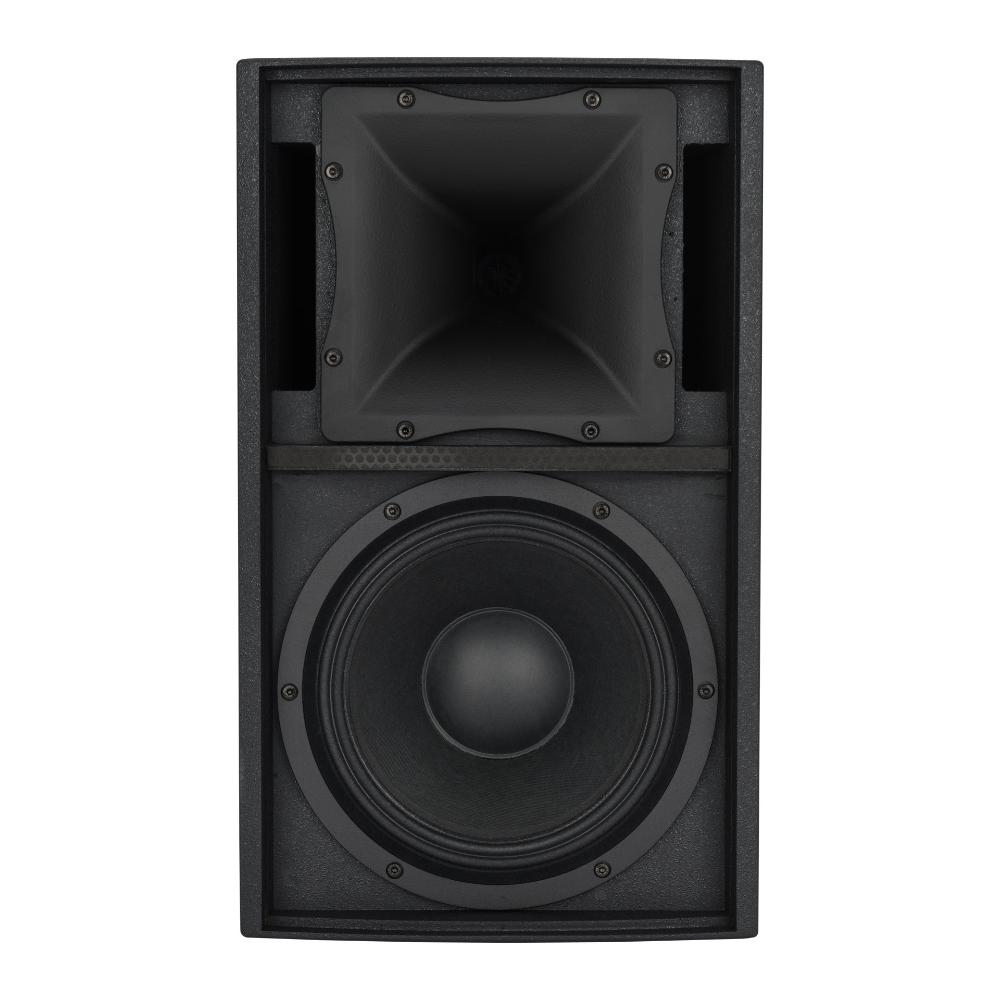

  • 1 x 8" woofer, vented
  • 1 x 1" in driver, on 90°x60° CD horn
  • High Power Handling ‘Low Impedance Compensated Crossover', with electronic protection for the driver
  • 150W AES power handling
  • Steel Front Grille with robust double mesh polyester clothing
  • Rotatable RCF front logo

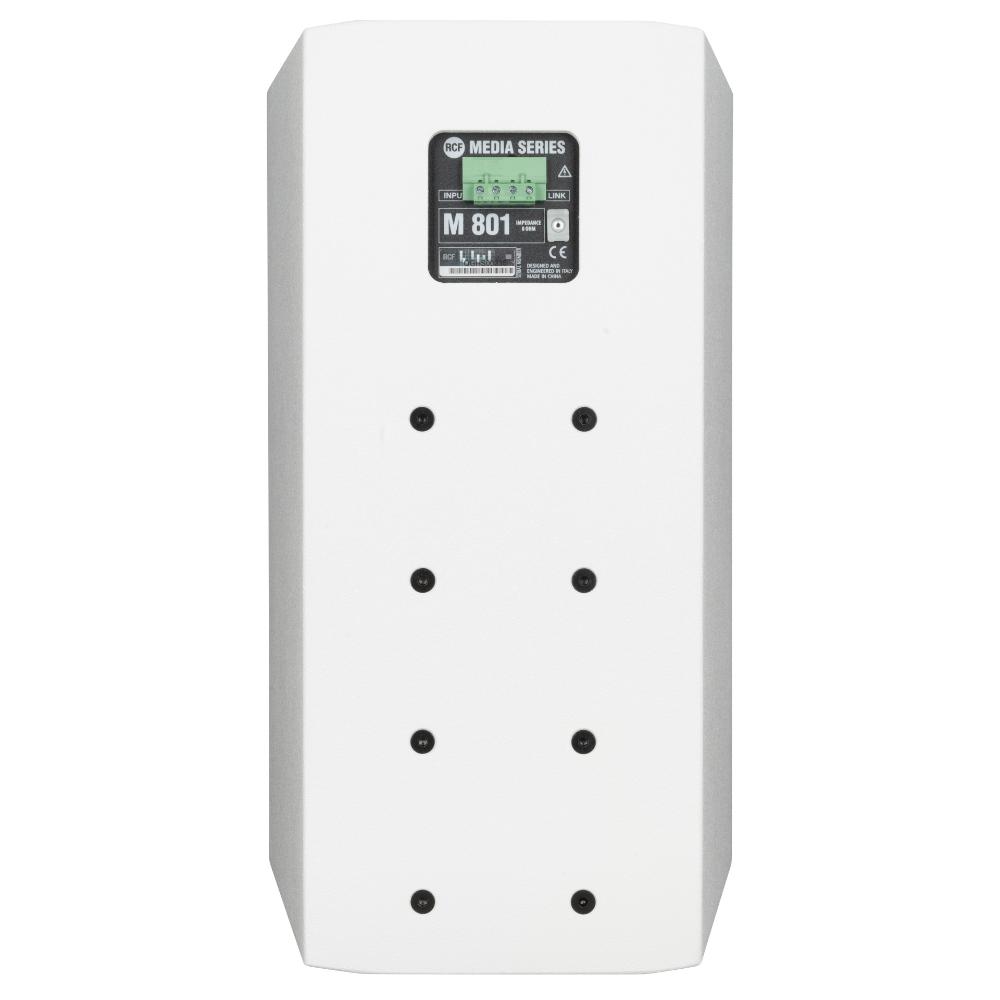

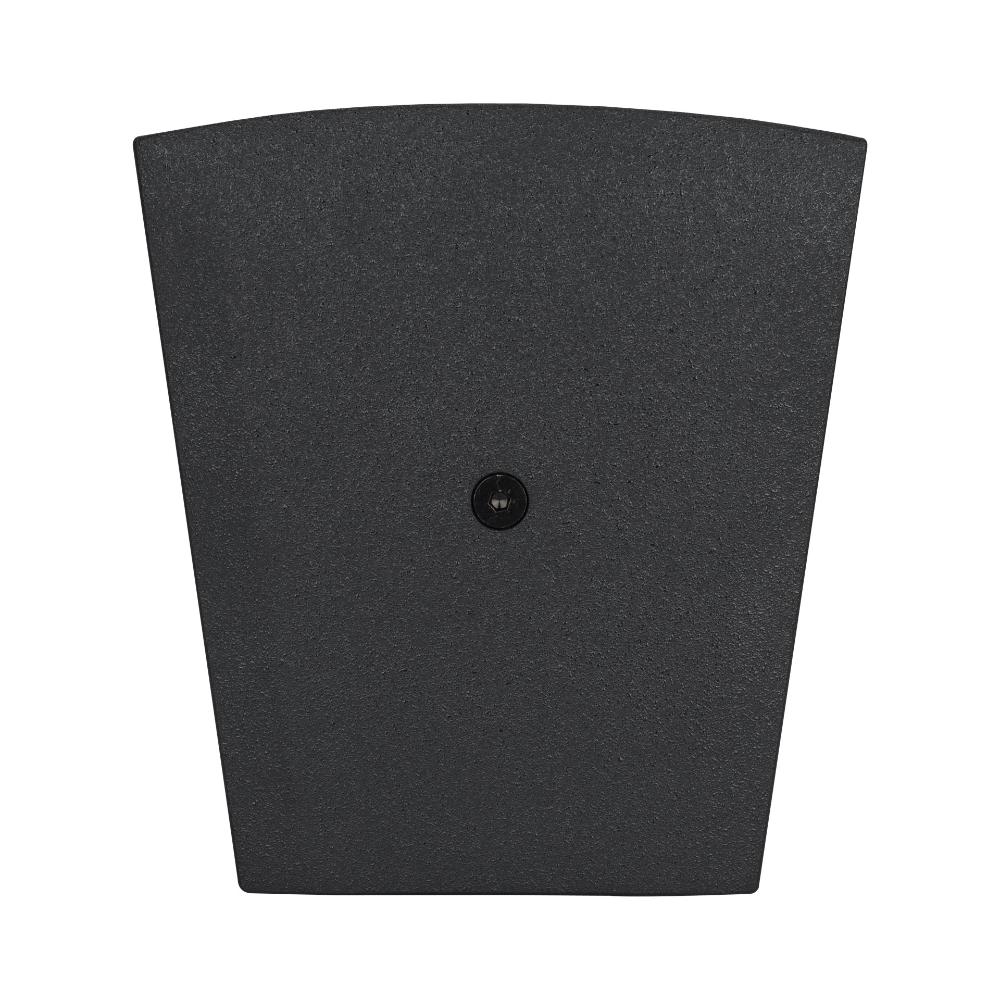

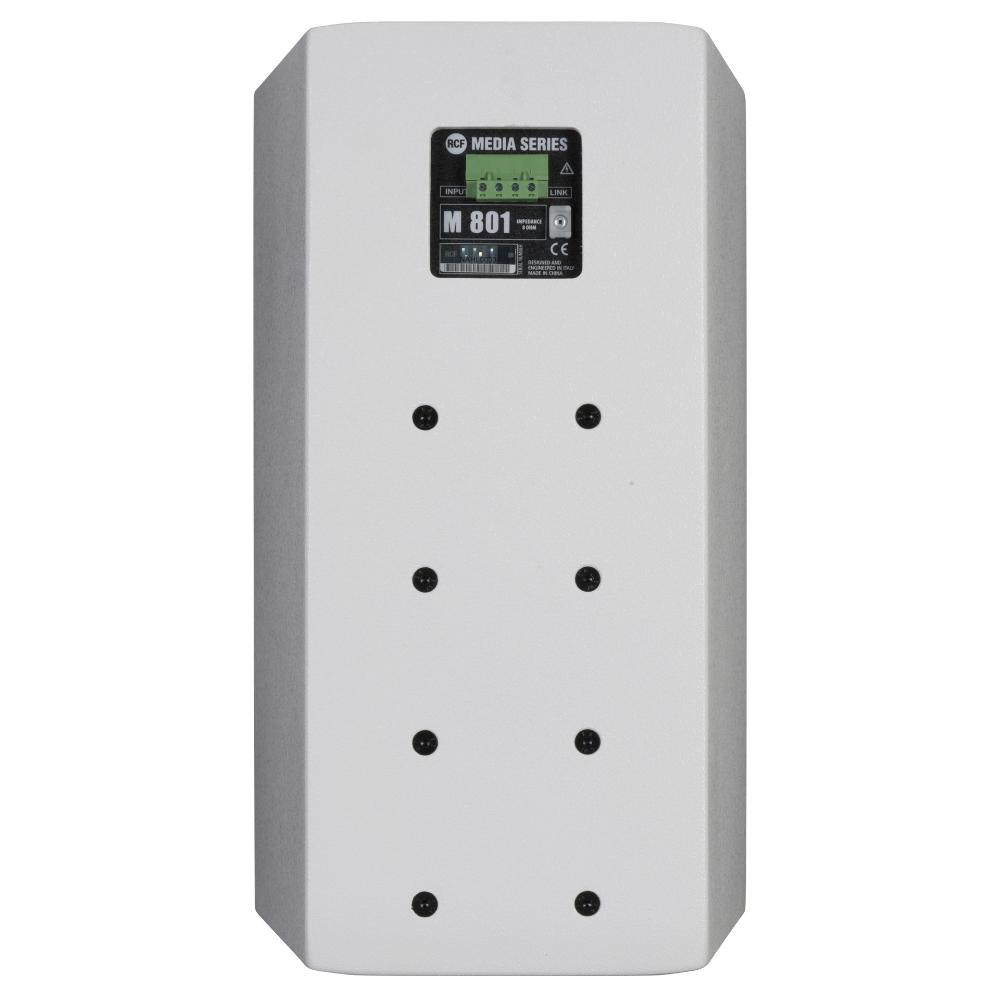

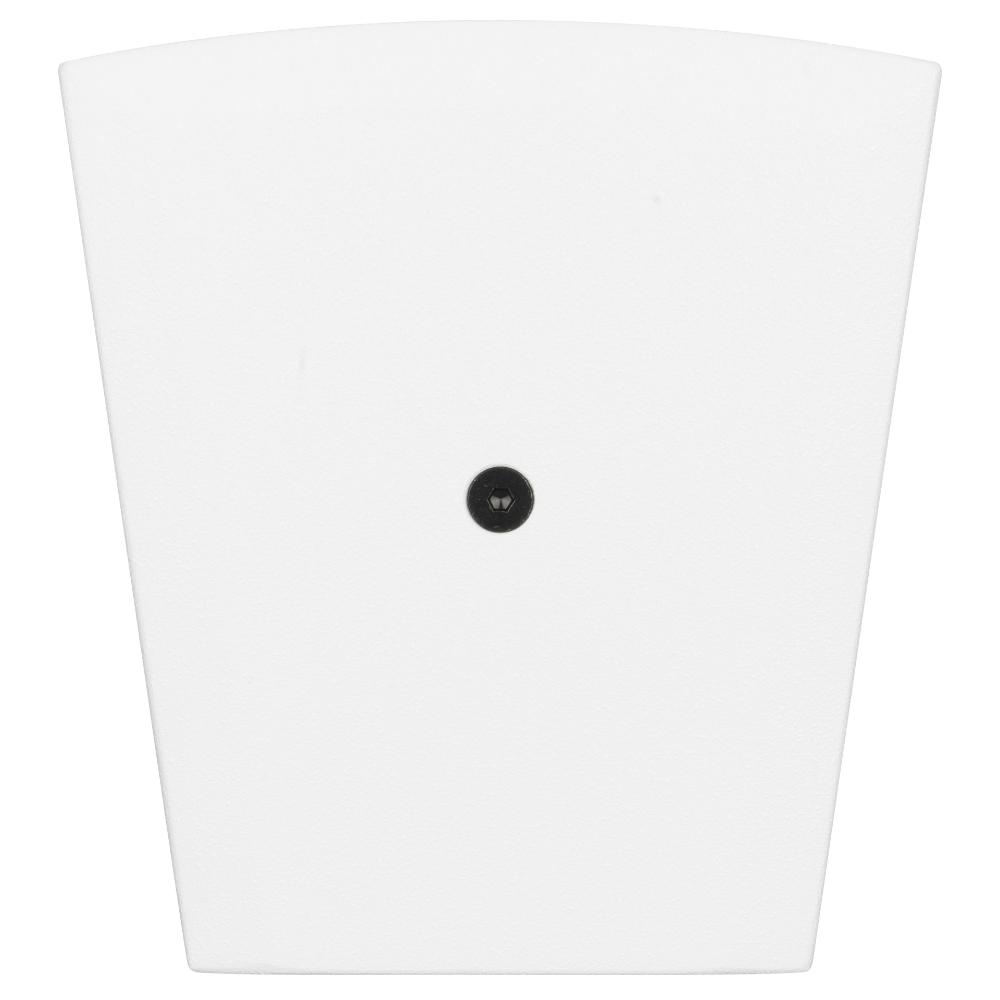

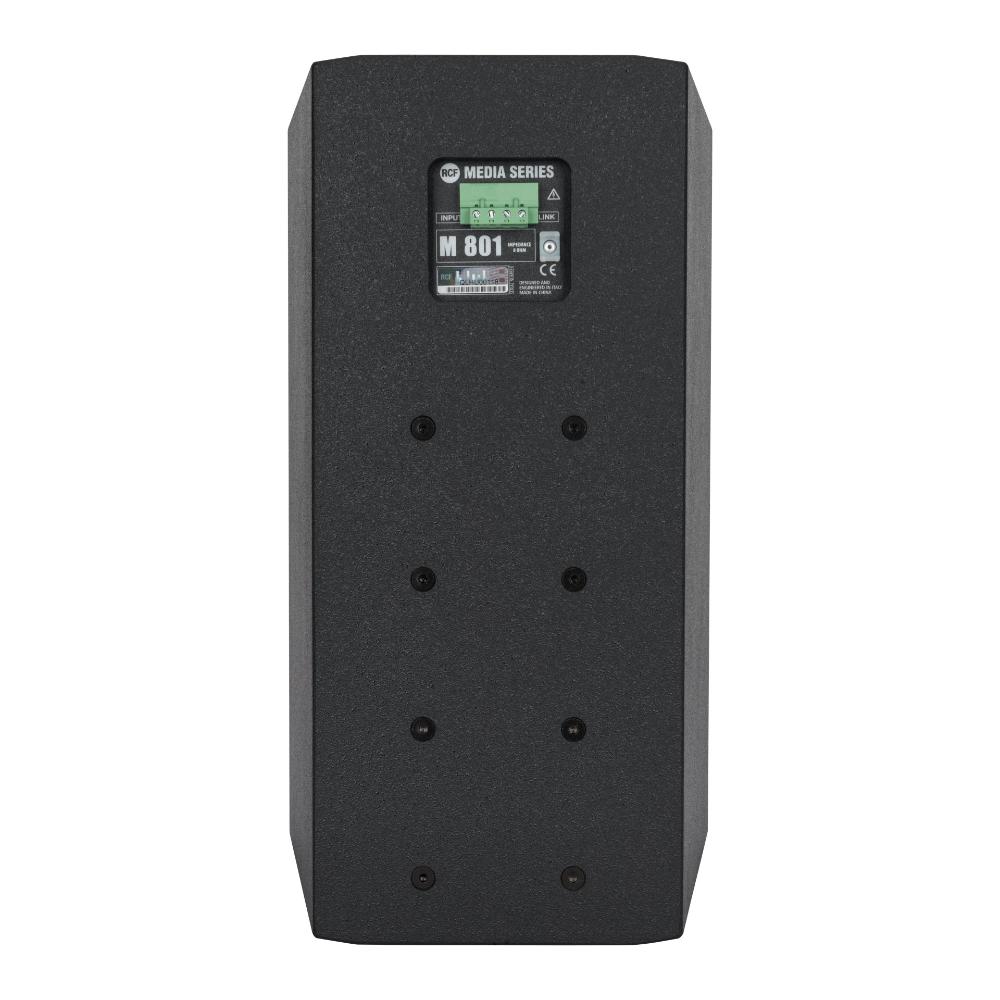

  • Installation points are available on the rear panel, top and bottom

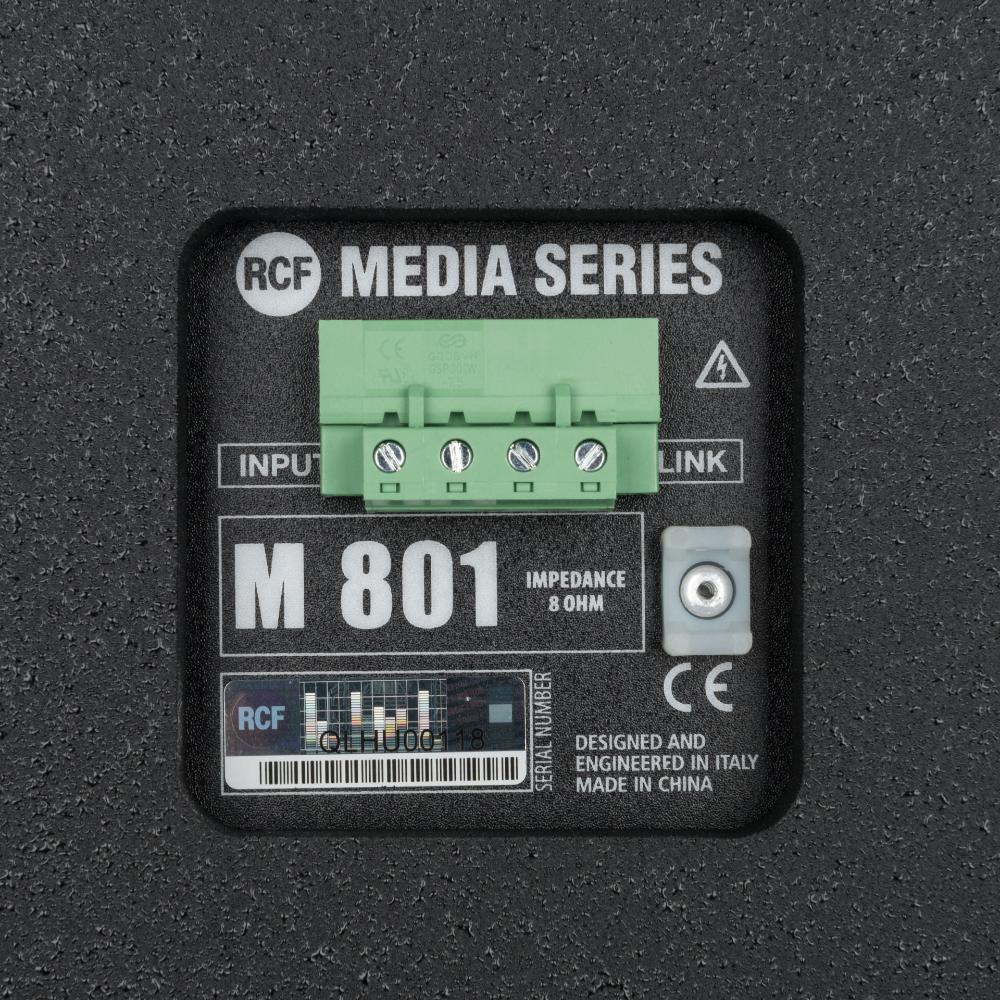

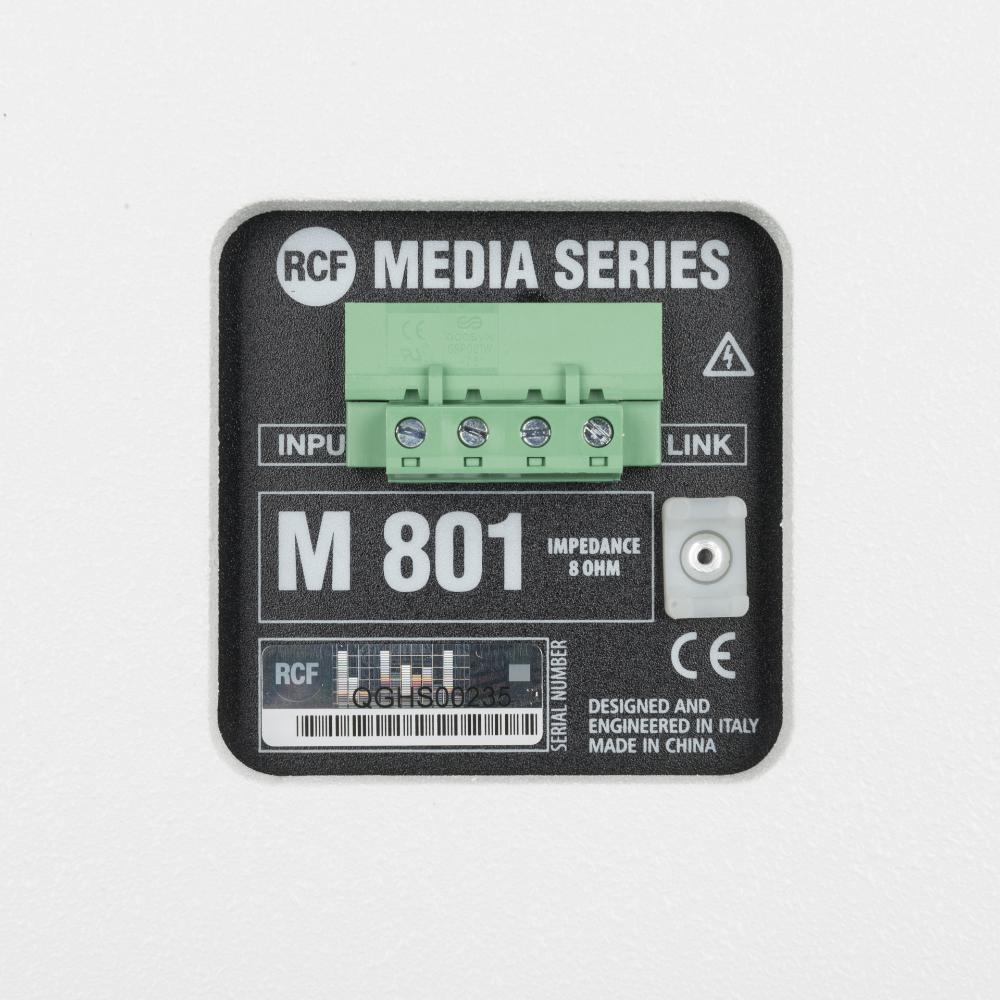

  • All models have a 4-pin EUROBLOCK connector (audio input and parallel link output)

M 801 is a multipurpose two-way full-range speaker system, suitable in a wide range of installations. The compactness, together with the elegant and neutral design with accurate finishing make M 801 suitable for almost any environment and architectural constraint. Available mounting accessories allow you to use the M 801 wall or ceiling mounted, with reference to the several possible applications. The M 801 has a controlled dispersion and delivers undistorted SPL value above any expectation from such a compact speaker system. The M 801 features high sensitivity thanks to the use of oversized magnets and a comfortable sound quality with smooth and wide frequency response performed thanks to the Kapton diaphragm compression driver loaded on a constant directivity horn. The LICC crossover design includes an electronic protection on high frequency device.


ARCHIVED

Part number:

13041004

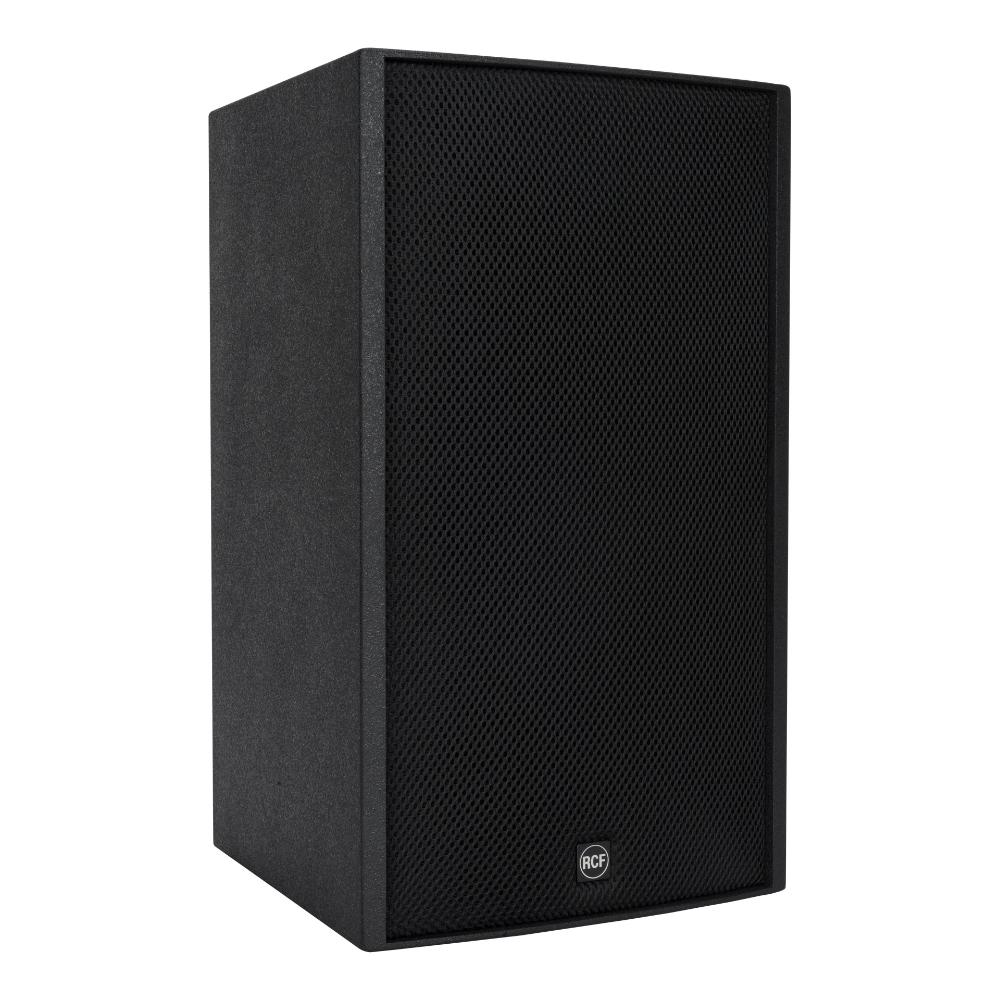

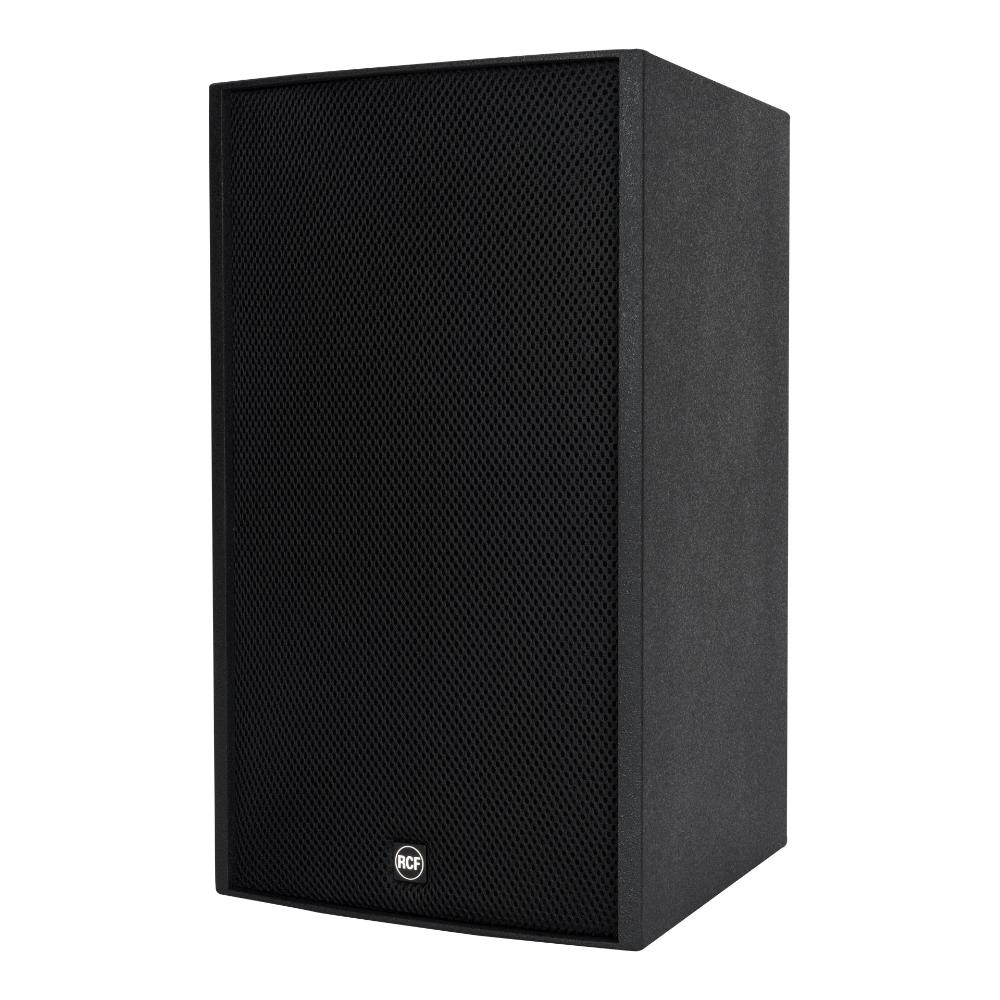

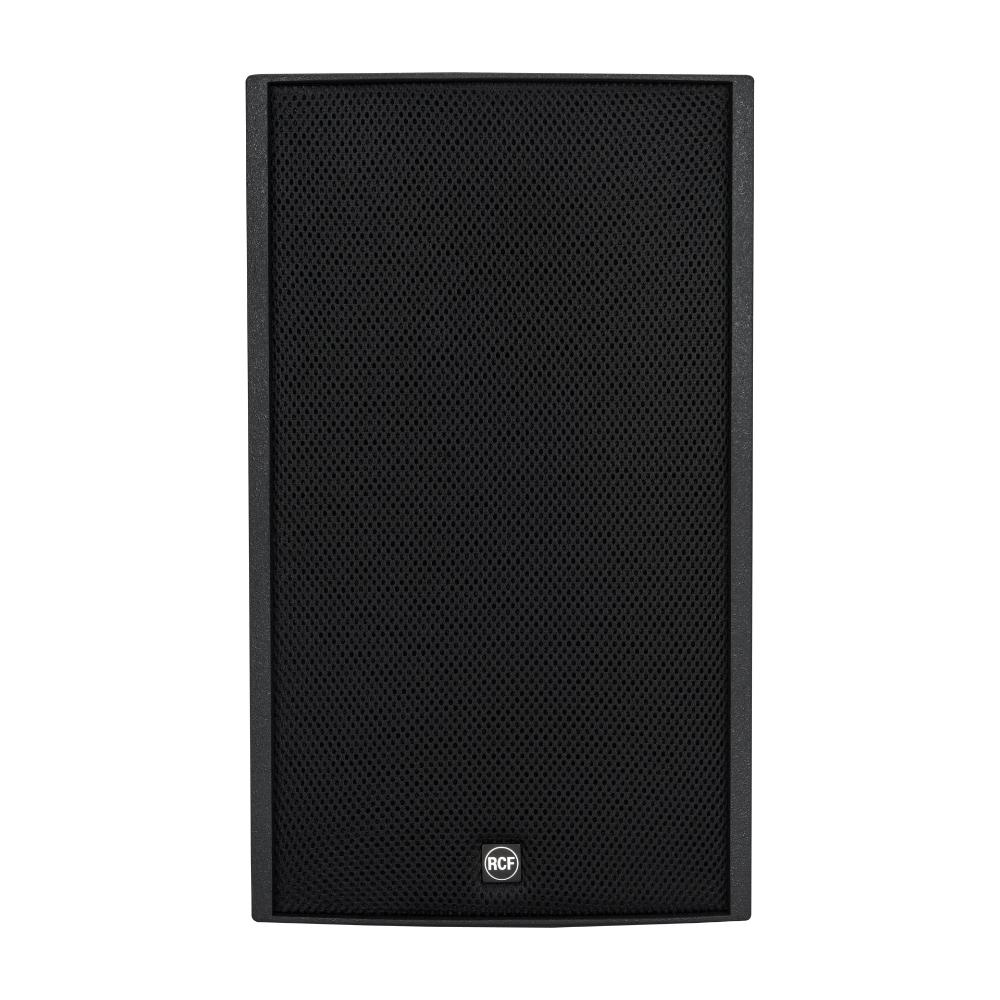

M 801
Black, EAN 8024530007560

13041025

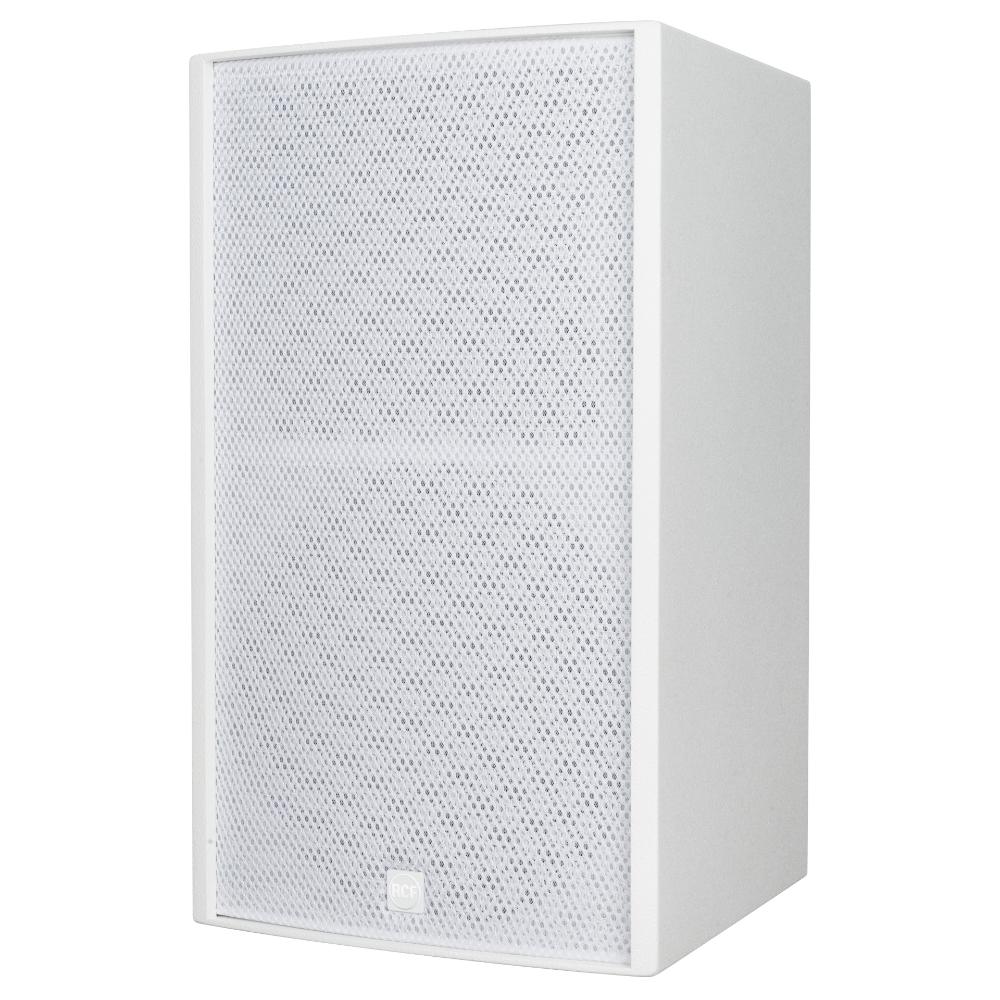

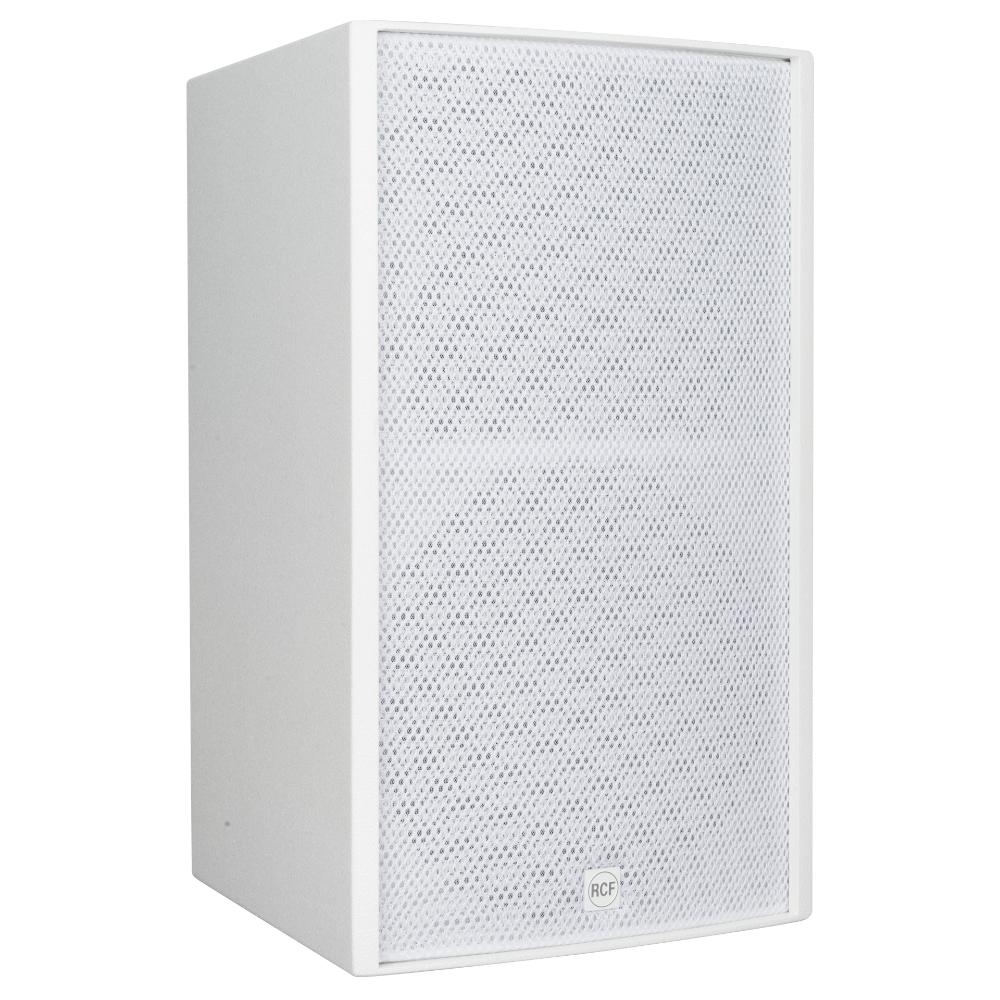

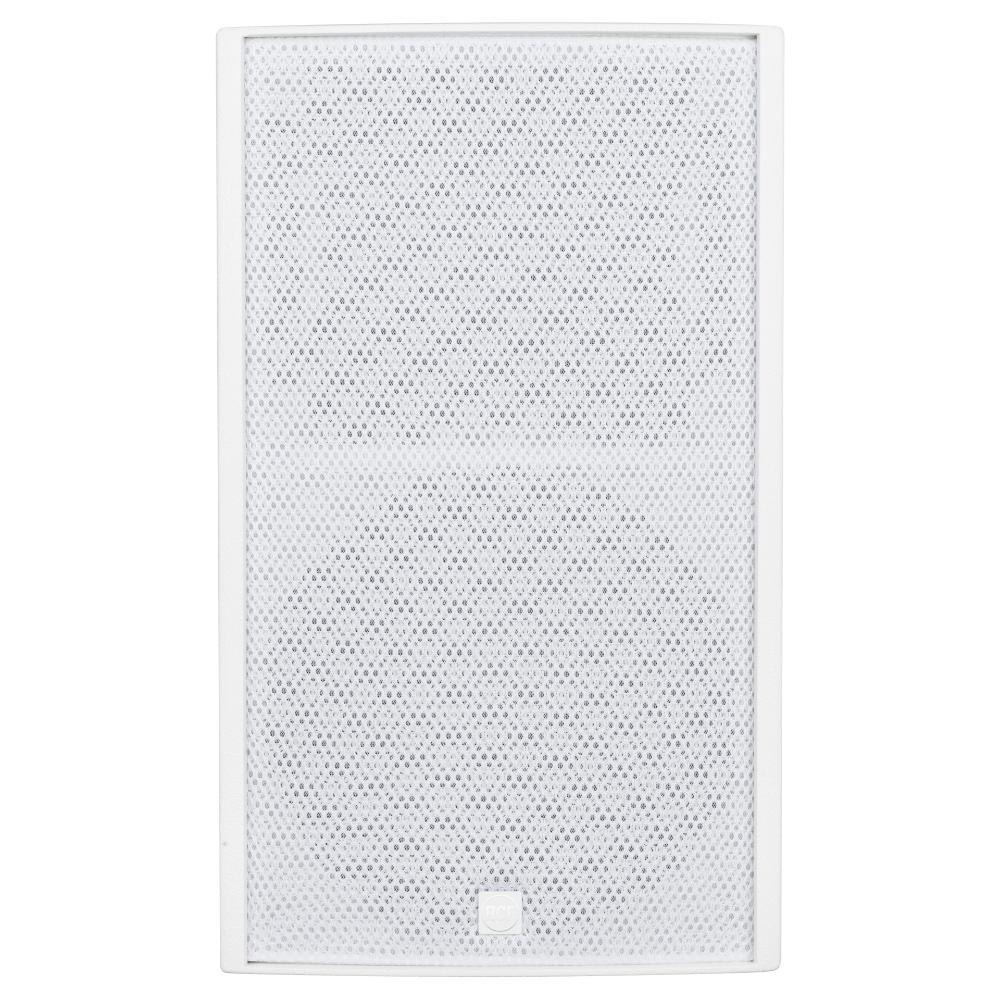

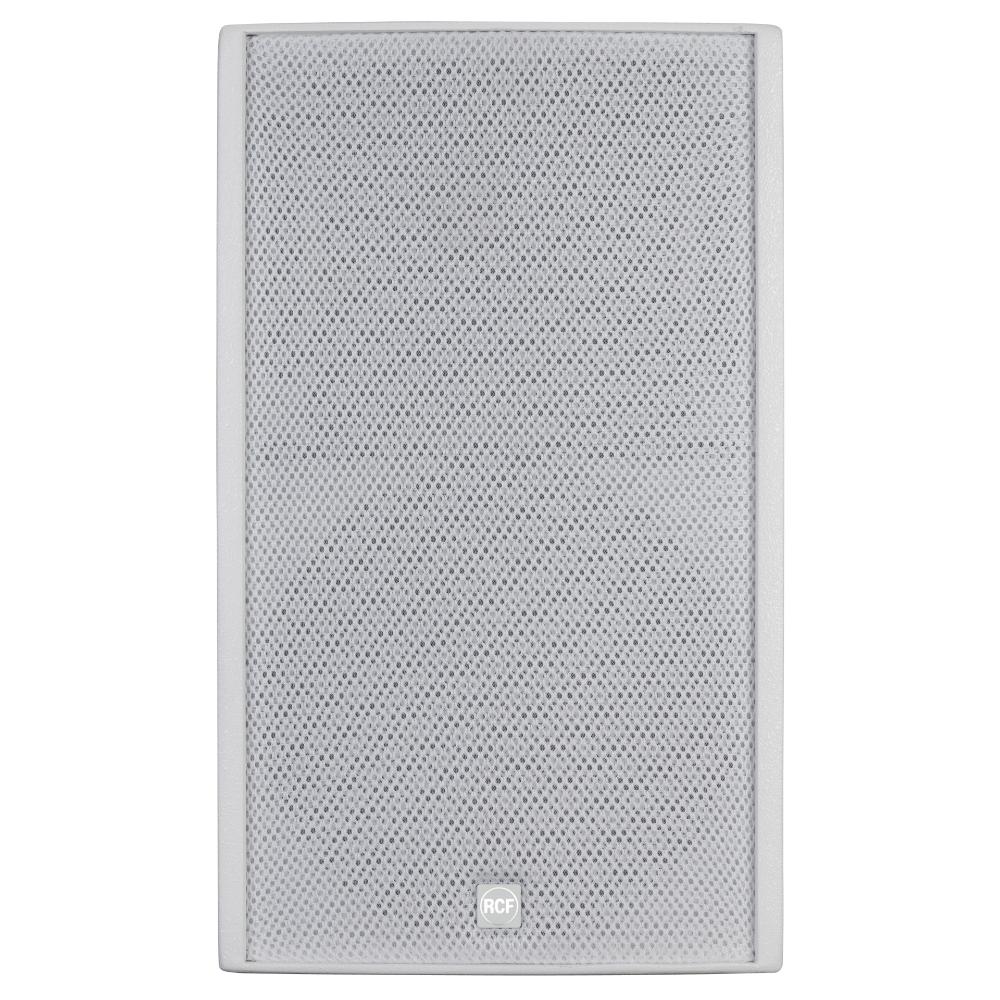

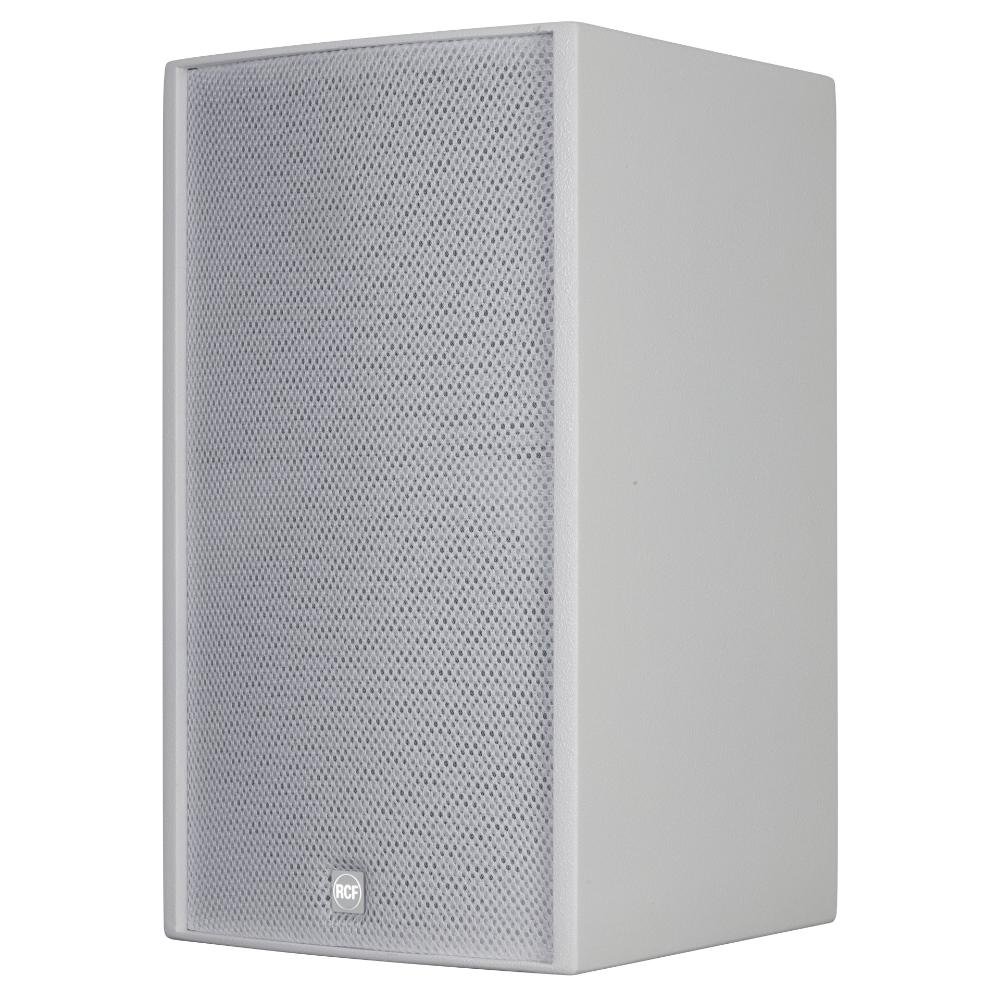

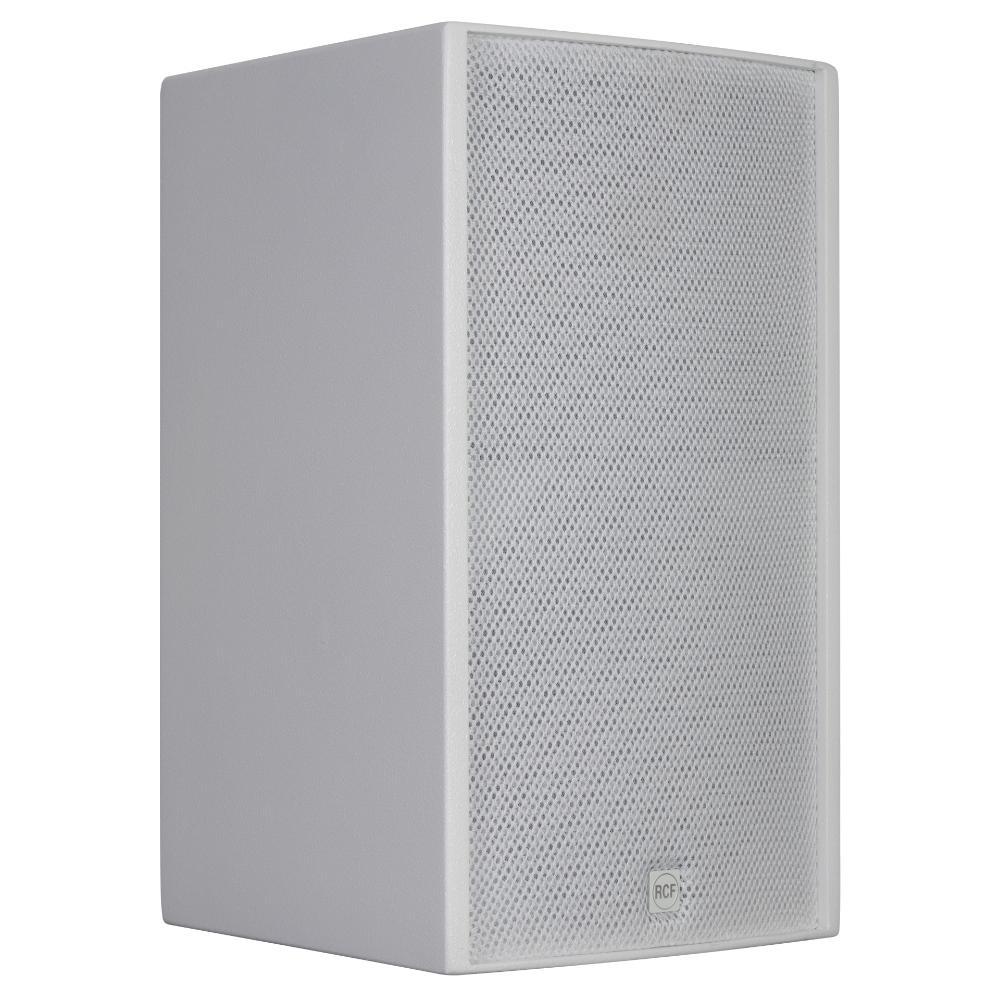

M 801 W
White, EAN 8024530011116

Spezifikationen
Spezifikation
Frequenzgang (-10dB)
65 Hz ÷ 20000 Hz
Max SPL @ 1m:
120 dB
Horizontaler Abstrahlwinkel:
90°
Vertikaler Abstrahlwinkel:
60°
Richtcharakteristik Index Q
10
System-Empfindlichkeit
93 dB
Power sektion
Nominalimpedanz
8 ohm
Leistungsaufnahme
150 W
Paek Power
600 W PEAK
Schutzschaltungen
Dynamic active mosfet
Übergangsfrequenz
1800 Hz
Schallwandler
Kompressionstreiber:
1.0'', 1.5'' v.c
Woofer
8'', 2.0'' v.c
Input/Output sektion
Eingangsbuchsen
Euroblock
Ausgangsanschlüsse
Euroblock
Standardkonformität
Safety agency
CE compliant
Physikalische daten
Gehäuse Material
MDF
Hardware
8 x M6, 2 x M10
Gitter
Steel with robust double mesh polyester clothing
Farbe
Black, White
Größe / Gewicht
Höhe
448 mm / 17.64 inches
Breite
261 mm / 10.28 inches
Tiefe
282 mm / 11.1 inches
Gewicht
11 kg / 24.25 lbs
Versandinformationen
Verpackung Höhe
524 mm / 20.63 inches
Verpackung Breite
354 mm / 13.94 inches
Verpackung Tiefe
333 mm / 13.11 inches
Verpackungsgewicht
12.4 kg / 27.34 lbs
