Merkmale
  • High quality cardioid microphone
  • 46 cm gooseneck length
  • Active microphone LEDs ring
  • Push-to-lock button for mic mixed mode
  • 1 W built in loudspeaker for sound reinforcement

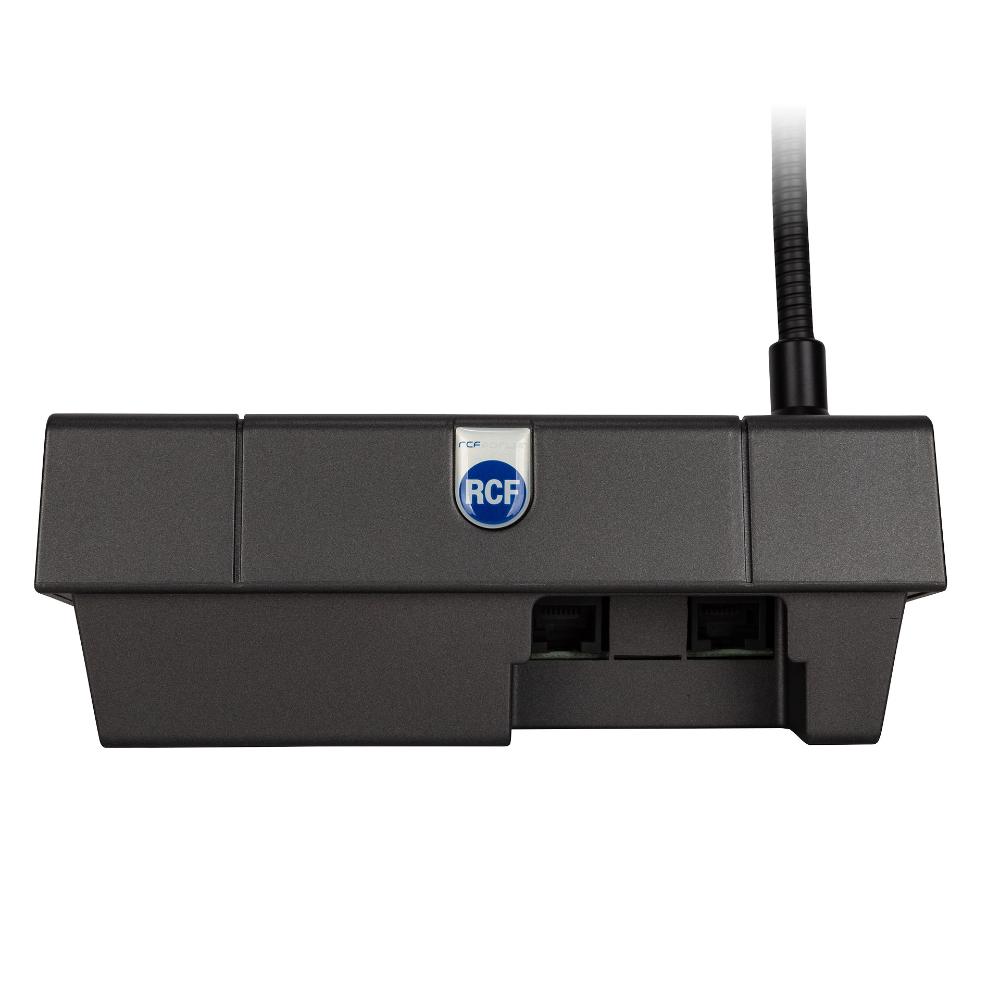

  • Connection to MMS 3405P through CAT5 FTP cable
  • Robust shielded enclosure suitable for desktop or semi-flush mounting

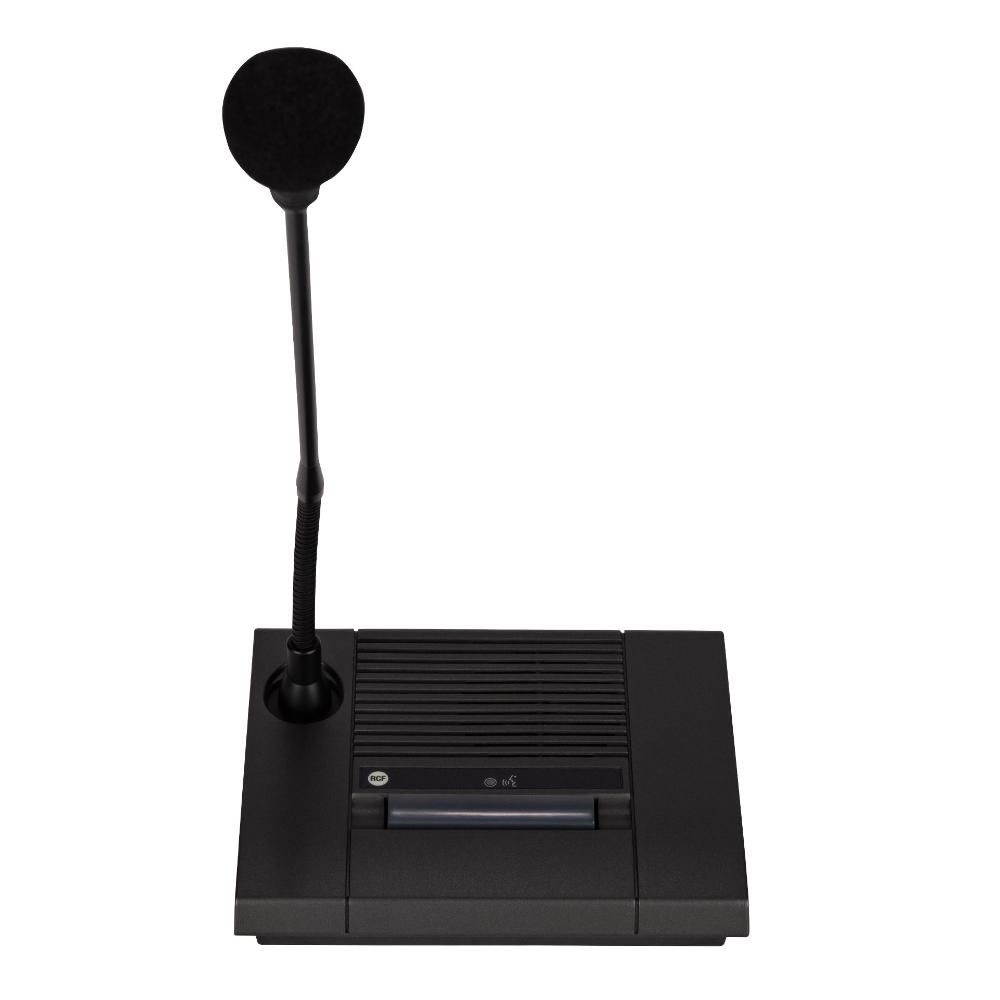

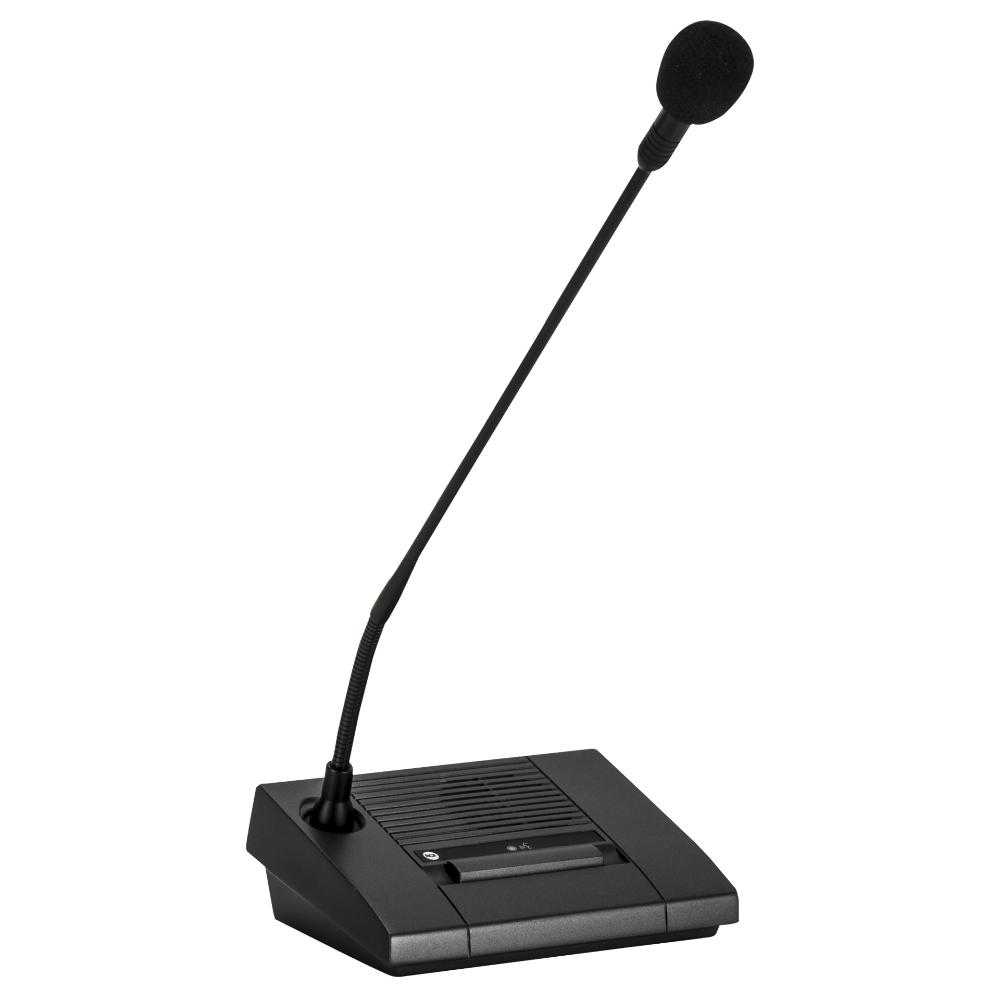

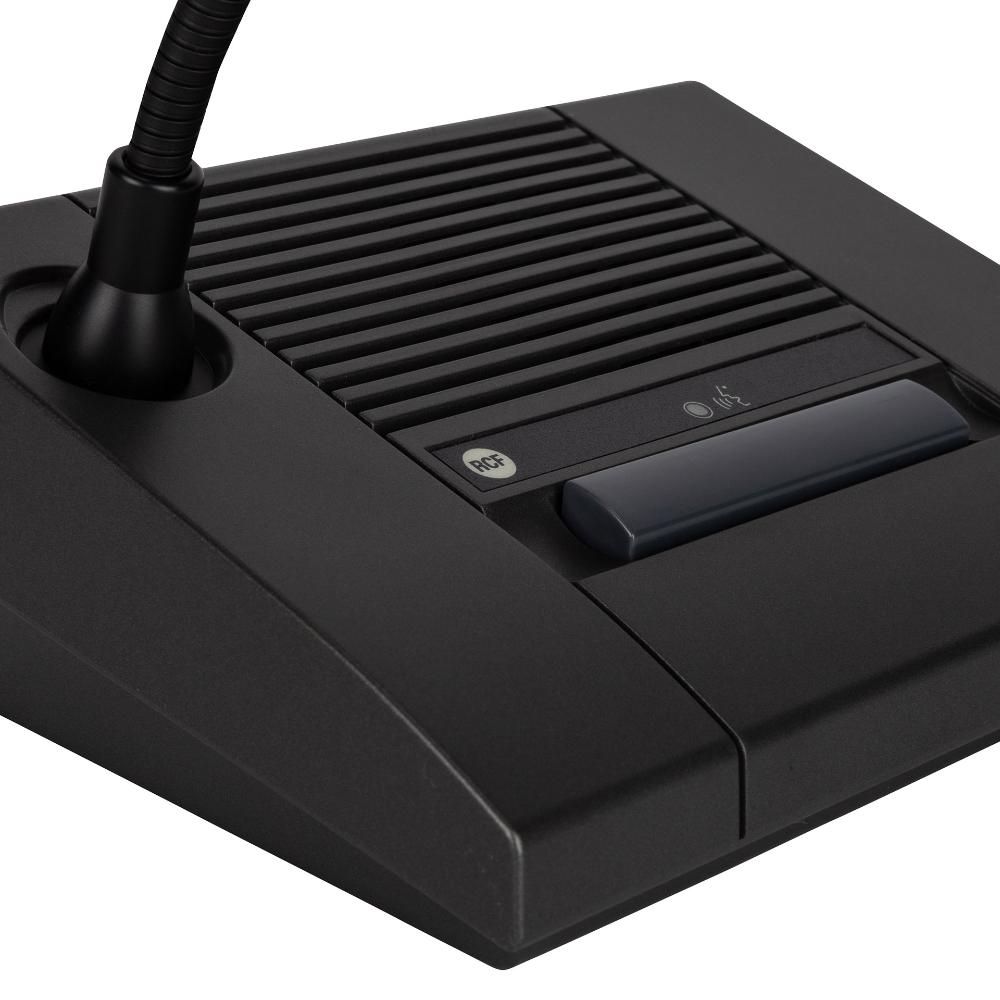

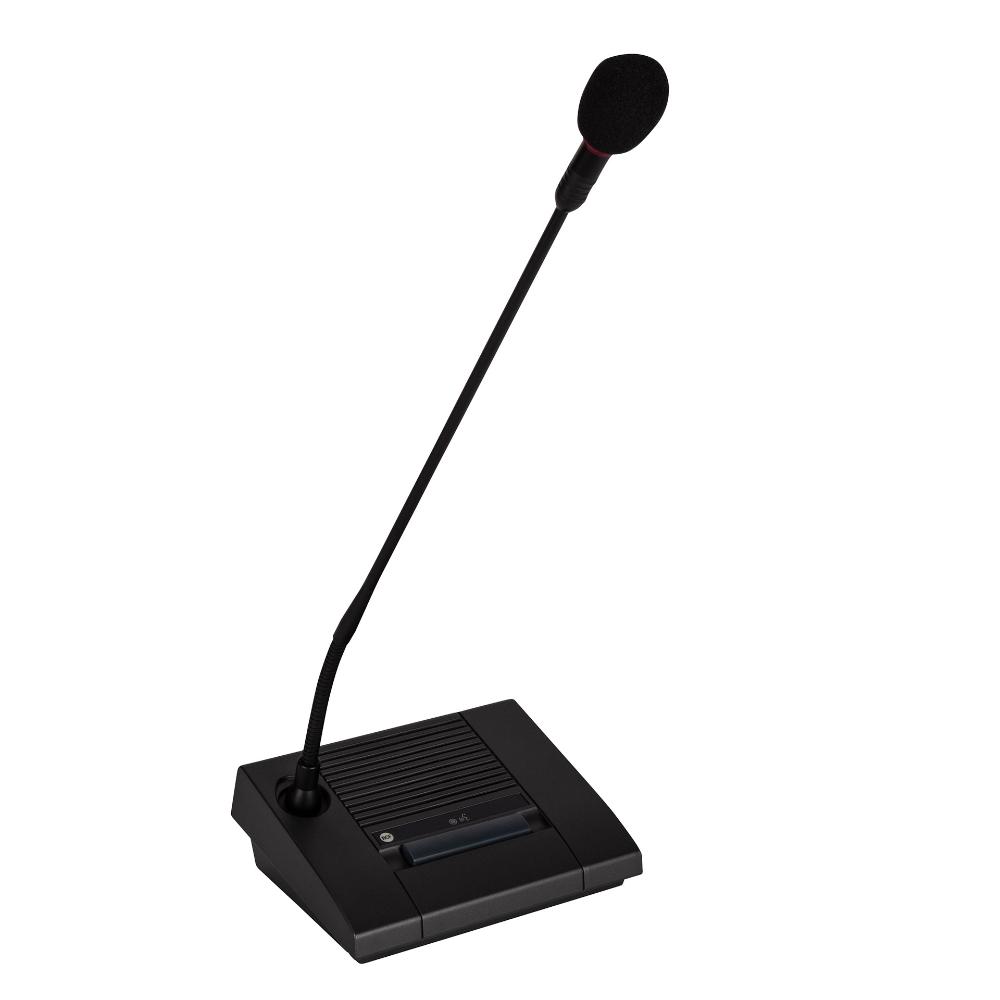

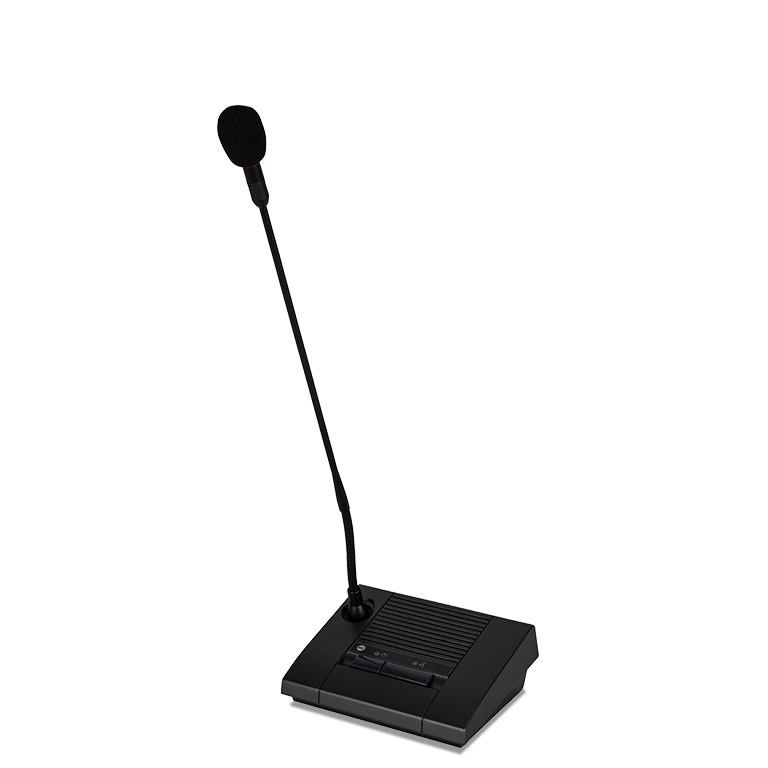

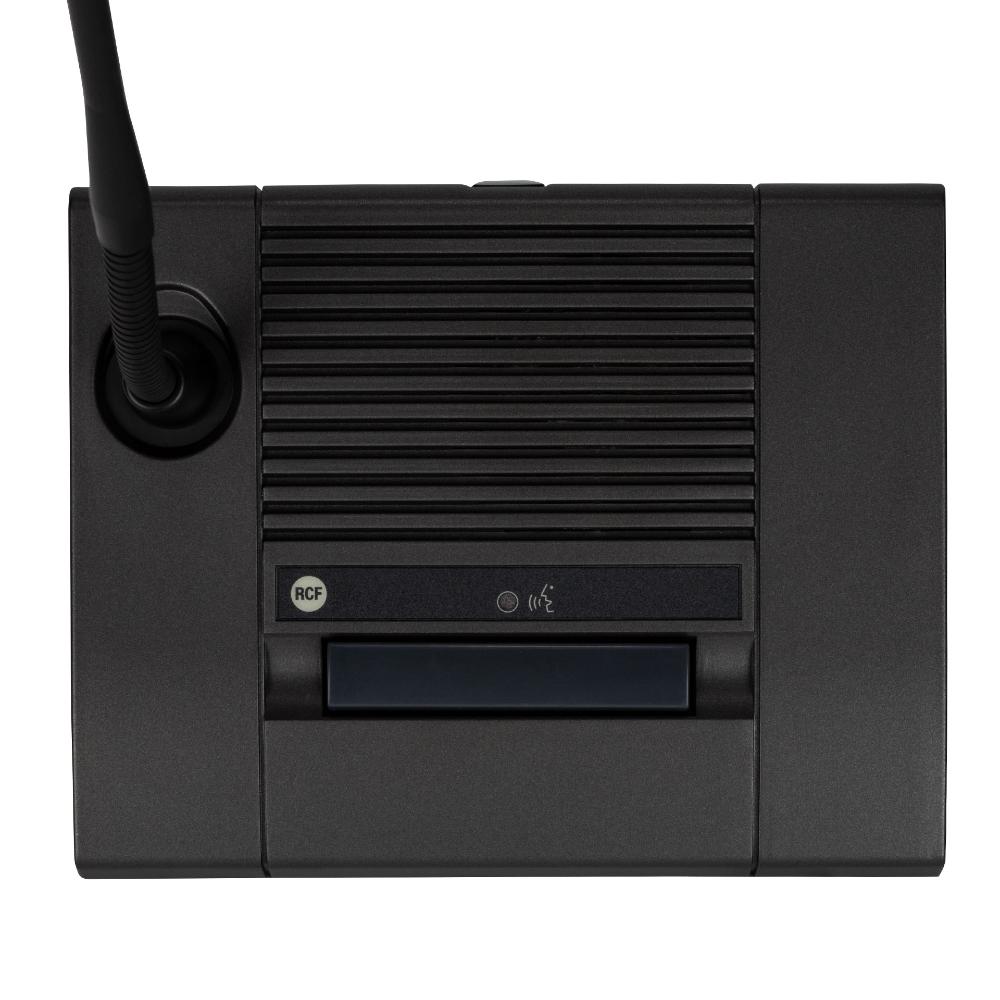

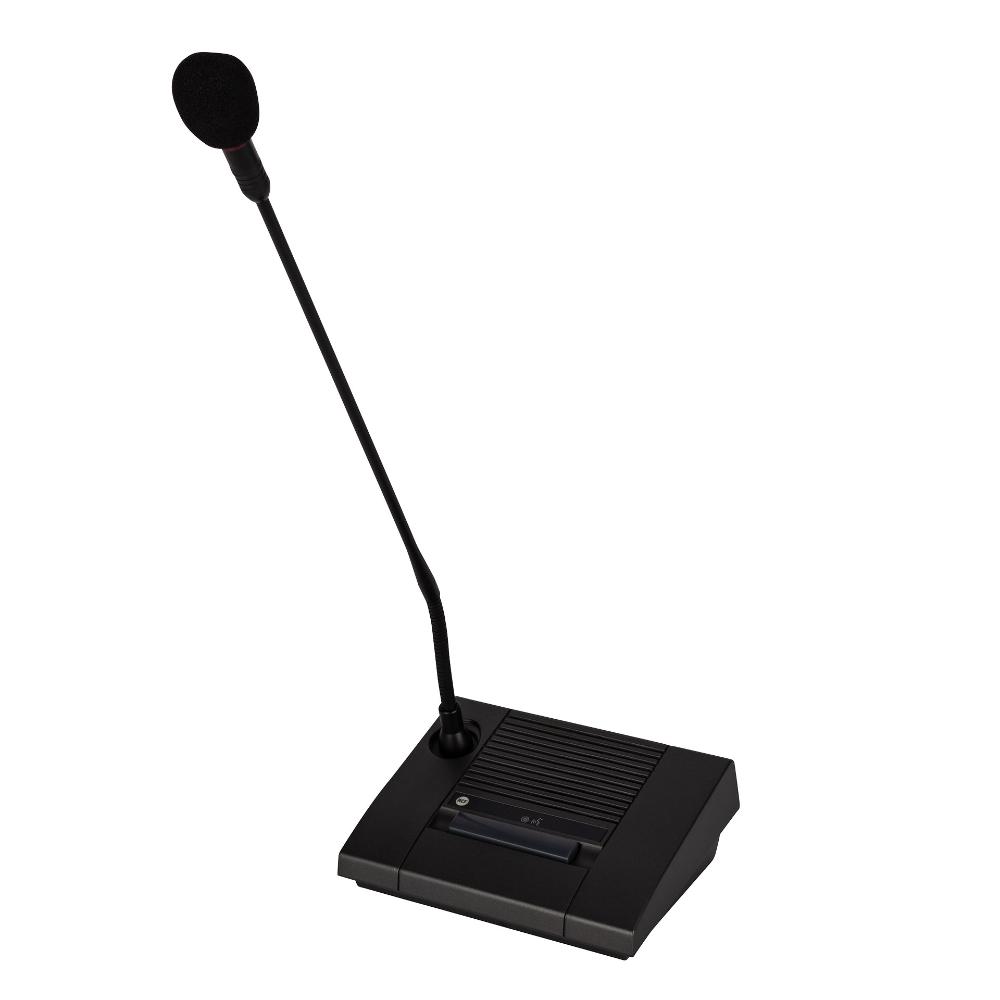

The desktop delegate microphone set MMS 3404D features a latched button to enable the microphone in mixed mode with other active MMS 3404D and MMS 3405P (if no priority button has been pressed on chairman’s set). The button is completed with a LED indicator, lit when pressed. Furthermore the microphone capsule has a LED ring that is ON when the microphone is active. The 46 cm gooseneck microphone mounted on the console has a cardioid pattern, while the miniature high quality transducer assures a good sound reinforcement in small size rooms without needing an additional sound reinforcement system. MMS 3404D are cascaded directly to one or both inputs available on MMS 3405P, by means of CAT 5FTP cable provided.

Part number:

14322020
MMS 3404D
EAN 8024530010218

Spezifikationen
Mikrofon-spezifikationen
Typ:
Electret
Richtcharakteristik:
Hypercardioid
Empfindlichkeit (dB):
65 dB
Frequenzgang (-3dB):
70 Hz ÷ 18 kHz
Technische daten der konsole
Typ:
Conference
kompatibel mit:
FORUM 3000
LED Anzeige:
Yes
Verbindungen
Verbinder:
RJ45
Kabel:
FTP CAT 5
Maximale Anzahl im Serienverbund (Daisy-Chain):
79
Mixing:
Yes
Standardkonformität
Safety agency:
CE compliant
Physikalische daten
Farbe:
Grey
Größe
Höhe:
63 mm / 2.48 inches
Breite:
170 mm / 6.69 inches
Tiefe:
154 mm / 6.06 inches
Gewicht:
1 kg / 2.2 lbs
Versandinformationen
Verpackung Höhe:
150 mm / 5.91 inches
Verpackung Breite:
520 mm / 20.47 inches
Verpackung Tiefe:
190 mm / 7.48 inches
Verpackungsgewicht:
1.57 kg / 3.46 lbs
