PRECISION TRANSDUCERS

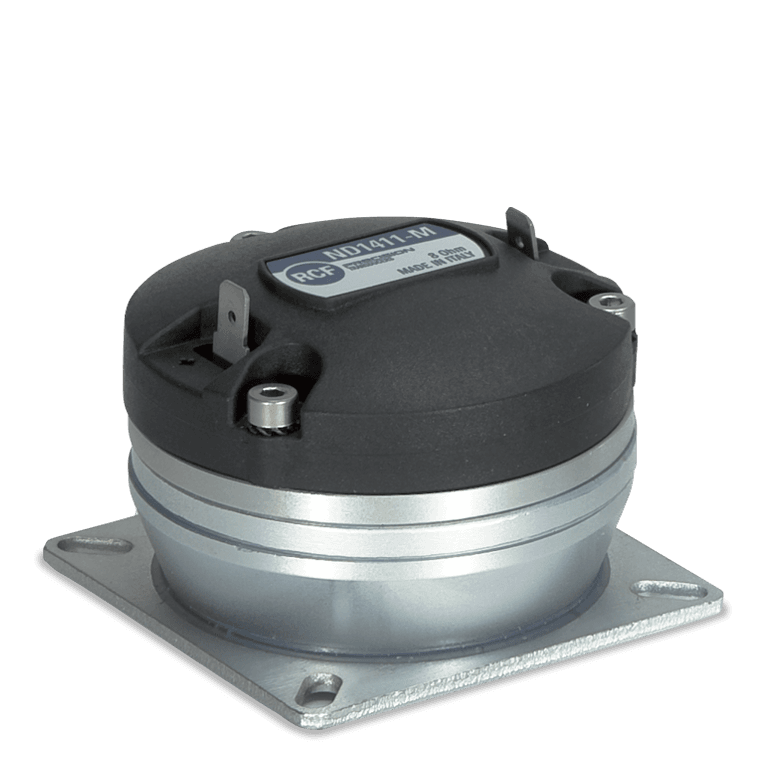

ND1411-M
DRIVER
- 1.5-inch Diaphragm, 1-inch Exit Throat
- 50W continuous program power handling
- Frequency range: 1500Hz - 20kHz
- Optimized geometry radial phase plug


Merkmale
- 1.5-inch Diaphragm, 1-inch Exit Throat
- 50W continuous program power handling
- Frequency range: 1500Hz - 20kHz
- Optimized geometry radial phase plug
- Very compact size for array applications
- Neodymium magnet assembly
- High power handling in only 70mm overall diameter
The ND1411-M is a high performance 1.5-inch diaphragm compression driver with a 1-inch exit throat featuring a single pieces, low compression, radial phase plug. The diaphragm and suspension are precision formed from 0.1mm thick Mylar. The ND1411-M is a very compact size, versatile driver for professional applications.
Part number:
15129019
ND1411-M
8ohm
Spezifikationen
Allgemeine spezifikationen
Austrittsöffnung Halsdurchmesser: (mm) (Zoll)
1.0 inch / 25 mm
Zugehörige Impedanz (Ohm):
8 ohm
Programm Power (Watt)
50 W
Belastbarkeit:
25 W
Empfindlichkeit (dB):
109 dB
Frequenzbereich:
1500 - 20000 Hz
Material Diaphragma:
Mylar
Aufhängungsmaterial
Mylar
Aufhängungskonstruktion:
Radial
Minimale-Impedanz (Ohm):
7.00 ohm
Schwingspulendurchmesser:
1.5 inch / 38 mm
Schwingspulenträgermaterial:
Edgewound Aluminium
Bauform-/Material vom Schwingspulenträger
Straight - Nomex
Layeranzahl:
1
Art von Schichten:
outside
Magnetische Flussdichte (T):
1.7 T
Phase Plug Design:
10 radial slots
Phase Plug Material
PP Composite
Magnet:
Neodymium
Thiele - small parameters
Kraftfaktor (BL-Factor) (T x m):
4.40 T x m
Montagehinweise
Gesamtdurchmesser:
69 mm / 2.72 inches
Gesamthöhe:
51 mm / 2.01 inches
Befestigung:
4 x 6 mm threaded holes at 90°
Größe
Gewicht:
0.69 kg / 1.52 lbs
Versandinformationen
Verpackung Höhe:
50 mm / 1.97 inches
Verpackung Breite:
70 mm / 2.76 inches
Verpackung Tiefe:
70 mm / 2.76 inches
Verpackungsgewicht:
0.72 kg / 1.59 lbs
Downloads
RCF-Produkte werden ständig verbessert. Alle Spezifikationen können daher ohne vorherige Ankündigung geändert werden.
