SUB AX SERIES

Advanced Subwoofers with Crossover Presets for RCF Speakers

SUB AX centralizes speaker management and features pro-level internal controls for system tuning and optimization. AX subwoofers inherit the powerful DSP introduced with ART AX speakers to continue with RCF’s modern approach to sound system control.

Mono or Dual Connections
Combo TRS/XLR Inputs,
XLR Link and Crossover Outputs

2200 W
Class-D
Amplifier

RCF
High Power High-Excursion
Premium Transducers

Built-in
Color Touch Panel and
Bluetooth® Remote Control

Bass Motion Control
Proprietary Algorithms
Transducer Excursion Management

Advanced DSP
Internal 8-band EQ
System Delay

Road-proof Cabinet
with Polyurea Coating
and powerCON® TRUE1 TOP

Crossover Presets

Factory-Tuned Presets for RCF Speakers and 4 User-Editable Presets

download preset list

Unlock Your System's True Potential

The key to optimizing your sound system is the precise adjustment of your subwoofer's time alignment. This not only elevates sound quality but also enhances bass response, giving your audience both the beat they can hear and the vibe they can feel.

With internal factory-tuned crossover presets for RCF speakers, your sound system is show-ready in a few easy steps. Simply connect your satellite speakers to the SUB AX, select the crossover preset from the user interface, and you are ready to go. FiRPHASE linear phase is extended to match the subwoofer phase down to the lowest frequencies.

Large Touch Display

2.4-inch Color Touch Panel

Rotary Push Encoder

Swipe Gestures for Fast Navigation

Advanced DSP for your System

Eight Recallable Snapshots

Fullrange Parametric 8 Band EQ

Up to 45 meters Delay

Precision Tuning

Top/Sub Alignment (meters/feet/ms)

Cardioid Function and L/R Balance for 2.1 systems

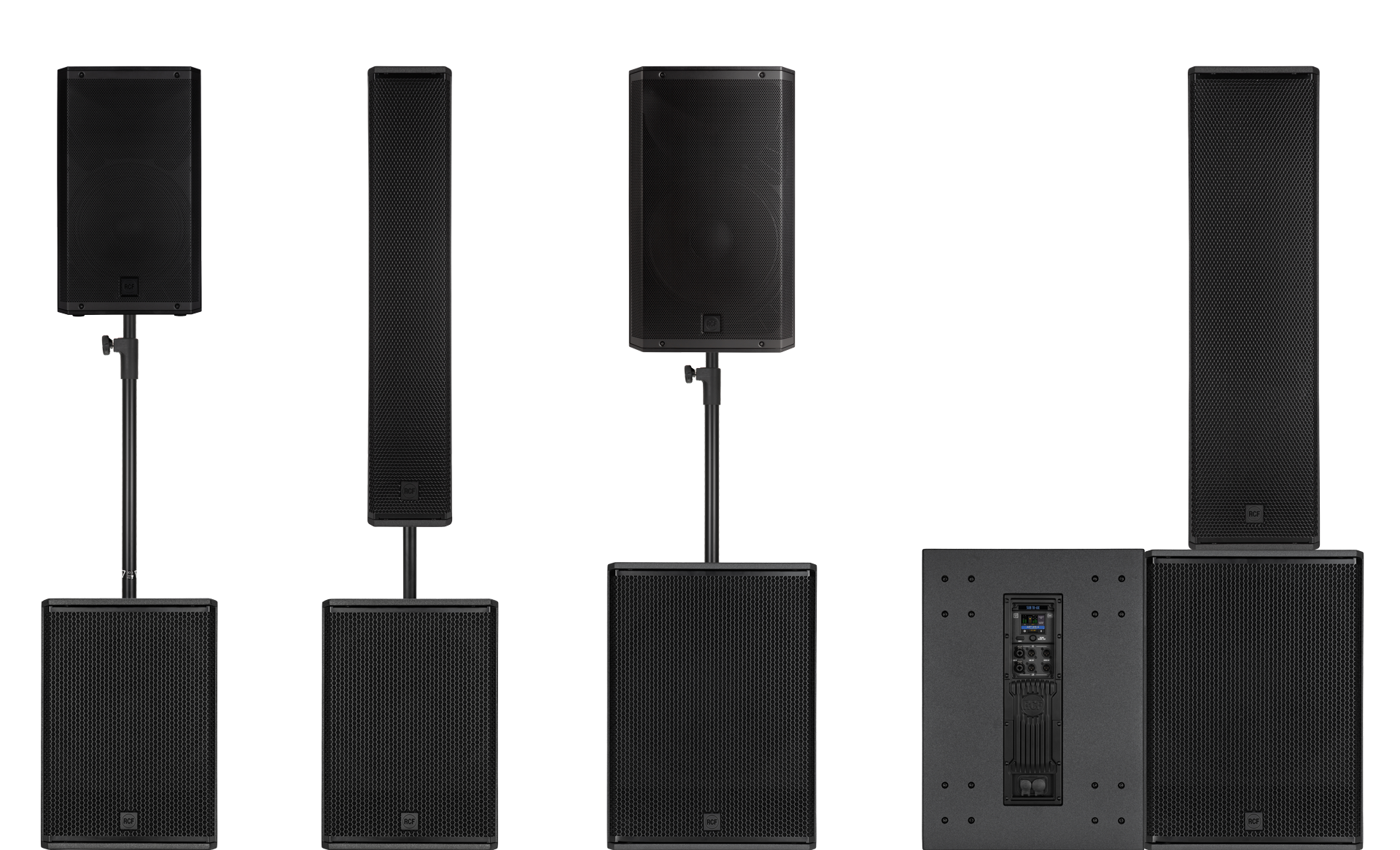

Configuration Examples

A Live Experience that is Completely Mobile

With the RCF LiveRemote app, you can control up to 8 AX devices via Bluetooth® simultaneously from your smartphone or tablet. The app makes it easy to adjust internal parameters and save and recall presets. You can also use the app to control your entire sound system, with a fully featured 8-band EQ and advanced functions.

LiveRemote App

Whether you’re a musician, DJ, or pro sound engineer, the RCF LiveRemote App, the same app that is used with the ART 9 AX, is now available with the SUB AX models. On the subs, crossover preset selection, system EQ and delay adjustments and crossover individual settings are quickly accessible. When two subwoofer models are paired, they can be set up for 2.2 operation. Available for Android and iOS phones and tablets.

IOS APP DOWNLOAD

ANDROID APP DOWNLOAD

Gig-Ready Solution

RCF cabinets are made of high-quality multi-ply hardwood coated with a rugged black (or white) polyurea finish. Subs are stackable and lightweight, have ergonomic handles with rubber grips, and are designed for easy set-up and tear-down. The M20 threaded pole mount on the top of the cabinet supports RCF speakers of various sizes. The powder-coated front grille integrates a special transparent-to-sound foam backing on the inside to further protect transducers from dust. SUB AX Series subwoofers are built to last, with powerCON® TRUE1 TOP mains connectors, so you can be sure that they will stand up to the rigors of use and transport.

Branchenführende Subwoofer

Die leichten Subwoofer von RCF zeichnen sich durch eine beeindruckende Leistung aus. Für die RCF Precision Transducers hat unser Ingenieursteam spezifische neue Magnetgrößen und Gussformen entwickelt, um bei gleichbleibend niedrigem Gewicht den magnetischen Fluss zu optimieren. Die Magnetkreis-Topologie in drei wichtigen Bereichen für Höchstleistungen: Sie erzielt hohe Integrität und Uniformität des magnetischen Flusses im Luftspalt, extrem niedrige Verzerrung, sowie eine effiziente Integration des Magnetkreises bei minimalem Gewicht. Die optimierte T-Pol-Konstruktion reduziert bei typischer Auslenkung der Schwingspule die Modulation des Magnetflusses im Luftspalt auf ein Minimum.

Drive the Rhythm of the Beat

With 2,200 Watts of power, our Class-D amplifier can manage extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low thermal loss. The stereo input circuit features a low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. RCF amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section combining high efficiency with minimum weight.

Um eine erweiterte Basswiedergabe und mehr Leistung zu erzielen, ersetzte unser Entwicklerteam den Standard-Hochpassfilter durch eine zukunftsweisende Technologie. Wir stellen vor: BMC (Bass Motion Control), unser innovatives Feature zur Steuerung der Tieftöner-Auslenkung. Die Box mit BMC verarbeitet selbst die tiefsten hörbaren Frequenzen, ohne Kompromisse bei der Stabilität der Tieftöner einzugehen – für einen linearen, erweiterten Bassbereich und einen ausgewogenen Sound.

BMC ist ein Algorithmus, der das dynamische Verhalten des Tieftöners umfassend analysiert und auf Basis dieser spezifischen Daten ausschließlich übermäßige Auslenkungen einschränkt. Dies ermöglicht vollständige Freiheit bei der Signalwiedergabe durch den Schallwandler. Herkömmliche Hochpassfilter sollen Schäden am Tieftöner verhindern, beeinflussen jedoch gleichzeitig auch das Phasenverhalten. Dank des neuen BMC Algorithmus ist dieses Problem nun Geschichte.
