COMMERCIAL AUDIO

CR 2628

28 UNITS RACK CABINET
  • IEC 297-2 dimensional standard compliant
  • Steel made structure grey RAL 7035
  • Protection grade IP 30
  • Three thermostat driven fans
Wo zu kaufen
Merkmale
  • IEC 297-2 dimensional standard compliant
  • Steel made structure grey RAL 7035
  • Protection grade IP 30
  • Three thermostat driven fans

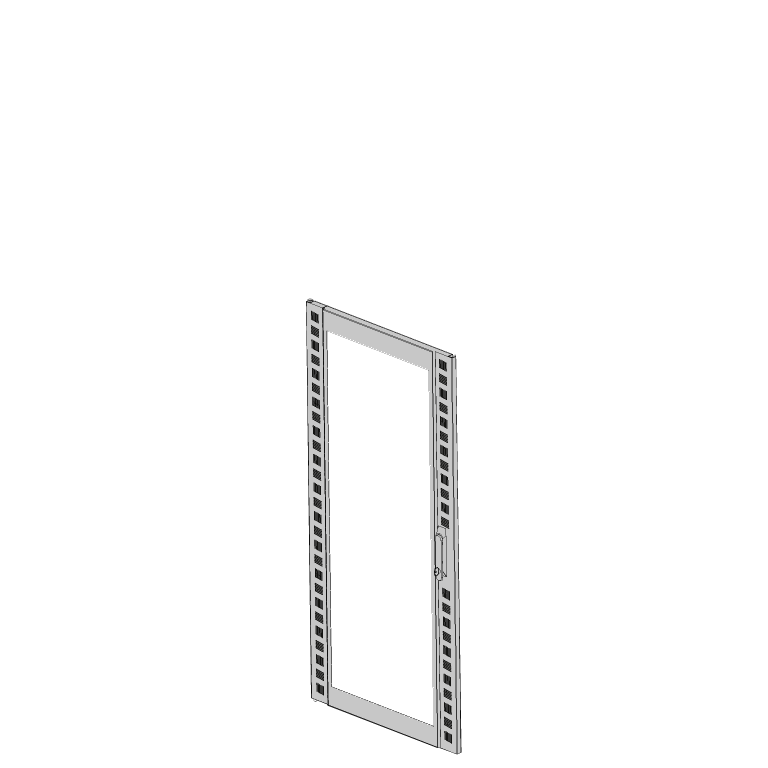

  • Optional ventilated door: AK 2628V

CR 2600 series rack cabinets are designed to hold all RCF 19" rack standard components. The rack enclosures are bake-painted at high temperature using epoxy powders to make the structure unalterable over time and resistant to scratching, abrasion, and atmospheric agents. The CR 2600 series cabinets are composed of a basic structure that is assembled simply and quickly by fitting and securing four steel uprights to the upper and lower panels. Additional front doors with glass can complete the cabinet.

Part number:

17170081
CR 2628
EAN 8024530005306

Spezifikationen
Allgemeine spezifikationen
Typ:
28U
Maximale Last (Kg):
320.00 Kg
Lüftung:
Yes
Wärmeableitung 25° C (W):
3280
Wärmeableitung 35° C (W):
2160 W
Standardkonformität
IP Schutzgrad:
IP 30
Safety agency:
CE compliant
Physikalische daten
Gehäuse Material:
Metal
Farbe:
Grey - RAL 7035
Rack-Einbau:
28U , Optional rack mounting accessory required
Größe
Höhe:
1490 mm / 58.66 inches
Breite:
600 mm / 23.62 inches
Tiefe:
600 mm / 23.62 inches
Gewicht:
65.5 kg / 144.4 lbs
Versandinformationen
Verpackung Höhe:
410 mm / 16.14 inches
Verpackung Breite:
1440 mm / 56.69 inches
Verpackung Tiefe:
620 mm / 24.41 inches
Verpackungsgewicht:
73.5 kg / 162.04 lbs
