Merkmale
  • 1500 W system power handling (RMS)
  • 141 dB max SPL
  • 60° x 22.5° constant directivity, horn-loaded
  • IP 55 protection code
  • 60 Hz ÷ 20000 Hz frequency range
  • 2 x 12" high power woofers (3.5" v.c.)
  • 1 x 4.0" v.c. compression driver, titanium dome
  • Baltic Birch Plywood enclosure with internal structural metal bracings
  • Safe and solid variable array mechanics
  • Amphenol IP 67 in/out connectors

HL 2260 is a horn loaded two-way bi-amped array system that incorporates 2 x 12” woofer and a titanium dome 4.0” voice coil titanium compression driver for mid distance and long throw applications. The system is very compact and provides very high output and accurate voice and sound reproduction. The system is equipped with the latest generation of RCF precision transducers. The system has a 60° x 22.5° constant directivity and is ideally used in point source configuration for mid distance applications or can be clustered with narrower angles for long throw applications. The loudspeaker enclosure shape is trapezoidal and offers a 22.5° coupling angle each side. Connections to the amplifier are made through a watertight Amphenol multi-pole connector. The grille is in custom perforated steel, epoxy coated, with open-cell fibres and water repellent woven fabric backing. The cabinet is constructed of Baltic birch marine plywood and finished in a very resistant, textured, polyurea black paint. HL 2260 is weatherproof with protection code IP 55.


AVAILABLE ON ORDER

Part number:

13000407
HL 2260
EAN 8024530011611

Spezifikationen
Spezifikation
Frequenzgang (-10dB):
60 Hz ÷ 20000 Hz
Frequenzgang (-3dB):
80 Hz ÷ 20000 Hz
Max SPL @ 1m:
141 dB
Horizontaler Abstrahlwinkel:
60°
Vertikaler Abstrahlwinkel:
22.5°
Richtcharakteristik Index Q:
14
Power sektion

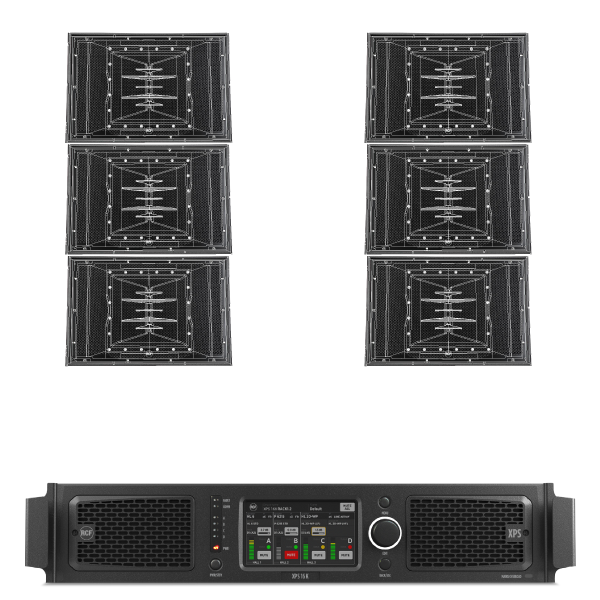

Amplification:
Bi-Amp
Übergangsfrequenz:
600 Hz
Nominalimpedanz LF:
8 ohm
Leistungsaufnahme LF:
1350 W
Paek Power LF:
5400 W
Empfindlichkeit LF:
104 dB
Nominalimpedanz HF:
8 ohm
Leistungsaufnahme HF:
150 W
Paek Power HF:
600 W
Empfindlichkeit HF:
113 dB
Schallwandler
Kompressionstreiber:
1 x 2.0'' neo, 4.0'' v.c
Woofer:
2 x 12'', 3.5'' v.c
Input/Output sektion
Eingangsbuchsen:
Amphenol eco/mat IP 67
Ausgangsanschlüsse:
Amphenol eco/mat IP 67
Standardkonformität
IP Schutzgrad:
IP 55
Safety agency:
CE compliant
Physikalische daten
Hardware:
Side and rear array rigging point
Farbe:
Black
Größe
Höhe:
530 mm / 20.87 inches
Breite:
771 mm / 30.35 inches
Tiefe:
635 mm / 25 inches
Gewicht:
66 kg / 145.5 lbs
Versandinformationen
Verpackung Höhe:
799 mm / 31.46 inches
Verpackung Breite:
859 mm / 33.82 inches
Verpackung Tiefe:
619 mm / 24.37 inches
Verpackungsgewicht:
70.4 kg / 155.21 lbs
