Merkmale
  • High Quality 2-way passive loudspeaker
  • 1 x 6.5" woofer, vented
  • 1 x 1" in driver, on 90°x90° CD horn
  • High Power Handling ‘Low Impedance Compensated Crossover', with electronic protection for the driver
  • 100W AES power handling

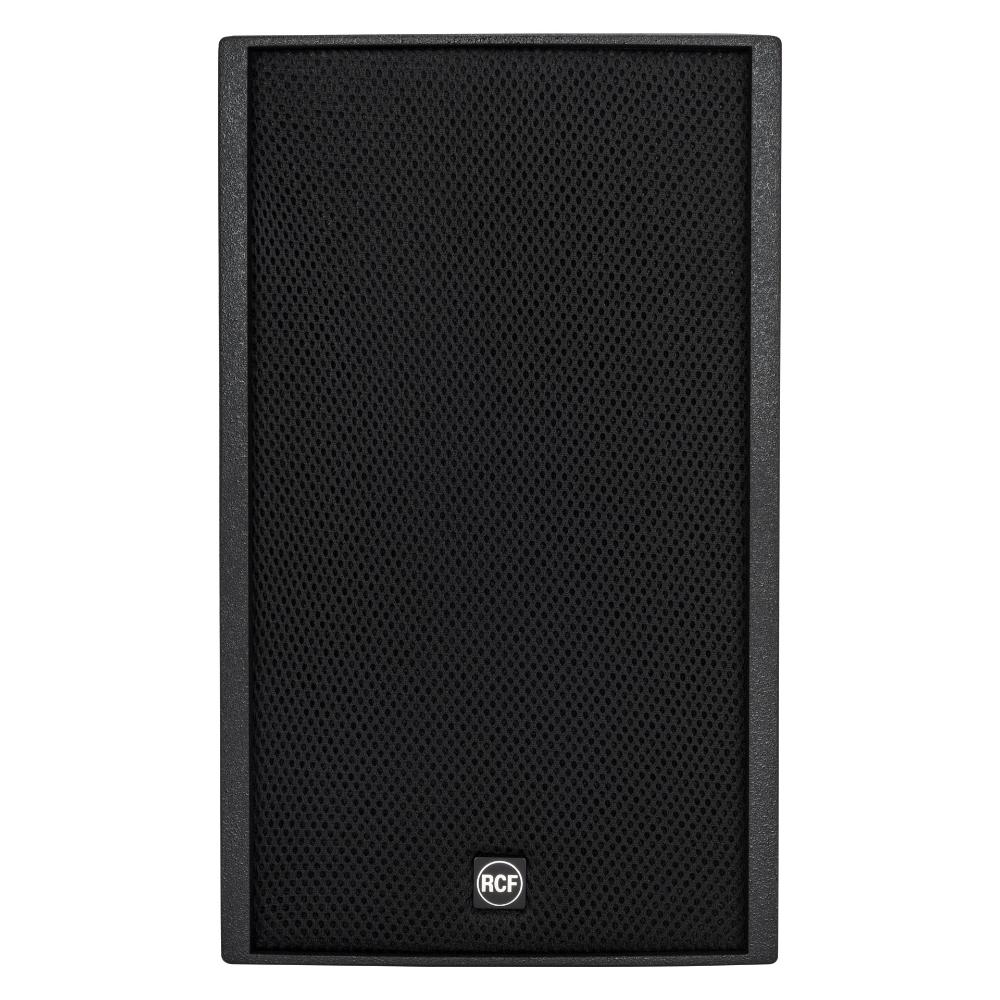

  • Steel Front Grille with robust double mesh polyester clothing
  • Rotatable RCF front logo

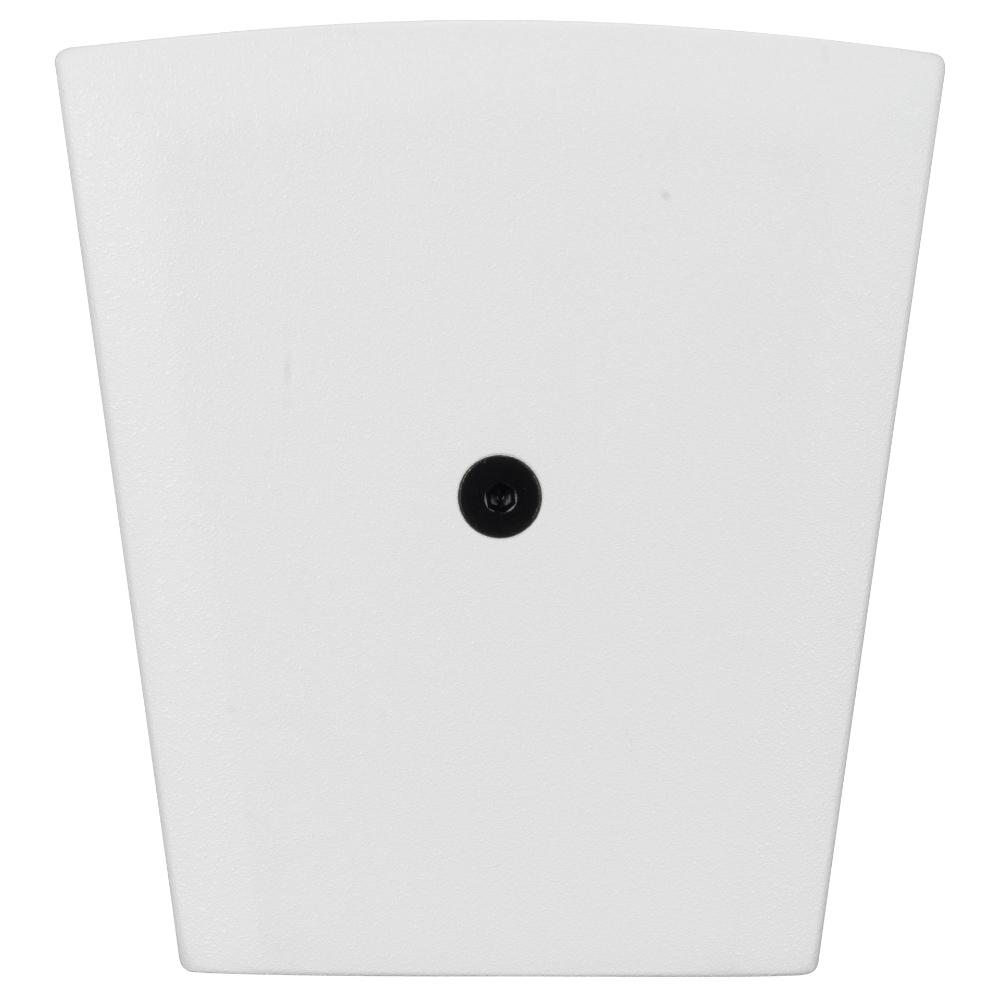

  • Installation points are available on the rear panel, top and bottom
  • All models have a 4-pin EUROBLOCK connector (audio input and parallel link output)

M 601 is a multipurpose two-way full-range speaker system, suitable in a wide range of installations. The compactness, together with the elegant and neutral design with accurate finishing makes M 601 suitable for almost any environment and architectural constraint. Available mounting accessories allow you to use the M 601 wall or ceiling mounted, with reference to the several possible applications. The M 601 has a controlled dispersion and delivers undistorted SPL value above any expectation from such a compact speaker system. The M 601 features high sensitivity thanks to the use of oversized magnets and a comfortable sound quality with smooth and wide frequency response performed thanks to the Kapton diaphragm compression driver loaded on a constant directivity horn. The LICC crossover design includes an electronic protection on high frequency device.


ARCHIVED

Part number:

13041003
M 601
Black, EAN 8024530007546

13041024

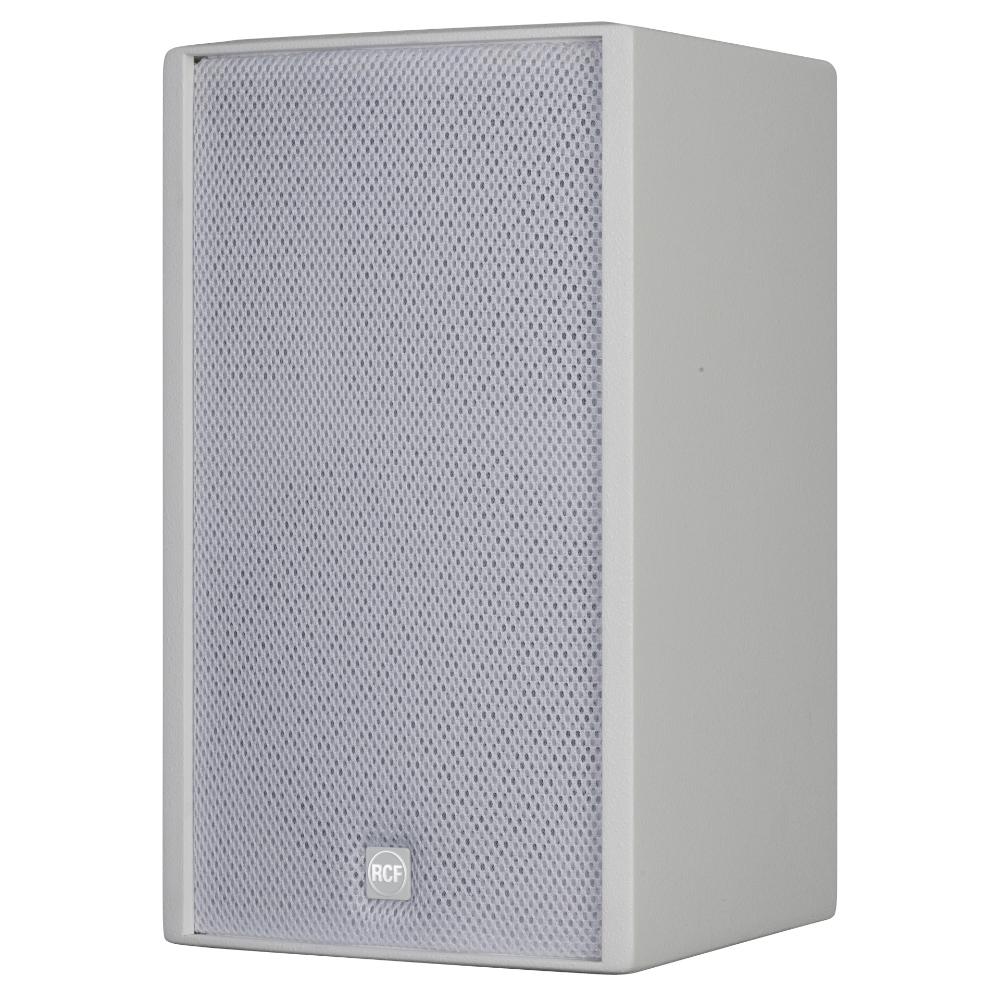

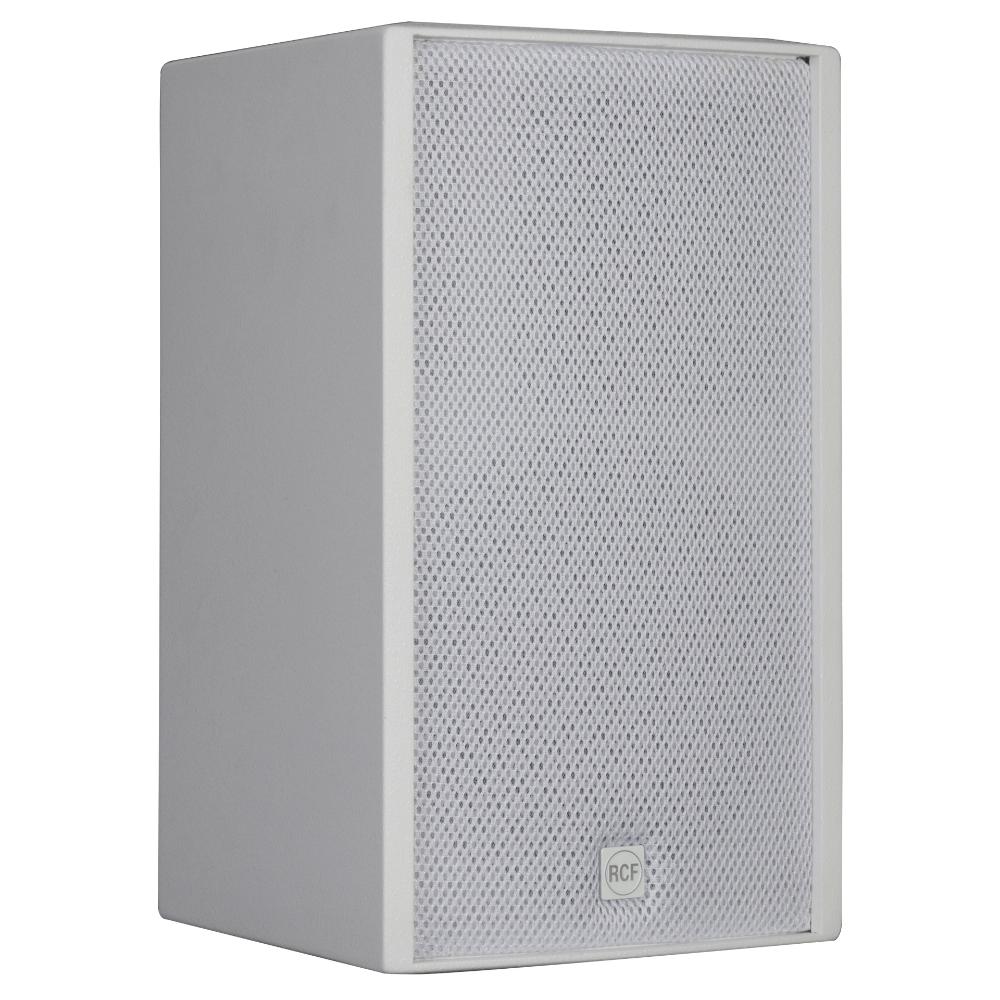

M 601 W
White, EAN 8024530011109

Spezifikationen
Spezifikation
Frequenzgang (-10dB):
80 Hz ÷ 20000 Hz
Max SPL @ 1m:
118 dB
Horizontaler Abstrahlwinkel:
90°
Vertikaler Abstrahlwinkel:
90°
Richtcharakteristik Index Q:
10
System-Empfindlichkeit:
92 dB
Power sektion
Nominalimpedanz:
8 ohm
Leistungsaufnahme:
100 W RMS
Paek Power:
400 W PEAK
Enpfohlener Verstärker:
200 W
Schutzschaltungen:
Dynamic active mosfet
Übergangsfrequenz:
2200 Hz
Schallwandler
Kompressionstreiber:
1.0'', 1.5'' v.c
Woofer:
6.5'', 1.2'' v.c
Input/Output sektion
Eingangsbuchsen:
Euroblock
Ausgangsanschlüsse:
Euroblock
Standardkonformität
CE Zeichen:
Yes
Physikalische daten
Gehäuse Material:
MDF
Hardware:
6 x M6, 2 x M10
Gitter:
Steel with robust double mesh polyester clothing
Farbe:
Black, White
Größe
Höhe:
359 mm / 14.13 inches
Breite:
215 mm / 8.46 inches
Tiefe:
230 mm / 9.06 inches
Gewicht:
7.2 kg / 15.87 lbs
Versandinformationen
Verpackung Höhe:
440 mm / 17.32 inches
Verpackung Breite:
302 mm / 11.89 inches
Verpackung Tiefe:
287 mm / 11.3 inches
Verpackungsgewicht:
8 kg / 17.64 lbs
