Merkmale
  • High Quality 2-way passive loudspeaker
  • 2 x 6.5" woofer, vented
  • 1 x 1" in driver, on 90°x90° CD horn
  • High Power Handling ‘Low Impedance Compensated Crossover', with electronic protection for the driver
  • 120W AES power handling
  • Steel Front Grille with robust double mesh polyester clothing
  • Rotatable RCF front logo

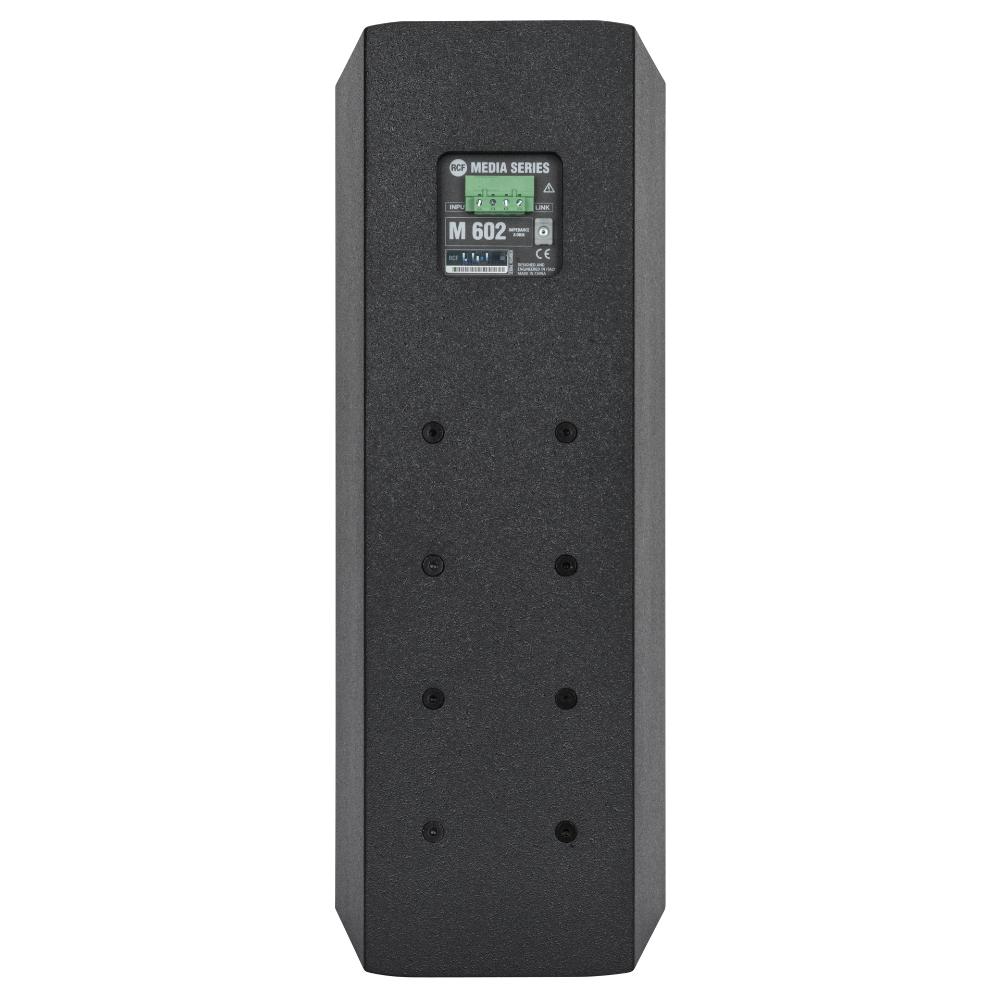

  • Installation points are available on the rear panel, top and bottom
  • All models have a 4-pin EUROBLOCK connector (audio input and parallel link output)

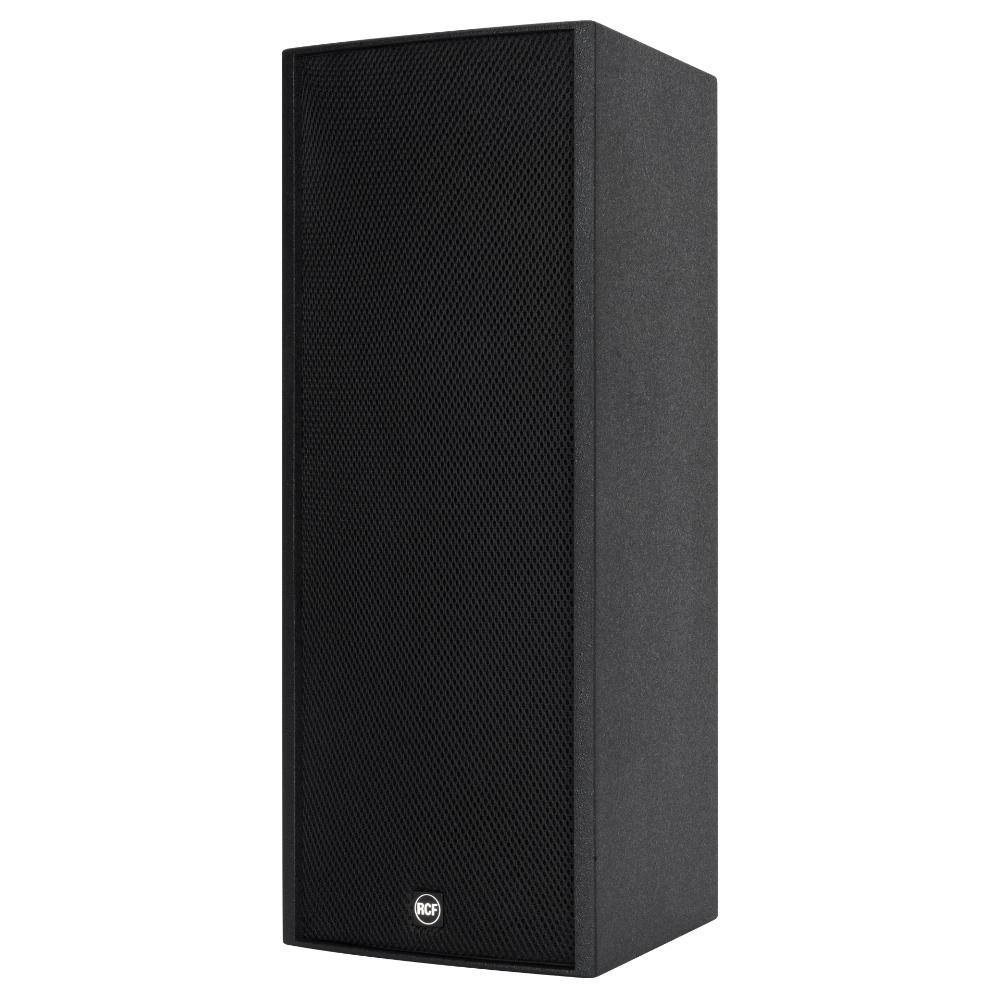

M 602 is a multipurpose two-way twin-woofer full-range speaker system, suitable in a wide range of installations. The compactness, together with the elegant and neutral design with accurate finishing make M 602 suitable for almost any environment and architectural constraint. Available mounting accessories allow you to use the M 602 wall or ceiling mounted, with reference to the several possible applications. The M 602 has a controlled coverage through its twin 6" and the precise constant directivity horn. The SPL and the level of undistorted sound the M 602 can reach is far above any expectation from such a compact solution. The M 602 features high sensitivity thanks to the use of oversized magnets and a comfortable sound quality with smooth and wide frequency response performed thanks to the Kapton diaphragm compression driver loaded with a constant directivity horn. The LICC crossover design includes an electronic protection on high frequency device.


ARCHIVED

Part number:

13041012
M 602
EAN 8024530007553

Spezifikationen
Spezifikation
Frequenzgang (-10dB):
70 Hz ÷ 20000 Hz
Max SPL @ 1m:
122 dB
Horizontaler Abstrahlwinkel:
90°
Vertikaler Abstrahlwinkel:
90°
Richtcharakteristik Index Q:
10
System-Empfindlichkeit:
95 dB
Power sektion
Nominalimpedanz:
8 ohm
Leistungsaufnahme:
120 W RMS
Paek Power:
480 W PEAK
Enpfohlener Verstärker:
240 W
Schutzschaltungen:
Dynamic active mosfet
Übergangsfrequenz:
2000 Hz
Schallwandler
Kompressionstreiber:
1.0'', 1.5'' v.c
Woofer:
2 x 6.5'', 1.5'' v.c
Input/Output sektion
Eingangsbuchsen:
Euroblock
Ausgangsanschlüsse:
Euroblock
Physikalische daten
Gehäuse Material:
MDF
Hardware:
8 x M6, 2 x M10
Gitter:
Steel with robust double mesh polyester clothing
Farbe:
Black
Größe
Höhe:
540 mm / 21.26 inches
Breite:
215 mm / 8.46 inches
Tiefe:
230 mm / 9.06 inches
Gewicht:
11.6 kg / 25.57 lbs
Versandinformationen
Verpackung Höhe:
609 mm / 23.98 inches
Verpackung Breite:
302 mm / 11.89 inches
Verpackung Tiefe:
287 mm / 11.3 inches
Verpackungsgewicht:
12.6 kg / 27.78 lbs
