Merkmale
  • Dimensioni compatte
  • Potenza massima per le dimensioni disponibili sul mercato
  • Peso minimo
  • Ampia, a direttività costante, angolo di copertura orizzontale
  • Trasduttori al neodimio ad alta potenza
  • Duplice funzione di progettazione: costruito nel crossover passivo o esterna bi-amp
  • LICC (Low Impedance Compensated Crossover Network)
  • Connettori multipolari a tenuta d'acqua IP67

The high power TT22 WP is a high performance, wide bandwidth system in a compact and efficient package. Extended frequency response is provided by a new 12” low frequency neodymium driver and a new 3” diaphragm compression driver mounted on a rotatable 90° x 40° constant directivity horn. The new high frequency driver utilises a titanium diaphragm with controlled break-up modes for improved sonic performance at high frequencies and the crossover design and the woofer cone profile have been optimised to match the directivity of the high frequencies horn and low frequencies section through the crossover region. TT22 WP includes the LICC-Low Impedance Compensated Crossover that features markedly lower induction values in series with the woofer. The benefit is delay reduction, reduced phase shift and superior transient response. For a superior power handling high power, aluminium case, resistors are used in the crossover network. Connections to the amplifier are made through a watertight multi-pole connector. The cabinet is constructed of multi-ply baltic birch plywood and finished in a very resistant, textured, polyurea black paint.The grille is in custom perforated aluminum with open-cell fibers and water repellent woven fabric backing.


ARCHIVED

Part number:

13000251
TTS 28 WP
EAN 8024530008970

Spezifikationen
Spezifikation
Frequenzgang (-10dB):
30 Hz ÷ 110 Hz
Max SPL @ 1m:
139 dB
System-Empfindlichkeit:
100 dB
Power sektion
Nominalimpedanz:
4 ohm
Leistungsaufnahme:
2000 W
Paek Power:
8000 W PEAK
Enpfohlener Verstärker:
4000 W
Schutzschaltungen:
Thermal
Übergangsfrequenz:
80/110 Hz
Schallwandler
Woofer:

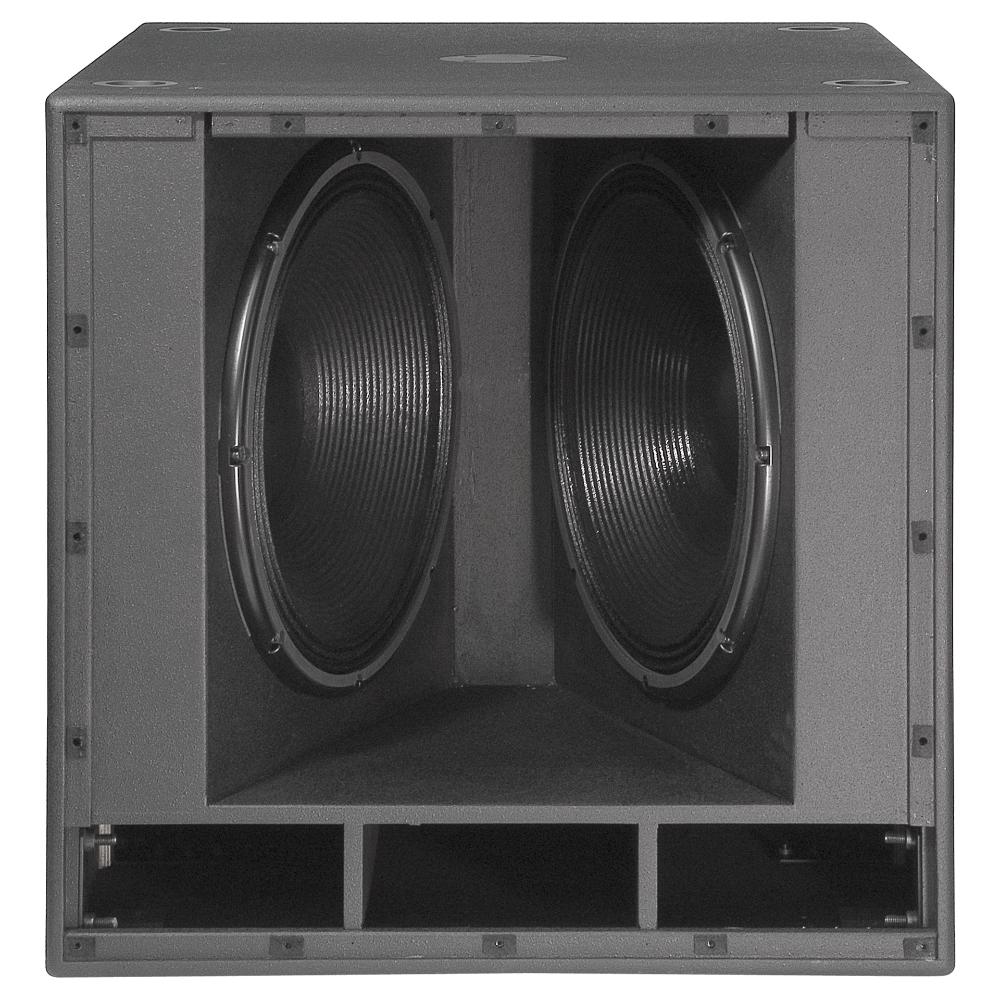

18'', 4.0'' v.c
Input/Output sektion
Eingangsbuchsen:
Amphenol eco/mat IP 67
Ausgangsanschlüsse:
Amphenol eco/mat IP 67
Physikalische daten
Gehäuse Material:
Baltic birch plywood
Hardware:
Fittings ready
Griffe:
6 on side
Farbe:
Black
Größe
Höhe:
700 mm / 27.56 inches
Breite:
700 mm / 27.56 inches
Tiefe:
920 mm / 36.22 inches
Gewicht:
73 kg / 160.94 lbs
Versandinformationen
Verpackung Höhe:
835 mm / 32.87 inches
Verpackung Breite:
1130 mm / 44.49 inches
Verpackung Tiefe:
810 mm / 31.89 inches
Verpackungsgewicht:
85.5 kg / 188.5 lbs
