Características
  • AC/DC Adapter designed to use with microphone console
  • Output Voltage 24 V
  • AC plug EU Type
  • 1.5 m connecting cable with DC Barrel Jack (a=5.5 ;b=2.1; c=11 mm )
  • Standard output cable UL2468
  • Safety Standard IEC/UL/EN 60950-1,CE, CB
  • EMC Standard (EN55022, CISPR22, FCC Part 15) Class B EN61000-3-2, 3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024

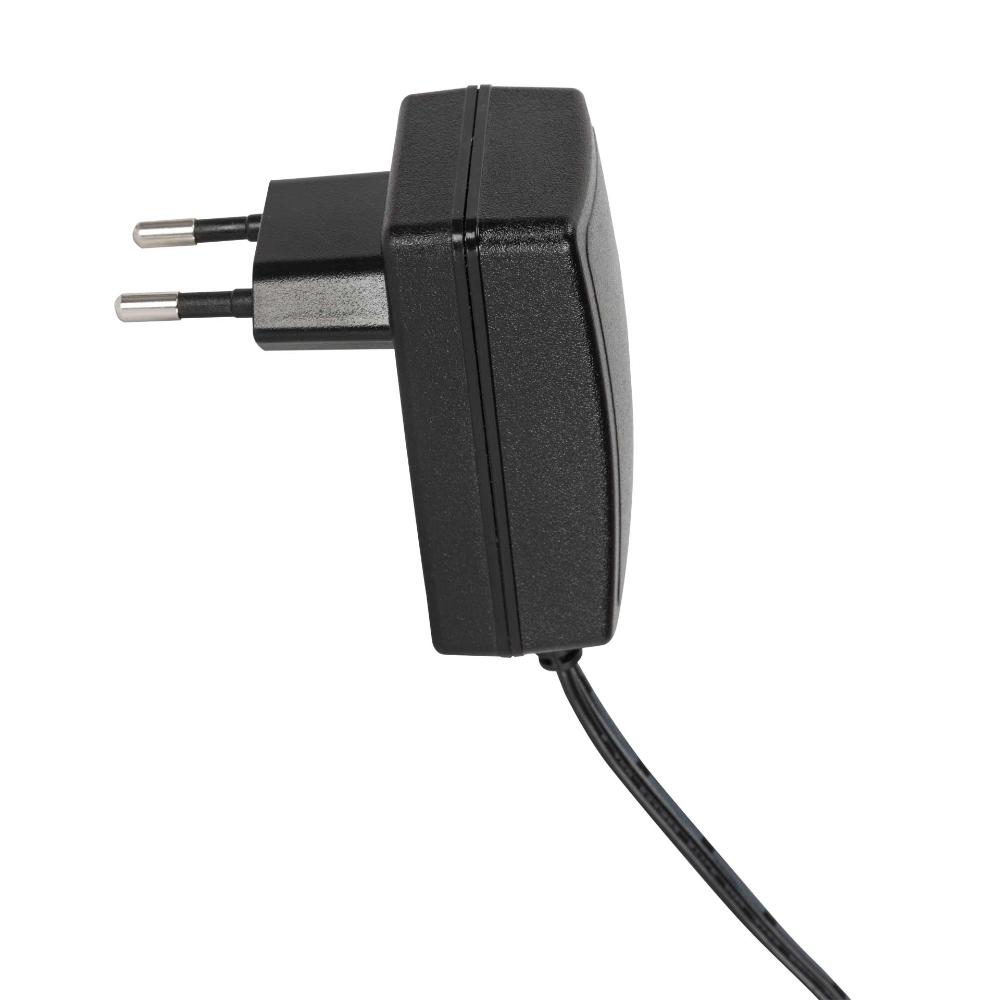

The AC AD2405 adapter can be connected to several RCF products that need 24 V dc power supply. For instance, it can be used as power supply unit for the RCF BM 3003 paging microphone. This adapter can be connected to mains through continental European sockets only. The adapter have a LED on the plastic body that show the DC presence.

Part number:

14380022
AC AD2405
EAN 8024530007027

Especificaciones
Especificaciones generales
Operating voltage:
90-240 V~ 50/60Hz
Output voltage:
24 V DC
Max output current:
500 mA
Protections:
Overload - Over Voltage - Short Circuit
Operating temperature:
10 ÷ 50 °C / 50 ÷ 122 °F
Operating humidity:
20 - 90 % RH non-condensing
Cable length:
1.5 m
Especificaciones físicas
Material del gabinete/de la caja:
Plastic
Tamaño
Peso:
0.12 kg / 0.26 lbs
Informaciones de envío
Altura de paquete:
100 mm / 3.94 inches
Anchura de paquete:
70 mm / 2.76 inches
Profundidad de paquete:
50 mm / 1.97 inches
Peso de paquete:
0.2 kg / 0.44 lbs
