Características
  • 130 dB Max SPL
  • 800 WATT program power handling
  • 60 – 20000 Hz Frequency Range
  • Hi Resolution Custom RCF Precision Transducer
  • Perfectly Tuned Crossover

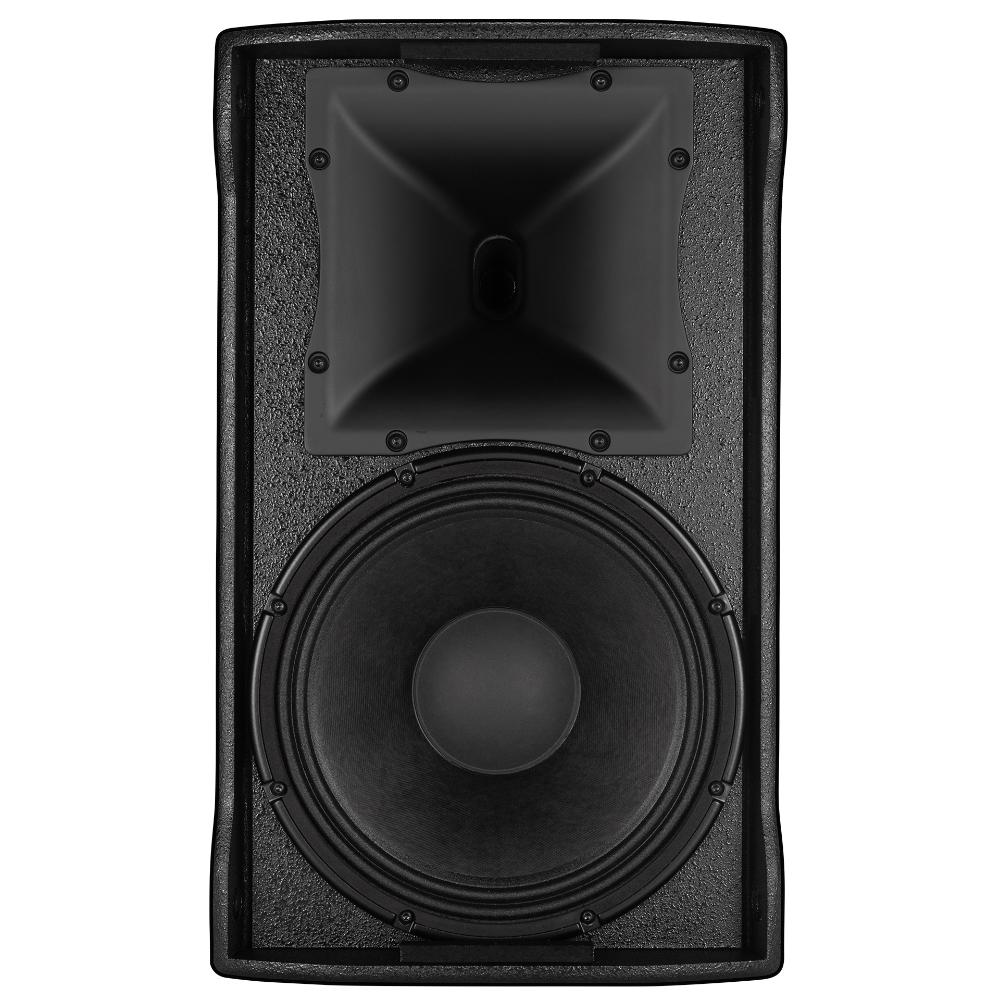

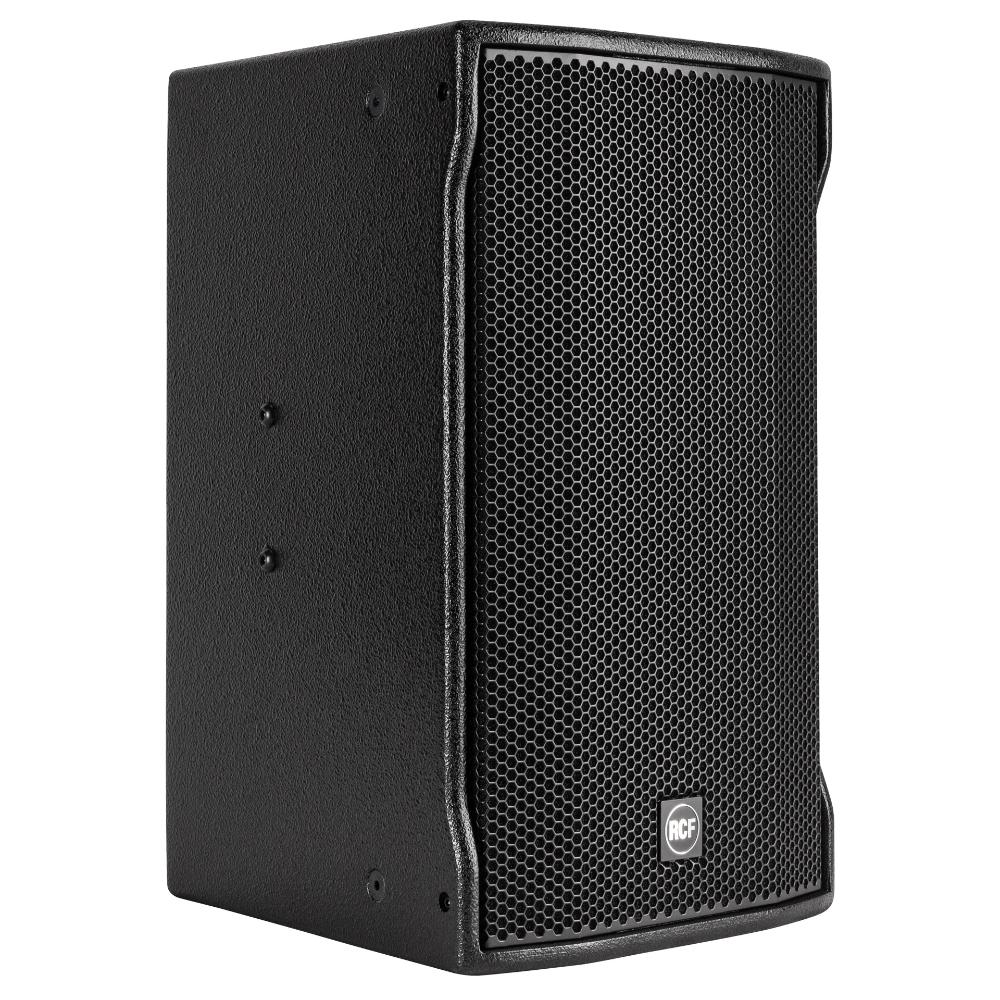

The full-range passive two-way speaker RCF C MAX 4112 has been specifically designed as club systems for entertainment, to reach the best near field quality, vocal coherence, and a stable sound pressure level even at high volumes. It features a 12” woofer and a 1” compression driver. The passive C MAX Series speakers represent a further step of the famous COMPACT Series. Thanks to the bass reflex port, perfectly tuned on the back of the cabinet, the system gives its best when installed near walls, without the need of a subwoofer. It’s perfect for KTV, Karaoke rooms, conference halls, AV installations, public areas and clubs.

Part number:

13000535
C-MAX 4112
EAN 8024530014681

Especificaciones
Especificaciones acusticas
Respuesta en frecuencia (-10 dB):
60 Hz ÷ 20000 Hz
SPL máx. a 1 m:
130 dB
Ángulo de cobertura horizontal:
90°
Ángulo de cobertura vertical:
70°
Índice de directividad (Q):
11
Sensibilidad del sistema:
98 dB
Sección de potencia
Amplification:
Full Range
Impedancia nominal:
8 ohm
Manejo de potencia:
400 W
Manejo de potencia pico:
1600 W PEAK
Amplificador recomendado:
800 W
Protecciones:
Bulb lamp
Frecuencias de cruce:
1800 Hz
Transductores
Motor de compresión:
1 x 1.0'' neo, 1.75'' v.c
Altavoz de bajos:
12'', 3.0'' v.c
Sección de entrada/Sección de salida

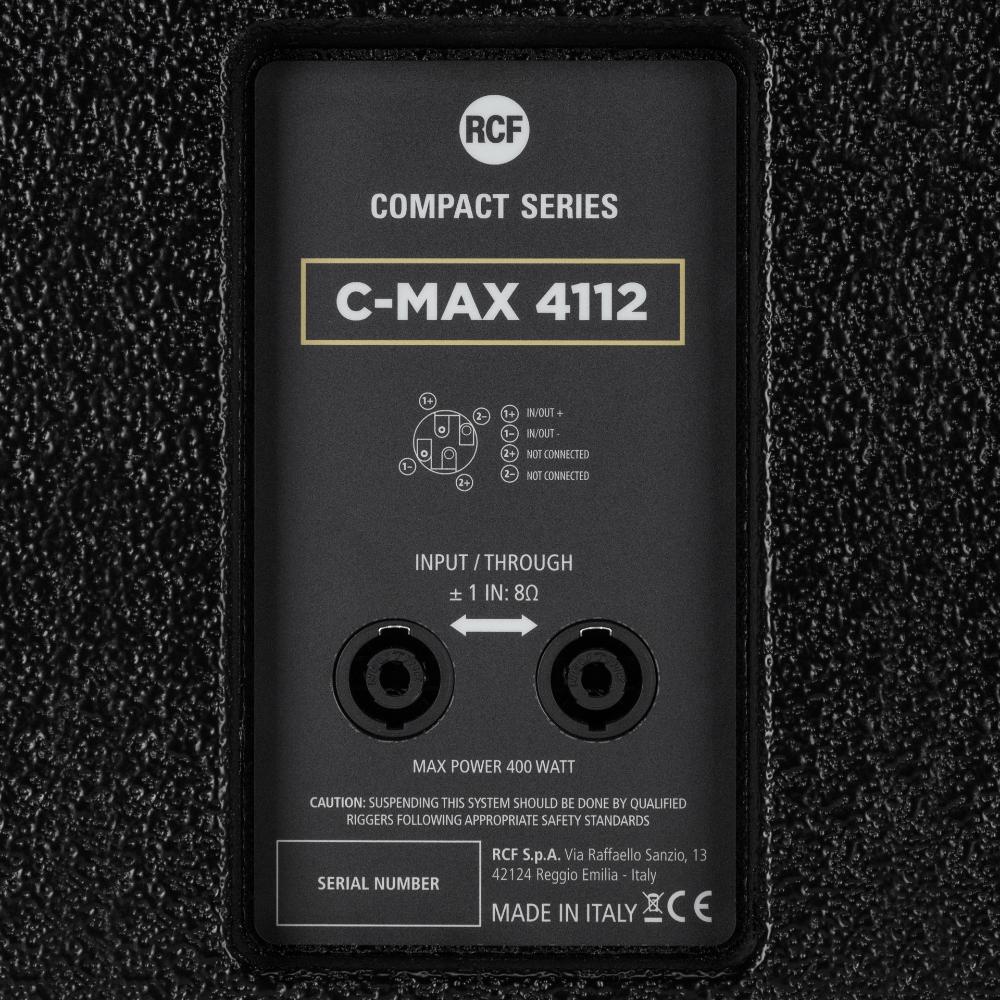

Conectores de entrada:
Speakon® NL4
Conectores de salida:
Speakon® NL4
Cumplimiento estándar
Safety agency:
CE compliant
Especificaciones físicas
Material del gabinete/de la caja:
Baltic birch plywood
Hardware:
16 x M10
Manijas:
1 Top
Montaje en barra/tapa:
Yes
Rejilla:
Steel
Color:
Black
Tamaño
Altura:
600 mm / 23.62 inches
Ancho:
363 mm / 14.29 inches
Profundidad:
407 mm / 16.02 inches
Peso:
24.5 kg / 54.01 lbs
Informaciones de envío
Altura de paquete:
675 mm / 26.57 inches
Anchura de paquete:
465 mm / 18.31 inches
Profundidad de paquete:
425 mm / 16.73 inches
Peso de paquete:
28 kg / 61.73 lbs
