Características
  • IEC 297-2 dimensional standard compliant
  • Steel made structure grey RAL 7035
  • Protection grade IP 30
  • Three thermostat driven fans
  • Optional ventilated door: AK 2615V

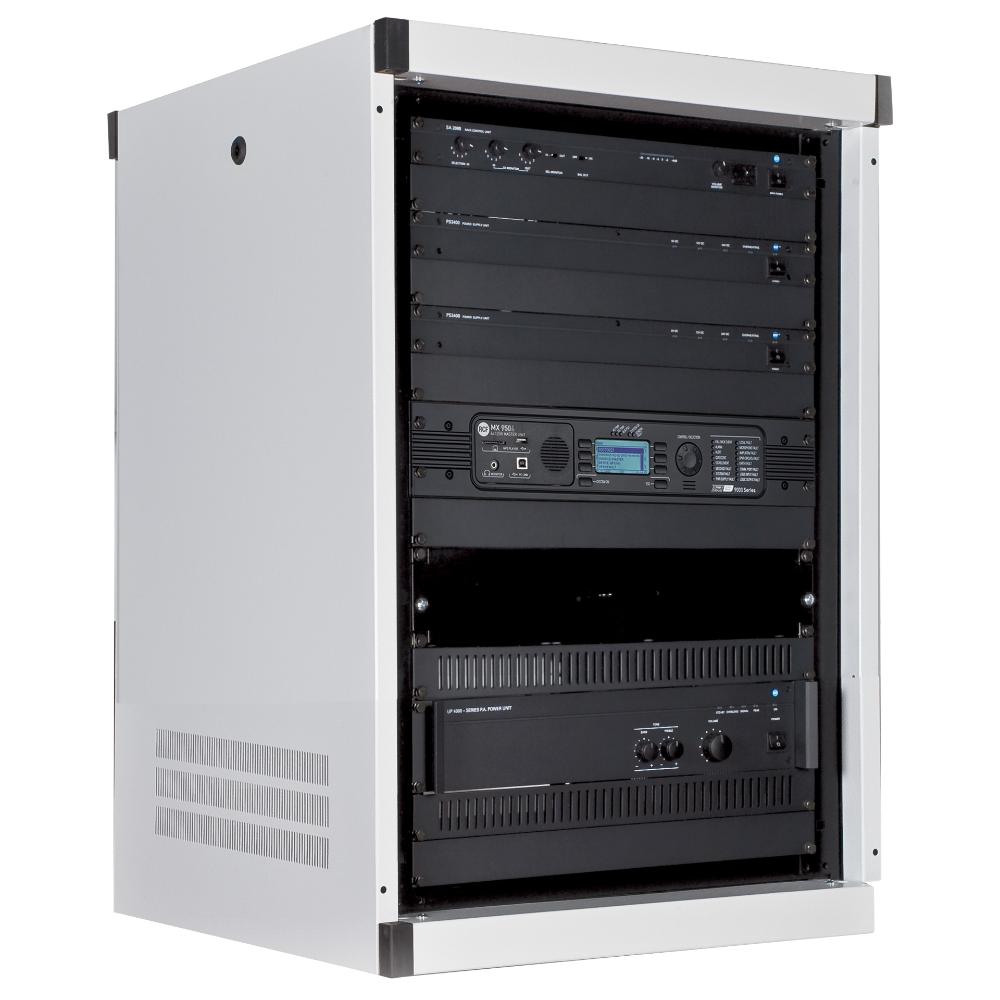

CR 2600 series rack cabinets are designed to hold all RCF 19" rack standard components. The rack enclosures are bake-painted at high temperature using epoxy powders to make the structure unalterable over time and resistant to scratching, abrasion, and atmospheric agents. The CR 2600 series cabinets are composed of a basic structure that is assembled simply and quickly by fitting and securing four steel uprights to the upper and lower panels. Additional front doors with glass can complete the cabinet.

Part number:

17170129
CR 2615FV
EAN 8024530005870

Especificaciones
Especificaciones generales
Tipo:
15U
Carga máxima. (kg):
105.00 Kg
Ventilación:
Yes
Disipación térmica 25° C (W):
3130
Disipación térmica 35° C (W):
2070 W
Ruedas incluidas:
Yes
Cumplimiento estándar
Grado de protección IP:
IP 30
Safety agency:
CE compliant
Especificaciones físicas
Material del gabinete/de la caja:
Metal
Color:
Grey - RAL 7035
Montaje en bastidor:
15U
Tamaño
Altura:
770 mm / 30.31 inches
Ancho:
600 mm / 23.62 inches
Profundidad:
600 mm / 23.62 inches
Peso:
30 kg / 66.14 lbs
Informaciones de envío
Altura de paquete:
805 mm / 31.69 inches
Anchura de paquete:
625 mm / 24.61 inches
Profundidad de paquete:
625 mm / 24.61 inches
Peso de paquete:
34 kg / 74.96 lbs
