Caractéristiques
  • 500 W RMS power handling
  • 131 dB max SPL
  • 80 Hz ÷ 20000 Hz frequency range
  • 2 x 8" neodymium woofer, 2.5" v.c.
  • 2 x 1.75" v.c. neodymium compression driver
  • 90° x 20° constant directivity
  • Weatherproof IP55 cabinet with UV protection
  • Aluminum grille
  • AISI 316L stainless steel bracket
  • Amphenol IP67 4 pole input connector

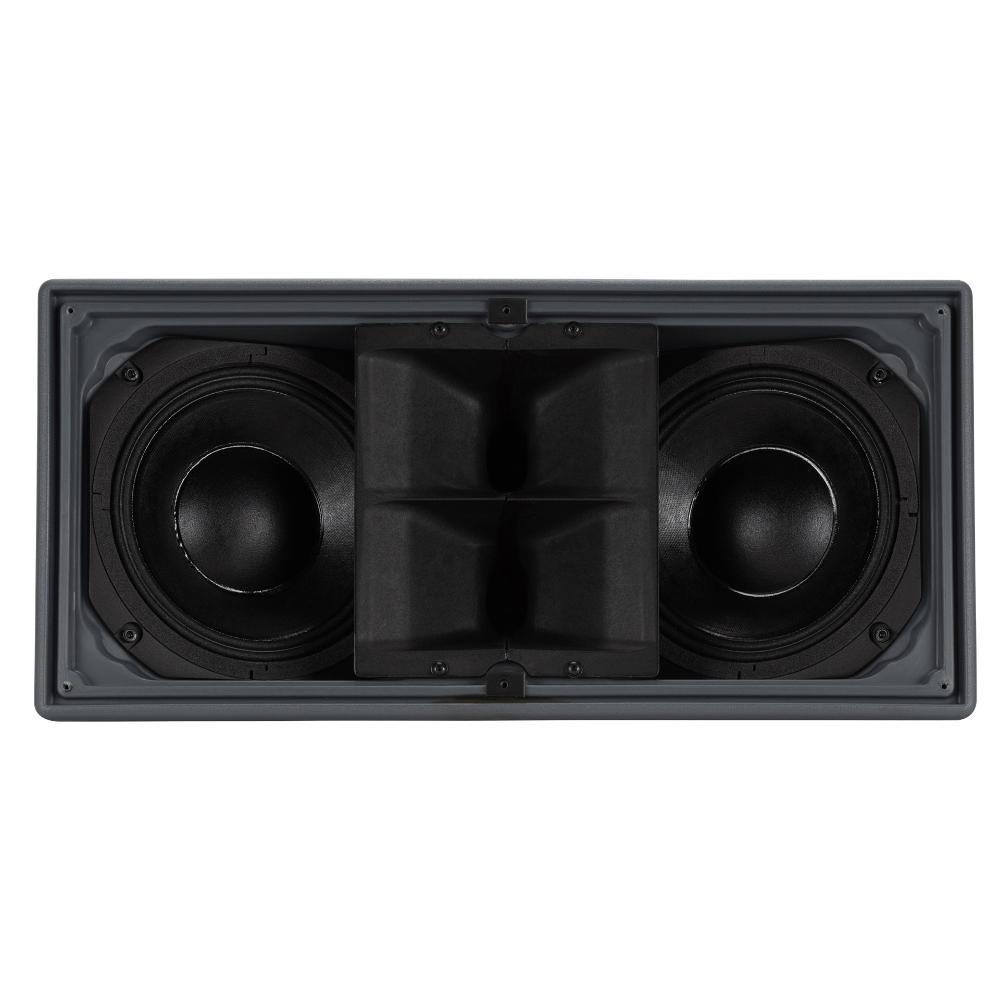

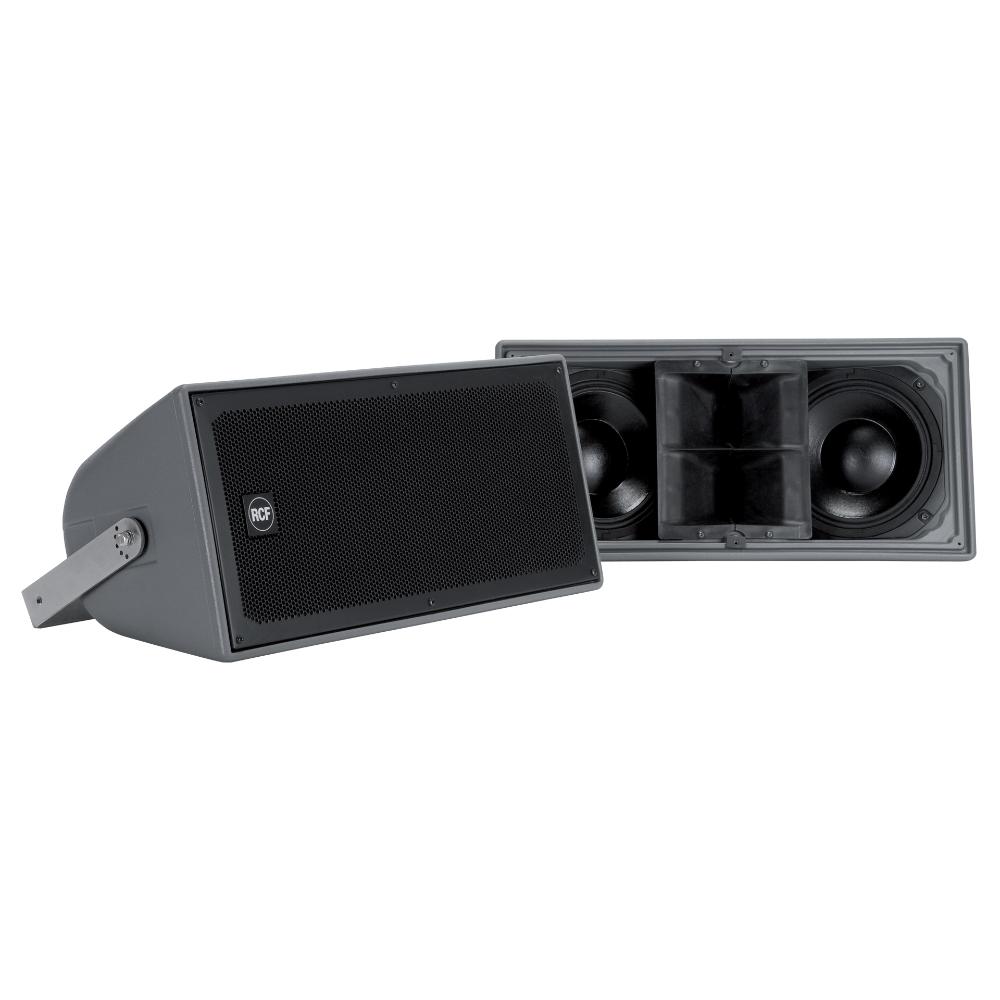

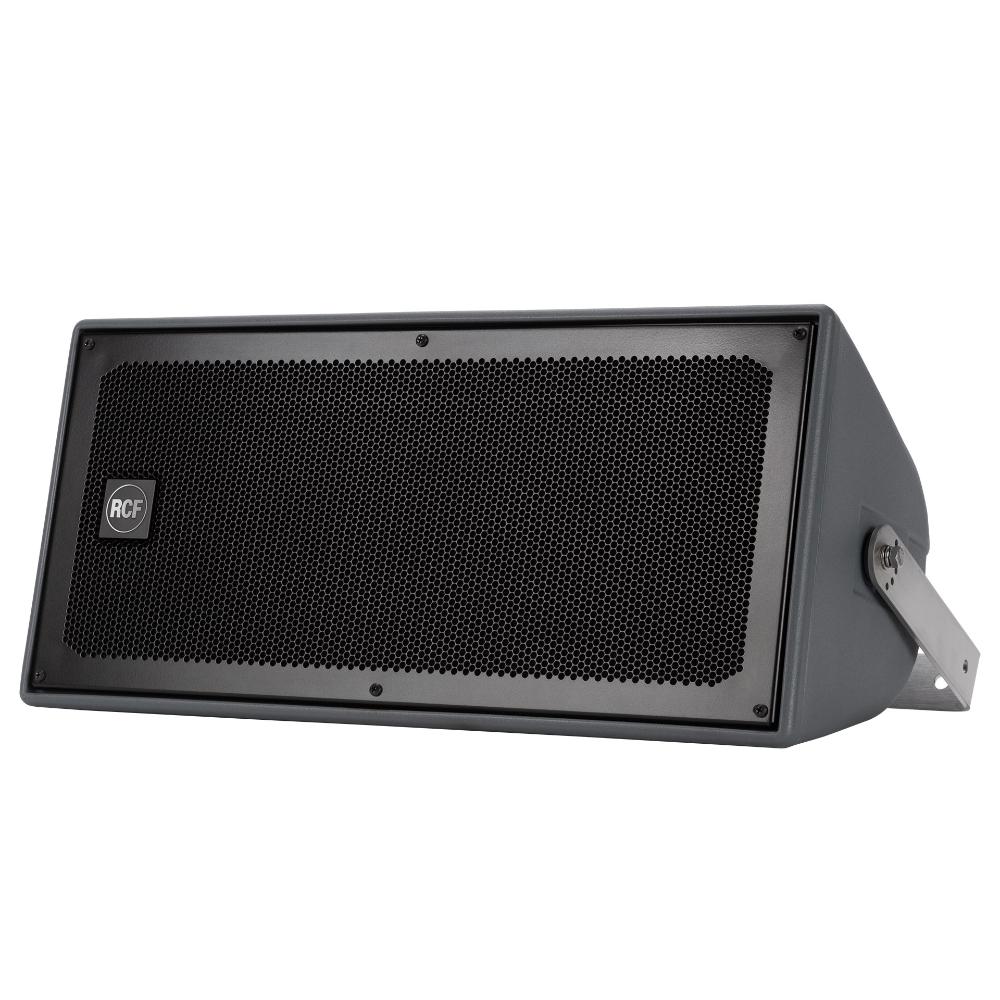

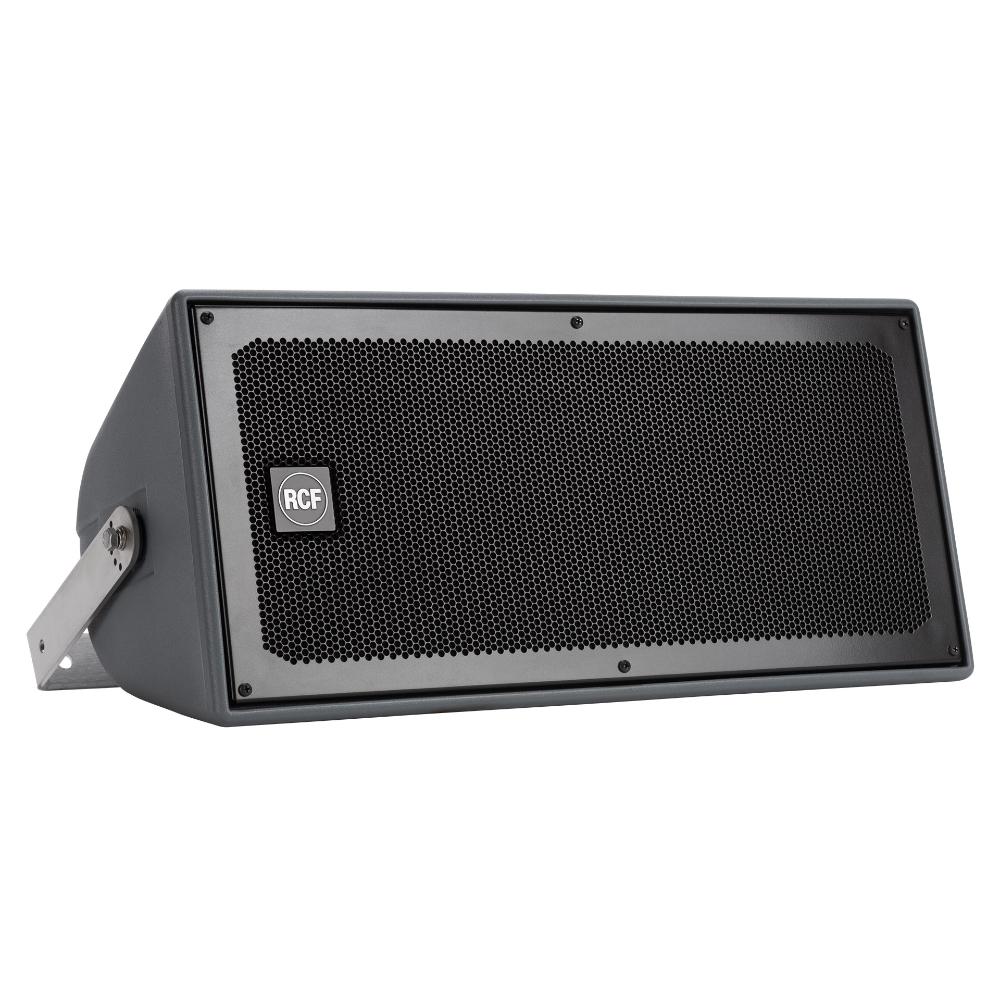

The P 5228-L is a weatherproof full range, two-way speaker, suitable for a variety of professional applications. The speaker can be installed individually or coupled in array configurations. The high-frequency section includes two constant directivity CMD horns, each loaded with a 1" RCF Precision neodymium compression driver with a 1.75" diaphragm assembly for smooth, highly controlled 20° vertical coverage. The low-frequency section combines two 8" woofers with a 2.5" voice coil. The symmetrical arrangement of the transducers delivers a controlled horizontal dispersion with consistent directivity. Internal circuitry provides LICC crossover and Active Mosfet Compression Driver Protection (AMCDP). The single-piece roto-molded cabinet is fully UV protected and meets IP 55 standard requirements, equipped with M8 brass inserts (4x) and a corrosion-resistant 316P stainless steel U-bracket. Connections to the amplifier are made through a watertight multi-pole connector. The front aluminum grille is powder coated with water-repellent backing material and has a rotatable logo plate.

Part number:

13000202
P 5228-L
EAN 8024530008703



All-weather performance

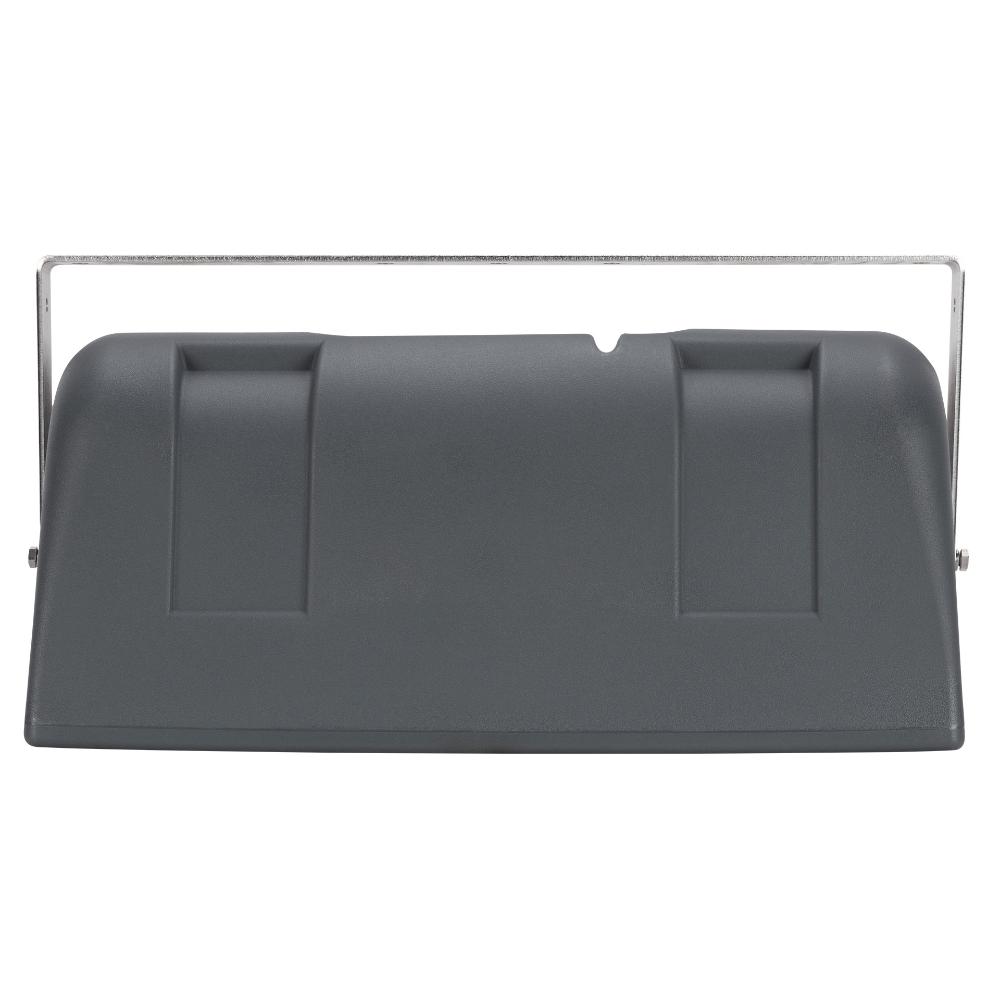

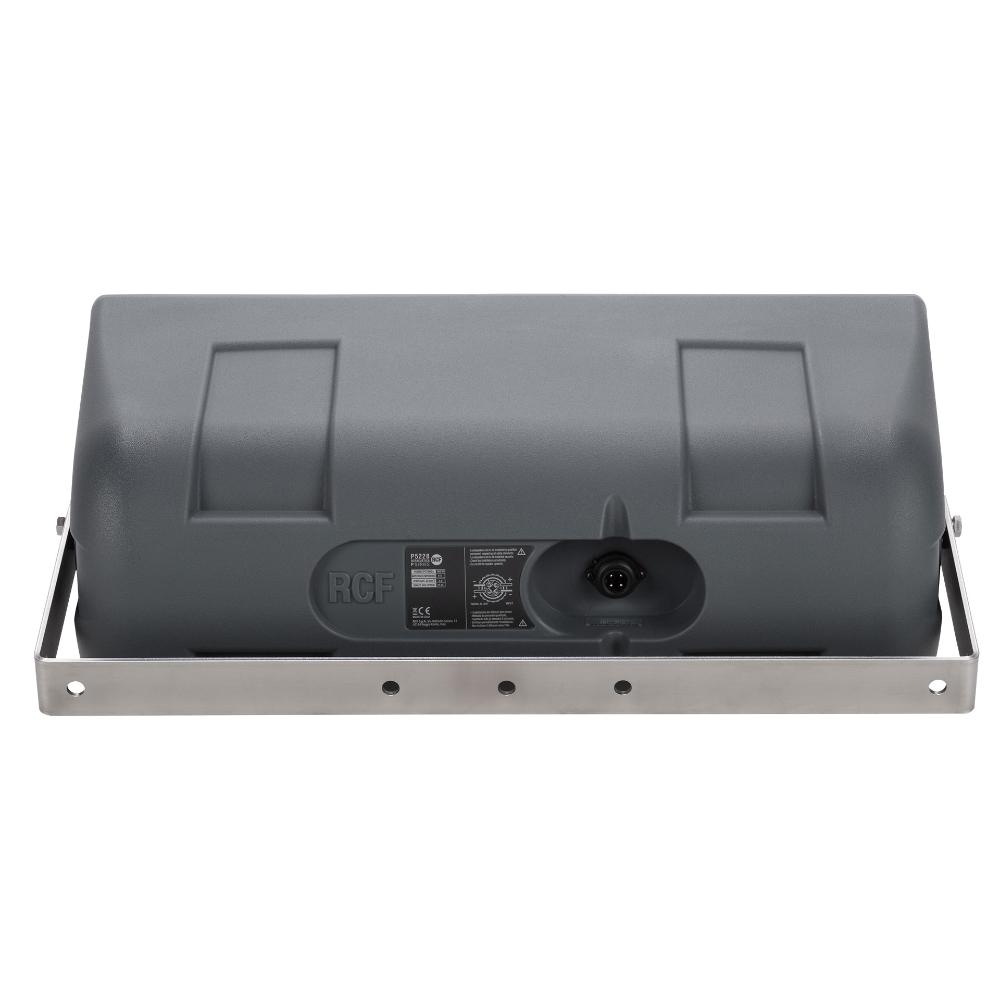

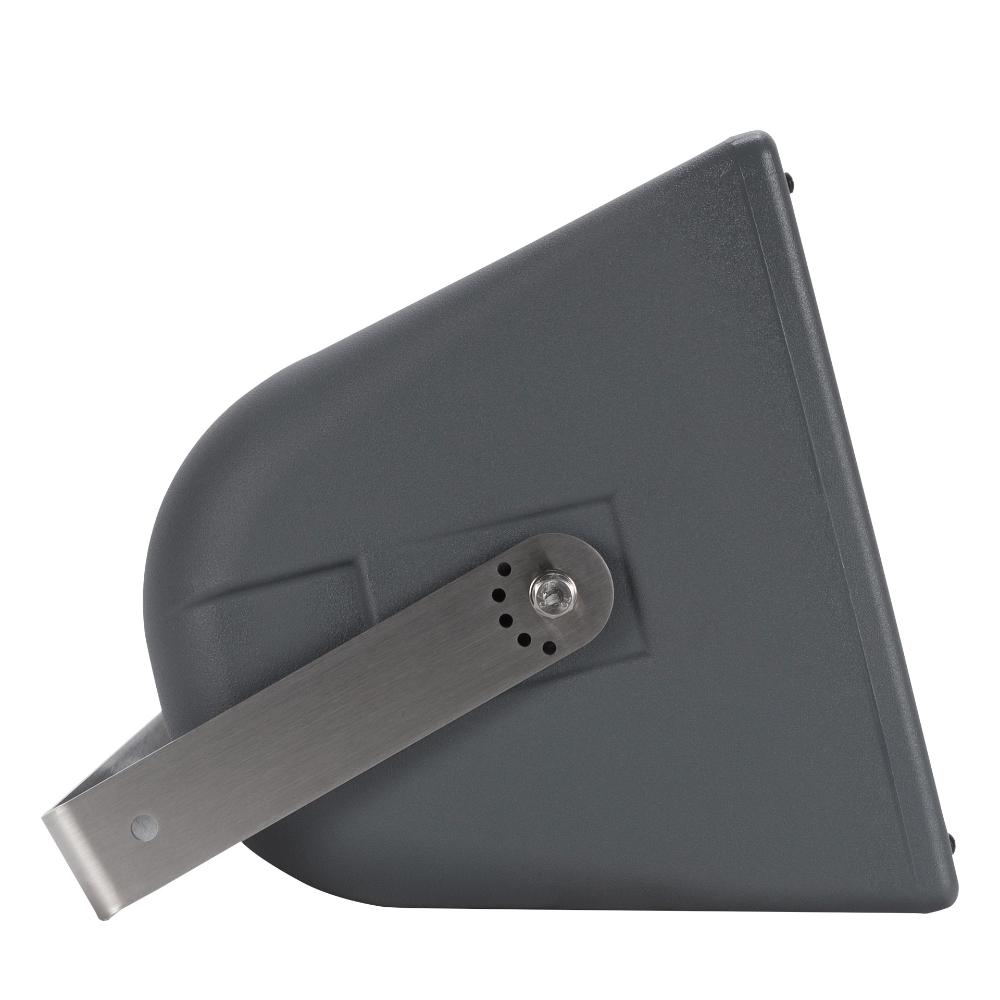

The single-piece rotomolded cabinet is fully UV protected, equipped with multiple brass inserts and a corrosion-resistant 316P stainless steel U-bracket. Connections to the amplifier are made through a watertight multi-pole connector. The front aluminum grille is powder coated with water-repellent backing material, front logo is rotatable. All P series speakers meet IP55 standard requirements (International Protection Rating), suitable for indoor and outdoor applications.

Versatility for any application

Focusing on outdoor and indoor large spaces, P Series speakers are capable of true, concert-level high performance in a compact enclosure, installed individually or coupled in array configurations. Featuring coaxial, line source, and subwoofers speakers, all modules embed RCF Precision Transducers, horns, and waveguides for optimal coverage and clarity. The cabinet’s design with coaxial or coplanar woofers and horns produces identical left and right coverage, capable of delivering serious sonic horsepower within the stadium while maintaining intelligibility and even coverage at every seat.

Responsive Image

LICC - Low Impedance Compensated Crossover

The system includes a high-level crossover network that features lower than conventional induction values. Its benefits are delay reduction, reduced phase shift and superior transient response for improved audio performance and stability.

CMD - Coverage Matching Design

RCF exclusive CMD technology helps guarantee an optimal transition between the high frequency horn polar pattern and the low frequency woofer directivity.
Responsive Image

Customization without boundaries

Our Engineering Support Group works side by side with the R&D Department to create tailor-made equipment based on the client’s real needs – complete with rigging accessories, signal processing, or custom mechanics. We are not only suppliers of standard products but also a team of highly skilled engineers who develop personalized audio solutions. Contact the RCF team to learn more about customization and color options to suit your unique environment. Each project has important benchmarks and we will help you to get the job done.
Responsive Image
Caractéristiques
Specifications acoustiques
Réponse en fréquence (-10 dB)
80 Hz ÷ 20000 Hz
SPL max. @ 1m
131 dB
Angle de couverture horizontale
90°
Angle de détection vertical
20°
Indice de directivité Q :
11
Sensibilité du système:
98 dB
Section alimentation
Amplification
Full Range
Impédance nominale: alimentation
8 ohm
Manipulation de tension
500 W
Manipulation de tension de crête
2000 W PEAK
Protections
Dynamic active mosfet
Fréquences de recouvrement
1300 Hz
Hauts-parleurs
Pilote de compression
2 x 1.0'' neo, 1.75'' v.c
Woofer
2 x 8'' neo, 2.5'' v.c
Sections entrées/sorties
Connecteurs d’entrée
Amphenol eco/mat IP 67
Conformité standard
Degré de protection IP
IP 55
Safety agency
CE compliant
Specifications physiques
Matériau du cabinet/caisson
PE Low Density
Matériel
4 x M8 inserts
Grille
Aluminum with waterproof clothing
Couleur
Grey
Taille
Hauteur
268 mm / 10.55 inches
Largeur
566 mm / 22.28 inches
Profondeur
250 mm / 9.84 inches
Poids
14 kg / 30.86 lbs
Infos colisage
Hauteur du colis
604 mm / 23.78 inches
Largeur du colis
289 mm / 11.38 inches
Profondeur du colis
289 mm / 11.38 inches
Poids du colis
17 kg / 37.48 lbs
Accessoires
