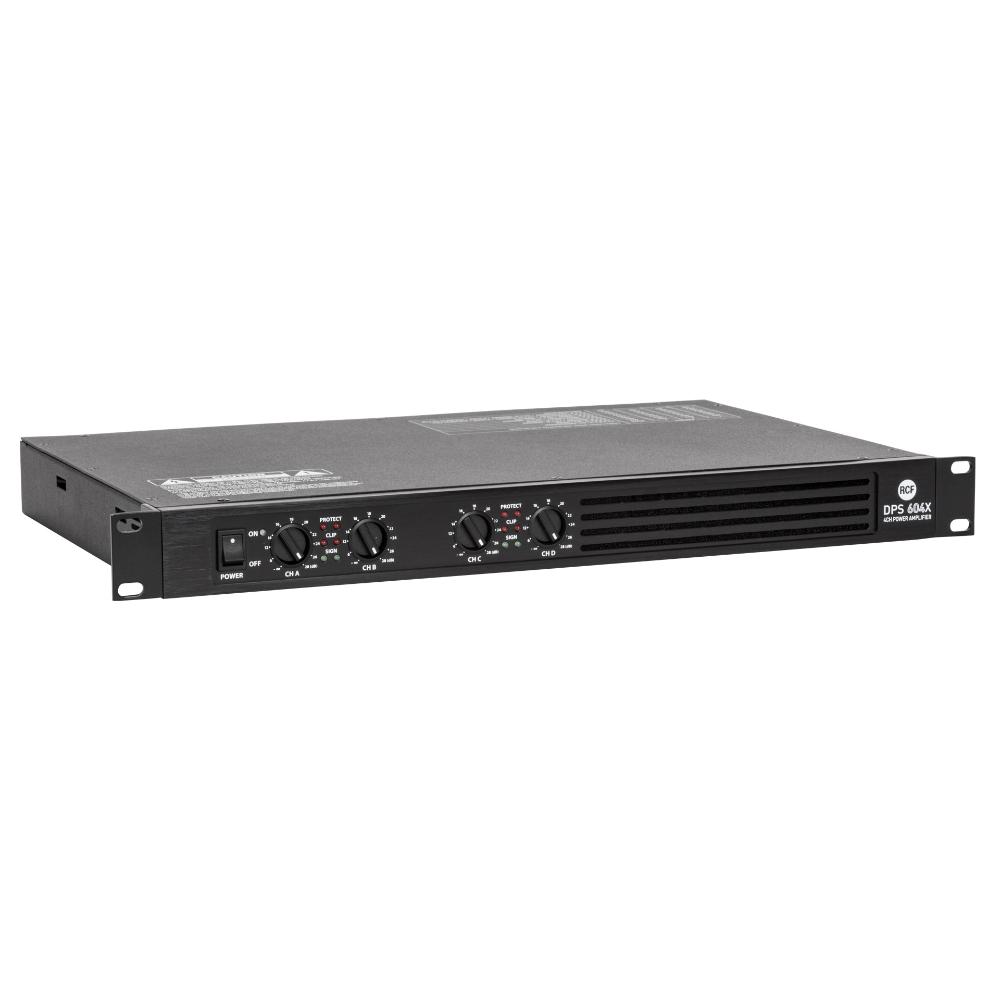

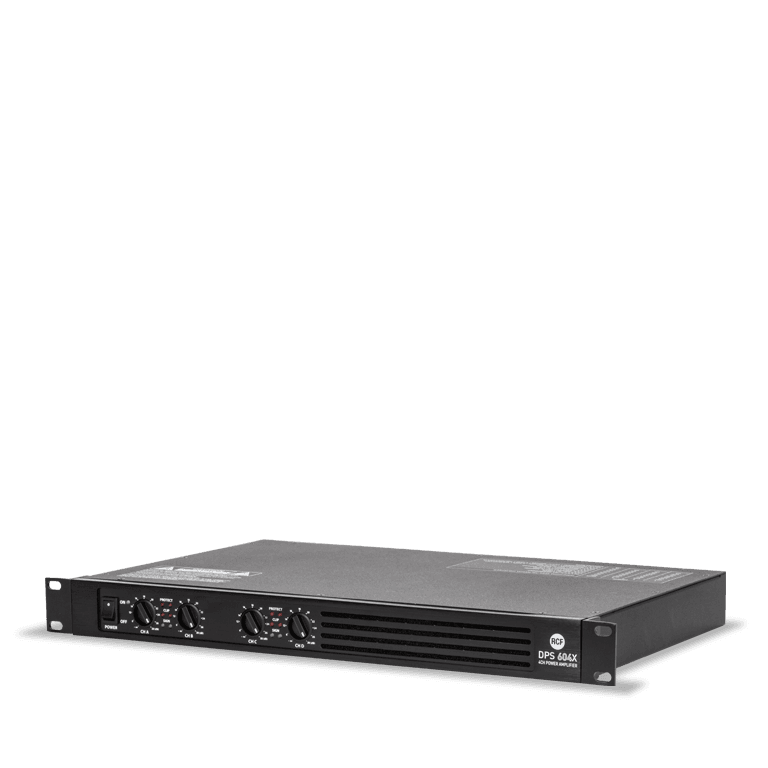

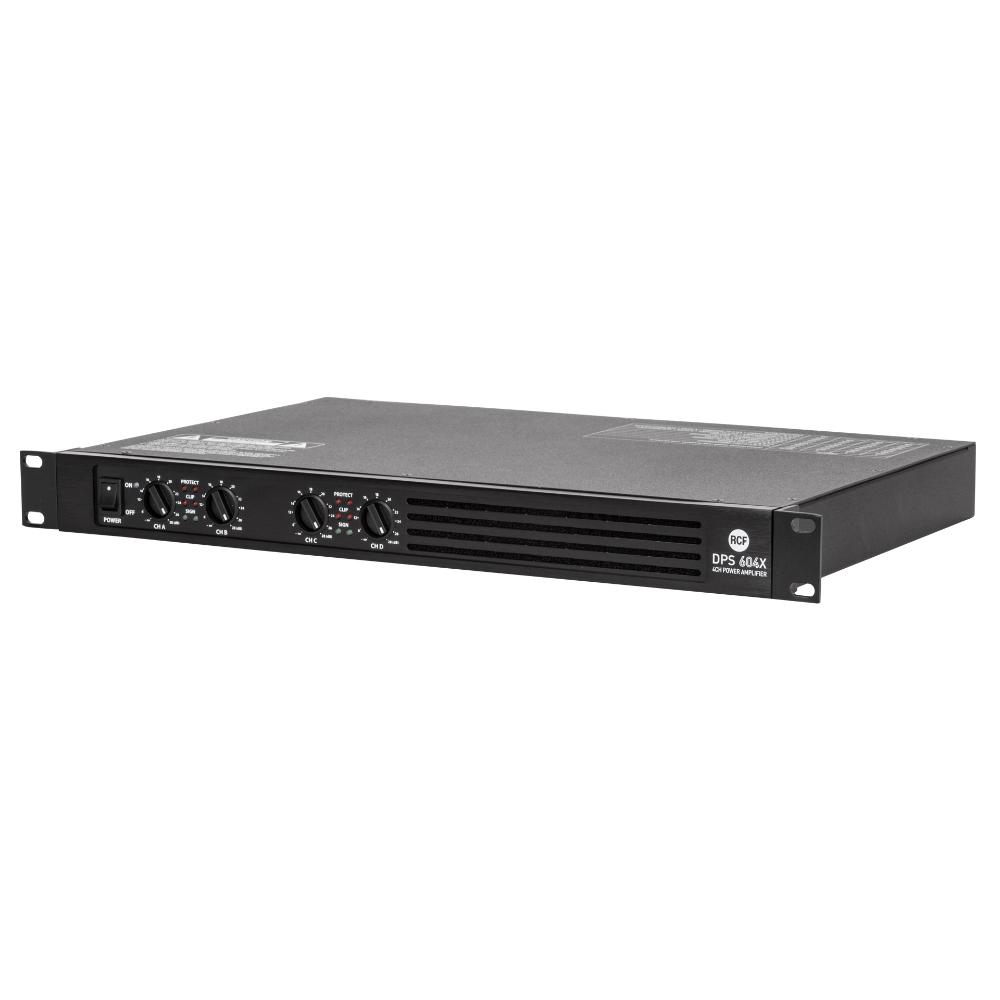

DPS 604X

4 CHANNELS CLASS D POWER AMPLIFIER WITH CROSSOVER
  • Fast response and low distortion
  • Eight different operation modes, two of which with internal crossover
  • Extensive protective circuits ensure high reliability and operating safety

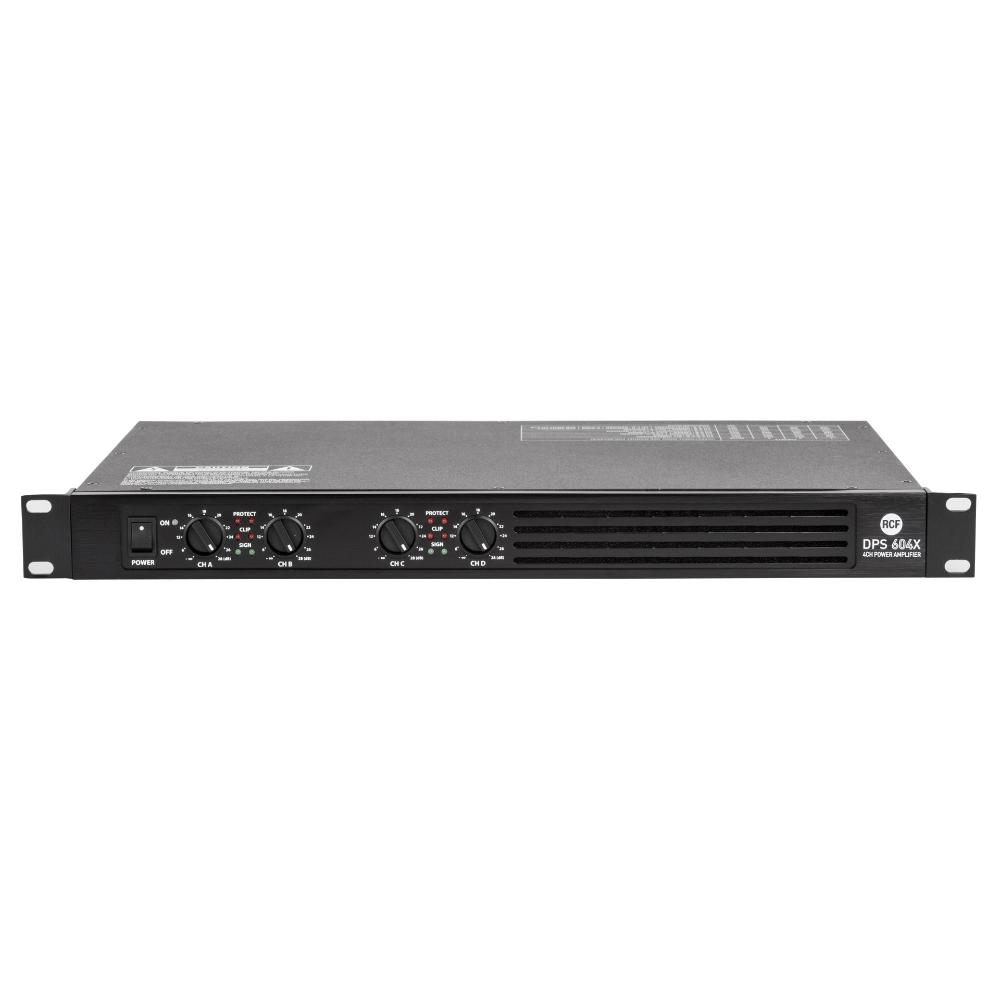

  • Level control for each channel on the front panel
Unterstützung
Merkmale Spezifikationen Verwandte Produkte Downloads
Unterstützung
Merkmale
  • Fast response and low distortion
  • Eight different operation modes, two of which with internal crossover
  • Extensive protective circuits ensure high reliability and operating safety
  • Level control for each channel on the front panel
  • Signal and peak LED for each channel
  • Suitable for rack installation (1U 19")

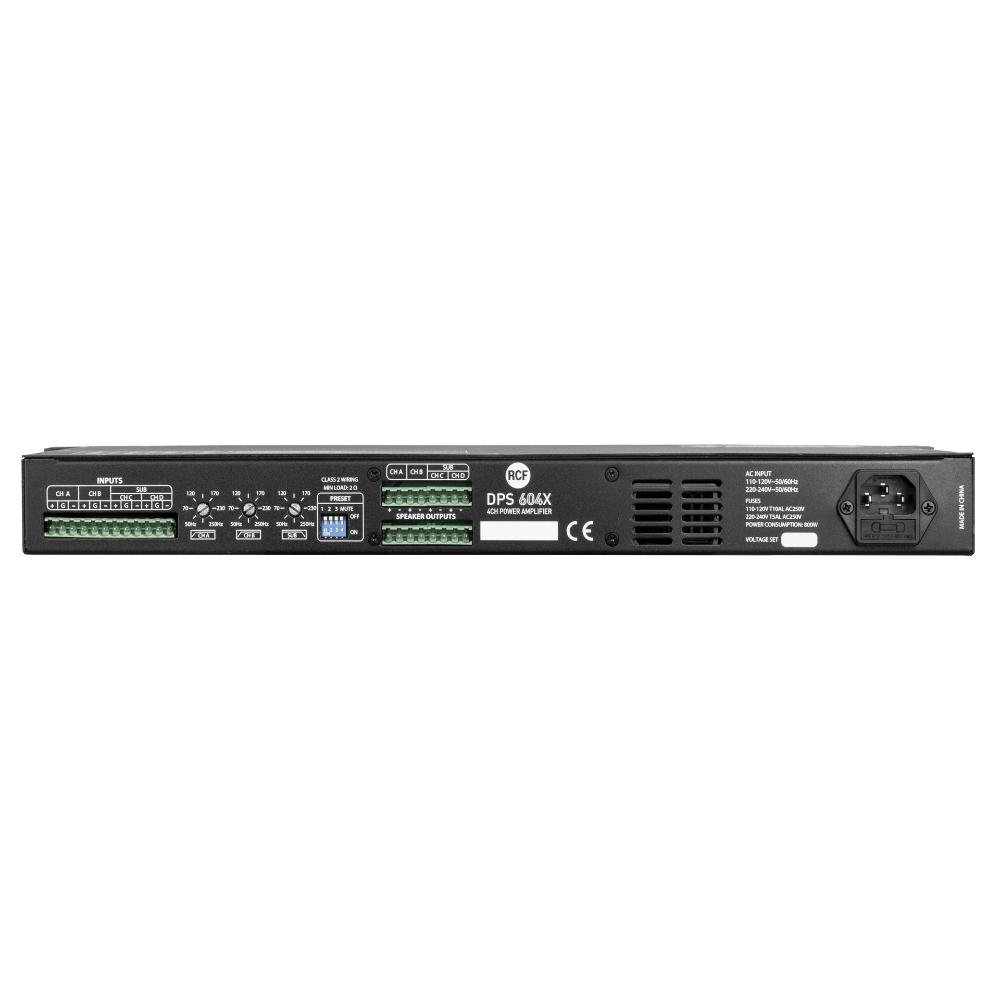

DPS 604X is a 4-channel class D power amplifier designed for professional use in installed sound systems. It has 4 inputs and 4 outputs that could be combined in different configurations: a DIP switch on the rear panel allows to choose among 8 operational modes, and easily adapt the system to the specific installation. Moreover, it has two hi-pass filters (on channels A and B) and a low-pass filter for subwoofers, with cutoff frequencies in the range from 50 Hz to 250 Hz.

ARCHIVED

Part number:

12100008
DPS 604X
220-240V, EAN 8024530014155

12100012
DPS 604X
115V, EAN 8024530014667

Spezifikationen
Technische daten (Verstärker)
Klasse Verstärker:
D
Frequenzgang (-3dB):
20 Hz ÷ 24 Hz
Übersprechen:
<70 dB
Verzerrung (THD+N) @ 1 kHz :
<0.1 %
Input-sektion
Gesamtzahl an Eingängen:
4
Symmetrisch:
4
Mono:
4
Line-Eingang:
4
Leitungsverbinder:
Euroblock
Ausgangs-sektion
Anschluss Versorgungsspannung:
Euroblock
Prozessing
Hochpass-Filter:
50 Hz ÷ 250 Hz
Crossover:
50 ÷ 250 Hz
Konfiguration und steuerung
Konfiguration:
DIP switch
Anzahl an Programmen/Presets
9
Schutzschaltungen
Kühlung:
Forced
Kurzschluss:
Yes
Thermisch:
Yes
DC:
Yes
Sicherung:
Yes
VHF (Very High Frequencies):
Yes
Strombedarf
Betriebsspannung (V ~ Hz):
220-240/115 V~ 50/60Hz
Stromverbrauch (MAX (W):
800 W
Physikalische daten
Gehäuse Material:
Metal
Farbe:
Black,
Rack-Einbau:
19", 1U
Größe
Höhe:
44 mm / 1.73 inches
Breite:
483 mm / 19.02 inches
Tiefe:
281 mm / 11.06 inches
Gewicht:
4.75 kg / 10.47 lbs
Versandinformationen
Verpackung Höhe:
100 mm / 3.94 inches
Verpackung Breite:
560 mm / 22.05 inches
Verpackung Tiefe:
370 mm / 14.57 inches
Verpackungsgewicht:
6 kg / 13.23 lbs
