Características
  • 5" woofer with 1" dome tweeter
  • Power selectable (100 V): 30 W – 20 W – 10 W – 5 W
  • 91 dB sensitivity
  • Colour white RAL 9016 and black RAL 9005
  • Self-extinguishing plastic frame and back can, steel grille
  • In/out euroblock connectors

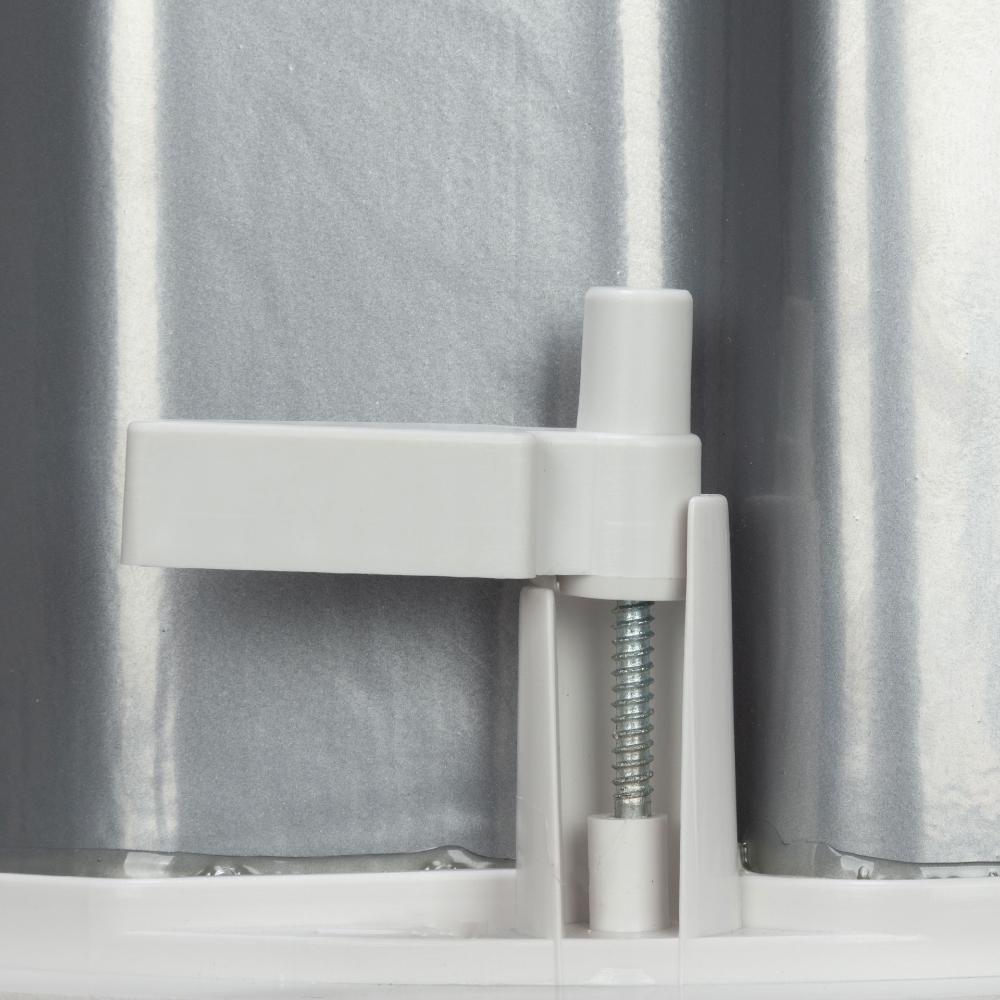

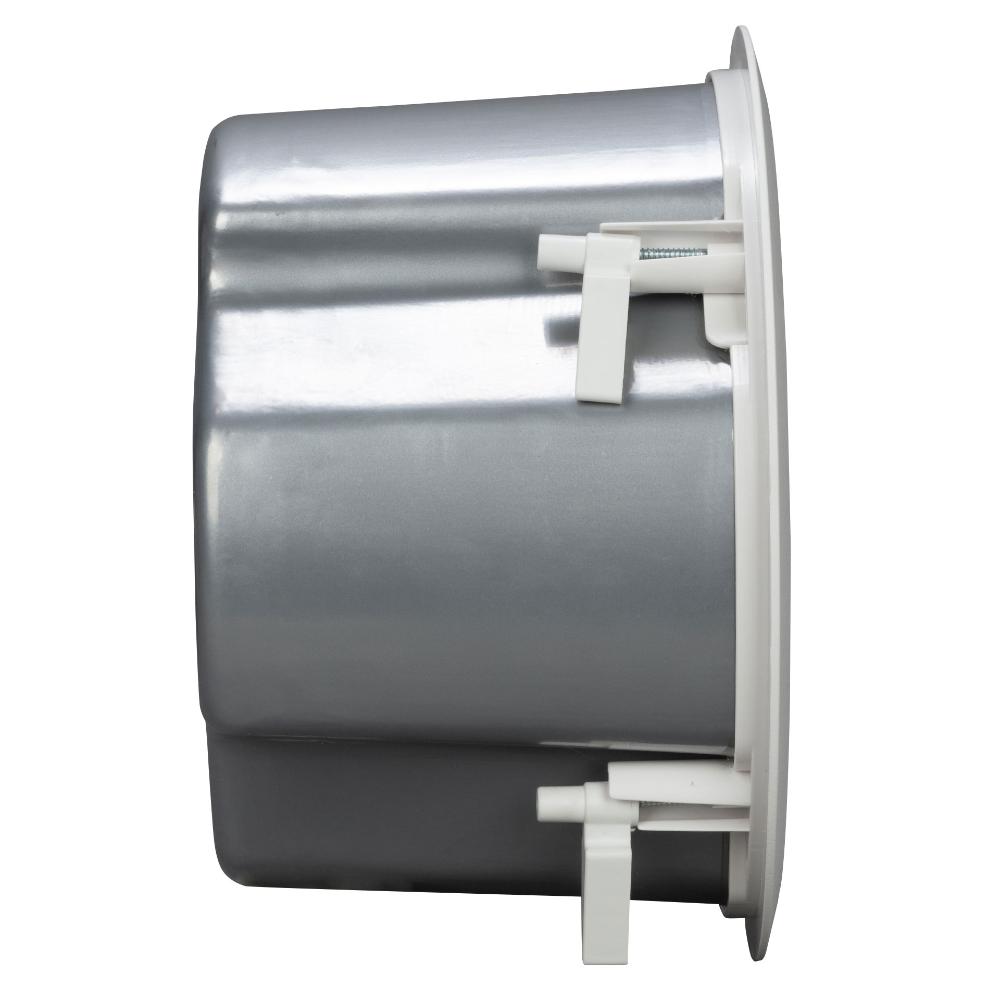

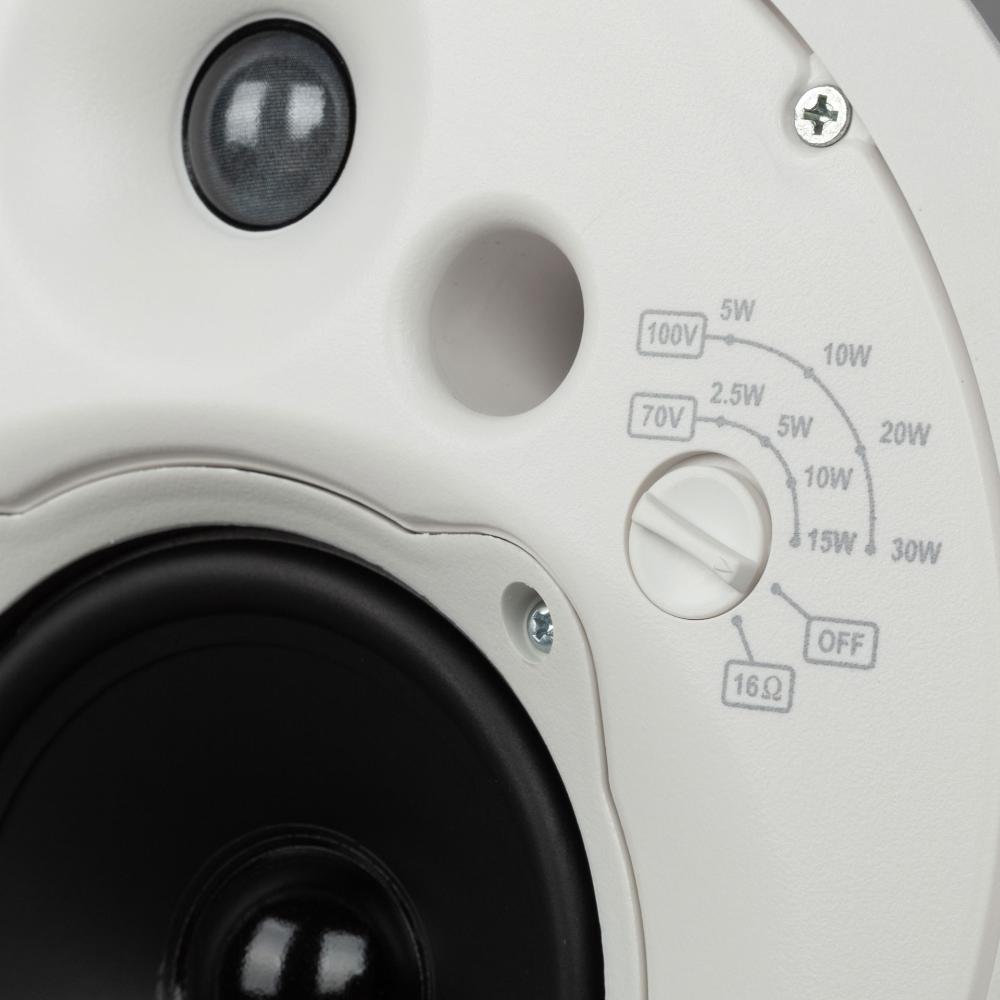

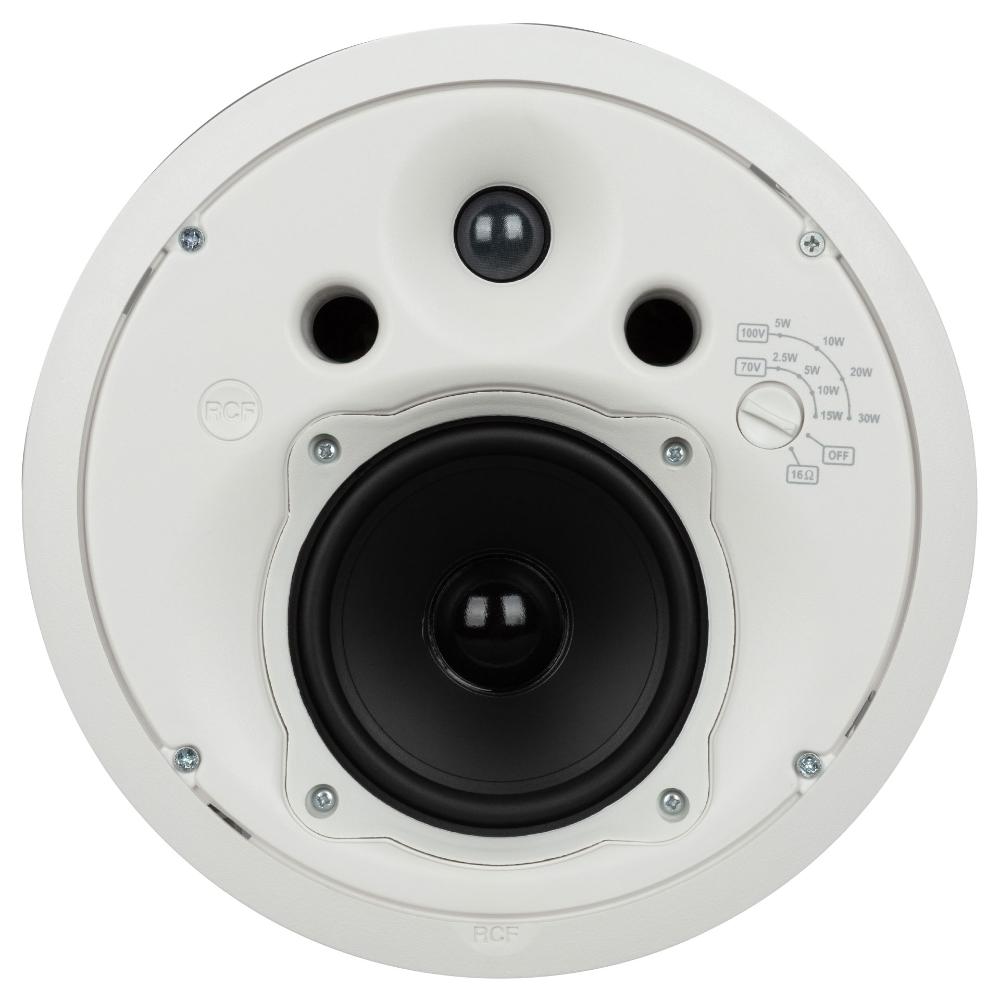

Compact design, light weight and limited depth makes the MQ 50C a 2-way ceiling speakers ideal for use in any background and foreground music system where a good sound is required. The woofer is a high-excursion, PP coated paper cone with rubber surround design mounted in a tuned enclosure. The fabric dome tweeter is loaded on a constant Q wave guide to provide natural and smooth sound reproduction on a wide dispersion angle. Installation of MQ 50C is fast and efficient thanks to the built-in rotating hooks. No additional brackets or rings or other supports are required: thanks to its lightweight construction the speaker can be mounted as a conventional ceiling speakers. Connections are made on four poles Euroblock connector. Power value can be selected with a rotary switch, accessible behind the grill.

Part number:

13000081
MQ 50C W
White - RAL 9016, EAN 8024530005368

13100089
MQ 50C B
Black - RAL 9005, EAN 8024530018481

Especificaciones
Especificaciones acusticas
Respuesta en frecuencia (-10 dB):
70 Hz ÷ 20000 Hz
SPL máx. a 1 m:
112 dB
Ángulo de cobertura:
120°
Sensibilidad del sistema:
91 dB
Sección de potencia
Impedancia nominal:
16 ohm
Manejo de potencia:
60 W RMS
Manejo de potencia pico:
240 W PEAK
Amplificador recomendado:
120 W
Frecuencias de cruce:
3000 Hz
Transductores
Tweeter de domo:
1.0'' neo
Altavoz de bajos:
5.0'' neo
Sección de entrada/Sección de salida
Conectores de entrada:
Euroblock
Conectores de salida:
Euroblock
Transformador de voltaje constante:
100 V
Selección de potencia 1:
30 W - 333 ohm
Selección de potencia 2:
20 W - 500 ohm
Selección de potencia 3:
10 W - 1000 ohm
Selección de potencia 4:
5 W - 2000 ohm
Especificaciones físicas
Material del gabinete/de la caja:
Plastic
Rejilla:
Steel
Color:
White - RAL 9016, Black - RAL 9005
Tamaño
Profundidad:
156 mm / 6.14 inches
Diámetro:
266 mm / 10.47 inches
Diámetro del orificio:
245 mm / 9.65 inches
Peso:
2.1 kg / 4.63 lbs
Informaciones de envío
Altura de paquete:
235 mm / 9.25 inches
Anchura de paquete:
310 mm / 12.2 inches
Profundidad de paquete:
310 mm / 12.2 inches
Peso de paquete:
2.99 kg / 6.59 lbs
