Caractéristiques
  • 200 W RMS power handling
  • 124 dB max SPL
  • 95 Hz ÷ 20000 Hz frequency range
  • 10" woofer, 2.5" v.c.
  • 1.5" v.c. compression driver
  • 90° x 40° constant directivity
  • Weatherproof IP55 cabinet with UV protection
  • Aluminum grille
  • AISI 316L stainless steel bracket
  • Built in 100V line transformer

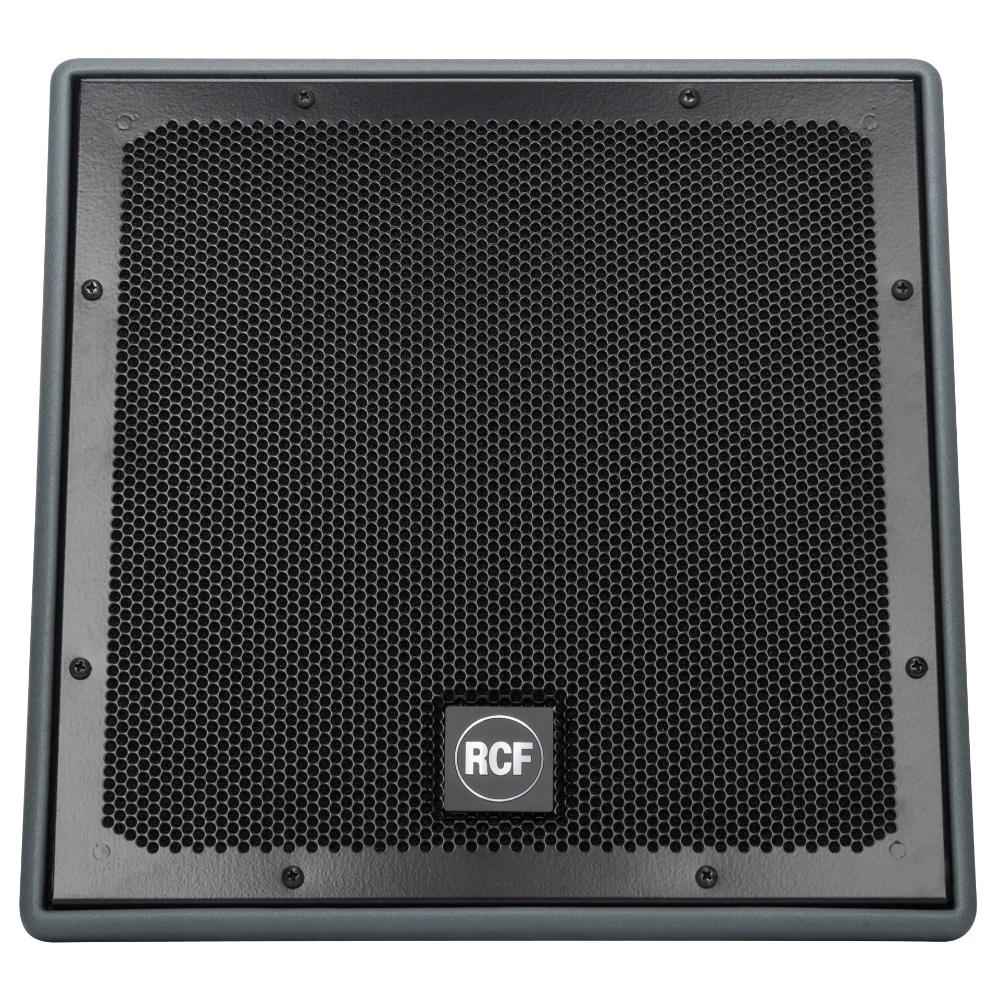

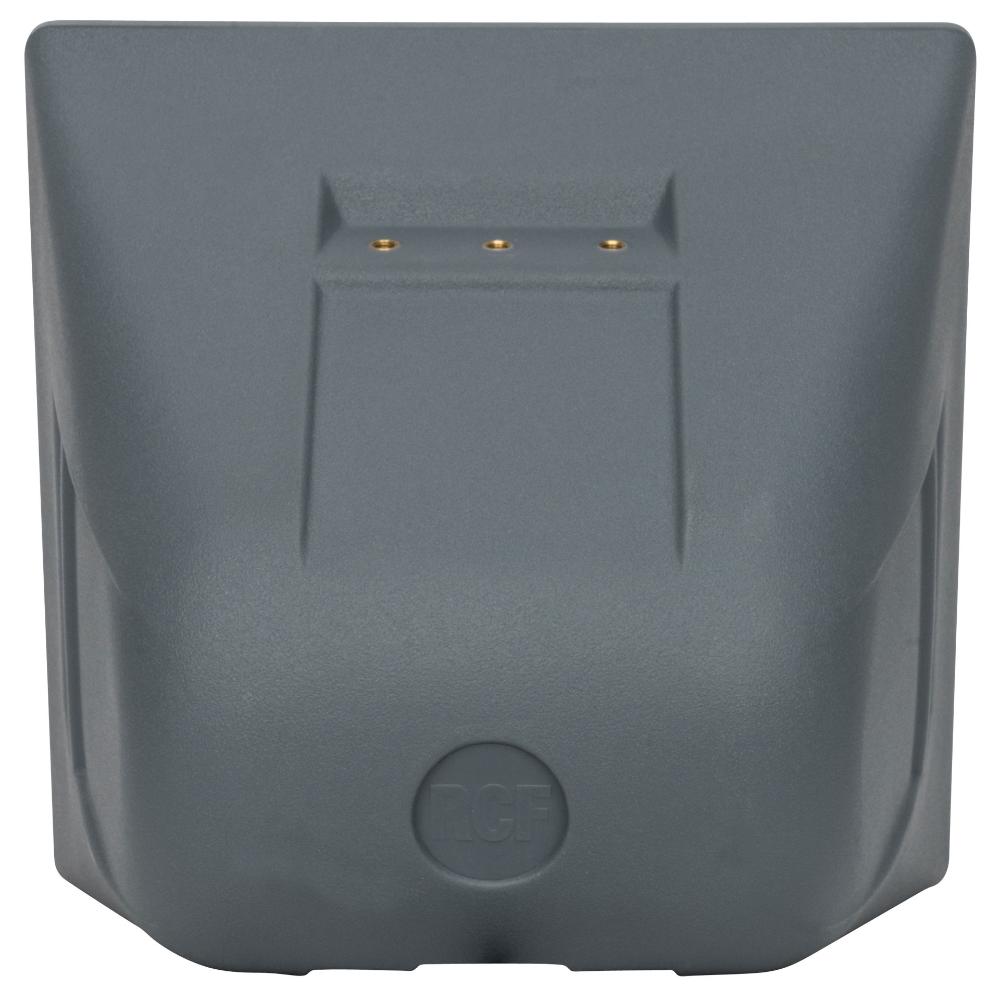

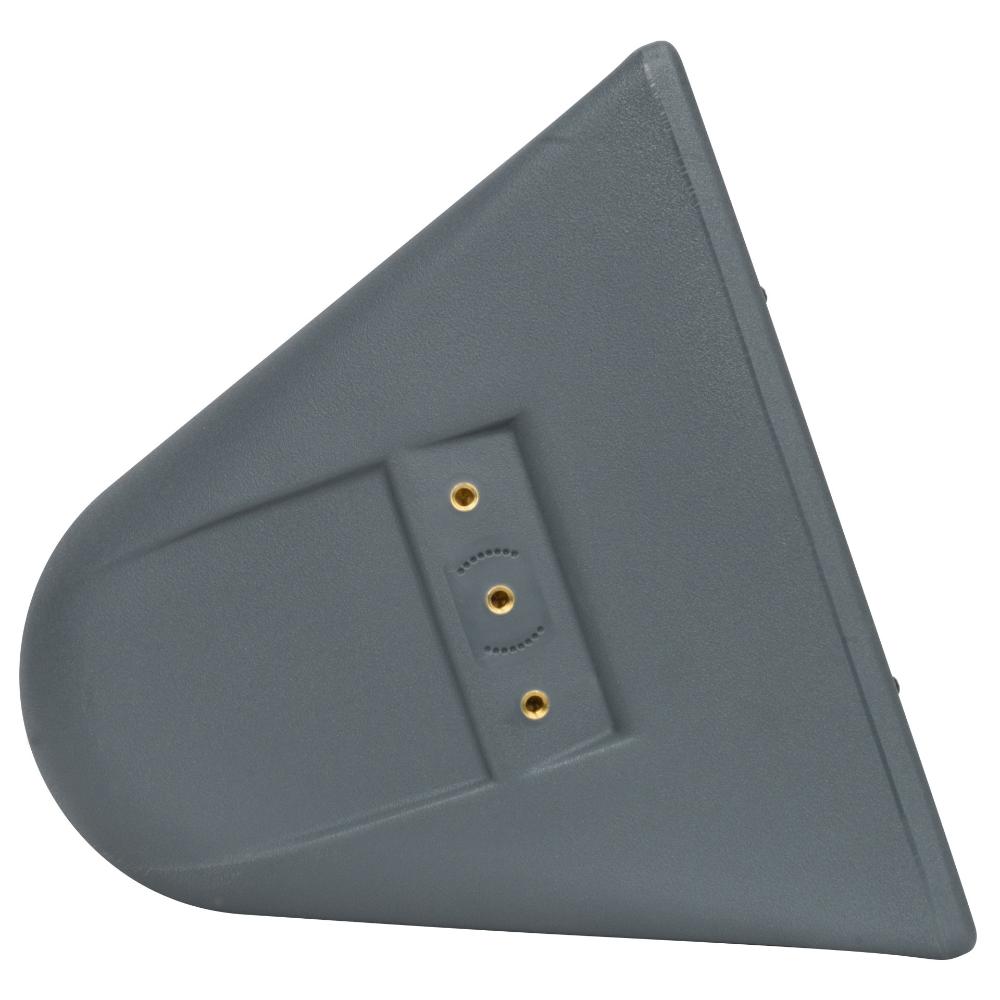

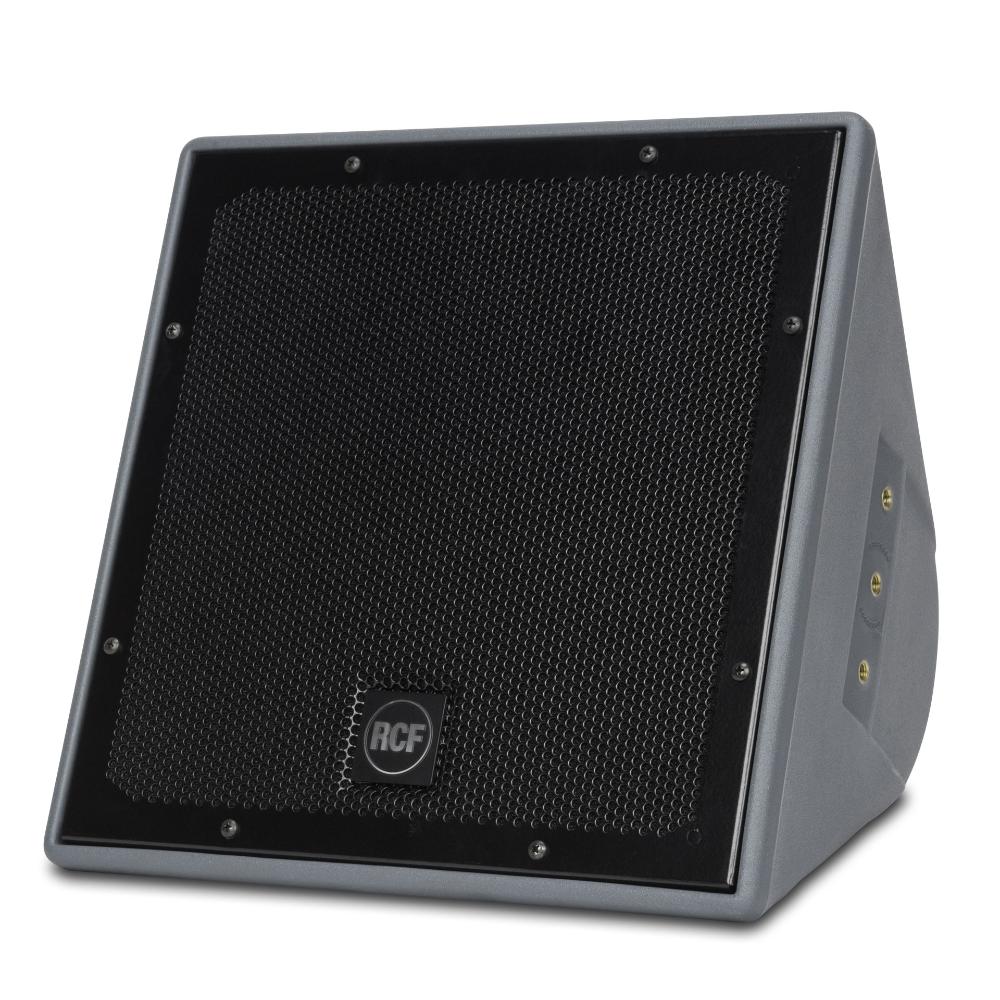

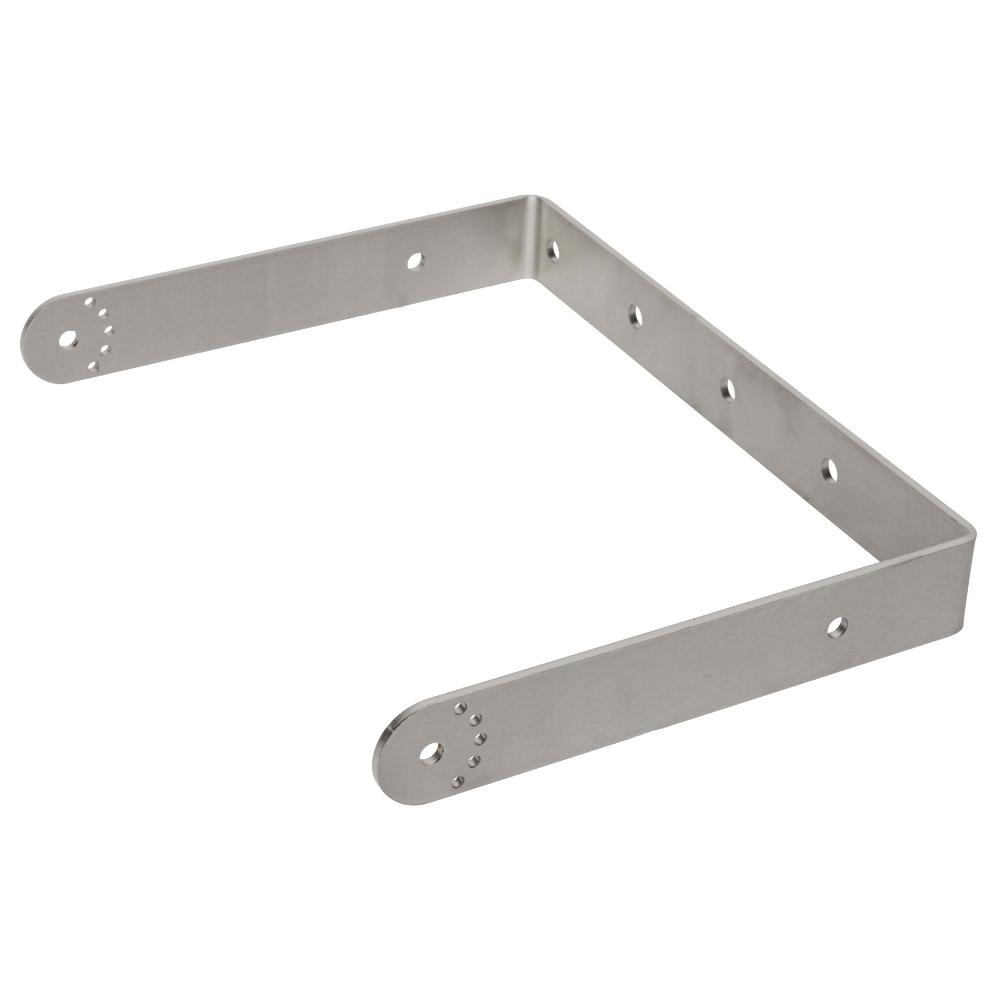

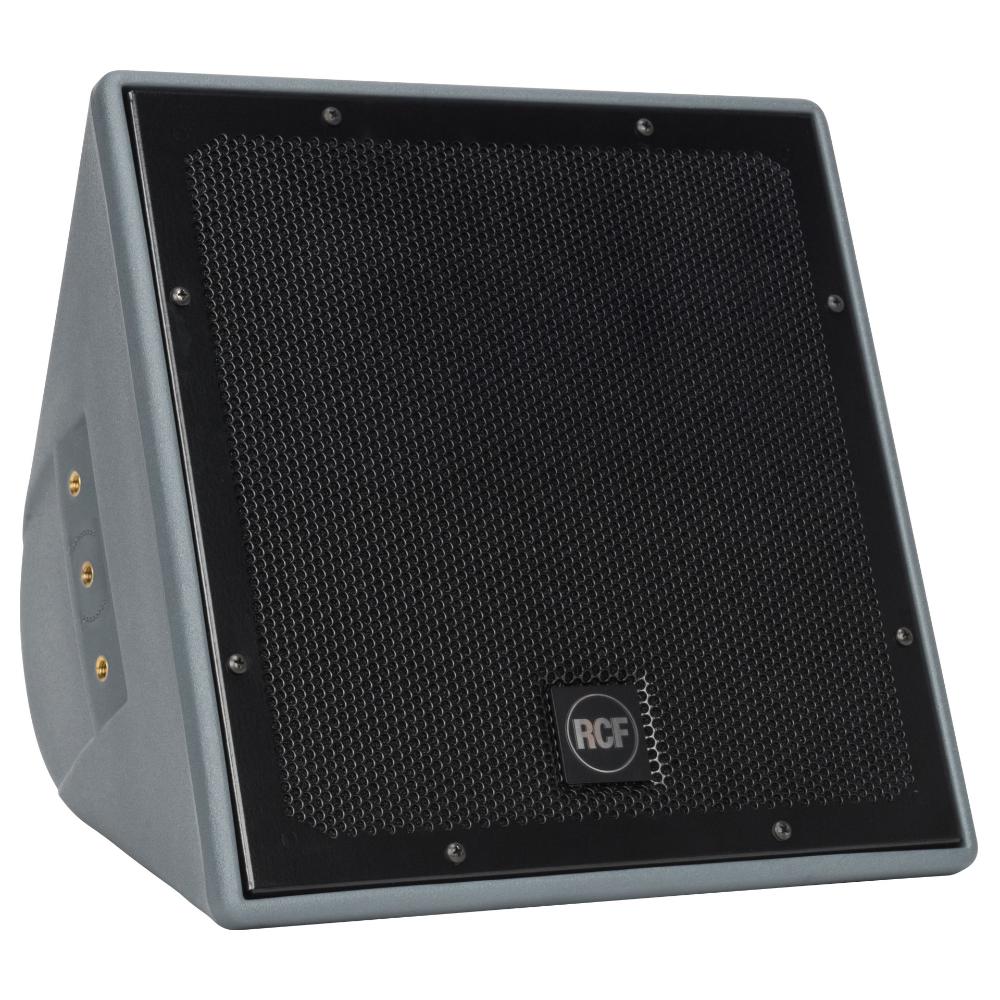

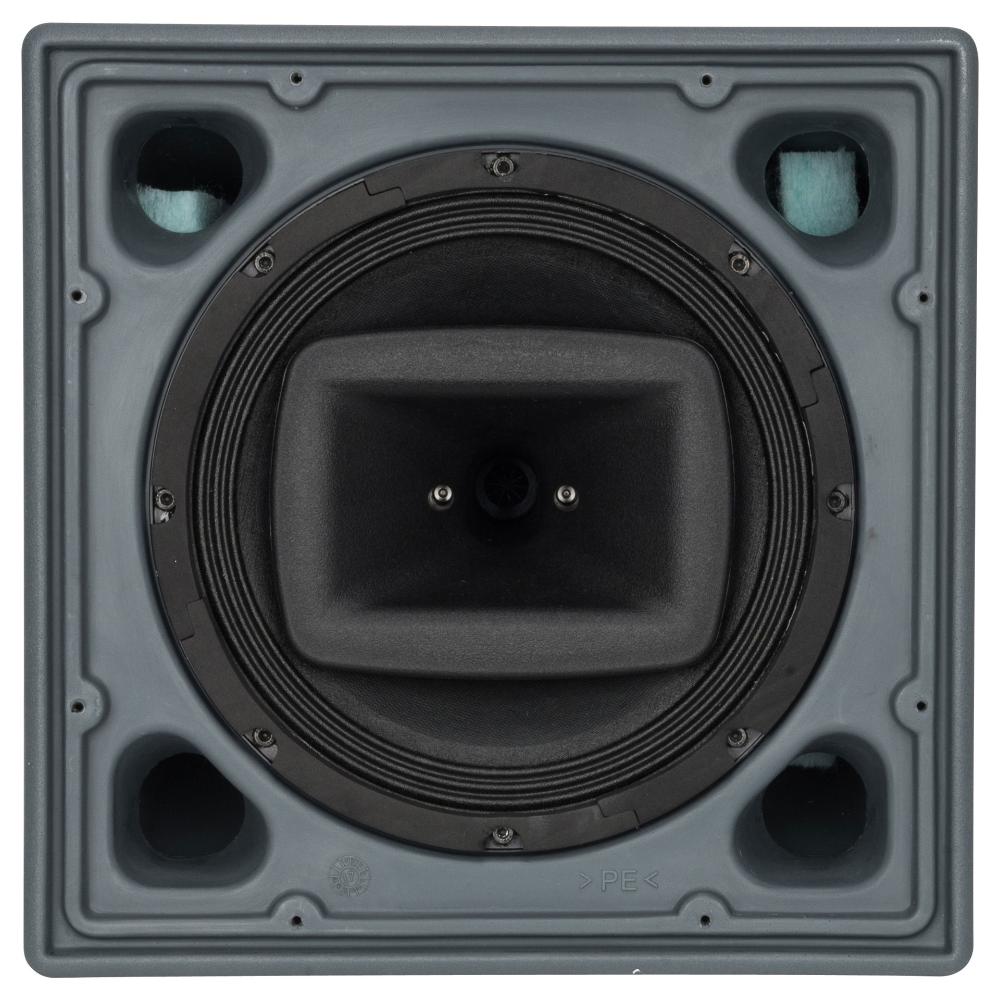

The P 2110T is a weatherproof full-range, wide-dispersion, coaxial two-way loudspeaker system for a variety of professional indoor or outdoor applications. The speaker can be installed individually or coupled in array configurations. The low-frequency transducer is a 10” woofer with a 2.5” voice coil. The high-frequency section combines a 1” RCF Precision compression driver with a 1.5” diaphragm assembly centrally-mounted in the throat of the LF driver, and loaded on a constant directivity CMD horn for smooth, wide dispersion. The P 2110T features a selectable line transformer for 70 - 100 volt applications, built-in LICC crossover, and Active Mosfet Compression Driver Protection (AMCDP). The single-piece roto-molded cabinet is fully UV protected and meets IP-55 standard requirements. Included are M10 brass inserts (12 x) and one durable corrosion-resistant 316P stainless steel U-Bracket with spacers (2x) for 90° mounting. The aluminum grille cover is powder coated with water-repellent backing material and a rotatable logo plate.

Part number:

13000125
P 2110T
EAN 8024530008246

Amplificateur recommandé

SÉRIE XPS

4 x 4000 W

Puissance de sortie continue sous 2,7 ohms, en Classe D

40 bits virgule flottante Traitement audio à 96 kHz
Prêt à utiliser

Configurations et presets pour enceintes RCF

Hauteur 2U de rack

Pour systèmes son de touring et d’installation

Assignation en 32 bits d’une grande souplesse

grâce aux entrées/sorties analogiques, numériques AES/EBU et Dante

Protections sophistiquées
au niveau de chaque canal d’ampli et de l’alimentation secteur
Responsive Image


All-weather performance

The single-piece rotomolded cabinet is fully UV protected, equipped with multiple brass inserts and a corrosion-resistant 316P stainless steel U-bracket. Connections to the amplifier are made through a watertight multi-pole connector. The front aluminum grille is powder coated with water-repellent backing material, front logo is rotatable. All P series speakers meet IP55 standard requirements (International Protection Rating), suitable for indoor and outdoor applications.

Versatility for any application

Focusing on outdoor and indoor large spaces, P Series speakers are capable of true, concert-level high performance in a compact enclosure, installed individually or coupled in array configurations. Featuring coaxial, line source, and subwoofers speakers, all modules embed RCF Precision Transducers, horns, and waveguides for optimal coverage and clarity. The cabinet’s design with coaxial or coplanar woofers and horns produces identical left and right coverage, capable of delivering serious sonic horsepower within the stadium while maintaining intelligibility and even coverage at every seat.

Responsive Image

LICC - Low Impedance Compensated Crossover

The system includes a high-level crossover network that features lower than conventional induction values. Its benefits are delay reduction, reduced phase shift and superior transient response for improved audio performance and stability.

CMD - Coverage Matching Design

RCF exclusive CMD technology helps guarantee an optimal transition between the high frequency horn polar pattern and the low frequency woofer directivity.
Responsive Image

Customization without boundaries

Our Engineering Support Group works side by side with the R&D Department to create tailor-made equipment based on the client’s real needs – complete with rigging accessories, signal processing, or custom mechanics. We are not only suppliers of standard products but also a team of highly skilled engineers who develop personalized audio solutions. Contact the RCF team to learn more about customization and color options to suit your unique environment. Each project has important benchmarks and we will help you to get the job done.
Responsive Image
Caractéristiques
Specifications acoustiques
Réponse en fréquence (-10 dB)
95 Hz ÷ 20000 Hz
SPL max. @ 1m
124 dB
Angle de couverture horizontale
90°
Angle de détection vertical
40°
Indice de directivité Q :
11
Sensibilité du système:
95 dB
Section alimentation
Amplification
Full Range
Impédance nominale: alimentation
16 ohm
Manipulation de tension
200 W
Manipulation de tension de crête
800 W PEAK
Protections
Dynamic active mosfet
Fréquences de recouvrement
2000 Hz
Hauts-parleurs
Pilote de compression
1.0'', 1.5'' v.c
Woofer
Coaxial 10'', 2.5'' v.c
Sections entrées/sorties
Connecteurs d’entrée
Neoprene Cable
Transformateur de tension constante
100 V
Réglage de tension 1
60 W - 167 ohm
Réglage de tension 2
30 W - 333 ohm
Réglage de tension 3
15 W - 667 ohm
Conformité standard
Degré de protection IP
IP 55
Safety agency
CE compliant
Specifications physiques
Matériau du cabinet/caisson
PE Low Density
Matériel
12 x M8 inserts + U-brackets and pair of spacers
Grille
Aluminum with waterproof clothing
Couleur
Grey
Taille
Hauteur
350 mm / 13.78 inches
Largeur
350 mm / 13.78 inches
Profondeur
320 mm / 12.6 inches
Poids
13.4 kg / 29.54 lbs
Infos colisage
Hauteur du colis
400 mm / 15.75 inches
Largeur du colis
370 mm / 14.57 inches
Profondeur du colis
370 mm / 14.57 inches
Poids du colis
16.3 kg / 35.94 lbs
Accessoires
videos

1 vidéos associées

Téléchargements
MANUELS
PDF
1,5 Mo
22-04-2024
FICHES TECHNIQUES
PDF
568 Ko
25-07-2024
PDF
575 Ko
20-08-2024
PDF
567 Ko
25-07-2024
PDF
576 Ko
20-08-2024
PDF
566 Ko
25-07-2024
PDF
288 Ko
15-07-2024
CONFORMITÉ AUX NORMES
PDF
22 Ko
11-05-2023
DESSINS
DXF
1 020 Ko
01-06-2018
PDF
24 Ko
01-06-2018
DXF
529 Ko
22-01-2024
LOGICIEL
GLL
ZIP
1,8 Mo
28-06-2017
