Características
  • 4 x 4000 W continuous output power
  • 20 ÷ 23000 Hz frequency range
  • Full on-board processing
  • RCF speakers’ presets library
  • Proprietary advanced algorithms
  • Networked management via RDNet
  • Native ethernet interface
  • 4.3" TFT capacitive touch screen

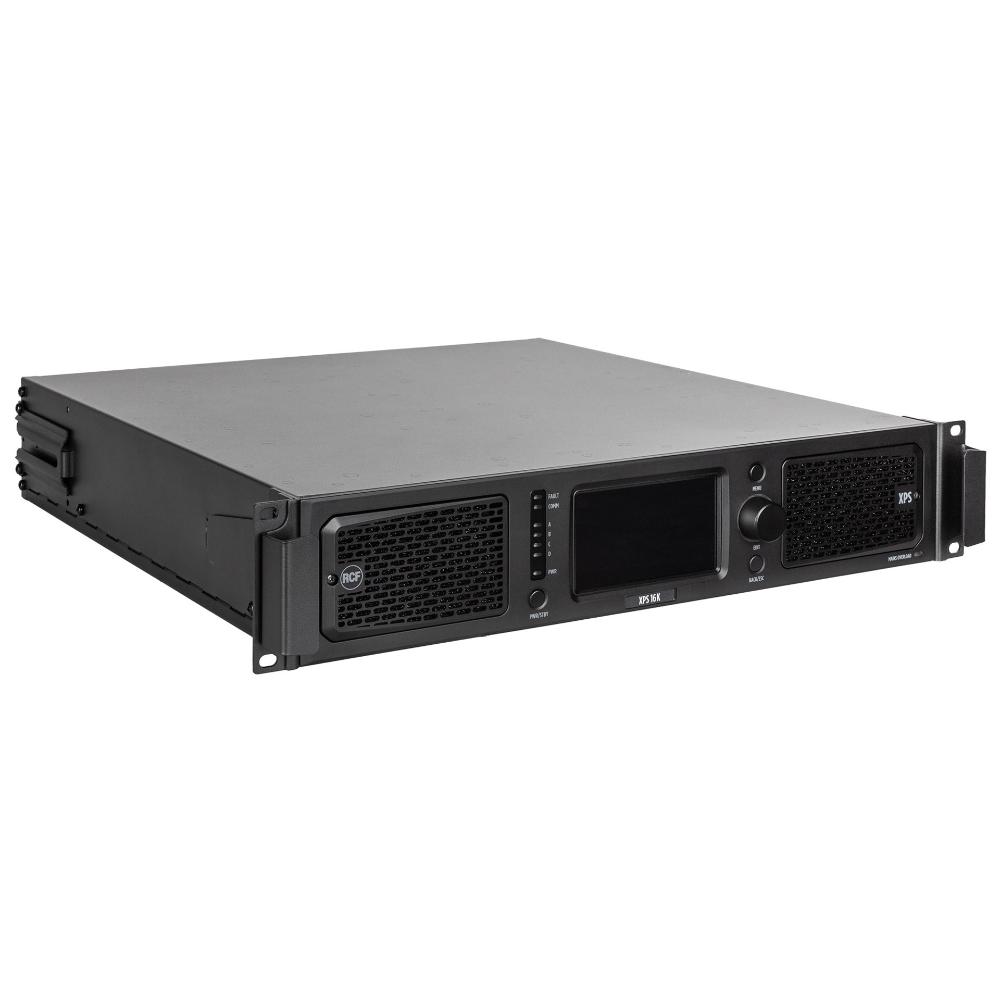

XPS 16K offers a full package of high power amplification, innovative processing, analog and digital audio management in a single solution. It is a high power amplifier dedicated to RCF speaker systems with an onboard dedicated preset library. XPS 16K offers four independent, processed channels of audio amplification and is capable of driving all professional RCF speaker systems. The main user interface is RDNet, RCF proprietary control and monitoring software. It is possible to discover, monitor and control a virtually unlimited number of amplifier. Users will find ready to use definable parametric equalizations, multiband compressors, RCF bass shaper, air absorption compensation, delays and levels. The time delay it is up to four second per channel. Most of settings and monitored parameters (channel information, presets, levels, status, grouping and naming as well as user presets) are also accessible through the front panel user interface, made of a capacitive 4.3’’ touch screen and an ergonomic rotary encoder.

Leer más

NEW

Part number:

12100037
XPS 16K
EU, EAN 8024530019952

12100074
XPS 16K
US

12100076
XPS 16K
UK

Outstanding. Power. Processing.

4 x 4000 W

Class D Continuous Power at 2.7 Ohms

40-bit Floating-point Processing at 96 kHz
Ready-to-Use
Configurations
and Presets Provided for RCF Speakers
2U Rack Unit

Ideal for Both Touring and Installed Sound Systems

Flexible 32-bit Routing
with Analog, Digital
and Dante I/O
Advanced Fault Protections
for each Amplifier Channel and Power Supply
Responsive Image

Installed Audio

Quality Power for Fixed Sound Systems

XPS Series is the best choice for high-power installation systems such as auditoriums, theme parks, and performance venues. Whether perfectly integrating with RCF passive speakers with ready-to-use presets, XPS provides installation-specific features, including enhanced system status monitoring, GPIOs for extended capabilities, flexible routing, and perfect integration with our proprietary RDNet management platform.

Responsive Image

Tour Sound

Thinking Out of the Box, and Into The Rack

XPS shines when used in touring applications and live events from medium to very large capacity. Paired with RCF high-powered passive speakers, XPS gives a new perspective in sound system management. The system designer now has complete flexibility in choosing powered, or externally amplified speakers, balancing portability, weight, ease of installation, cabling, fast setup speed, and complete remote management, via RDNet.

Responsive Image

Power to Change Everything

Four-Channel Modular Amplifier

XPS 16K provides extreme power density with 4 x 4000 W continuous power outputs in 2 RU space for both touring and installed sound systems. The unit features 4 analog and digital AES/EBU inputs/outputs, a Dante Network ready design, and complete signal processing, tuning, and routing capability all at 96 kHz. Redundancy and full scalability are granted by the advanced and modular design of the circuitry. A complete set of RCF speaker presets is available, with powerful signal processing for complete system tuning.

4 x 4000 W

CONTINUOUS POWER OUTPUTS

New Attitude in Sound Management

XPS 16K supports the RCF philosophy with a power-agnostic approach, where the sound system engineer has complete freedom in choosing powered, or externally amplified, modules for their system. XPS 16K offers a new solution for balancing portability, weight, ease of installation, cabling, fast setup speed, and complete remote management of each connected device, via RDNet.

Power You Can Trust

RCF’s effort in assisting both installers and sound providers with the best audio technology and clear, powerful sound is at the core of the company’s beliefs. Since 1949, providing both power amplifiers and transducers to the professional market, the RCF experience marks a new milestone with XPS 16K.

Especificaciones
Aespecificaciones del amplificador
Clase de amplificador:
D
Output power (EIAJ 8:32 all channels driven):
4 x 4000 W @ 2.7 ohm
4 x 2600 W @ 4 ohm
4 x 1400 W @ 8 ohm
Respuesta en frecuencia (-3 dB):
20 Hz ÷ 23000 Hz
SNR Analog inputs (unweighted):
111 dB
SNR Digital inputs (unweighted):
115 dB
Diafonía:
<70 dB
THD+N (20 Hz ÷ 20000 Hz,1000 W @ 4 ohm):
<0.2 %
Gain (linear mode @ 0 dB):
32 dB
Damping factor (@ 4 ohm, 20 Hz ÷ 1500 Hz):
>95
Max burst length (@ 50 Hz, CF = 7 dB, 4 ohm, 1% THD+N):
200 ms

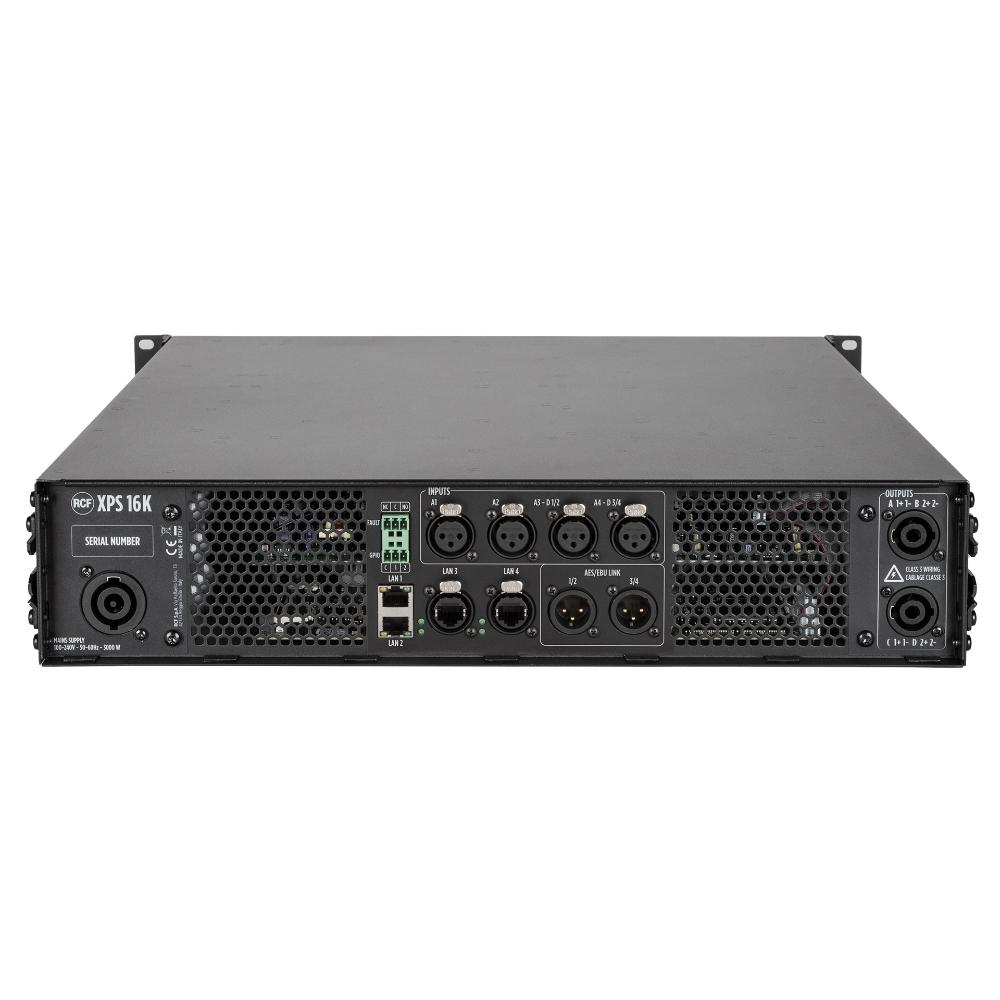

Sección de entrada
Número total de entradas:
8
Entradas de línea:
4
Conectores de línea:
XLR
Entradas digitales:
4
Conectores digitales:
XLR
Tipo digital:
AES/EBU
Entradas de propósito general (GPI):
2
GPI programable:
Yes
GPI fotoacoplado:
2
Sección de salida
Número de salida de señal:
4
Conectores de salida de señal:
XLR
Conectores de salida de potencia:
Speakon
Entradas de propósito general (GPI):
3
GPO programable:
Yes
Procesamiento
DSP (procesador de señal digital):
2 SHARC, 40-bit floating point, 96 kHz
2 ADAU 1442, 32-bit fixed point, 96 kHz
Filtros EQ:
Peaking | HI/LO-shelving | HI/LO-pass (Butterworth, Linkwitz-Riley, Bessel)
Advanced algorithms:
FiRPHASE technology | BASS shaper | air compensation | mid-low correction | driver excursion control | dynamic PEQ | multi-band compressor | pilot tone detection | backup recovery strategy | impedance load measurement
Compresores:
RMS limiter | dynamic compressor | power limiter | thermal compressor
Retardo:
0 ÷ 4000 ms (each channel)
Controles de tono:
Yes
Filtro Pasa-Alto:
10 Hz ÷ 1000 Hz
Cruce:
2500 ÷ 3500 Hz
Control de ganancia automático :
Yes
Configuración y control
Configuración:
Front panel touch screen, PC Software
Network:
Gigabit ethernet
RCF speakers presets:
Yes
Prioridad:
Yes
Protocolos de sistemas de integración:
Proprietary OSC based protocol, Q-SYS
RDNet:
Yes
Protecciones
Enfriamiento:
Forced
Cortocircuito:
Yes
Térmico:
Yes
CC (Corriente continua):
Yes
Fusibles:
Yes
VHF (frecuencias muy altas):
Yes
Condiciones de operación
Temperature range - Continuous operation:
-5°C ÷ +40°C / +23°F ÷ +104°F
Temperature range - Reduced output power:
-5°C to +50°C / +23°F to +122°F
Fan noise idle < (dBA):
<35 dBA
Fan noise max < (dBA):
<64 dBA
Requerimientos de poder
Voltaje de funcionamiento (V ~ Hz):
90-240 V~ 50/60Hz
Nominal current AC @ 100-120 V:
30 A
Nominal current AC @ 220-240 V:
16 A
Stand by power consumption:
20 W
Idle power consumption:
90 W
Consumo eléctrico (MAX) (W):
5800 W
Main fuse:
Internal
Cumplimiento estándar
Safety agency:
CE compliant
Especificaciones físicas
Material del gabinete/de la caja:
Metal
Manijas:
2 metal handles for rack mount
Color:
Black - RAL 9005
Montaje en bastidor:
19", 2U
Tamaño
Altura:
88.7 mm / 3.49 inches
Ancho:
482 mm / 18.98 inches
Profundidad:
482.4 mm / 18.99 inches
Peso:
15 kg / 33.07 lbs
Informaciones de envío
Altura de paquete:
150 mm / 5.91 inches
Anchura de paquete:
580 mm / 22.83 inches
Profundidad de paquete:
600 mm / 23.62 inches
Peso de paquete:
18 kg / 39.68 lbs
