Caractéristiques
  • 2 unit 19" rack, easy transportation
  • Fast response and low distortion
  • Easy to configure in stereo / mono / bridge modes
  • Extensive protective circuits ensure high reliability and operating safety
  • Front panel signal / clip / protect LED indicators
  • XLR input connectors
  • SPEAKON NL4 output connectors

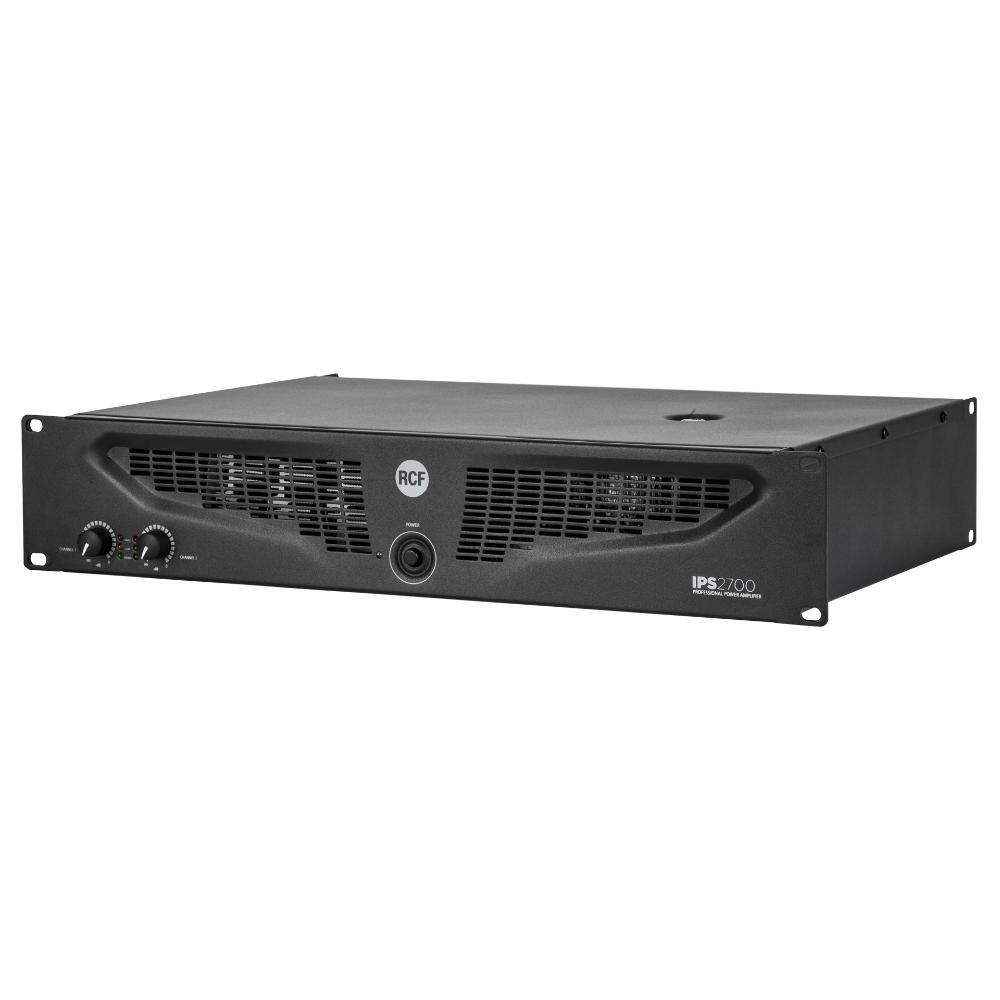

IPS Series is a range of two-way professional amplifiers that combines high quality performance and reliability with the latest power amplifications technologies. This high value power-to-cost designs offer, in compact lightweight 2 rack unit space, the sound quality and the durability of traditional class AB and class H designs with the innovation of the latest power devices available. IPS 2700 is a 2 channel power amplifier that delivers up to 2 x 1100 W RMS @ 4 O (2200 W RMS bridged @ 8 O), weighing just 14.5 kg. It features independent gain dials, signal – clip and fault LEDs, stereo XLR input and Output link, 1.4 V to 0.775 V input sensitivity switch, mono – stereo – bridge switch, powercon outputs. Moreover, it is protected against shorts and open circuits. Thanks to its high efficiency heat sinks and high speed DC fans, the IPS 2700 can withstand the hardest heat conditions ensuring great reliability.


ARCHIVED

Part number:

12135090
IPS 2700
115V, EAN 8024530011772

12135091
IPS 2700
230V, EAN 8024530011024

Caractéristiques
Specifications amplification
Réponse en fréquence (-3 dB) :
20 Hz ÷ 20000 Hz
Diaphonie :
<75 dB
Distorsion (THD+N) @ tension nominale de 1 kHz :
<0.5 %
Section entrées
Nombre total d’entrées :
2
Équilibré :
2
Mono :
2
Entrées de ligne :
2
Connecteurs de ligne :
XLR
Section sortie
Numéro de sortie du signal :
2
Connecteurs de sortie du signal :
XLR
Connecteurs de sortie de tension :
Speakon
Configuration et contrôle
Configuration :
DIP switch, Front panel
Protections
Système de refroidissement :
Forced
Court-circuit :
Yes
Thermique :
Yes
CC :
Yes
Fusibles :
Yes
VHF (Très hautes fréquences) :
Yes
Alimentation requise
Tension de service (V ~ Hz) :
220-240/115 V~ 50/60Hz
Consommation électrique (MAX) (W) :
700 W
Specifications physiques
Matériau du cabinet/caisson :
Metal
Couleur :
Black
Montage en rack :
19", 2U
Taille
Hauteur :
88 mm / 3.46 inches
Largeur :
482 mm / 18.98 inches
Profondeur :
255 mm / 10.04 inches
Poids :
12.1 kg / 26.68 lbs
Infos colisage
Hauteur du colis :
150 mm / 5.91 inches
Largeur du colis :
580 mm / 22.83 inches
Profondeur du colis :
570 mm / 22.44 inches
Poids du colis :
14.9 kg / 32.85 lbs
Téléchargements

Les produits RCF sont continuellement améliorés. Toutes les spécifications sont donc sujettes à changement sans préavis.
