Caratteristiche
  • 2 inputs that can be mixed to 6 outputs
  • 40-bit floating point DSP
  • 96 kHz sampling rate
  • 24-bit A/D D/A converters
  • 1 Hz frequency resolution (EQ / filters)
  • 8 equalizers for each input and output
  • Multiple crossover types; limiters
  • Level, polarity and delay settings
  • Firmware upgrade via PC
  • Individual channel buttons (for editing) with linking capability

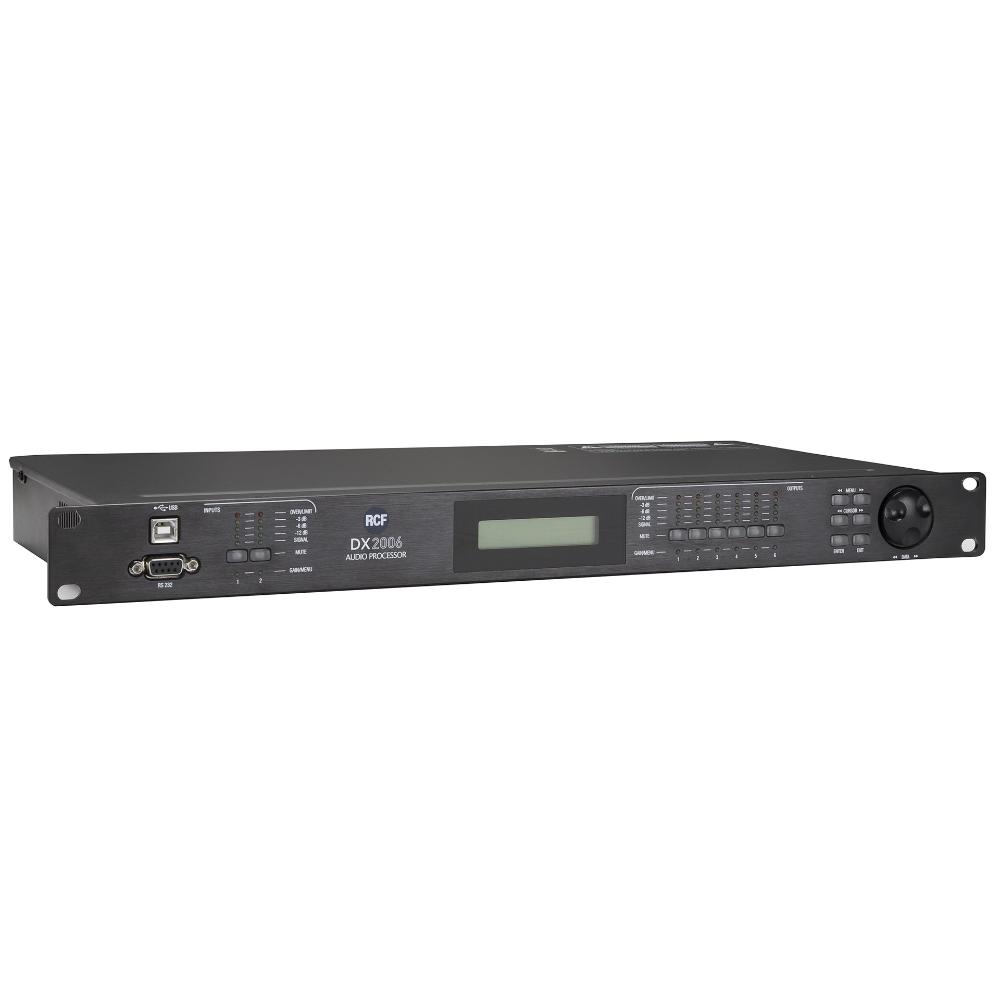

The DX 2006 is a 2 input - 6 output loudspeaker management device with 40 bit floating point DSP and 96 kHz sampling rate, suitable for the optimization of passive loudspeaker systems. The DX 2006 offers flexible routing, signal processing and equalization and can be used also for multiple ways and multi-amplified systems managing. LCD, controls and LED indicators are available on the frontal panel and it is also possible to set up and control the processor through a PC. Various crossover modes are available and 30 programs/Settings can be stored. The DX 2006 is shipped with a special PC Graphic User Interface (GUI) application - Xlink that gives the user an option to control the digital processor. The GUI application makes it much easier to control and monitor the device, allowing the user to get the whole picture on screen. Programs can be recalled and stored from/to PC hard drive, thus expanding the storage to become virtually limitless.


ARCHIVED

Part number:

12135068
DX 2006
EAN 8024530006921

Specifiche tecniche
Prestazioni audio
Risposta in Frequenza (-3dB):
20 Hz ÷ 30 kHz
Diafonia:
<-100 dB
Distorsione (THD+N) @ 1 kHz a potenza nominale
<0.002 %
Gamma Dinamica:
>115 dB
CMRR - Rapporto di reiezione di modo comune (50 Hz - 10 kHz):
>60 dB
Prestazioni audio digitali
Risoluzione(bit):
40
frequenza di campionamento (kHz):
96
Convertitori A/D - D/A (bit):
24
Delay di propagazione (ms):
2
Sezione di input
Numero di input totali:
2
Bilanciato:
6
Mono:
6
Ingressi Line
2
Connessioni di linea:
XLR
Sezione di output
Numero uscite di segnale:
6
Connessioni di segnale in uscita:
XLR
Processing
DSP:
Yes
Filtri EQ:
Yes
Delay:
Yes
Controlli di tono:
Yes
Filtro passa-alto:
20 ÷ 30000 Hz
Crossover:
20 ÷ 30000 Hz
Controlli
Configurazione:
Front panel, PC Software
Numero di Programmi/Preset:
30
Protezioni
Raffreddamento:
Convection
Fusibili:
Yes
Alimentazione
Voltaggio operativo (V ~ Hz):
220-240/115 V~ 50/60Hz
Consumo di energia (MAX) (W):
20 W
Specifiche fisiche
Materiale Cabinet/Case:
Metal
Colore:
Black
Montaggio a Rack:
19", 1U
Dimensioni
Altezza:
44 mm / 1.73 inches
Larghezza:
483 mm / 19.02 inches
Profondità:
229 mm / 9.02 inches
Peso:
2.62 kg / 5.78 lbs
Informazioni di spedizione
Altezza imballaggio:
90 mm / 3.54 inches
Larghezza imballaggio:
610 mm / 24.02 inches
Profondità imballaggio:
370 mm / 14.57 inches
Peso imballaggio:
4.12 kg / 9.08 lbs
