Caratteristiche
  • 6 mono INPUT + 4 stereo INPUT
  • 4 Compressors (Ch. 1-4)
  • 3band/2band EQ
  • 2 AUX send
  • Internal PSU 100V-240V, 50-60Hz, 40W

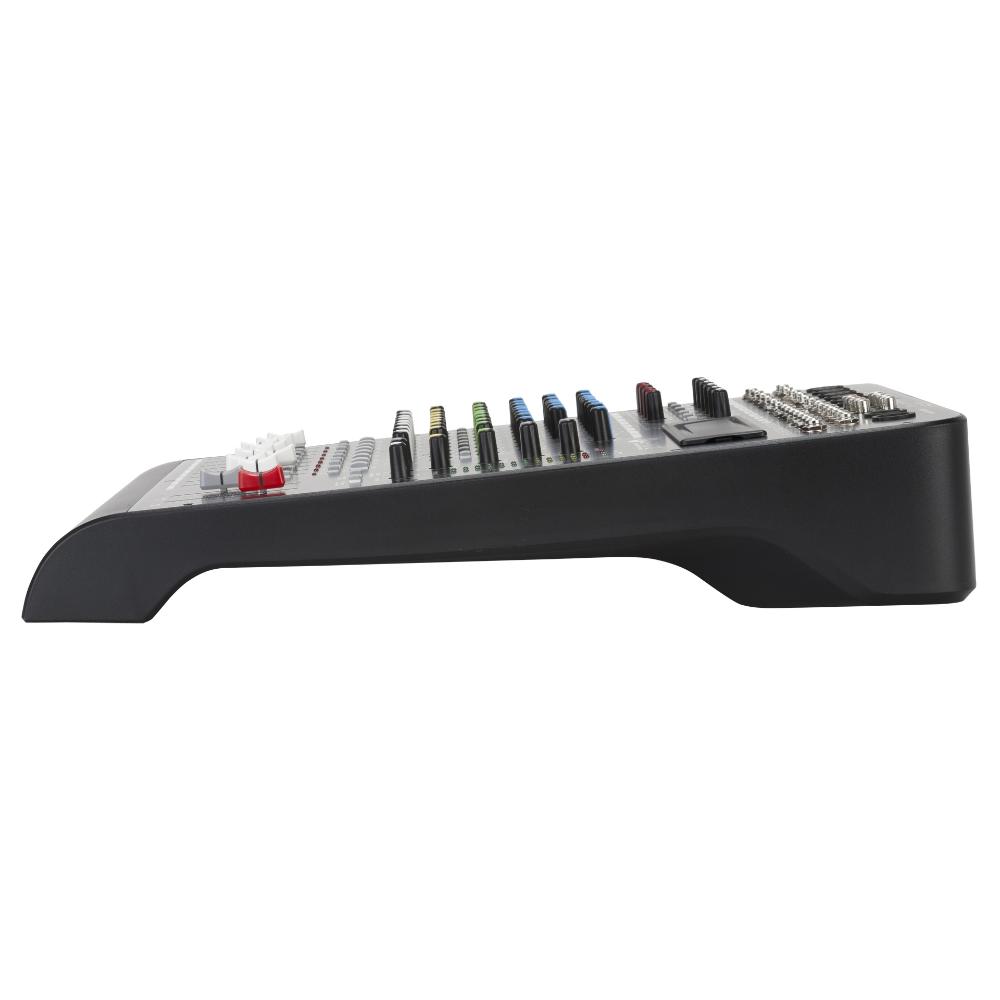

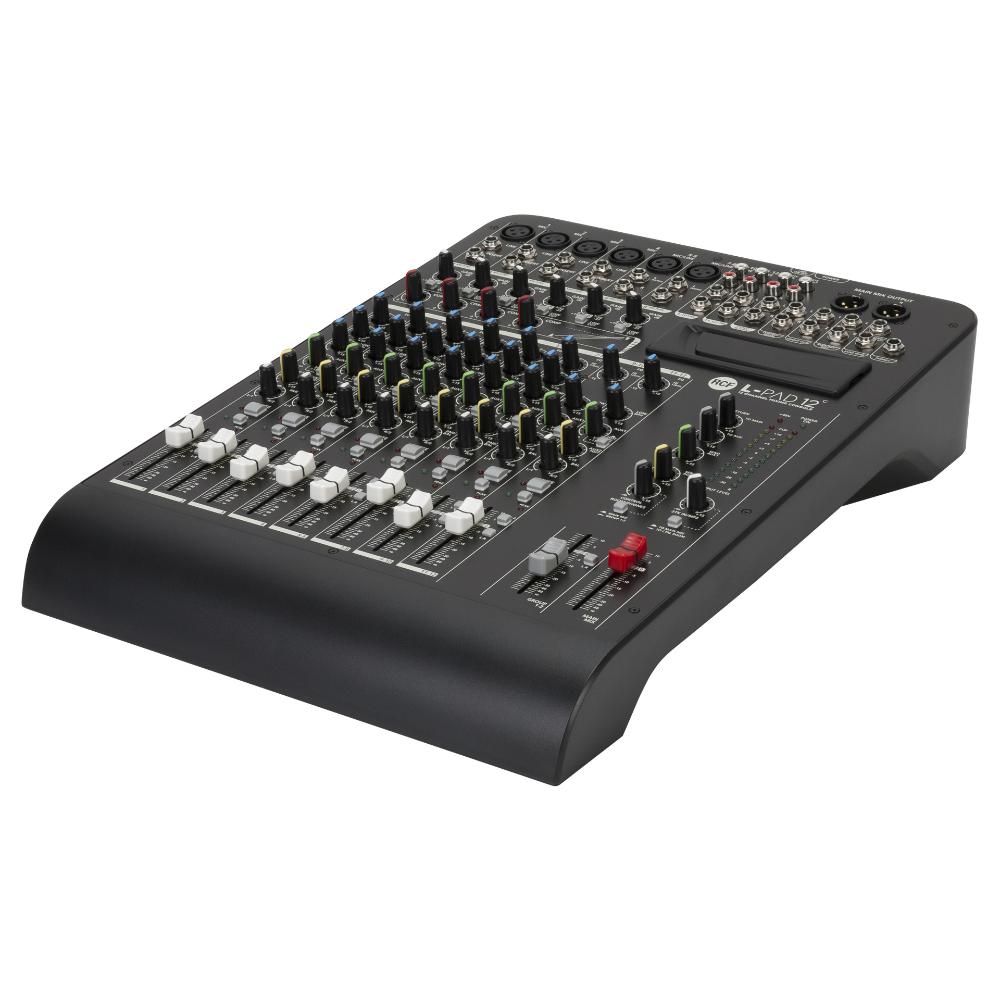

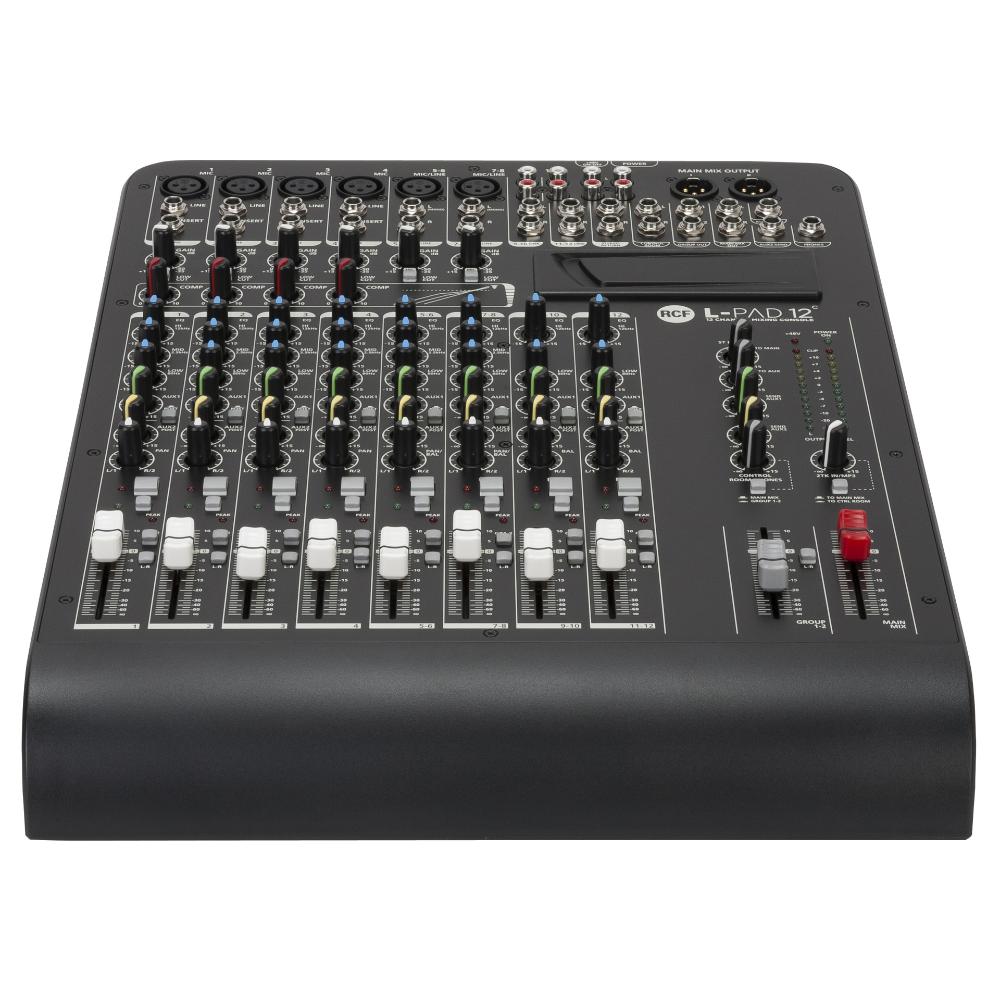

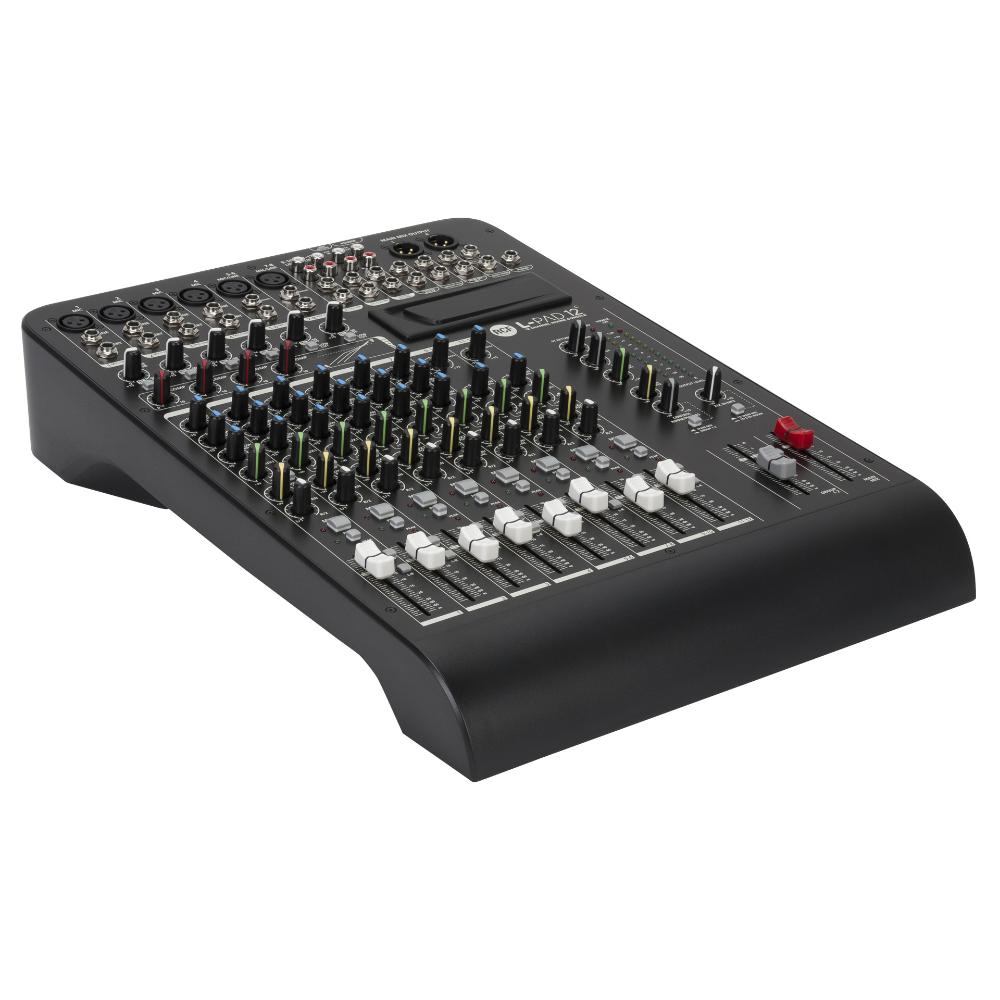

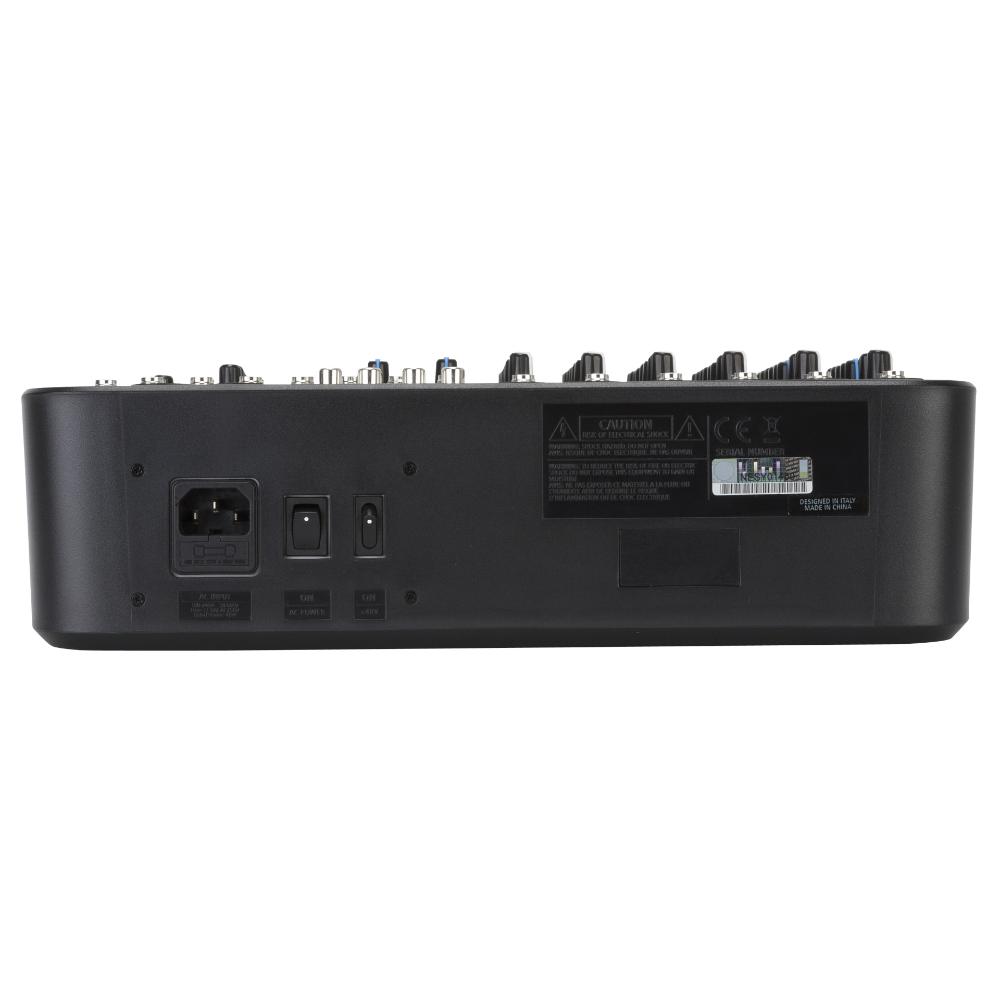

With six transparent sound mic inputs, four stereo line inputs and the 2tk in/out, L-PAD12C is the ideal tool for small band gigs, complex conferences, corporate events and all situations where it is necessary to handle several signals. Four single-control compressors on mic channels help to handle even the more dynamic complex signals. Two Auxiliaries sends allow control of a small stage with the appropriate wedge monitors. The super versatile L-PAD slot permits the optional cards L-PAD MP3 PLAYER, PLAYER/RECORDER or BLUETOOTH CONNECTION cards to be inserted for even more flexible use. Thanks to the accurate Italian design L-PAD12C is easy to grab, transport and handle in all live event situations.


ARCHIVED

Part number:

17140033
L-PAD 12C
115-230V, EU, EAN 8024530011239

17140040
L-PAD 12C
115-230V, US, EAN 8024530011246

17140046
L-PAD 12C
100V, JP, EAN 8024530011437

17140047
L-PAD 12C
240V, AU, EAN 8024530011444

17140061
L-PAD 12C
240V, UK, EAN 8024530011581

Specifiche tecniche
Specifiche elettroniche
Risposta in Frequenza
20 Hz ÷ 22000 kHz
THD+N, 20dB gain, 0dBu out (% A-Weighted)
0.030% A-Weighted
Input
Mic
6
Gamma di Guadagno
0 dB ÷ 50 dB
Impedenza ingressi microfonici (kohm)
2 kohm
Passa Alto
75 Hz
Alimentazione Phantom +48V
Yes
Mono Line
8
Selettore di Guadagno
15 dB ÷ -35 dB
Impedenza ingressi Line (kohm)
10 kohm
Output
Main MIX
1
Control Room:
Yes
AUX Send
2
AUX Output
2
Cuffie
1
2 Track
Yes
Specifiche di output
Impedenza Main Out (ohm)
120 ohm
Livello Main Out (dBu)
22 dBu
Impedenza Aux Out (ohm)
120 ohm
Livello Aux Out (dBu)
16 dBu
Compressori
Compressori RCF
On Channel 1 - 4
EQ
EQ in ingresso
3 Generic
Mandate ausiliarie
AUX
1 POST / 1 PRE/POST
Altre caratteristiche
Footswitch
Yes
Specifiche elettriche
Alimentazione
Internal
Voltaggio richiesto
100 V - 240 V
Consumo di energia (MAX) (W)
40 W
Conformità agli standard
Standard di sicurezza
CE compliant
Specifiche fisiche
Materiale Cabinet/Case
ABS
Dimensioni / Peso
Altezza
93 mm / 3.66 inches
Larghezza
341 mm / 13.43 inches
Profondità
474 mm / 18.66 inches
Informazioni di spedizione
Altezza imballaggio
160 mm / 6.3 inches
Larghezza imballaggio
540 mm / 21.26 inches
Profondità imballaggio
440 mm / 17.32 inches
Peso imballaggio
5.01 kg / 11.05 lbs
