KPS SERIES

MULTICHANNEL DSP AMPLIFIERS

Adaptable. Expandable. Controllable. Remarkable.

High-density installation-specific multichannel amplifiers with adaptable power allocation across outputs, advanced DSP processing and flexible matrix routing.

Quality Power for Fixed Installation

KPS amplifiers deliver superior audio performance and exceptional reliability for fixed installations. Designed to integrate seamlessly with RCF passive speakers, they include a comprehensive set of ready-to-use presets to simplify setup and ensure optimal sound quality. Installation-specific features enhance usability and efficiency, including advanced system status monitoring for proactive maintenance, GPIO connectivity for expanded control capabilities, flexible signal routing for customized installations, and complete integration with RCF’s proprietary RDSpace management platform. Engineered for ease of deployment and precise control, KPS amplifiers provide installers and integrators with robust solutions tailored to meet diverse audio system requirements.

Multipurpose Sound Solutions

KPS amplifiers combine modern design, advanced processing, and quality audio for versatile AV applications.

SMALL SHOPS

Clear background music for small retail and service environments.

LARGE RETAIL STORES

Consistent, quality audio across extensive multi-zone retail spaces.

BARS AND RESTAURANTS

Flexible audio zoning for venues with multiple areas or programs.

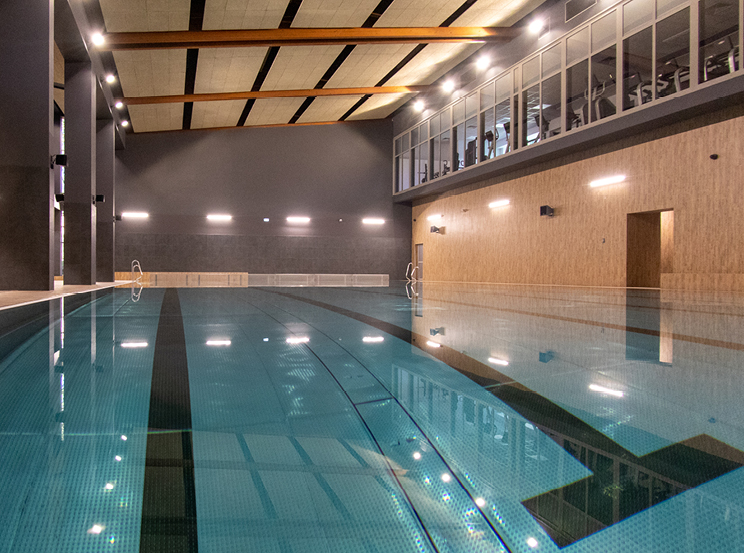

FITNESS CENTERS

High-power, flexible audio for varied fitness environments.

CORPORATE SPACES

Efficient audio solutions for offices, meeting spaces, and communal areas.

HOUSES OF WORSHIP

Clear amplification for speech intelligibility over large spaces.

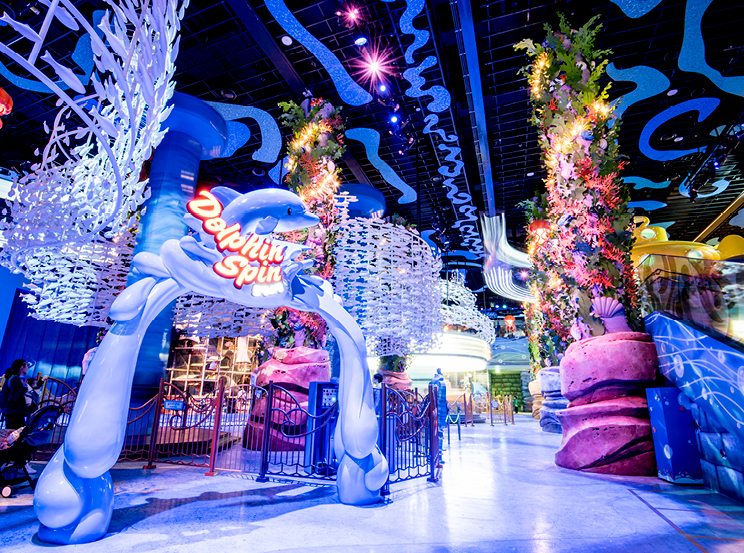

THEME PARKS

Highly intelligible, evenly distributed sound across expansive grounds.

SPORT FACILITIES

Powerful, evenly covered sound that keeps every seat in the game.

Built-In Presets

The integrated RCF loudspeaker preset library accelerates setup and delivers consistent, optimized results by loading factory-optimized EQ, FIR filters, limiting, and protection parameters for each supported model.

Search supported models here:

TABLES KEY

Lo-Z and Bridge numbers indicate the maximum number of speakers connectable to each amplifier channel in single ended (Lo-Z) or to a channels pair in Bridge mode. It is based on speaker’s rated power and the minimum load the amplifier can support.
Hi-Z dot indicates that a preset for Hi-Z mode is provided within the library. The maximum number of speakers connectable is not specified as it depends on the line transformer power selection. And consequently, no colour code is indicated (see below).
When the Lo-Z or Bridge number is marked GREEN, it means the combination matches both speaker’s and amplifier’s nominal power. When YELLOW, it means the nominal power of the speaker exceeds the power provided by the amplifier channel (or channels pair). The combination is anyway supported accepting a reduction of speaker’s max SPL value.
When the Lo-Z number is marked LIGHT BLUE, it means the combination between speaker and amplifier is supported by POWER SHARING.

Model	POWER (W)	IMP (ohm)	KPS 80X Lo-Z	KPS 80X Bridge	KPS 80X Hi-Z	KPS 16X Lo-Z	KPS 16X Bridge	KPS 16X Hi-Z
HL SERIES
HL 6	250	16	-	4	-	-	-	-
HL 35-S	900	8	-	1 - 2	-	-	-	-
X SERIES
X 40	1200	8	-	1	-	-	-	-
X 28L	800	8	-	2	-	-	-	-
X 08	400	8	2	2	-	-	-	-
COMPACT C SERIES
COMPACT C 45	700	8	1	2	-	-	-	-
COMPACT C 32	600	8	1	2	-	-	-	-
COMPACT M SERIES
COMPACT M 12	300	8	2	-	-	1	1	-
COMPACT M 10	300	8	2	-	-	1	1	-
COMPACT M 08	200	8	4	-	-	1	1	-
COMPACT M 06	100	8	4	-	-	1 - 2	-	-
COMPACT M 05	80	8	4	-	-	2	-	-
COMPACT M 04	60	16	8	-	-	2 - 4	-	-
COMPACT A SERIES
COMPACT A 15	450	8	2	2	-	-	-	-
COMPACT A 12	400	8	2	2	-	-	-	-
COMPACT A 10	350	8	2	2	-	-	-	-
P SERIES
P 6215	600	8	1	2	-	-	-	-
P 3115T	300	16	2	4	●	-	-	●
P 2110T	200	16	4	4	●	-	-	●
P 4228	400	8	2	2	-	-	-	-
P 3108	300	8	2	2	-	-	-	-
P 1108T	100	16	8	-	●	2	2	●
P 8015S	800	8	-	2	-	-	-	-
PREMIUM SPEAKERS
WMR 60T	80	8	4	-	●	2	-	●
WMR 50T	40	8	4	-	●	2	-	●
MMR 30T	10	16	-	-	●	4	-	●
CMR 60T	80	8	4	-	●	2	-	●
CMR 50T	40	8	4	-	●	2	-	●
CMR 30	15	16	-	-	-	4	-	-
PMR 60T	80	8	4	-	●	2	-	●
CMR-S 60T	80	8	4	-	●	2	-	●
MONITOR SPEAKERS
MR 50T	60	8	-	-	●	2	-	●
MR 50	60	8	-	-	-	2	-	-
MR 40T	40	8	-	-	●	2	-	●
MR 40	40	8	-	-	-	2	-	-
MQ 80P	60	8	-	-	●	2	-	●
MQ 50C	60	16	8	-	●	2 - 4	-	●
DM 61	25	8	-	-	●	2	-	●
DM 41	15	8	-	-	●	2	-	●
EN 54-24 SPEAKERS
MF 33EN	40	8	-	-	●	2	-	●
WMF 33EN	40	8	-	-	●	2	-	●
COLUMN SPEAKERS
L 2406T	200	8	4	-	●	1	1	●
MQ 100L	80	16	8	-	●	2 - 4	-	●
SUB SERIES
S 19	1500	8	-	1	-	-	-	-
S 19 WP	1500	8	-	1	-	-	-	-
S 8018 II	1500	8	-	1	-	-	-	-
S 8015 II	1500	8	-	1	-	-	-	-
S 8015LP	800	8	-	2	-	-	-	-
S 15	500	8	2	2	-	-	1	-
S 12	400	8	2	2	-	-	1	-
S 10	400	8	2	2	-	-	1	-

In order to provide the best combination of subwoofers and tops, different LP filter values are provided within presets library, as defined in the following table.

MODEL	LP FILTER VALUES
S 19 / S 19 WP	60 Hz – 80 Hz – 100 Hz
S 8018 II	60 Hz – 80 Hz – 100 Hz
S 8015 II	60 Hz – 80 Hz – 100 Hz
S 8015LP	60 Hz – 80 Hz – 100 Hz
S 15	60 Hz – 80 Hz – 100 Hz – 120 Hz
S 12	80 Hz – 100 Hz – 120 Hz
S 10	80 Hz – 100 Hz – 120 Hz

Search supported models here:

PRODUCT NAME	KPS 80X LIBRARY Lo-Z	KPS 80X LIBRARY Hi-Z	KPS 16X LIBRARY Lo-Z	KPS 16X LIBRARY Hi-Z
COMPACT C 45	X	-	-	-
COMPACT C 45 WP	X	-	-	-
COMPACT C 32	X	-	-	-
COMPACT C 32 WP	X	-	-	-
COMPACT M 12	X	-	-	-
COMPACT M 10	X	-	-	-
COMPACT M 08	X	-	-	-
COMPACT M 06	X	-	X	-
COMPACT M 05	X	-	X	-
COMPACT M 04	X	-	X	-
COMPACT A 15	X	-	-	-
COMPACT A 12	X	-	-	-
COMPACT A 10	X	-	-	-
X 08	X	-	-	-
WMR 60T	X	X	X	X
WMR 50T	X	X	X	X
CMR 60T	X	X	X	X
CMR 50T	X	X	X	X
PMR 60T	X	X	X	X
MR 50	X	X	X	X
MR 40	X	X	X	X
MQ 80P	X	X	X	X
WMF 33EN	X	X	X	X
DM 61	X	X	X	X
DM 41	X	X	X	X
MQ 50C	X	X	X	X
MF 33EN	X	X	X	X
MQ 100L	X	X	X	X
L 2406T	X	X	-	X
S 19	X	-	X	-
S 19 WP	X	-	X	-
S 15	X	-	X	-
S 12	X	-	X	-
S 10	X	-	X	-
CMR-S 60T	X	X	X	X

DOWNLOAD PRESET LIST

discover supported loudspeakers

Flexible Routing and Integration

In addition to balanced and unbalanced analog inputs, KPS amplifiers feature an S/PDIF digital input that can be forwarded to subsequent units, creating a common audio bus. Every KPS Series model can be ordered with an integrated Audinate Dante™ audio-over-IP interface, providing bidirectional, low-latency, lossless multichannel audio transport over standard Ethernet infrastructure. The units enable seamless integration with automation ecosystems such as Q-SYS, AMX, Crestron, or Control4.

Wideband Fidelity, Compact Efficiency

Our Class-D output stage uses a full-bandwidth pulse-width modulation (PWM) modulator to reproduce the entire 20 Hz–20 kHz range with minimal phase shift. High-speed switching and real-time global feedback keep total harmonic distortion below 0.05 %. The result is clean, wide-band audio and reduced heat in a compact, lightweight form factor.

Onboard DSP

The powerful onboard DSP provides precise, optimized signal processing and complete I/O matrix management. A preset library for RCF speakers makes KPS amplifiers a ready-to-use solution. Configuration is done via RCF RDSpace software, available as desktop or web-based versions (accessible on mobile devices). Native Wi-Fi connectivity and an integrated wireless access point allow direct device access and easy configuration without a network switch or external access point.

Intelligent Power Allocation

The KPS 1XX Series delivers class-leading power density, packing four independent 160 W RMS channels into a compact 1 U, half-rack-width chassis. Its intelligent power-sharing architecture can re-allocate up to 300 W across channel pairs, giving installers the freedom to distribute power asymmetrically across outputs without engaging bridge mode or sacrificing channel count—perfect for optimising headroom when driving RCF loudspeakers.

1 SPEAKER OUTPUTS
Speakers’ outputs allow either a two channels connection for Low-impedance speakers or a single 70 / 100 V line for speakers equipped with line transformers.

2 BALANCED AUDIO INPUTS

3 UNBALANCED AUDIO INPUTS
Connected in parallel with the balanced inputs.

4 DIGITAL S/PDIF INPUT/OUTPUT
This digital signal can be routed from any input or zone and allows to daisychain two or more KPS amplifiers.

5 CONFIGURABLE GPIO
Set of 5 GPIO that can be configured in the RDSpace software to perform the following functions: Stand-by, Mute and Volume control.

6 LAN CONTROL PORT
KPS amplifiers can be connected to a LAN via a standard Ethernet connection, allowing to access the device for configuration and control via RDSpace software.

7 DANTE PORT (OPTIONAL)
KPS “D” models are compatible with Audinate Dante® audio over IP (AoIP) networks and installations.

Control Software Platform

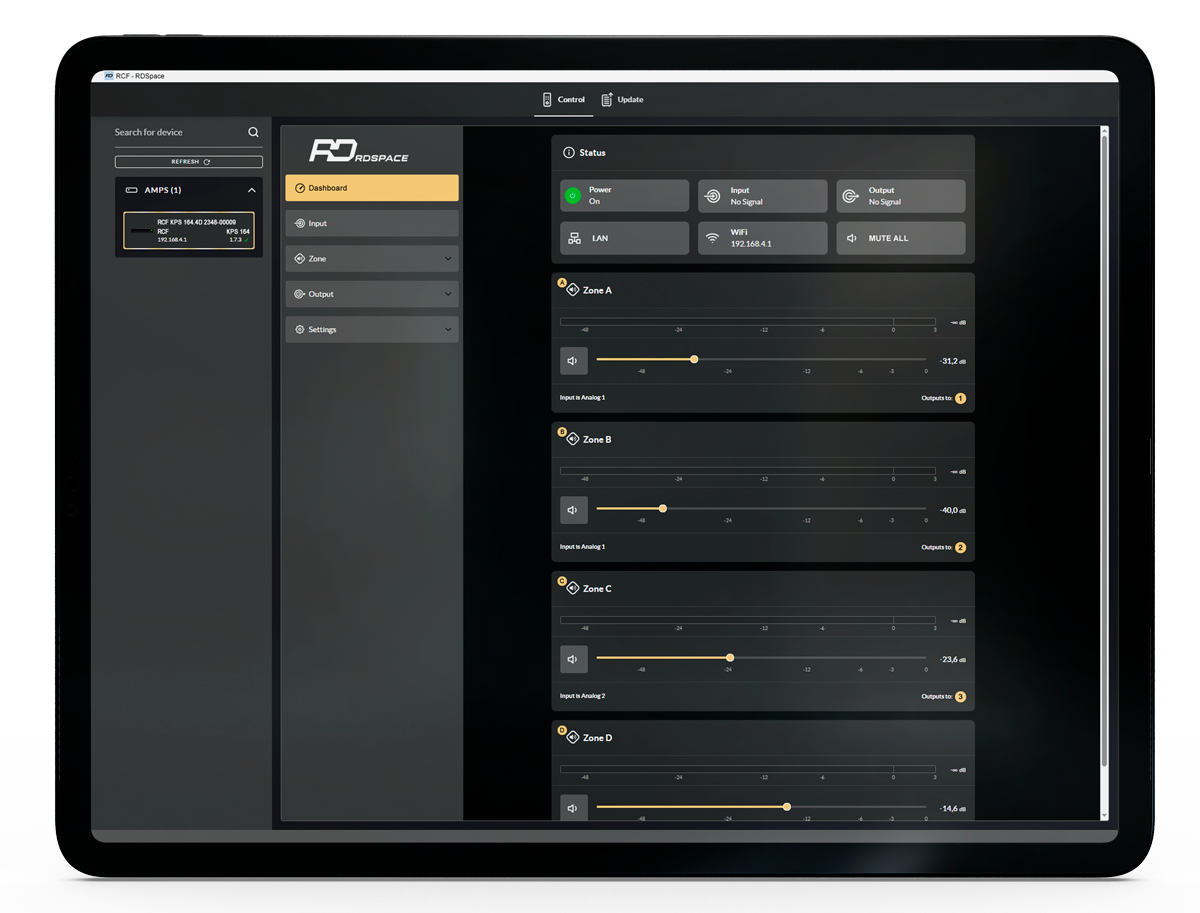

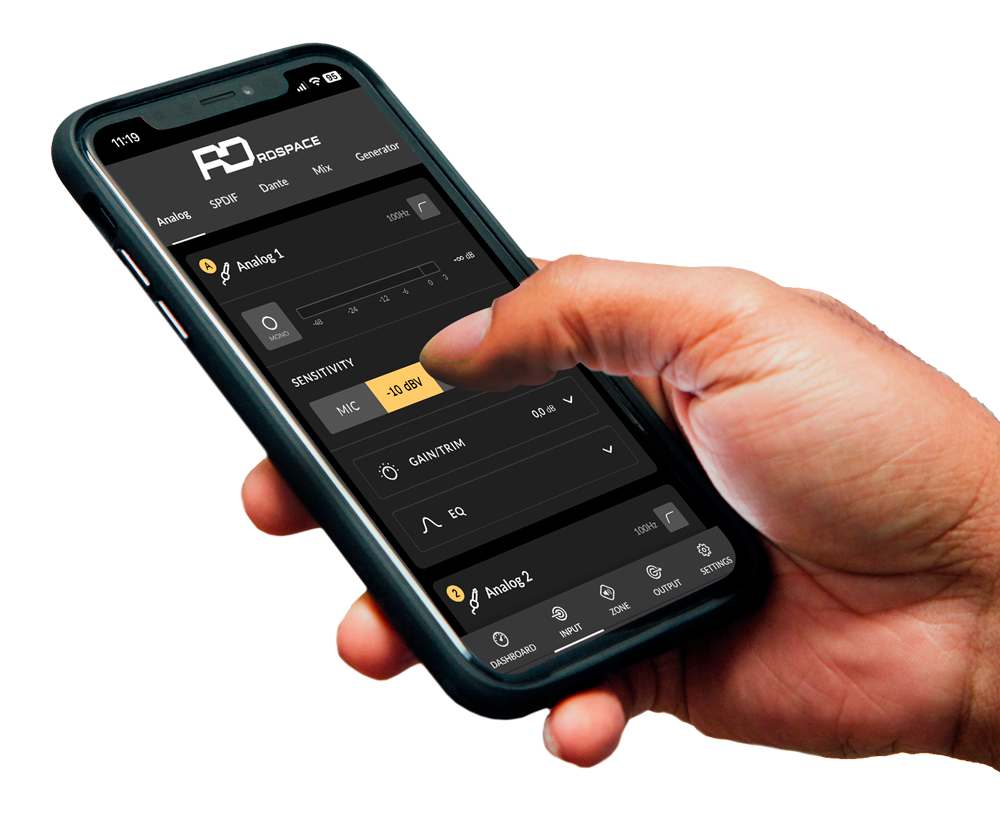

RDSpace is an adaptive software for KPS Series management. The software is available for macOS/Windows platforms, or as a web app connecting the browser (from smartphones or computers) directly to the amplifier.

Through a single interface, users can handle every stage of deployment—input routing, zone definition, output optimization, and speaker calibration—with real-time monitoring. The software scales smoothly from small venues to large, multi-zone networks, giving operators quick access to presets or deeper configuration tools as the project demands.
RDSpace allows management of linear-phase FIR filtering, speaker presets and user presets, flexible routing, parametric EQ, precision delay, and full device control. All configuration and monitoring take place in a single application, with the same unified interface, giving operators complete command of the entire audio system from every screen.

Features

Input mixing
Speaker presets
Multi-Zone setup
End-user control
Priority and ducking
Input and output EQ
S/PDIF output routing
High-pass filter
Compressors
Limiters
Delay
In-room controller configuration

download software

Multi Zones Wall Controller

The RC KPS is a wall-mounted, networked PoE controller designed for RCF KPS amplifiers that provide input selection and volume control. Its minimalist design uses high-performance polymer with a touch-friendly matte finish and concealed screws and offers dark and light display color schemes, brightness settings, and button backlight options, supports instant network pairing and configuration via RDSpace.

PoE for easy network pairing
Up to 8 x RC KPS per KPS amplifier
Allocate any RC KPS to any sound zone – set-up via RDSpace
Quick source selection and level management
PIN code protection
EU and US versions in white (RAL 9003) and black (RAL 9005)

Global Operational Safety

A universal, regulated switch-mode power supply (SMPS) with Power Factor Correction (PFC) and integral standby converter automatically adapts to any mains voltage from 100 V to 240 V, 50 – 60 Hz, delivering stable power worldwide. Comprehensive protection circuitry shields the unit from short circuits, DC offsets, high-frequency faults, undervoltage, excessive temperature, and overload conditions.
