Features
  • 1200 WATT PEAK, 600 WATT RMS
  • 132 dB max spl
  • 90 x 60, Wide dispersion constant directivity horn
  • 2 x 15" woofer, 2.5" voice coil
  • 1" HF driver,1.7" voice coil

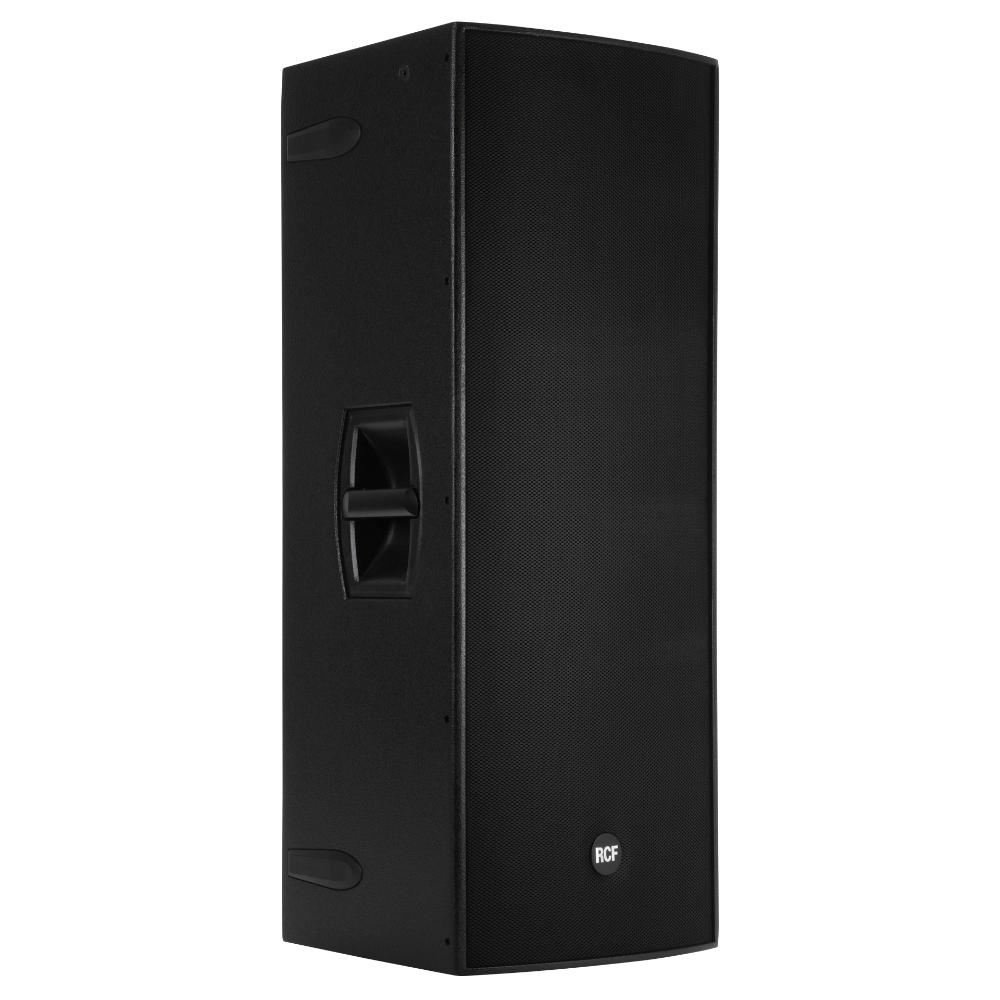

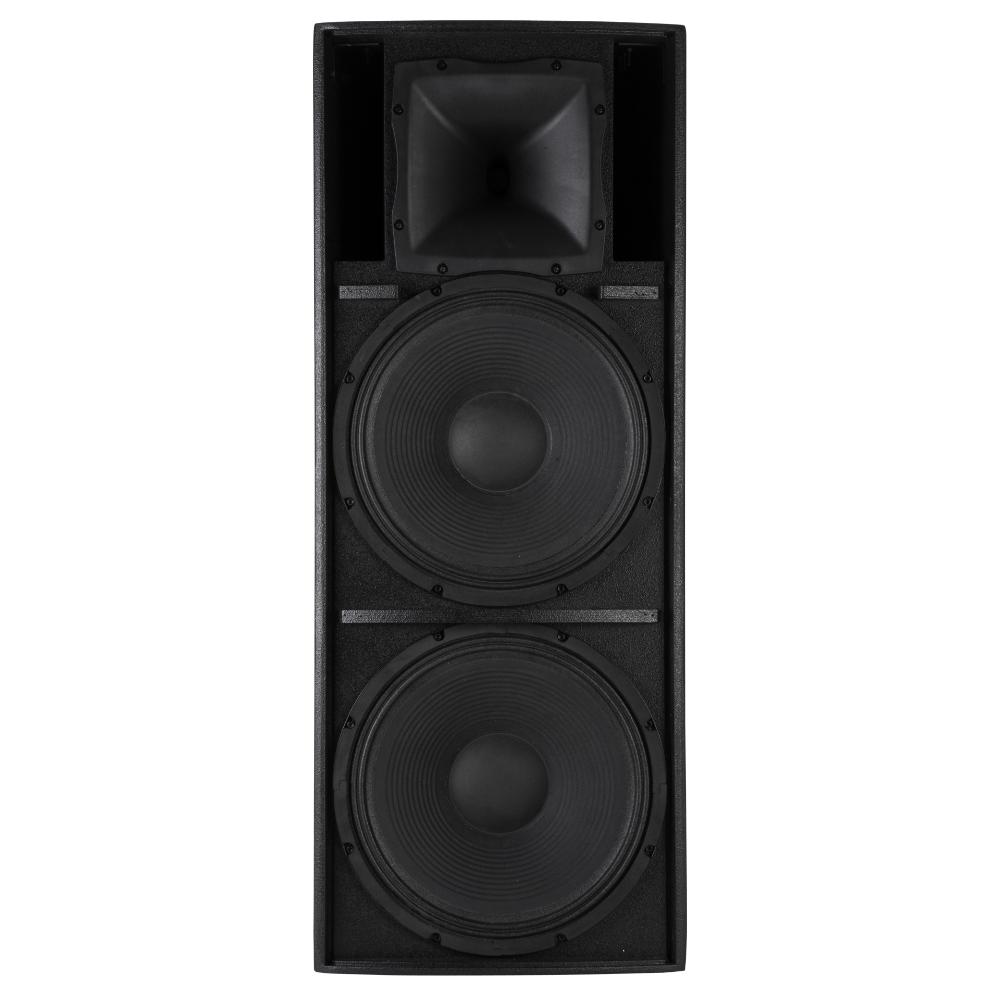

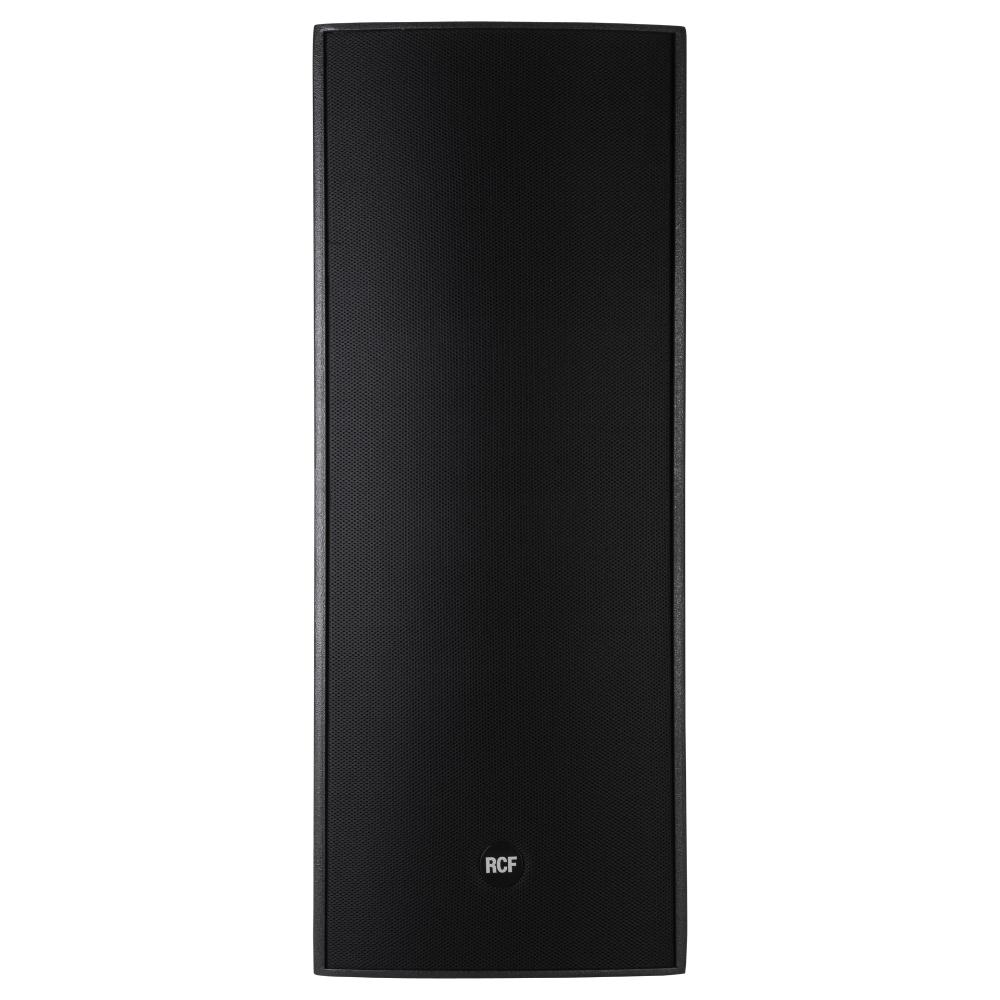

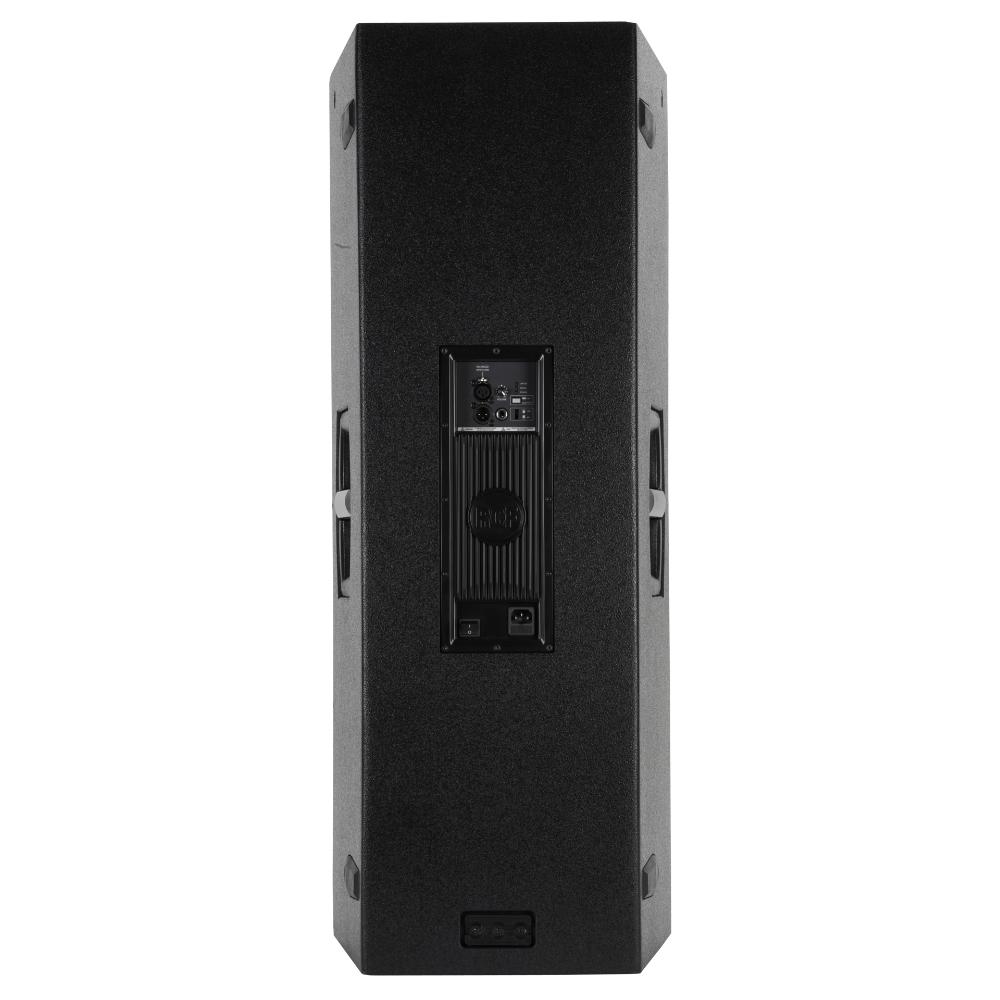

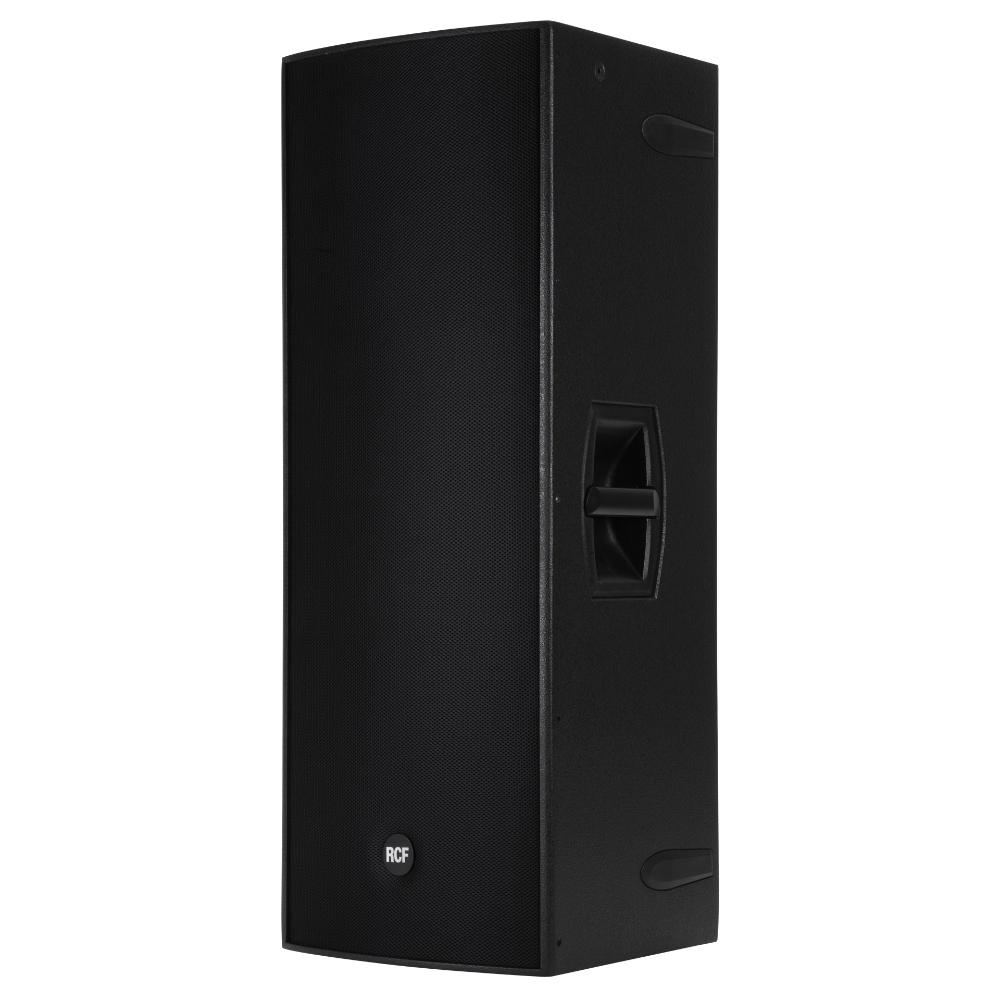

The 4PRO 5031-A is a self-powered, lightweight two-way full bandwidth loudspeaker system equipped with two 15” woofers and a 1.7” voice coil diaphragm, compression driver mounted to a constant directivity horn. The 90° angle is wide enough to provide coverage of an audience when used one per side, yet narrow enough to allow displaying of multiple enclosures without excessive coverage overlap. The 4PRO 5031-A is the ideal choice when the application requires high performance and simple set-up, perfect for main PA, side fills, night clubs and corporate events.


ARCHIVED

Part number:

13000368
4PRO 5031-A
220-240V, EAN 8024530009816

13000369
4PRO 5031-A
115V, EAN 8024530009823

Specifications
Acoustical specifications
Frequency Response
45 Hz ÷ 20000 Hz
Max SPL @ 1m
132 dB
Horizontal coverage angle
90°
Vertical coverage angle
60°
Transducers
Compression Driver
1.0'', 1.75'' v.c
Woofer
2 x 15'', 2.5'' v.c
Input/Output section
Input signal
bal/unbal
Input connectors
Combo XLR/Jack
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu
Processor section
Crossover Frequencies
1650 Hz
Protections
Thermal, RMS
Limiter
Fast Limiter
Controls
Volume, EQ Shape, Mic/Line
Power section
Total Power
1200 W Peak, 600 W RMS
High frequencies
400 W Peak, 200 W RMS
Low frequencies
800 W Peak, 400 W RMS
Cooling
Convection
Connections
VDE
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Baltic birch plywood
Hardware

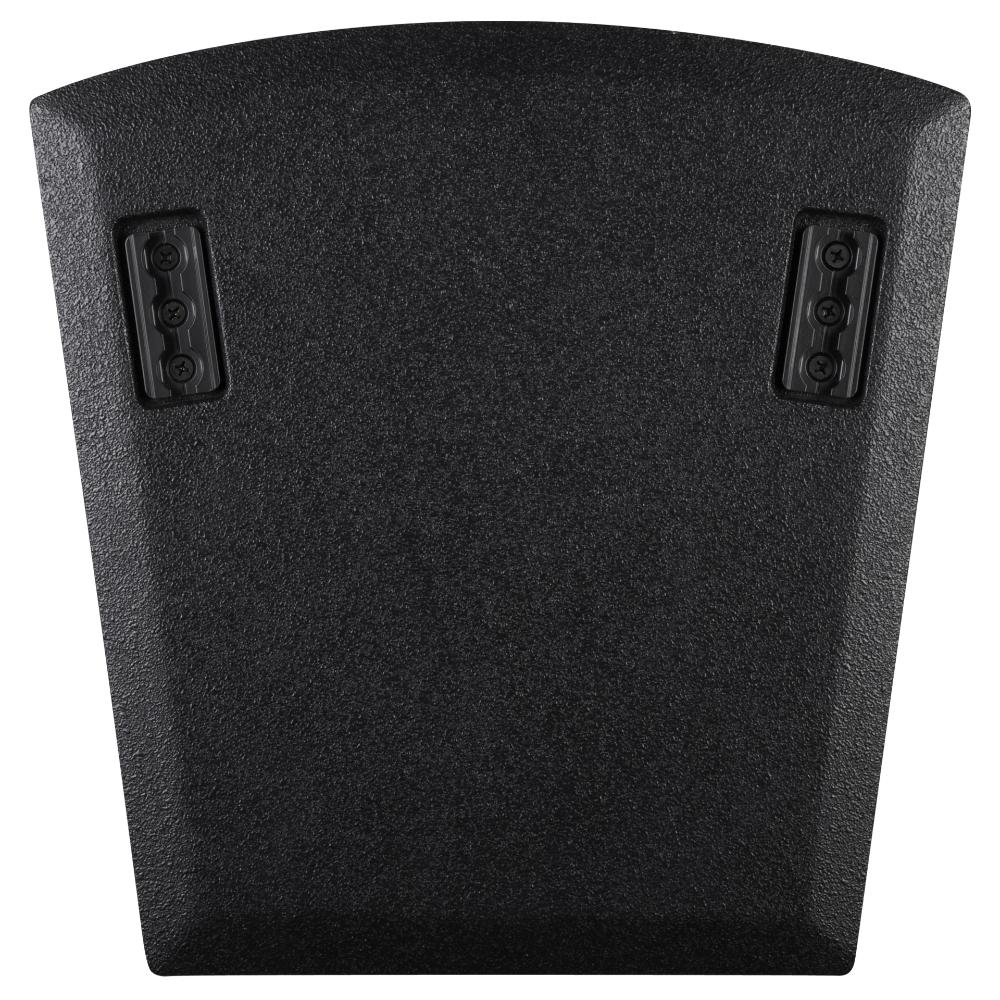

3 x Flytracks
Handles
2 side
Pole mount/Cap
Yes
Color
Black
Size / Weight
Height
1094 mm / 43.07 inches
Width
430 mm / 16.93 inches
Depth
430 mm / 16.93 inches
Weight
40.5 kg / 89.29 lbs
Shipping information
Package Height
1134 mm / 44.65 inches
Package Width
484 mm / 19.06 inches
Package Depth
484 mm / 19.06 inches
Package Weight
47 kg / 103.62 lbs
