COMMERCIAL AUDIO

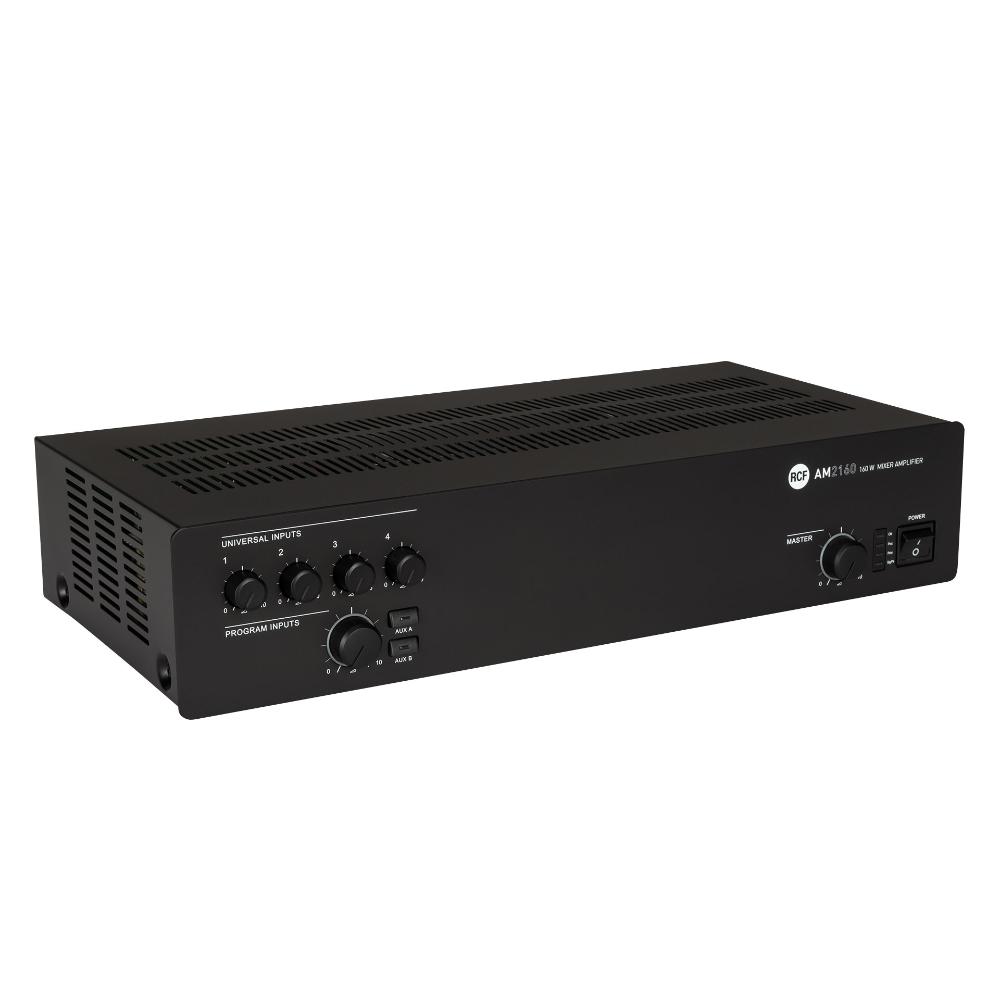

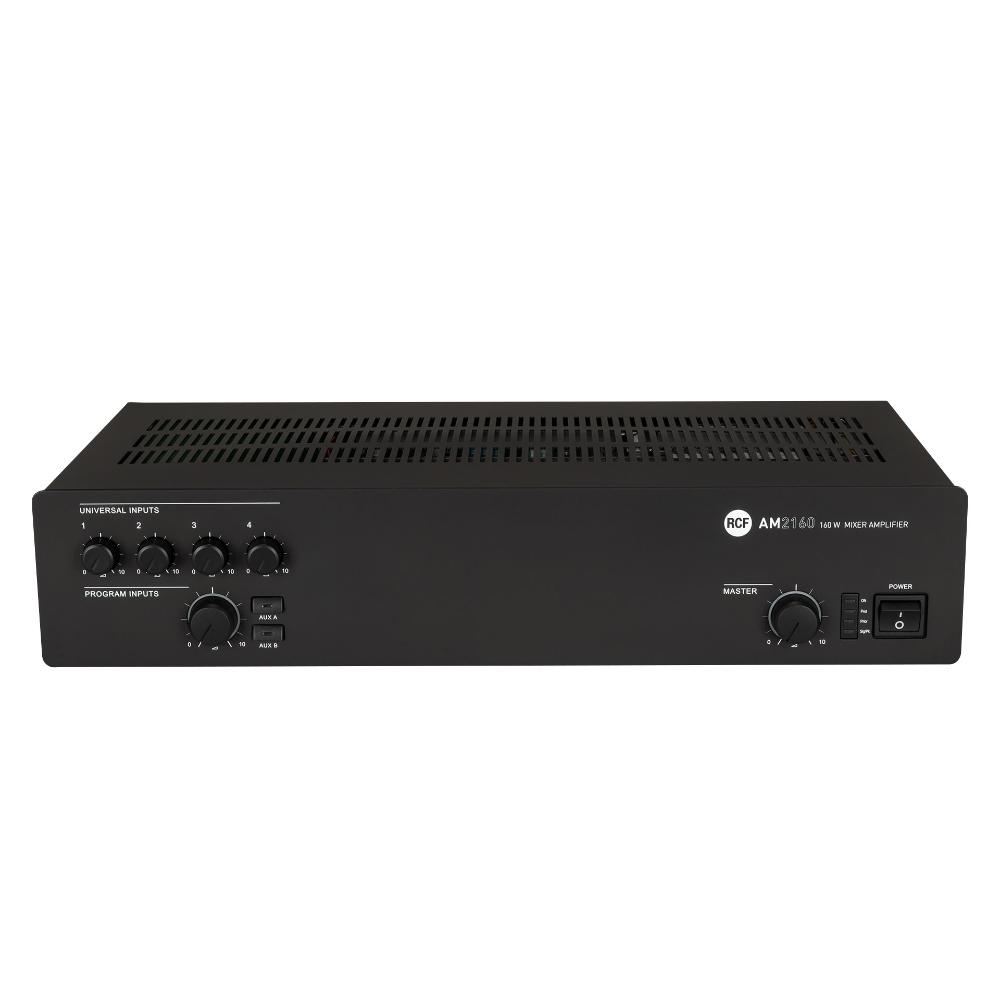

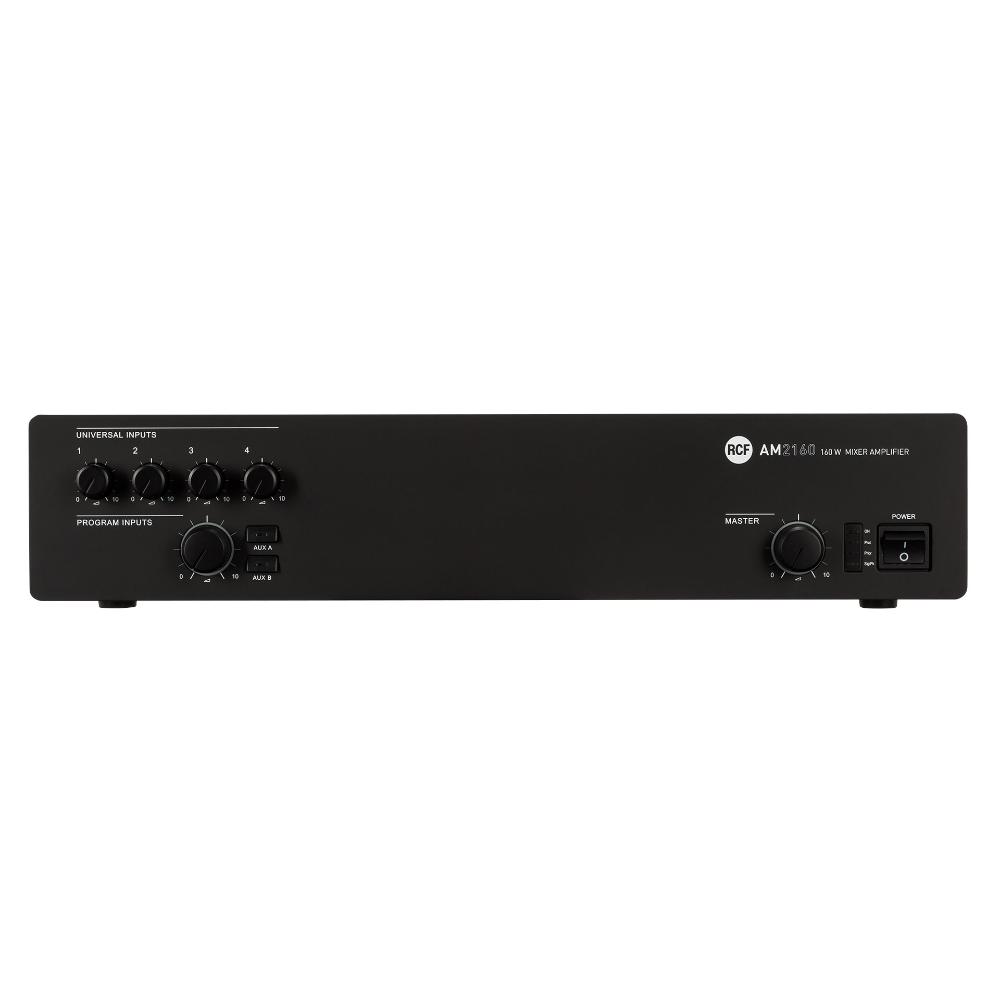

AM 2160

MIXER AMPLIFIER
  • Full digital technology Mixer Amplifier 160 W RMS
  • 100 V - 70 V and 4 Ohm outputs
  • 4 universal inputs with phantom facility on screw terminal connections
  • Presence Control and per-channel High-Pass filters
Where to buy
Features
  • Full digital technology Mixer Amplifier 160 W RMS
  • 100 V - 70 V and 4 Ohm outputs
  • 4 universal inputs with phantom facility on screw terminal connections
  • Presence Control and per-channel High-Pass filters
  • XLR connector on input 1
  • RJ45 connectors on input 2 and 3 for connection to BM3001 microphone
  • Configurable Priority settings, VOX facility on input 1
  • Selectable aux inputs with two keys on the front panel for music source
  • Aux inputs with volume and tone controls
  • Music On Hold and PRE outputs

AM 2160 is a mixer-amplifiers with 4 mic-line audio inputs on removable connectors (the first input also has an XLR socket) and 2 aux inputs for music sources (e.g. CD players, tuners, etc.). 160 W nominal output power available either for low impedance loudspeakers or 100 – 70 V constant voltage line.

Part number:

12135058
AM 2160
EAN 8024530006396

Specifications
Amplifier specifications
Amplifier Class:
D
Frequency Response (-3dB):
50 Hz ÷ 14 Hz
Distortion (THD+N) @ 1 kHz nominal power:
<0.3 %
Input section
Total number of inputs:
8
Balanced:
7
Unbalanced:
2
Mono:
7
Stereo:
2
Line inputs:
2
Line connectors:
RCA
Mic+Line inputs:
4
Mic+Line connectors:
Euroblock, XLR
Mic+Line Phantom:
32 V DC
VOX:
Yes
Paging inputs:
2
Paging connectors:
RJ45
Paging command:
Contact
General Purpose Inputs (GPI):
2
Output section
Signal output number:
2
Signal output connectors:
RCA
Power output connectors:
Euroblock
Processing
Tone controls:
Yes
High-pass filter:
150 Hz
Configuration and control
Configuration:
DIP switch, Front panel
Priority:
Yes
Music on hold:
Yes
Chime tone:
Yes
Protections
Cooling:
Convection
Short circuit:
Yes
Thermal:
Yes
DC:
Yes
Fuses:
Yes
Power requirement
Operating voltage:
220-240/115 V~ 50/60Hz
Voltage selection:
Internal
Power consumption (MAX):
350 W
Physical specifications
Cabinet/Case Material:
Metal
Color:
Black
Rack mounting:
19", 2U
Size
Height:
88 mm / 3.46 inches
Width:
442 mm / 17.4 inches
Depth:
230 mm / 9.06 inches
Weight:
5.4 kg / 11.9 lbs
Shipping information
Package Height:
200 mm / 7.87 inches
Package Width:
500 mm / 19.69 inches
Package Depth:
330 mm / 12.99 inches
Package Weight:
6.45 kg / 14.22 lbs
