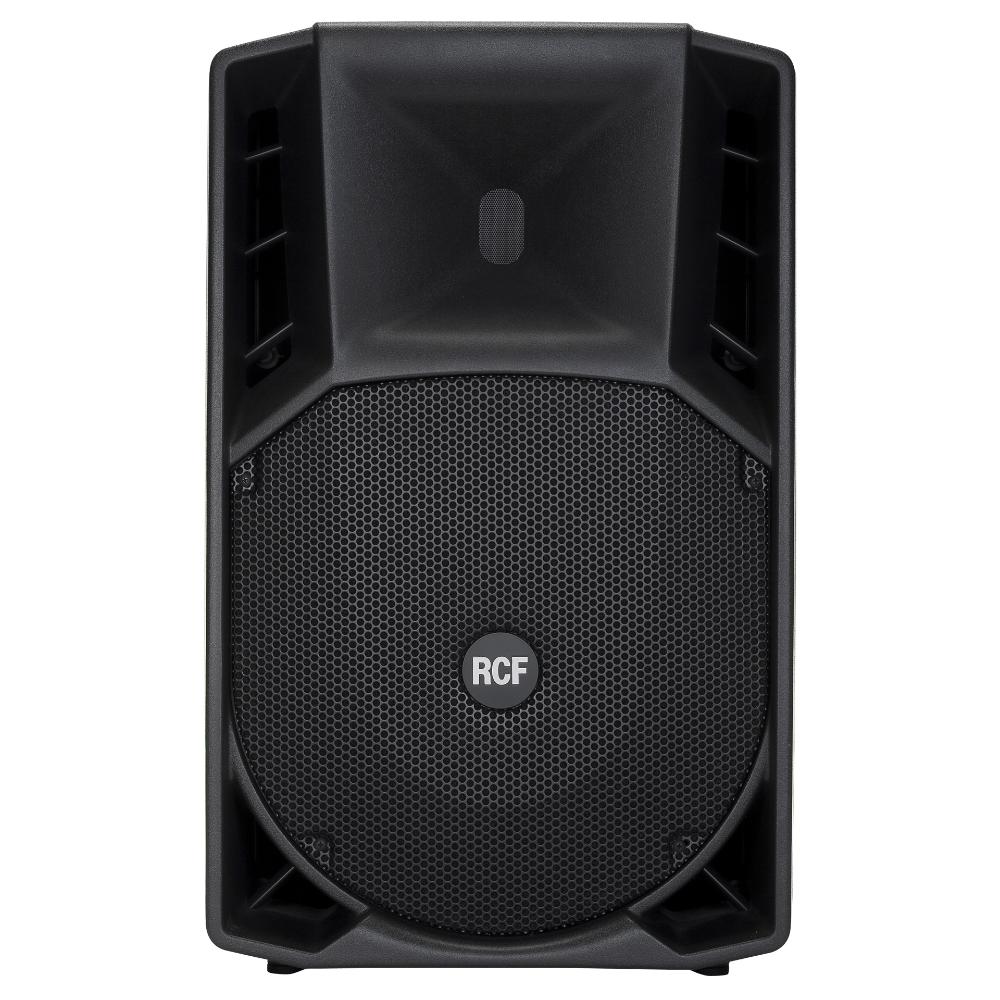

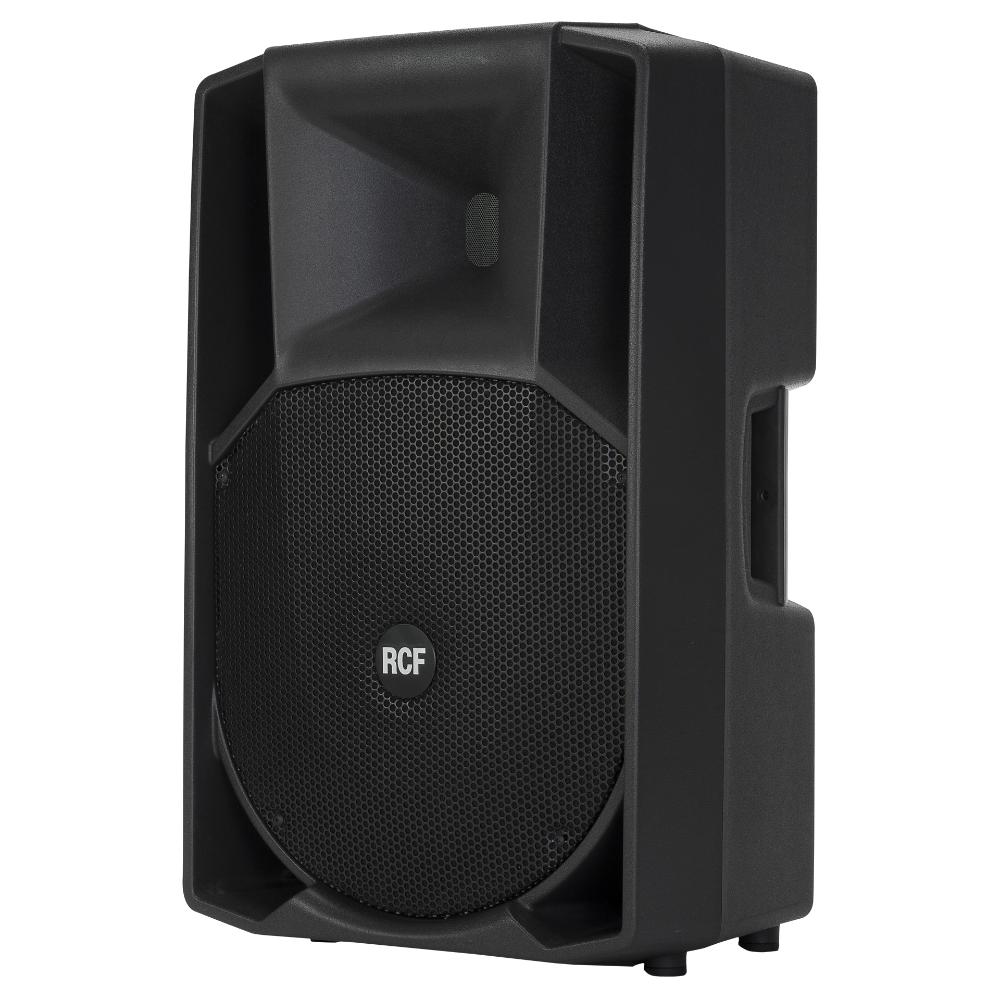

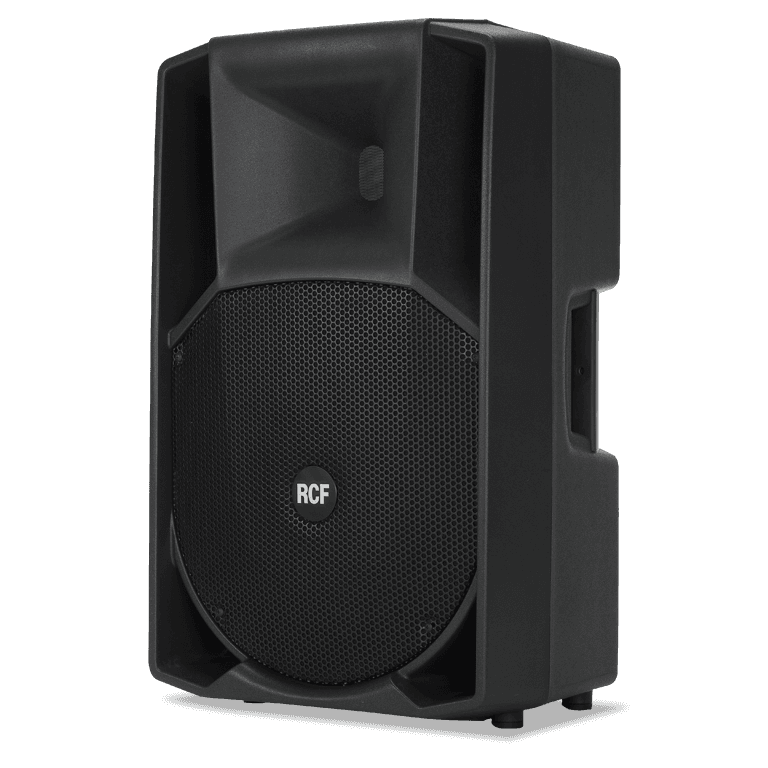

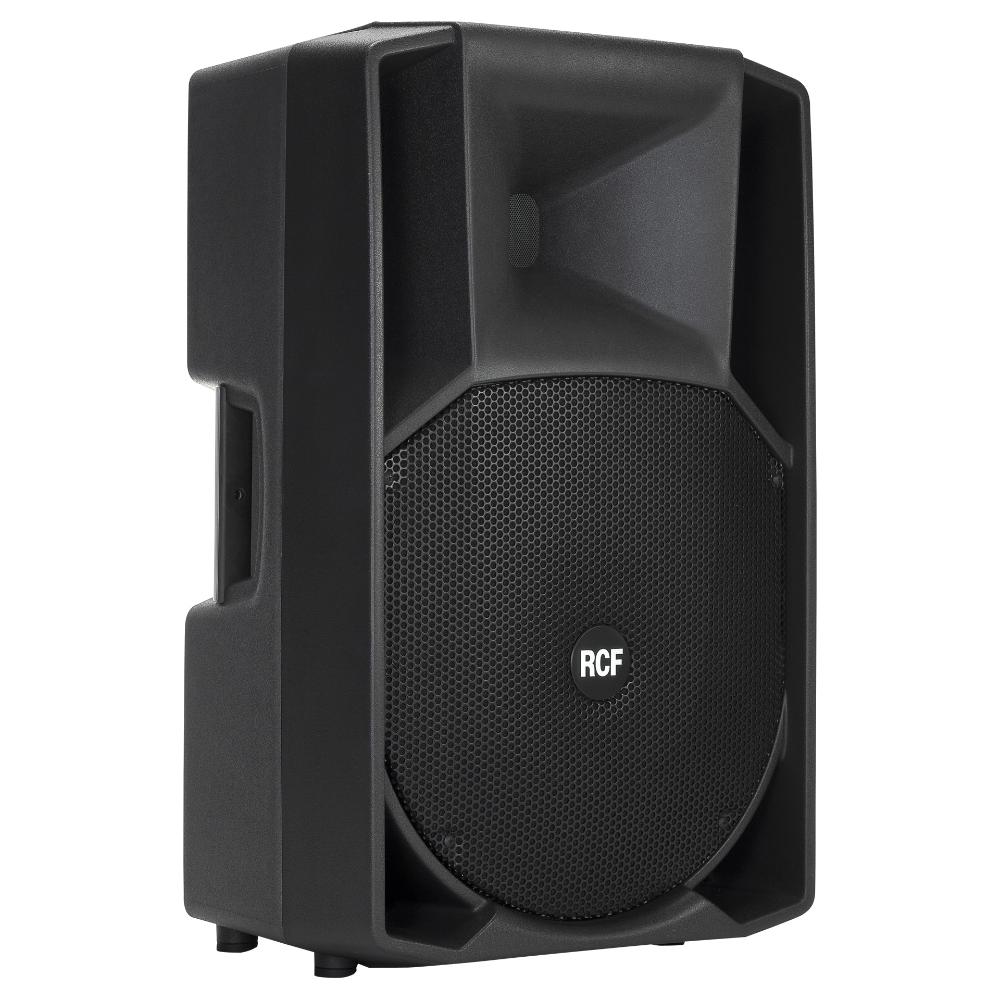

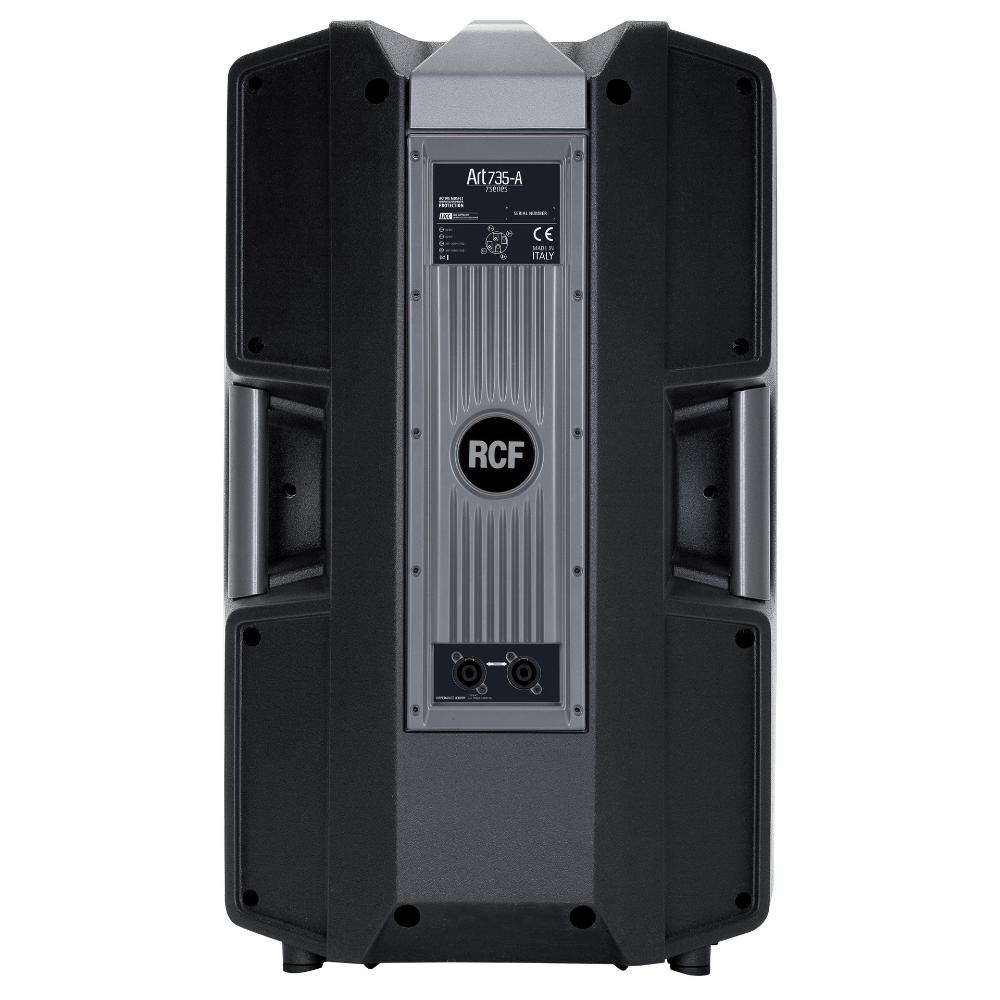

ART 735-A

ACTIVE TWO-WAY SPEAKER
  • 1400 Watt Peak, 700 Watt RMS digital amplifier
  • 15" high power woofer, bass reflex housing
  • 3.0" voice coil, titanium, compression driver
  • 132 dB max spl
Support
Features Specifications Accessories Downloads
Support
Features
  • 1400 Watt Peak, 700 Watt RMS digital amplifier
  • 132 dB max spl
  • 90 x 60, Wide dispersion constant directivity horn
  • 15" high power woofer, bass reflex housing
  • 3.0" voice coil, titanium, compression driver
  • PFC power factor correction
  • DSP Processing
  • 20.8 Kg / 45.8 lbs

The ART 735-A is a unique product in its category. The titanium dome, 3.0” voice coil, neo compression driver offers a unique vocal clarity and sound projection. The 15” woofer offers a linear response and a precise, deep low frequency control. The transducers are built using the most advanced assembly technologies. The amplifier delivers 1400 Watt and is controlled by a DSP that takes care of crossover, equalization, phase alignment, soft limiting and speaker protections.

ARCHIVED

Part number:

13000469
ART 735-A
220-240V, EAN 8024530013141

13000470
ART 735-A
115V, EAN 8024530013158

Specifications
Acoustical specifications
Frequency Response
45 Hz ÷ 20000 Hz
Max SPL @ 1m
132 dB
Horizontal coverage angle
90°
Vertical coverage angle
60°
Transducers
Compression Driver
1.4'', 3.0'' v.c
Woofer
15'', 3.0'' v.c
Input/Output section
Input signal
bal/unbal
Input connectors
XRL, Jack
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu
Processor section
Crossover Frequencies
900 Hz
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
Volume, EQ Shape
Power section
Total Power
1400 W Peak, 700 W RMS
High frequencies
400 W Peak, 200 W RMS
Low frequencies
1000 W Peak, 500 W RMS
Cooling
Convection/Forced
Connections
VDE
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
PP Composite
Hardware
2 x M10 flying p.
Handles
2 side, top
Pole mount/Cap
Yes
Color
Black
Size / Weight
Height
708 mm / 27.87 inches
Width
437 mm / 17.2 inches
Depth
389 mm / 15.31 inches
Shipping information
Package Height
750 mm / 29.53 inches
Package Width
500 mm / 19.69 inches
Package Depth
440 mm / 17.32 inches
Package Weight
20.8 kg / 45.86 lbs
