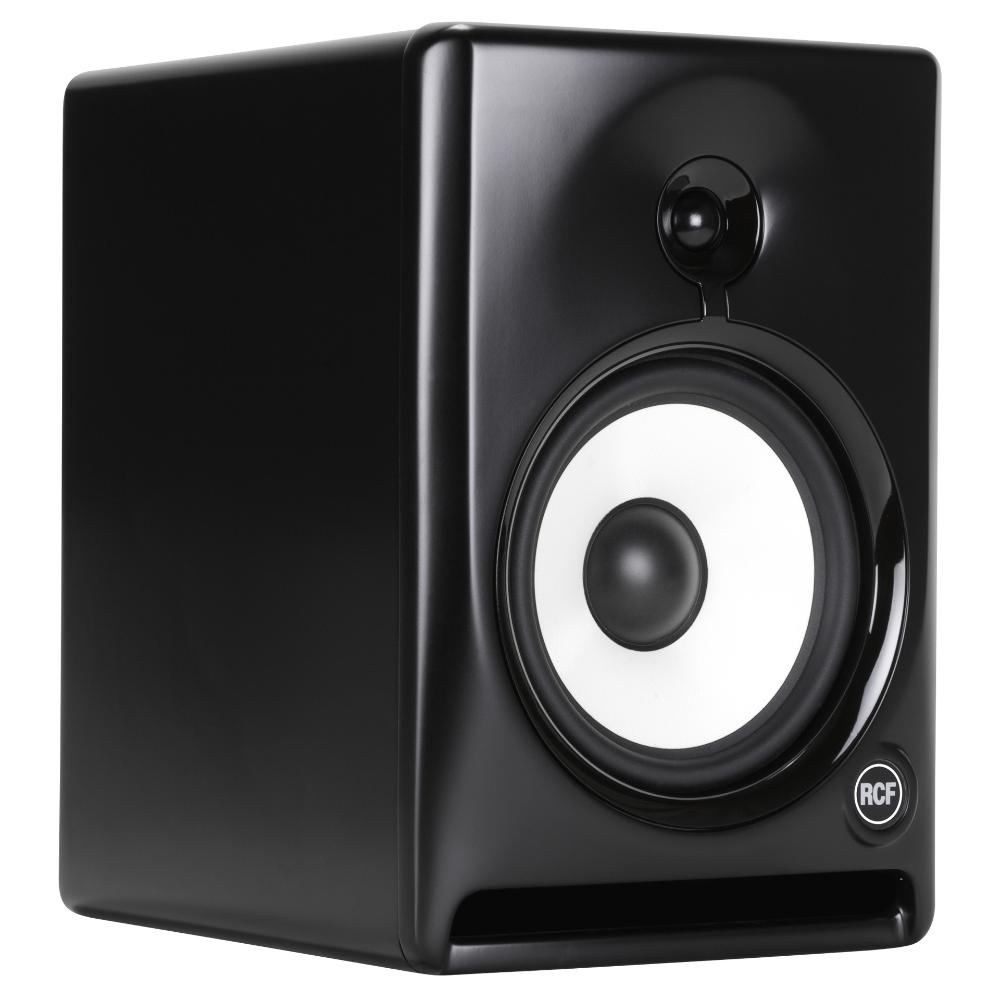

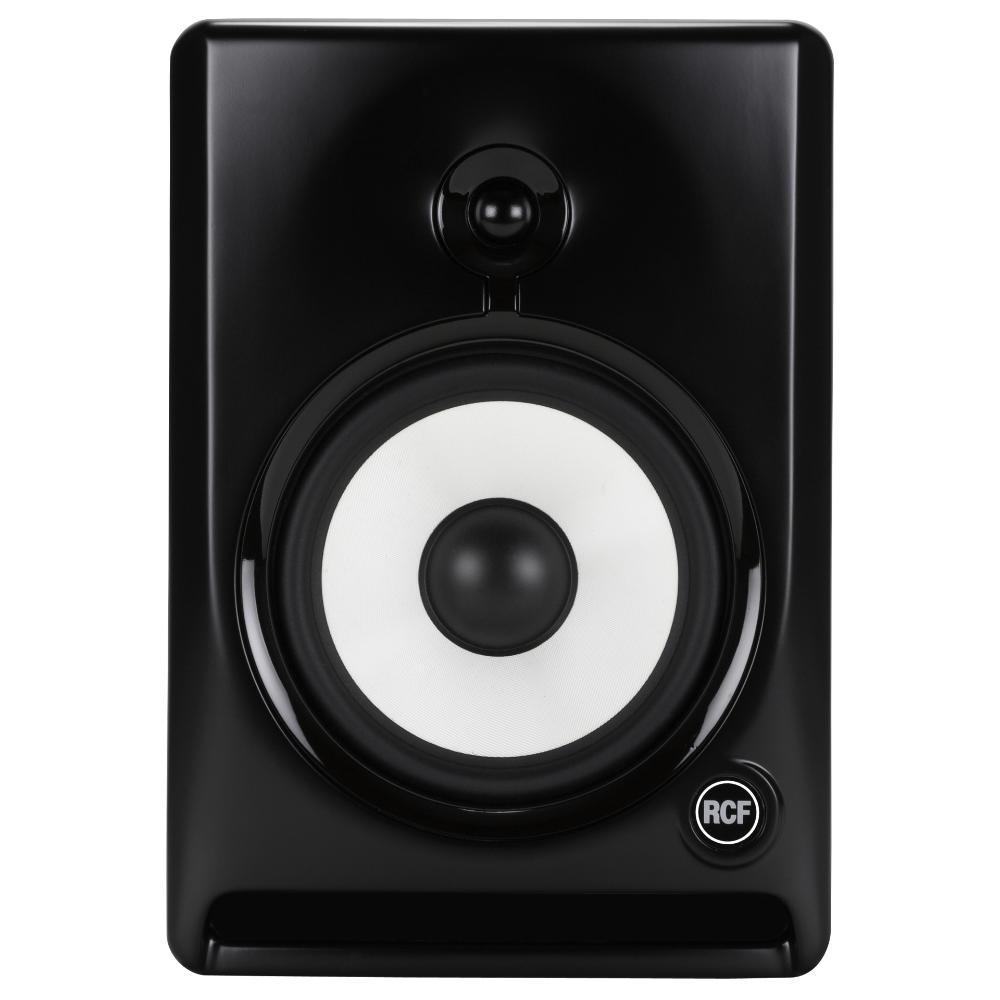

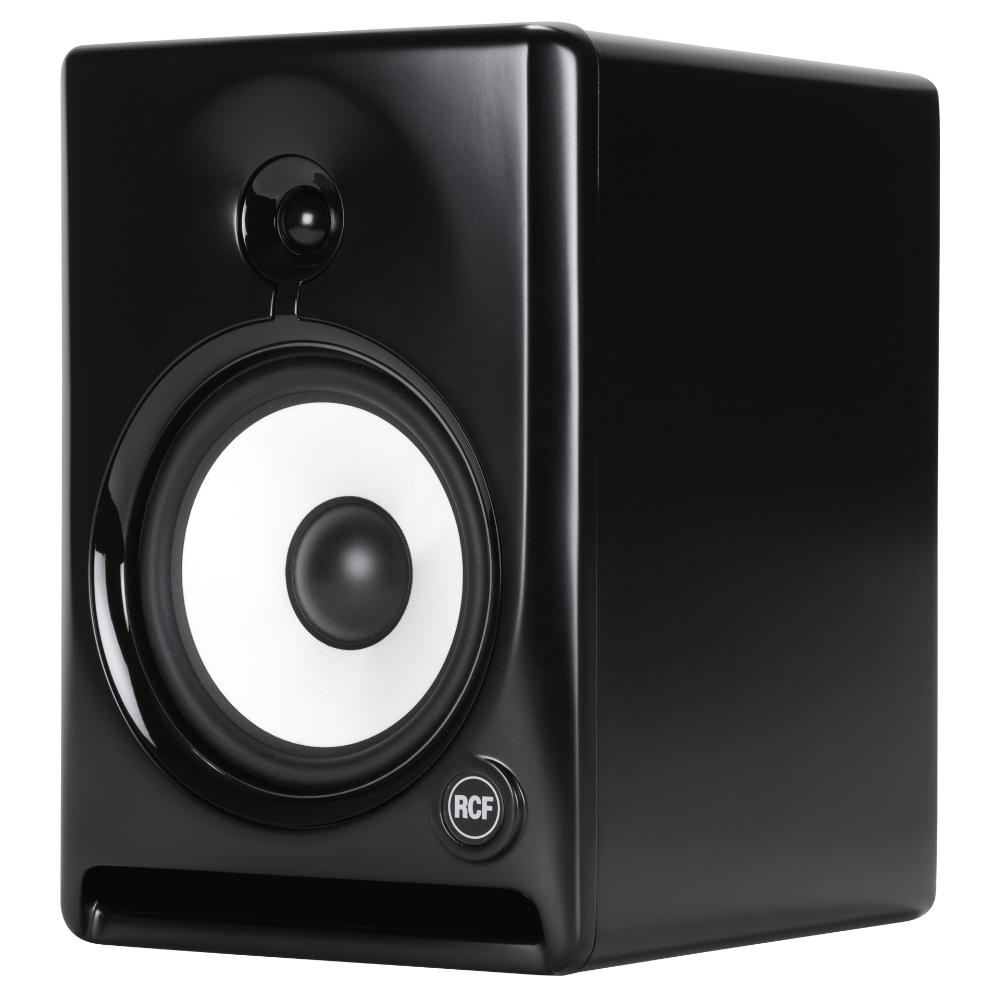

AYRA EIGHT

ACTIVE TWO-WAY PROFESSIONAL MONITOR
  • True active 80 W + 30 W class AB design
  • 8" composite fibreglass woofer
  • 1" soft dome tweeter
  • 45 Hz – 20.000 Hz frequency response
Support
Features Specifications Downloads
Support
Features
  • True active 80 W + 30 W class AB design
  • 45 Hz – 20.000 Hz frequency response
  • Precision directivity tweeter waveguide
  • Fully featured input board
  • 8" composite fibreglass woofer
  • 1" soft dome tweeter
  • Reflection free front cabinet design
  • Low distortion reflex port

AYRA 8 is a two-way reference studio monitor that is designed for near field applications, equally suited to your home recording studio. AYRA 8 features a high quality soft dome tweeter and a 8” composite fiberglass woofer. The AYRA Series is optimized to deliver the best sound for a variety of applications. Whether you are working with a near field mix at your home studio, you need a clear and loud sound for your multimedia gaming or simply need some good monitors for your personal computer.

ARCHIVED

Part number:

13041009
AYRA EIGHT
220-240V, Black, EAN 8024530007287

13041010
AYRA EIGHT
115V, Black, EAN 8024530007294

13041028
AYRA EIGHT
100V, Black, EAN 8024530012441

Specifications
Acoustical specifications
Max SPL @ 1m
110 dB
Horizontal coverage angle
110°
Vertical coverage angle
70°
Transducers
Compression Driver
1.0'' neo
Woofer
8'' neo

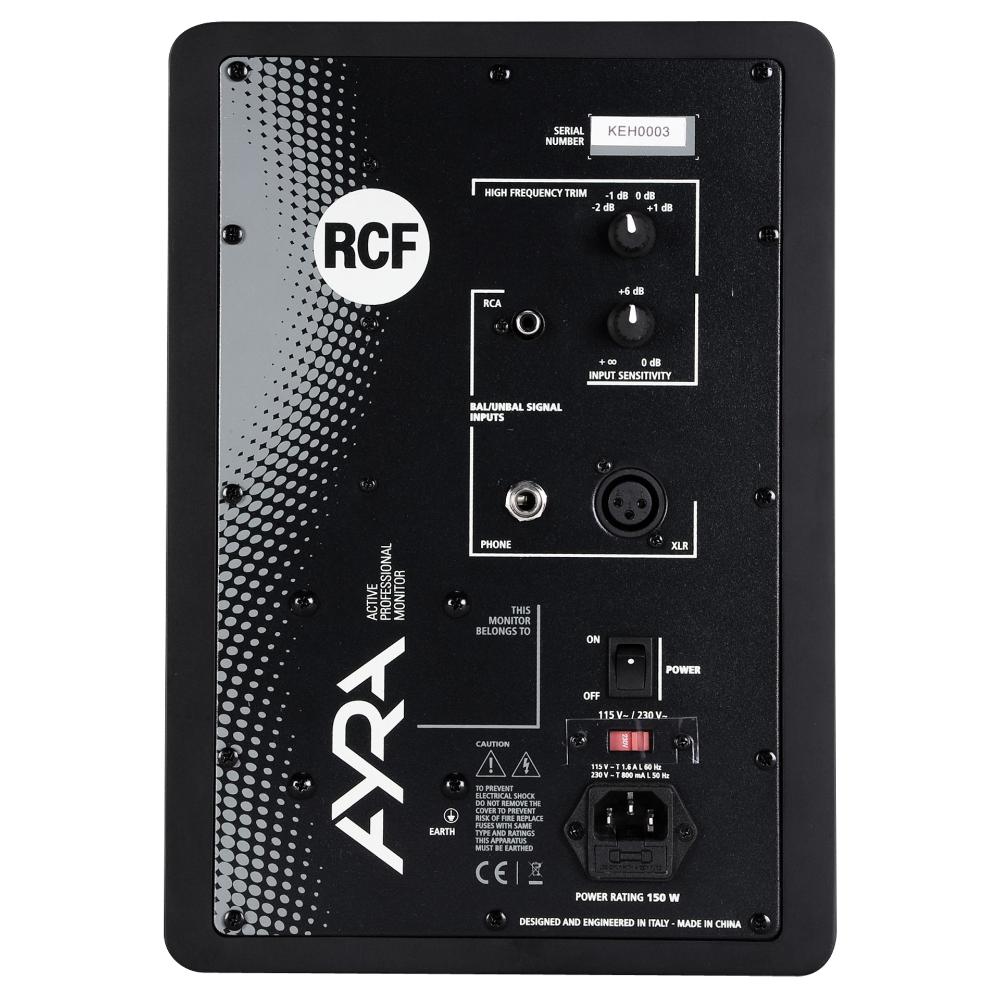

Input/Output section
Input signal
bal/unbal
Input connectors
XRL, Jack
Input sensitivity
-2 dBu
Processor section
Crossover Frequencies
1800 Hz
Protections
Thermal, Excurs., RMS
Limiter
Soft Limiter
Controls
Bass TIlt, Roll-Off, Treeble Tilt, Desktop, DSP Controlled
Power section
Total Power
600 W Peak, 300 W RMS
High frequencies
200 W Peak, 100 W RMS
Low frequencies
400 W Peak, 200 W RMS
Cooling
Convection
Connections
VDE
Physical specifications
Hardware
Orientation Adjustable Stand
Color
Black
Size
Height
430 mm / 16.93 inches
Width
310 mm / 12.2 inches
Depth
300 mm / 11.81 inches
Weight
11.4 kg / 25.13 lbs
Shipping information
Package Height
495 mm / 19.49 inches
Package Width
410 mm / 16.14 inches
Package Depth
350 mm / 13.78 inches
Package Weight
13.15 kg / 28.99 lbs
