Features
  • True active 250 W class AB design
  • 35 Hz – 130 Hz frequency response
  • Stereo input board, stereo x-over output
  • Selectable low pass filter
  • 10" composite fibreglass woofer
  • Low distortion reflex port
  • Lacquer painted medium density cabinet

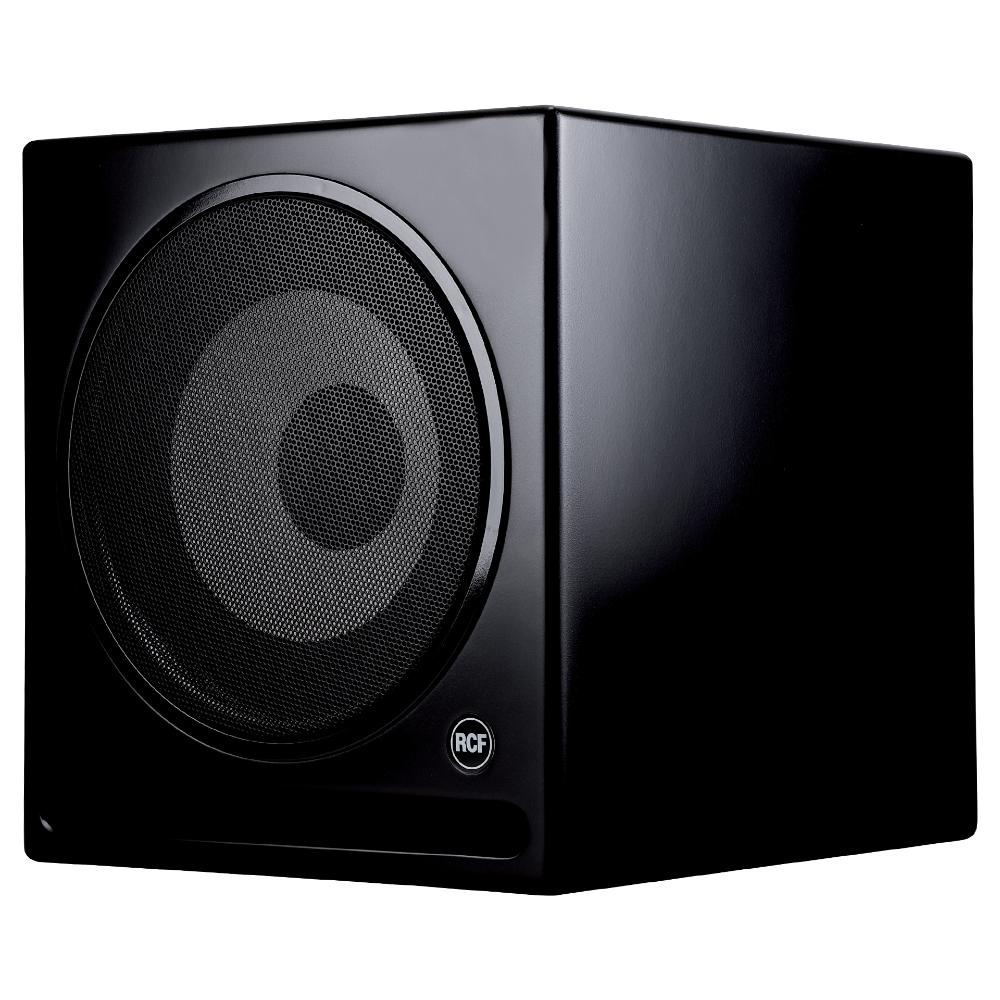

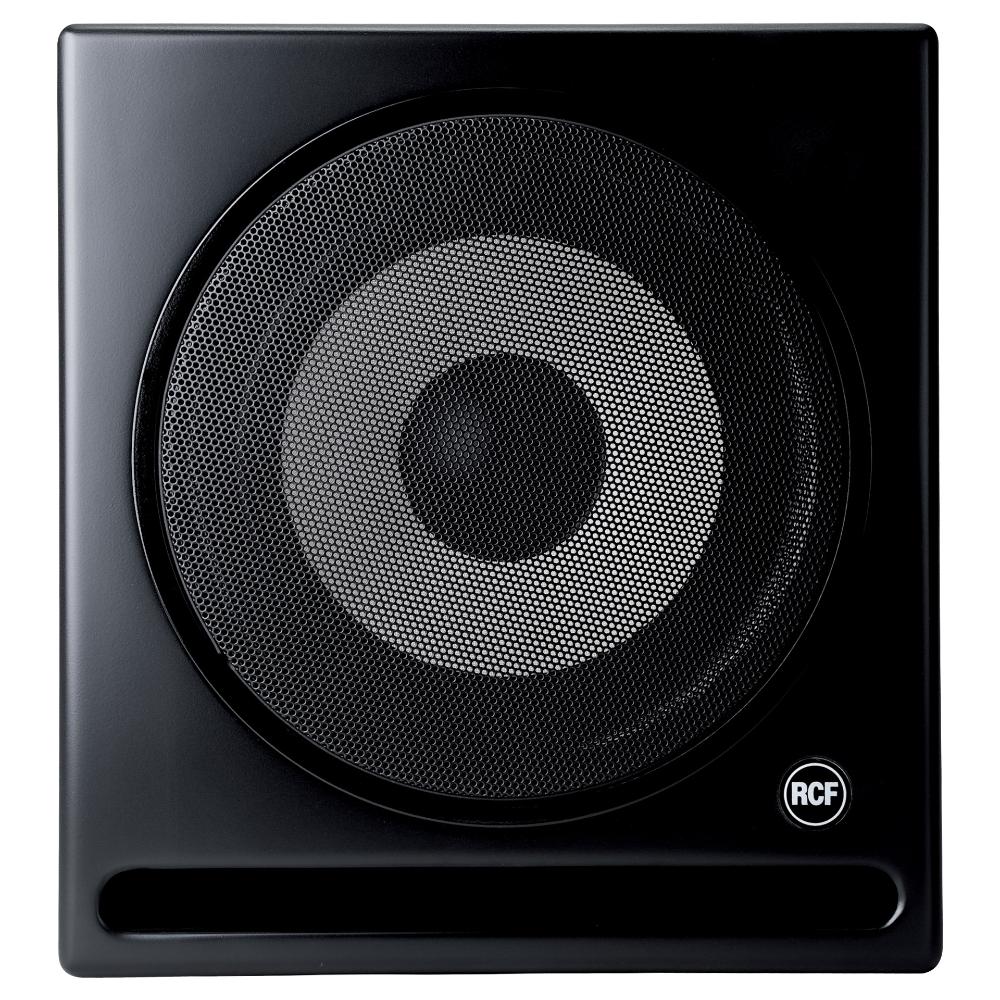

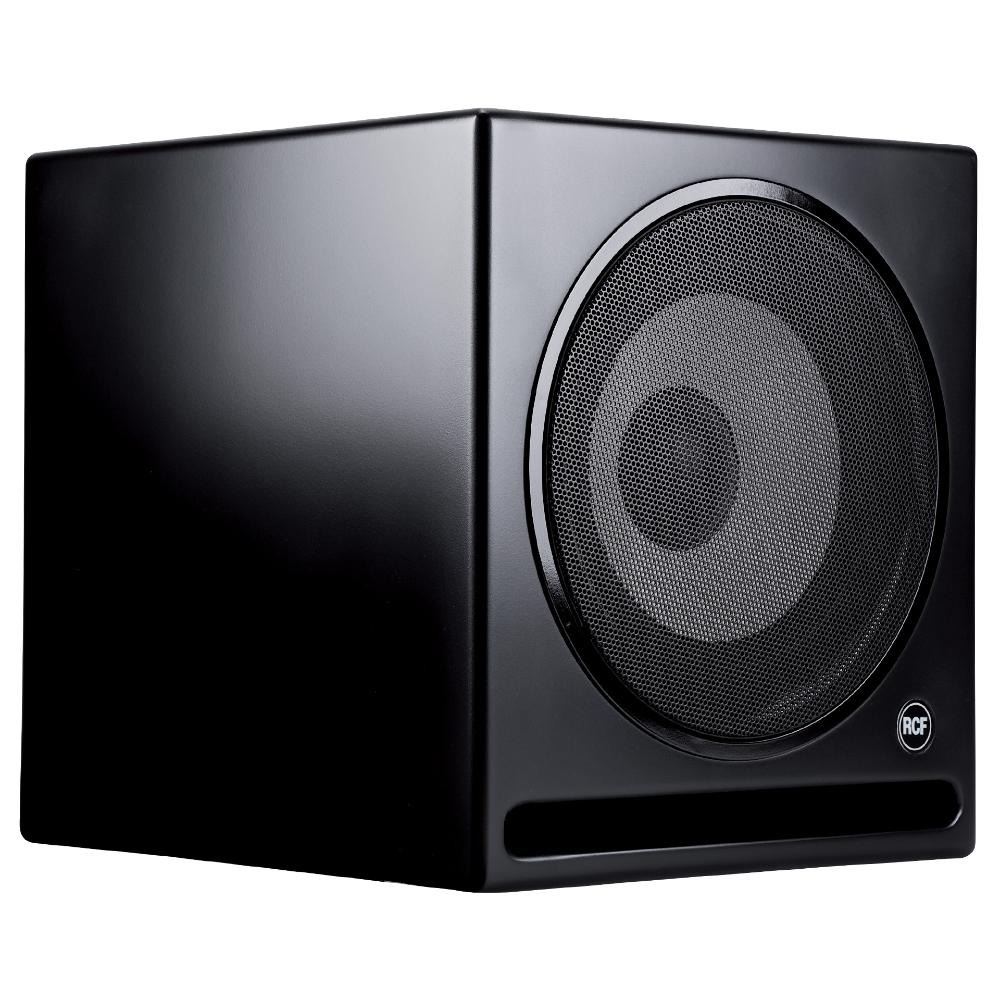

AYRA Sub 10 is a 10” professional subwoofer system that is designed especially for the AYRA near field active monitors, but works perfectly in other applications as a stand-alone subwoofer. The AYRA Series is optimized to deliver the best sound for a variety of applications. Whether you are working with a near field mix at your home studio, you need a clear and loud sound for your multimedia gaming or simply need some good monitors for your personal computer.


ARCHIVED

Part number:

13041013
AYRA TEN SUB
220-240V, Black, EAN 8024530007300

13041014
AYRA TEN SUB
115V, Black, EAN 8024530007317

Specifications
Transducers
Woofer
10''
Input/Output section
Input signal
bal/unbal
Input connectors
XLR, Jack, RCA
Input sensitivity
-2 dBu
Processor section
Crossover Frequencies
50 Hz - 120 Hz
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
Phase
Power section
Total Power
500 W Peak, 250 W RMS
Low frequencies
500 W Peak, 250 W RMS
Cooling
Convection

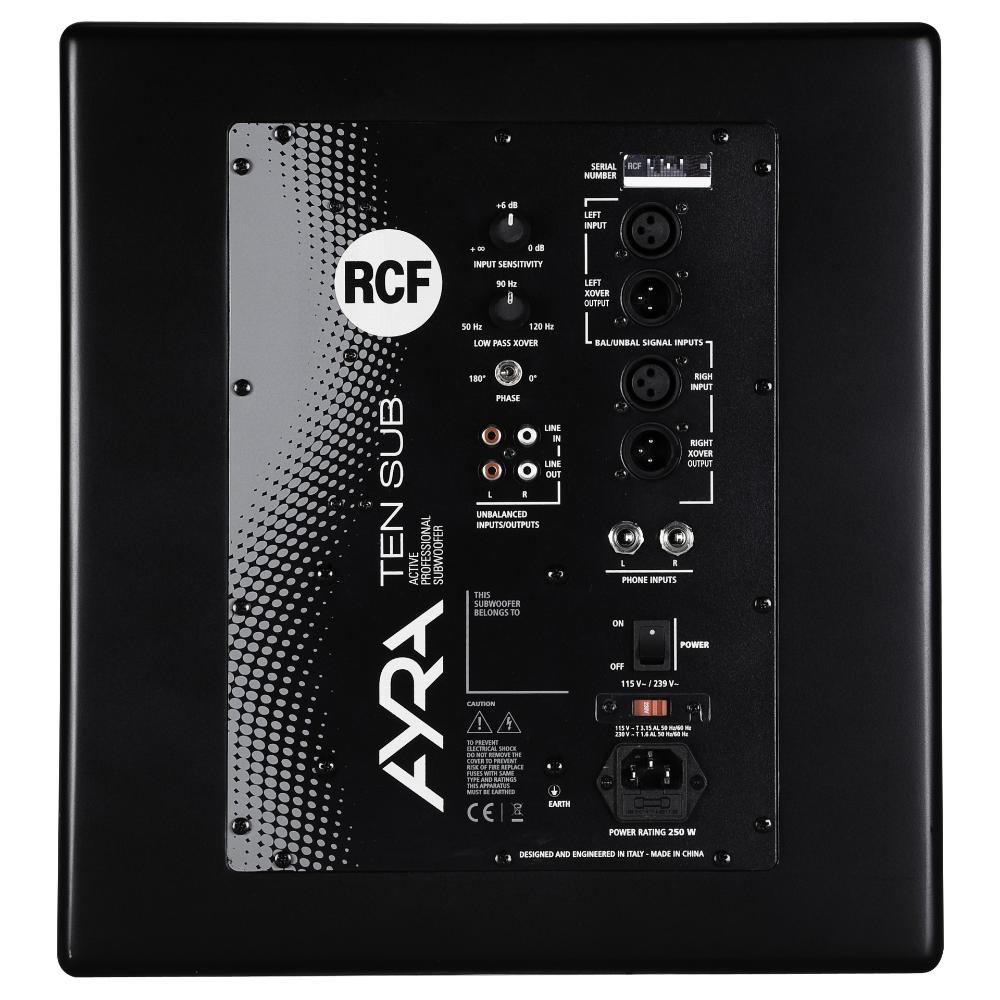

Connections
XLR, Jack, RCA
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
MDF
Color
Black
Size / Weight
Height
384 mm / 15.12 inches
Width
356 mm / 14.02 inches
Depth
403 mm / 15.87 inches
Weight
17.6 kg / 38.8 lbs
Shipping information
Package Height
384 mm / 15.12 inches
Package Width
403 mm / 15.87 inches
Package Depth
356 mm / 14.02 inches
Package Weight
20.5 kg / 45.19 lbs
Accessories
