Features
  • It's ideal for train stations, underground stations, car parks, factories, warehouses, and PA systems in general
  • Bidirectional sound projector with double loudspeaker, characterized by high acoustic performance, excellent design and compact dimensions
  • IP55 protection, suitable for outdoor use
  • 2 x 5" diameter extended range twin-cone loudspeaker
  • Built-in multi-tapped transformer for 100 V constant voltage connection

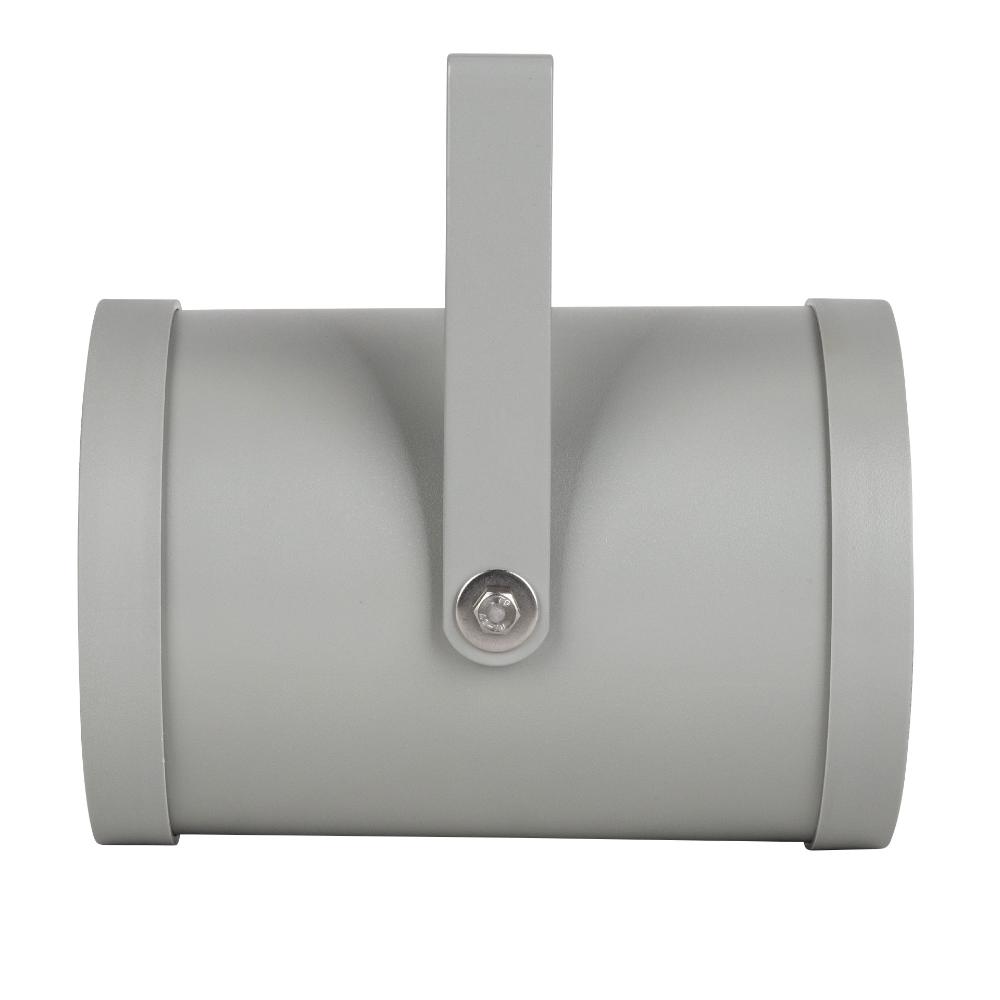

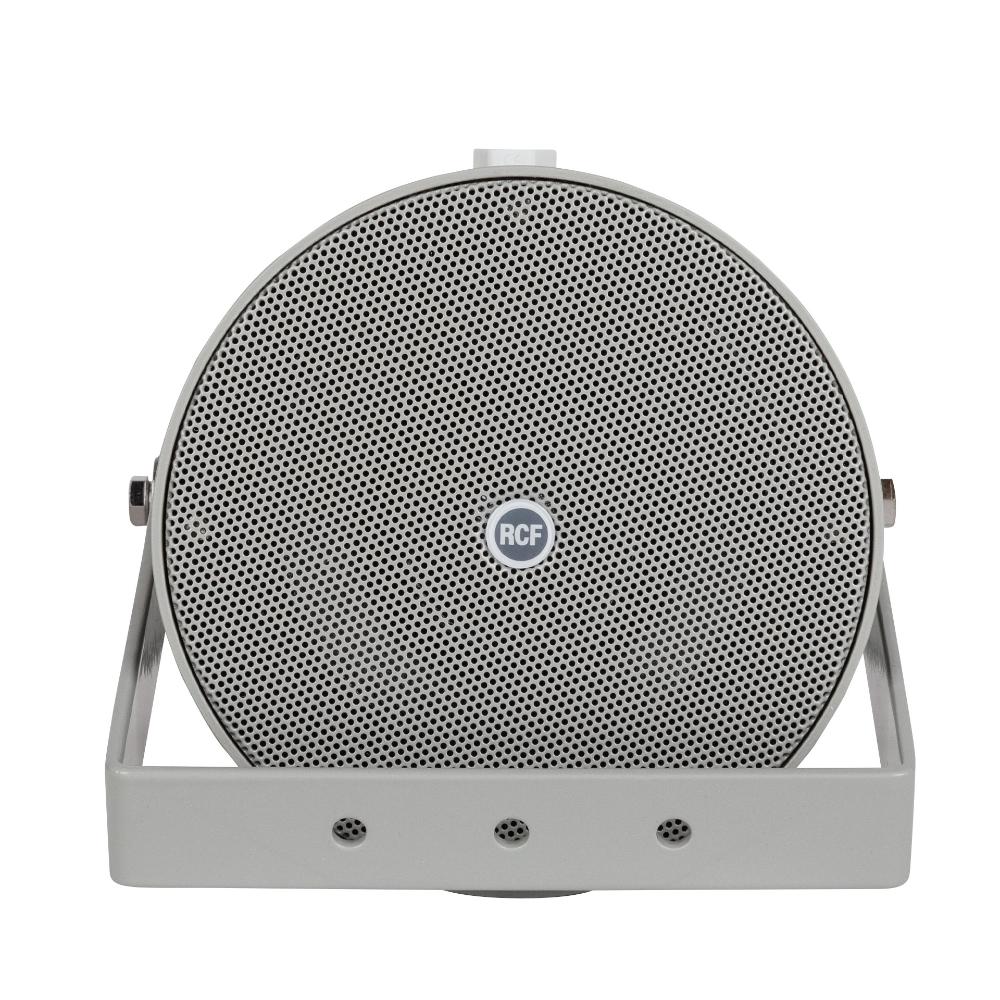

  • Equipped with aluminium "U" bracket. Body in ABS grey RAL 7035 with metal grill

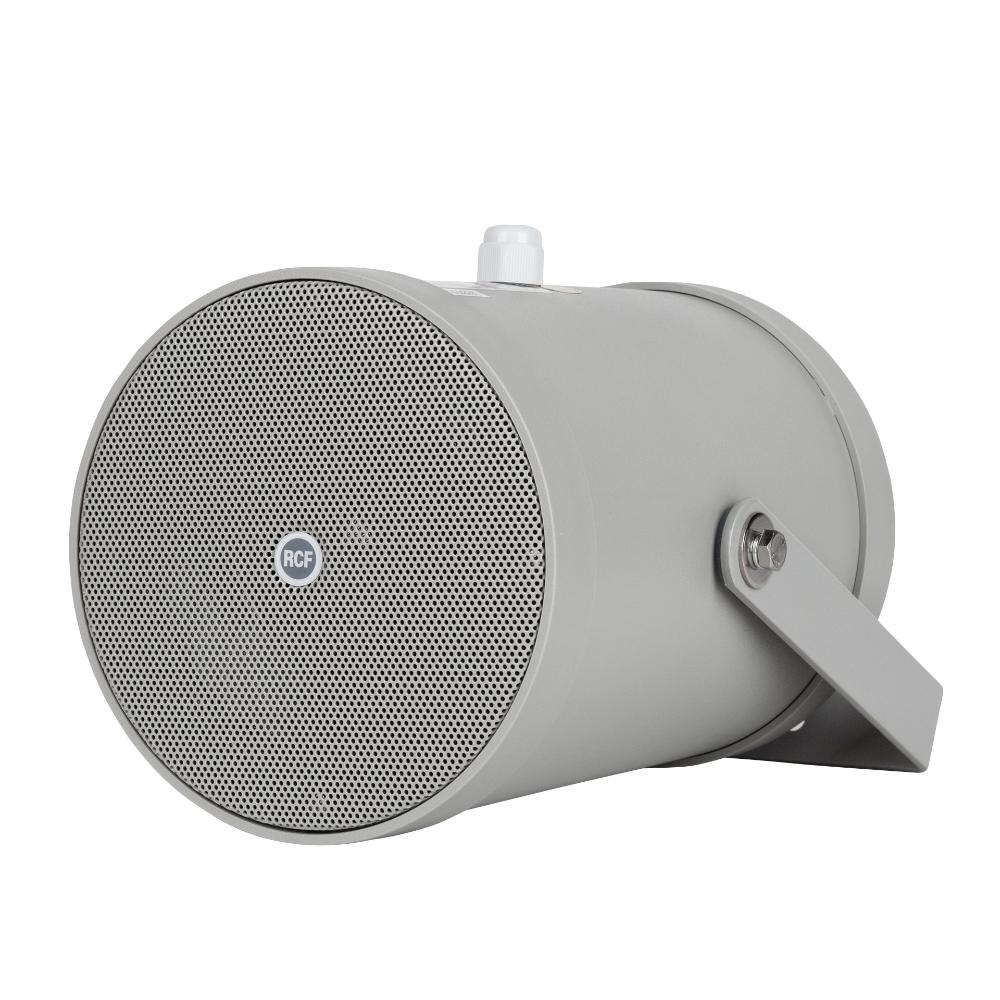

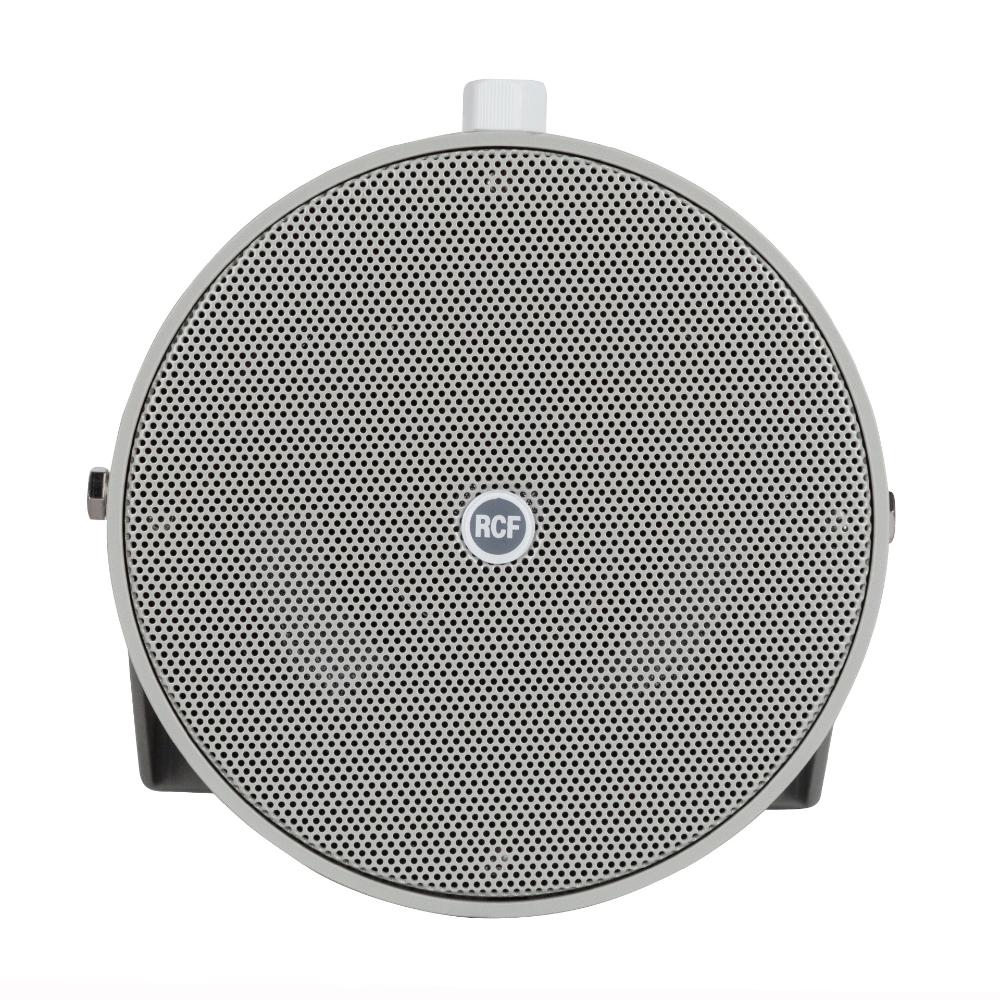

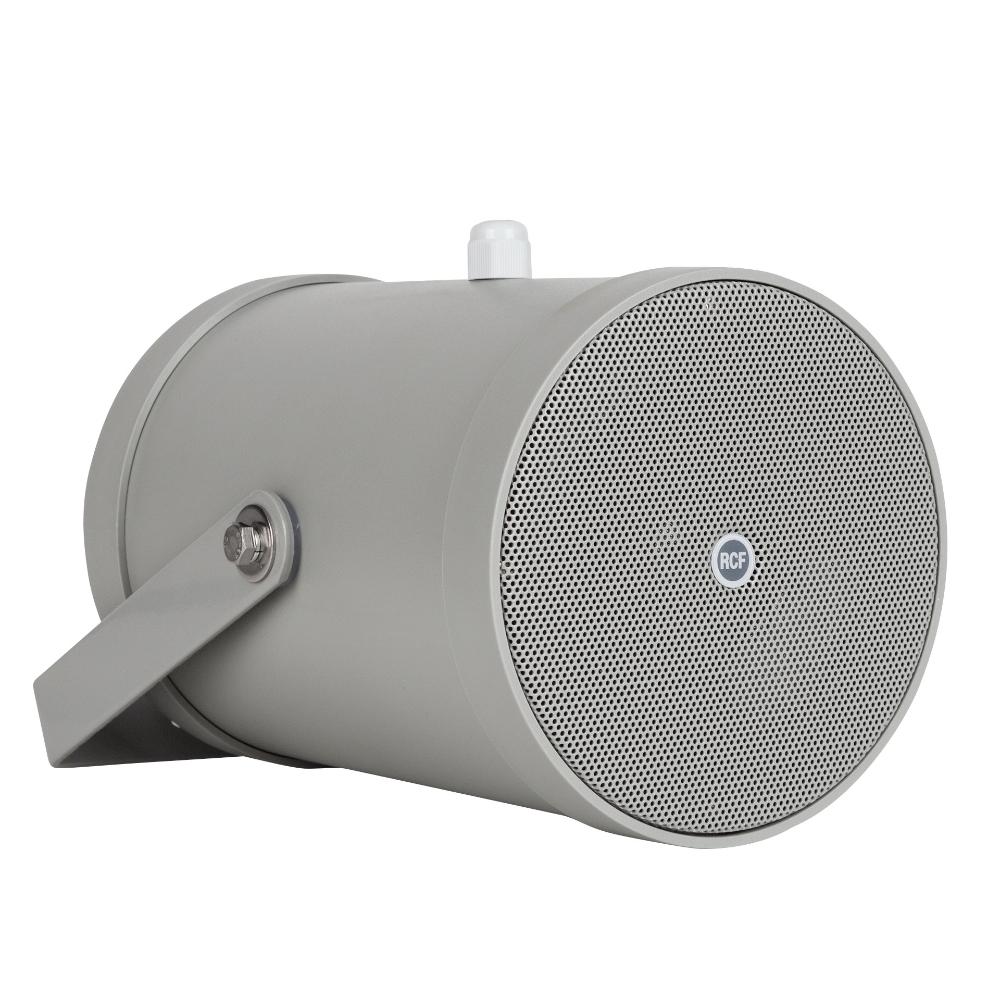

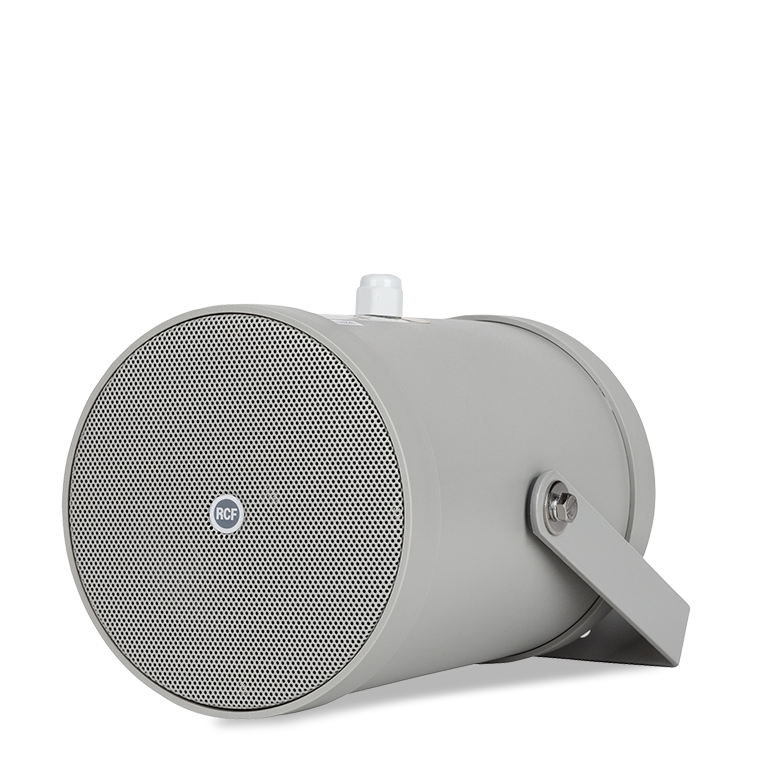

BD 42 sound projectors are elegant and suitable for sound distribution in very large and noisy environments (e.g. railway stations, underground, car parks, factories, warehouses, shopping centres, etc..). BD 42 sound projectors can be installed both indoor and outdoor (IP code: IP 55). These have a cylindrical plastic body with an U bracket support for the installation and include: 2 dual cone loudspeakers (externally protected by grilles). A transformer for 100 V constant voltage lines, with the possibility to set the power during the installation. A low impedance input (4 O) is available.


ARCHIVED

Part number:

13000247
BD 42
EAN 8024530006907

Specifications
Acoustical specifications
Frequency Response (-10dB)
130 Hz ÷ 15000 Hz
Max SPL @ 1m
102 dB
System Sensitivity
91 dB
Power section
Nominal Impedance
4 ohm
Power Handling
12 W
Peak Power Handling
48 W PEAK
Transducers
Fullrange
2 x 5.0''
Input/Output section
Input connectors
Cable
Output connectors
Cable

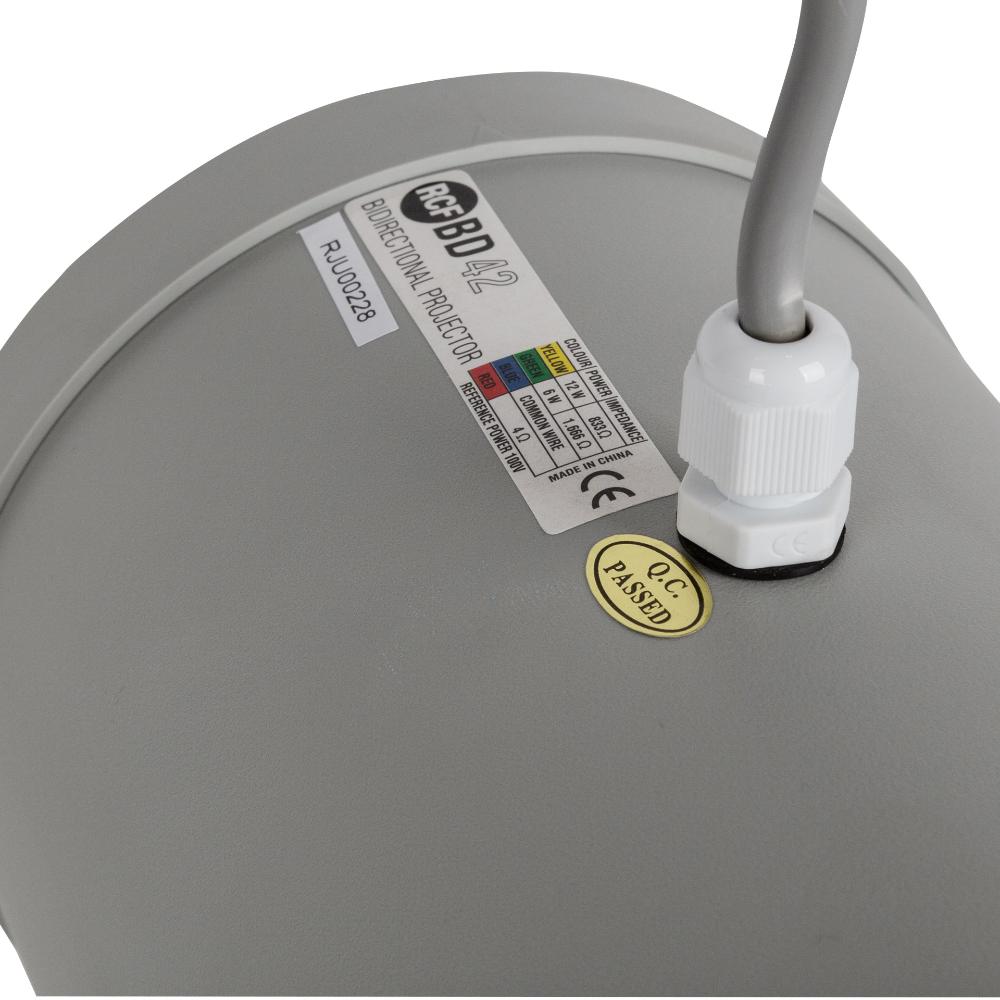

Constant Voltage Transformer
100 V
Power selection 1
12 W - 833 ohm
Power selection 2
6 W - 1667 ohm
Standard compliance
IP protection grade
IP 55
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
ABS
Hardware
U bracket
Grille
Aluminium
Color
Grey - RAL 7035
Size / Weight
Depth
200 mm / 7.87 inches
Diameter
138 mm / 5.43 inches
Weight
1.66 kg / 3.66 lbs
Shipping information
Package Height
290 mm / 11.42 inches
Package Width
160 mm / 6.3 inches
Package Depth
190 mm / 7.48 inches
Package Weight
1.95 kg / 4.3 lbs
