VOICE ALARM EN54 COMMERCIAL INSTALLED

BD 42EN

BIDIRECTIONAL SOUND PROJECTOR

2x5" fullrange transducers.
Power selectable (100 V): 12 W – 6 W – 3 W – 1,5 W.
91 dB sensitivity.
Colour grey RAL 7035.

EN 54

Where to buy

Features

2x5" fullrange transducers.
Power selectable (100 V): 12 W – 6 W – 3 W – 1,5 W.
91 dB sensitivity.
Colour grey RAL 7035.
Flameproof ABS body, aluminium grilles and bracket.
In/out ceramic terminal block.
Thermal fuse protection.
Protection grade IP55.

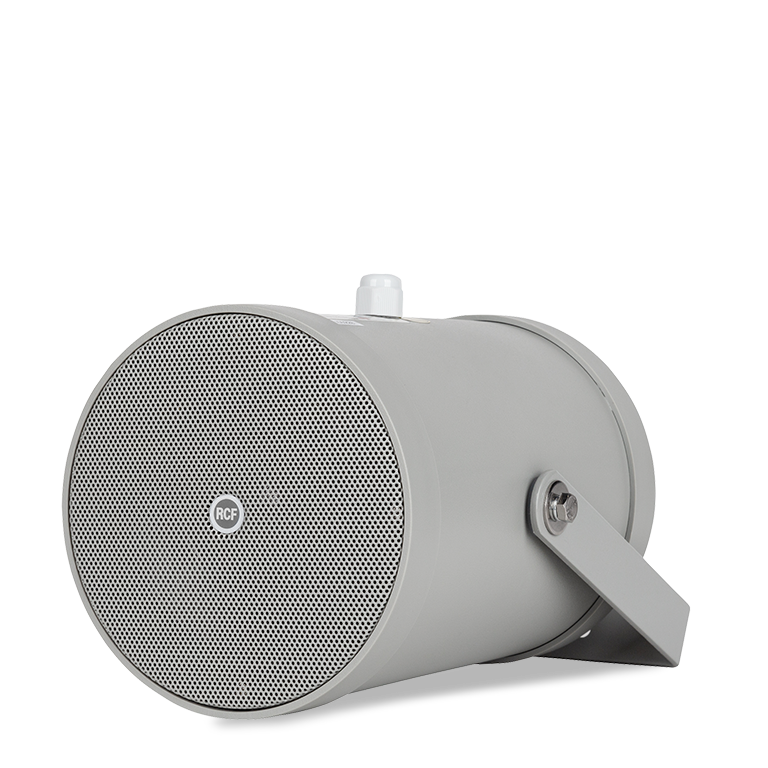

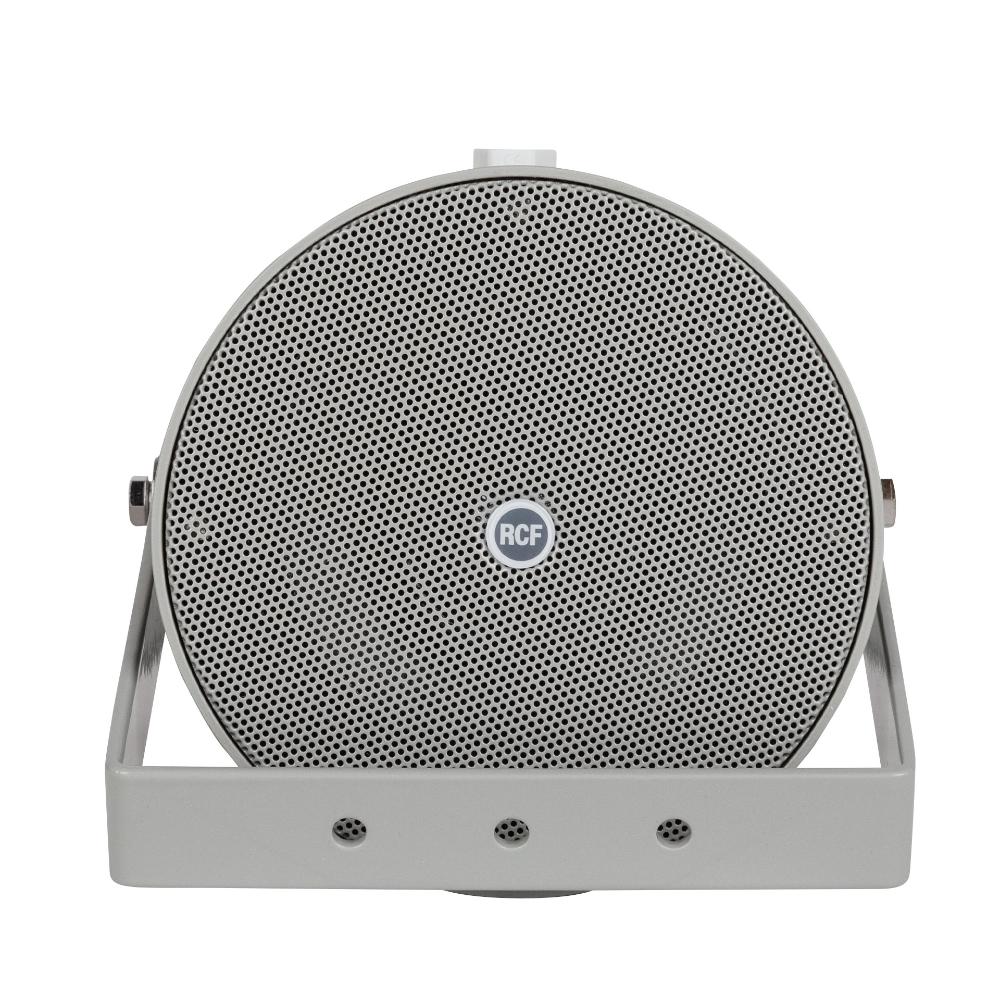

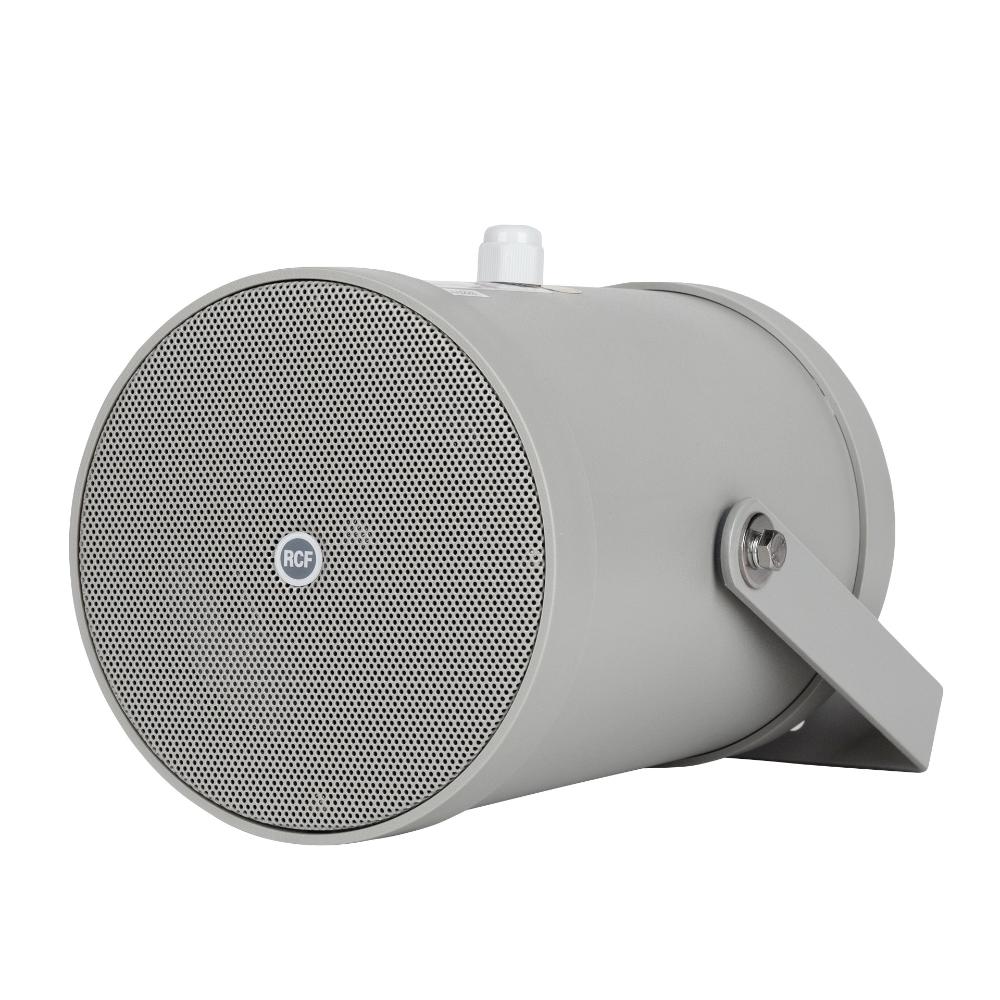

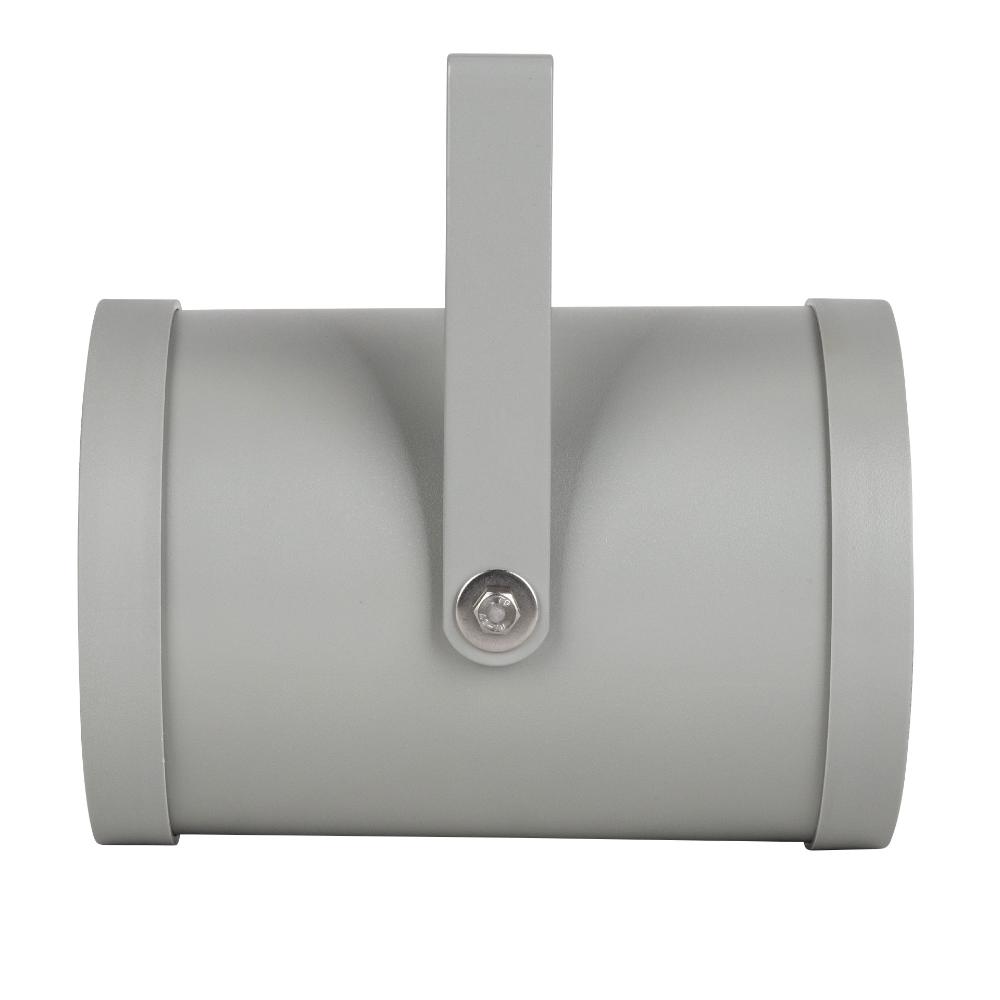

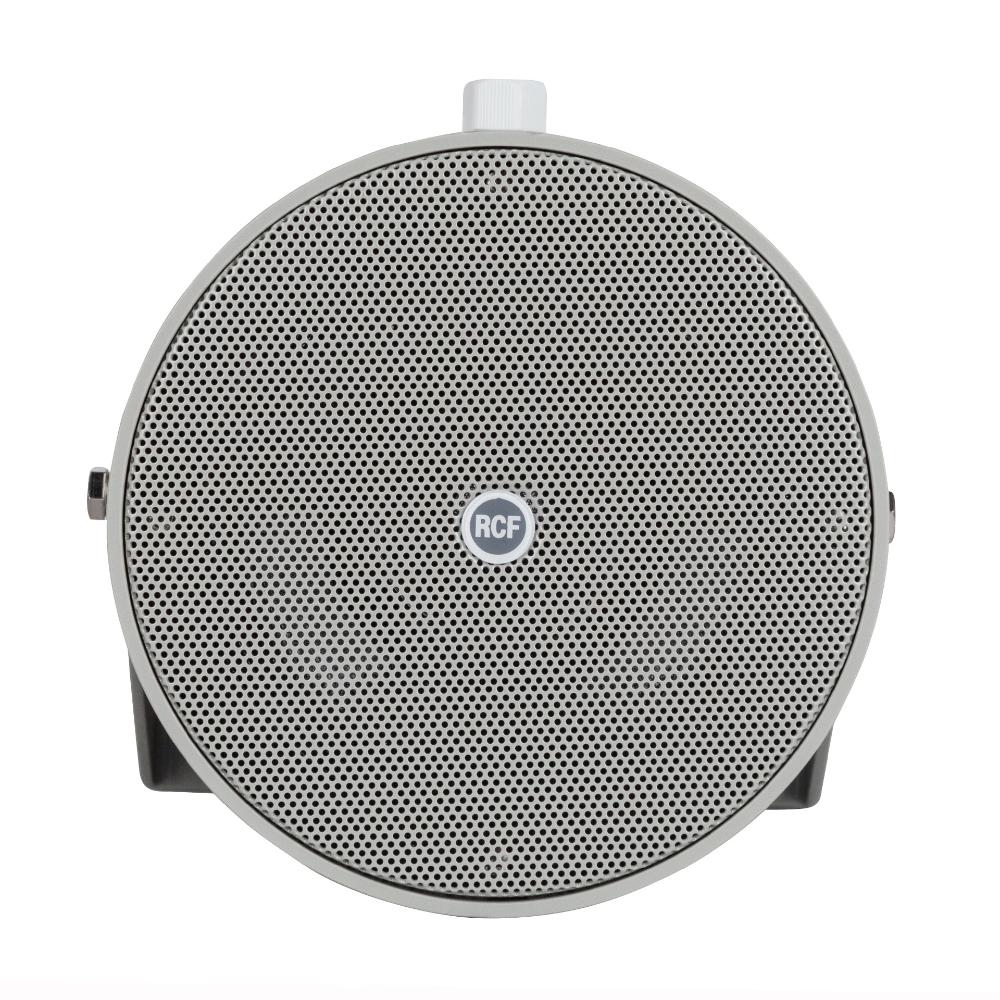

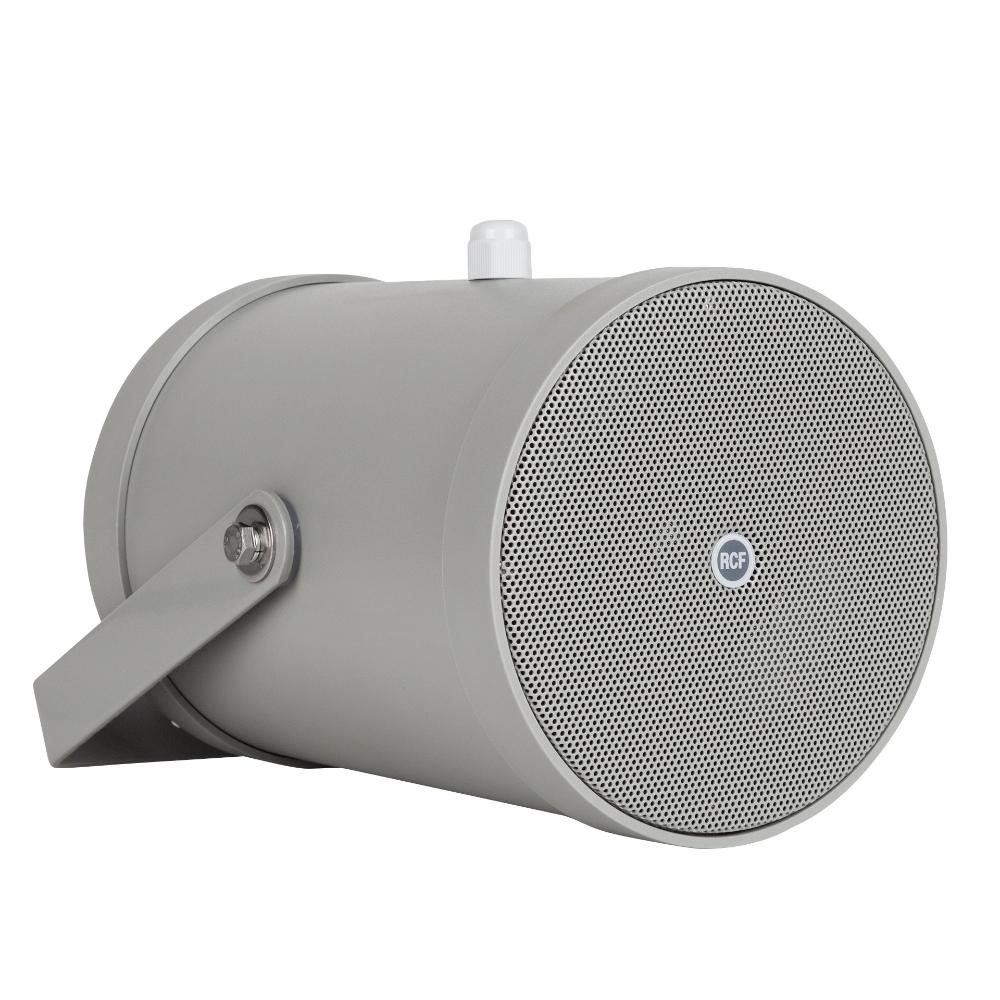

BD 42EN is a bidirectional sound projector featuring an elegant aesthetic and easy orientation, suitable for the sonorization of commercial and industrial environments where a good sound quality and high intelligibility and efficiency are required. It features a cylindrical plastic body with aluminium grilles and U-bracket support. Thanks to its IP55 protection grade, it can be installed both indoor and outdoor.

NEW

Part number:

13100119
BD 42EN
EAN 8024530022471

Acoustical specifications

Frequency Response (-10dB)

130 Hz - 15000 Hz

Max SPL @ 1m

102 dB

Max SPL @ 4m

90 dB

System Sensitivity

90 dB

System Sensitivity 1W @ 4m

78 dB

Power section

Amplification

Full Range

Power Handling

12 W

Peak Power Handling

48 W PEAK

Protections

Thermal fuse

Recommended Amplifiers

DXT 3000, DXT 4000, DXT 7000

Transducers

Fullrange

2 x 5.0''

Input/Output section

Input connectors

Ceramic screw terminals

Output connectors

Ceramic screw terminals

Constant Voltage Transformer

100 V

Power selection 1

12 W - 833 ohm

Power selection 2

6 W - 1667 ohm

Power selection 3

3 W - 3333 ohm

Power selection 4

1.5 W - 6667 ohm

Standard compliance

IP protection grade

IP 55

Safety agency

CE compliant

EN54-24 certified

Yes

CPR number

0068-CPR-234/2025

Physical specifications

Cabinet/Case Material

ABS

Hardware

Aluminum U bracket

Grille

Aluminium

Color

Grey - RAL 7035

Size / Weight

Width

200 mm / 7.87 inches

Diameter

138 mm / 5.43 inches

Weight

1.66 kg / 3.66 lbs

Shipping information

Package Height

290 mm / 11.42 inches

Package Width

160 mm / 6.3 inches

Package Depth

190 mm / 7.48 inches

Package Weight

1.95 kg / 4.3 lbs
