COMMERCIAL AUDIO

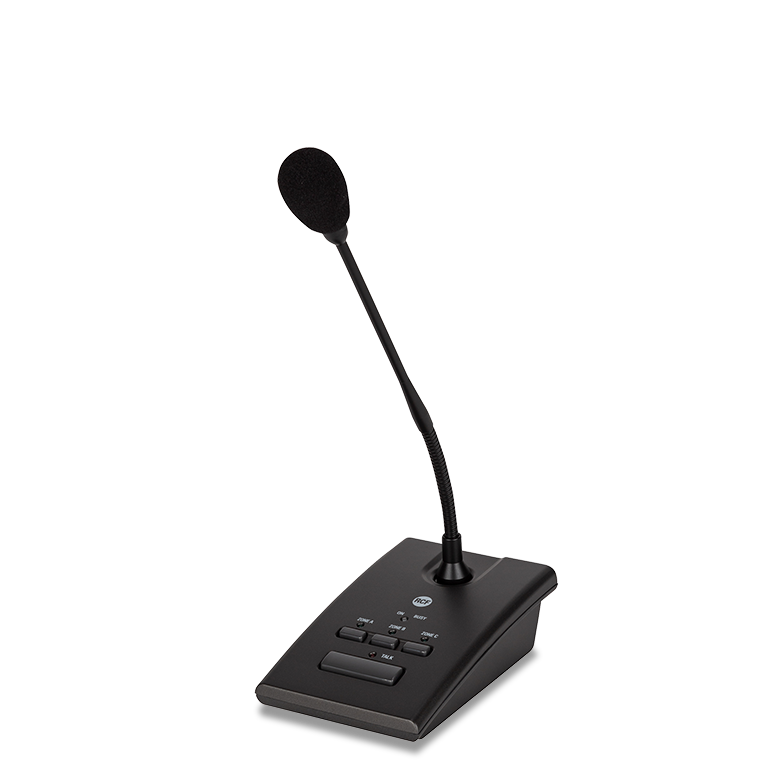

BM 3003

3 ZONE PAGING MICROPHONE
  • Plastic body with 300 mm gooseneck
  • PTT button with LED, Zone buttons with LED
  • Power supplied by 'Phantom' (18 ÷ 48 V dc) for the BM 3003 directly connect to the ES 3323
  • It can be directly connected to ES 3323 amplifiers
Where to buy
Features
  • Plastic body with 300 mm gooseneck
  • PTT button with LED, Zone buttons with LED
  • Power supplied by 'Phantom' (18 ÷ 48 V dc) for the BM 3003 directly connect to the ES 3323
  • It can be directly connected to ES 3323 amplifiers
  • External power supply AC AD2405 to be used on all BM 3003 connect to other BM 3003
  • Lines of max. 12 BM 3003 paging microphones
  • Polyurethane foam wind screen
  • 5 m connecting cable (with RJ 45 plugs) included

The BM 3003 paging microphone allows to make selective calls to 3 zones and is the ideal complement of the RCF ES 3323 mixer amplifier (with tuner and CD/USB-MP3 player inside). The inputs 2 and 3 of the RCF ES 3323 amplifier have a RJ 45 port (each) to connect a BM 3003 paging microphone quickly and directly (through CAT 5 cable) or a line made of max.12 BM 3003 paging microphones by using 1 or more additional power supply units.

Part number:

14322012
BM 3003
EAN 8024530006617

Specifications
Microphone specifications
Type:
Desktop paging microphone with electret capsule
Directivity:
Cardioid
Sensitivity:
-65 dB
Frequency Response (-3dB):
50 Hz ÷ 18 kHz
Minimum load impedance (ohm):
470.00 ohm
Nominal output voltage @3.3 kohm (mV RMS):
100.00 mV RMS
Console specifications
Console Type:
Paging
General call:
Yes
Selective call:
Yes
Number of zones:
3
LED indicators:
Yes
Power requirement
Power consumption:
2.80 mA
Connections
Connectors:
RJ45
Functionalities
Smart PTT:
Yes
Accessories
Cable included:
Yes
Cable length (m):
5
Physical specifications
Cabinet/Case Material:
Plastic
Size
Height:
48 mm / 1.89 inches
Width:
100 mm / 3.94 inches
Depth:
159 mm / 6.26 inches
Weight:
0.73 kg / 1.61 lbs
Shipping information
Package Height:
144 mm / 5.67 inches
Package Width:
329 mm / 12.95 inches
Package Depth:
129 mm / 5.08 inches
Package Weight:
1.28 kg / 2.82 lbs
