BM 5001WM WALL MOUNT EVACUATION MICROPHONE
Search RCF products
Choose search system
ARCHIVED
VOICE ALARM EN54
BM 5001WM
WALL MOUNT EVACUATION MICROPHONE
- Wall mount microphone in housing for evacuation system
- Connected in parallel to up to 10 SE5120/ SE5121
- Palm-held microphone with PTT button with highest priority over other inputs
- Critical signal path monitoring
Features
- Wall mount microphone in housing for evacuation system
- Connected in parallel to up to 10 SE5120/ SE5121
- Palm-held microphone with PTT button with highest priority over other inputs
- Critical signal path monitoring
- State and output indicators

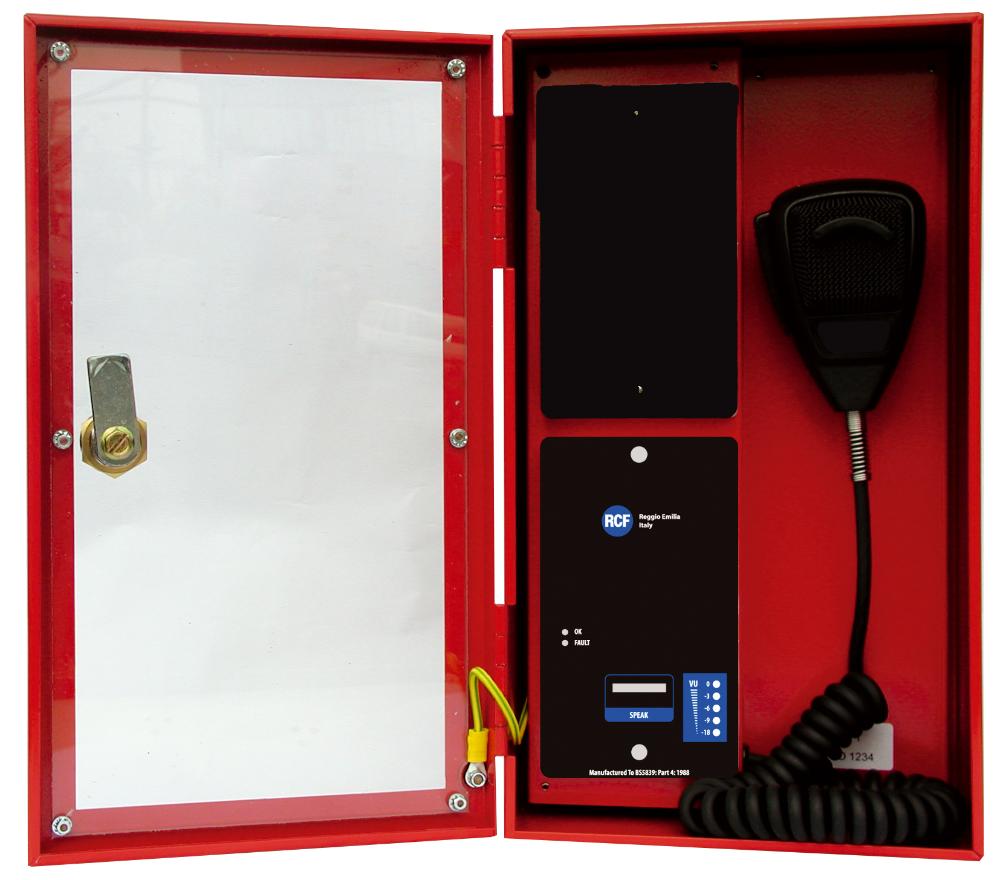

BM 5001WM is a fireman’s paging microphone for the RCF SE 5000 system, to be used mainly (but not only) for emergency calls with high priority. Installed in a wall mounting housing it has a high quality hand-held microphone with a ‘Push To Talk’ button. Its critical signal path is monitored.
ARCHIVED
Part number:
17170087
BM 5001WM
Specifications
Microphone specifications
Type
Dynamic
Directivity
Unidirectional
Frequency Response (-3dB)
300 Hz ÷ 3 kHz
Output impedance (ohm)
400.00 ohm
Minimum load impedance (ohm)
2000.00 ohm
Connections
Connectors
DIN 5 pole
Standard compliance
Safety agency
CE compliant
Size / Weight
Height
350 mm / 13.78 inches
Width
100 mm / 3.94 inches
Depth
200 mm / 7.87 inches
Weight
3.2 kg / 7.05 lbs
Shipping information
Package Height
160 mm / 6.3 inches
Package Width
380 mm / 14.96 inches
Package Depth
210 mm / 8.27 inches
Package Weight
3.7 kg / 8.16 lbs
