VOICE ALARM EN54 COMMERCIAL BUSINESS MUSIC INSTALLED

BM 7608D

DESK-TOP EMERGENCY MICROPHONE CONSOLE
  • Live emergency announcements
  • Pre-recorded messages activation
  • Complete self-diagnostic
  • Numeric keyboard and display
EN 54
Where to buy
Features Specifications Downloads Accessories
Where to buy
Features
  • Live emergency announcements
  • Pre-recorded messages activation
  • Complete self-diagnostic
  • Numeric keyboard and display
  • Hi-quality cardioid microphone
  • Modern design

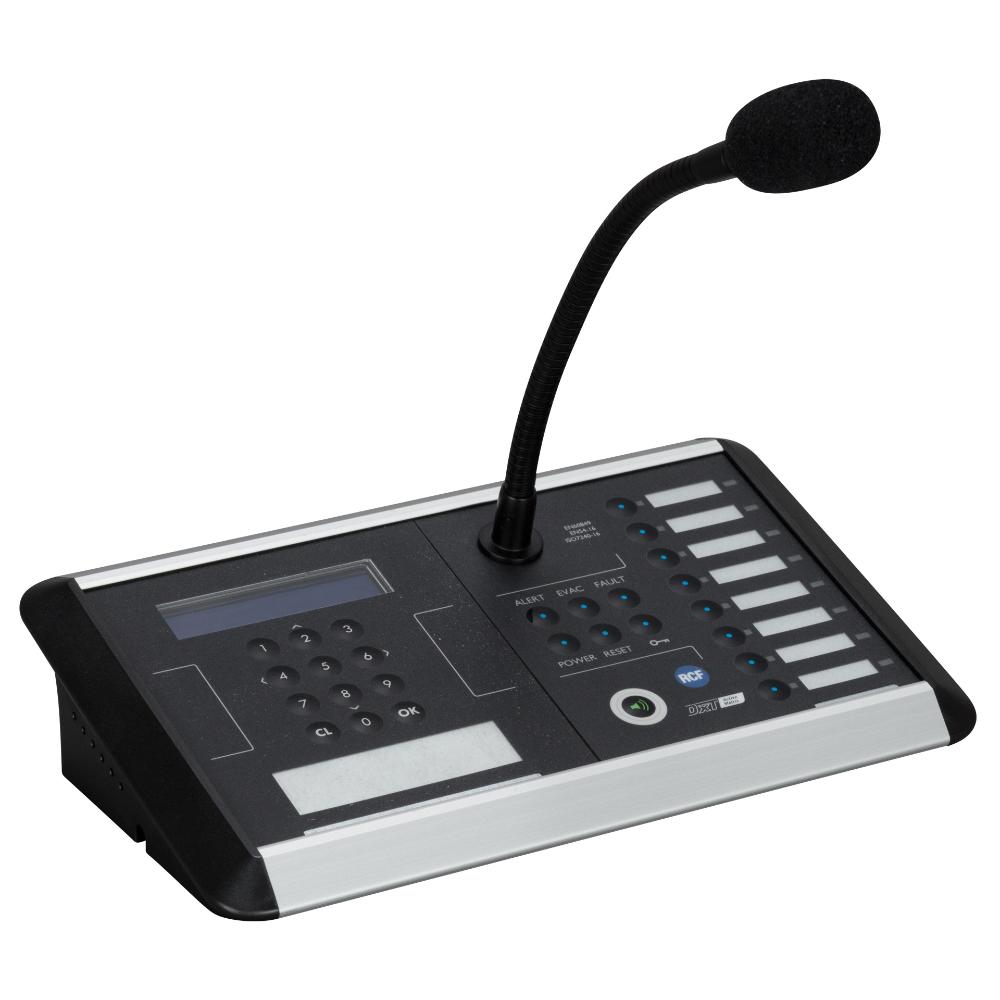

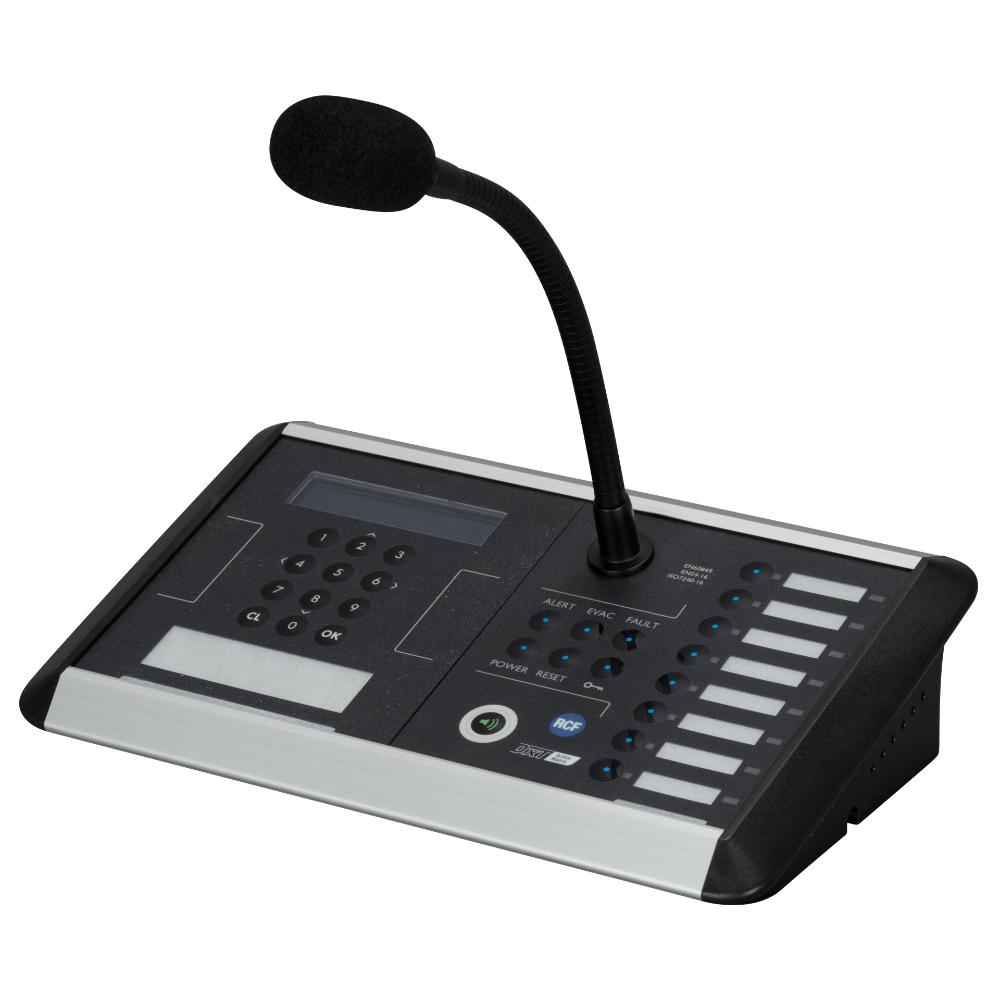

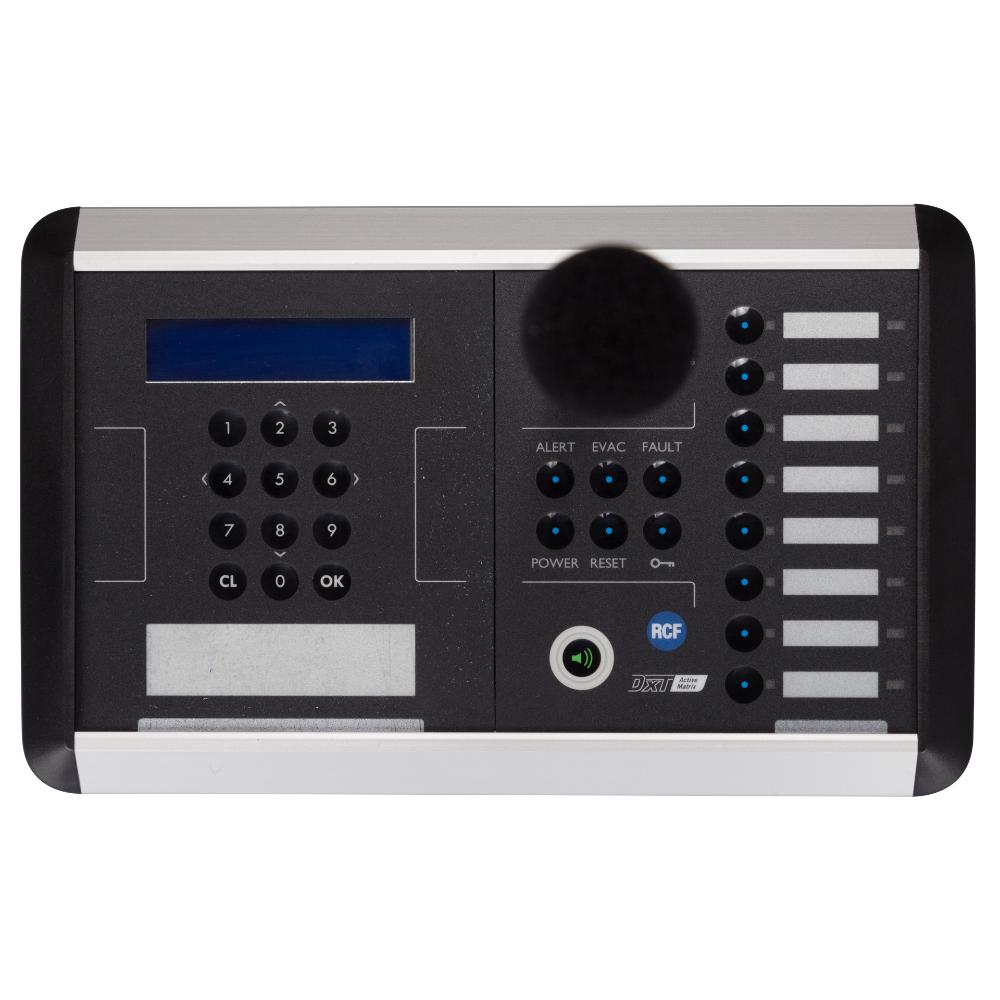

BM 7608D is a desk-top emergency microphone console exclusively dedicated to DXT 7000 Voice Alarm system, and can be used both for live announcements and pre-recorded messages activation. It features complete self-diagnostic functionalities and system status reporting in compliance with EN 54-16 standard. Up to 8 consoles can be daisy-chained on each paging bus, for a total of 32 consoles.

Part number:

14322016
BM 7608D
EAN 8024530007157

Specifications
Microphone specifications
Type
Electret
Directivity
Cardioid
Frequency Response (-3dB)
50 Hz ÷ 17 kHz
Total harmonic distortion @1 kHz
0.10 %
Console specifications
Console Type
Emergency
Working with
DXT 7000
General call
Yes
Selective call
Yes
Preamplified
Yes
Configurable buttons
Yes
LED indicators
Yes
LCD screen
Yes

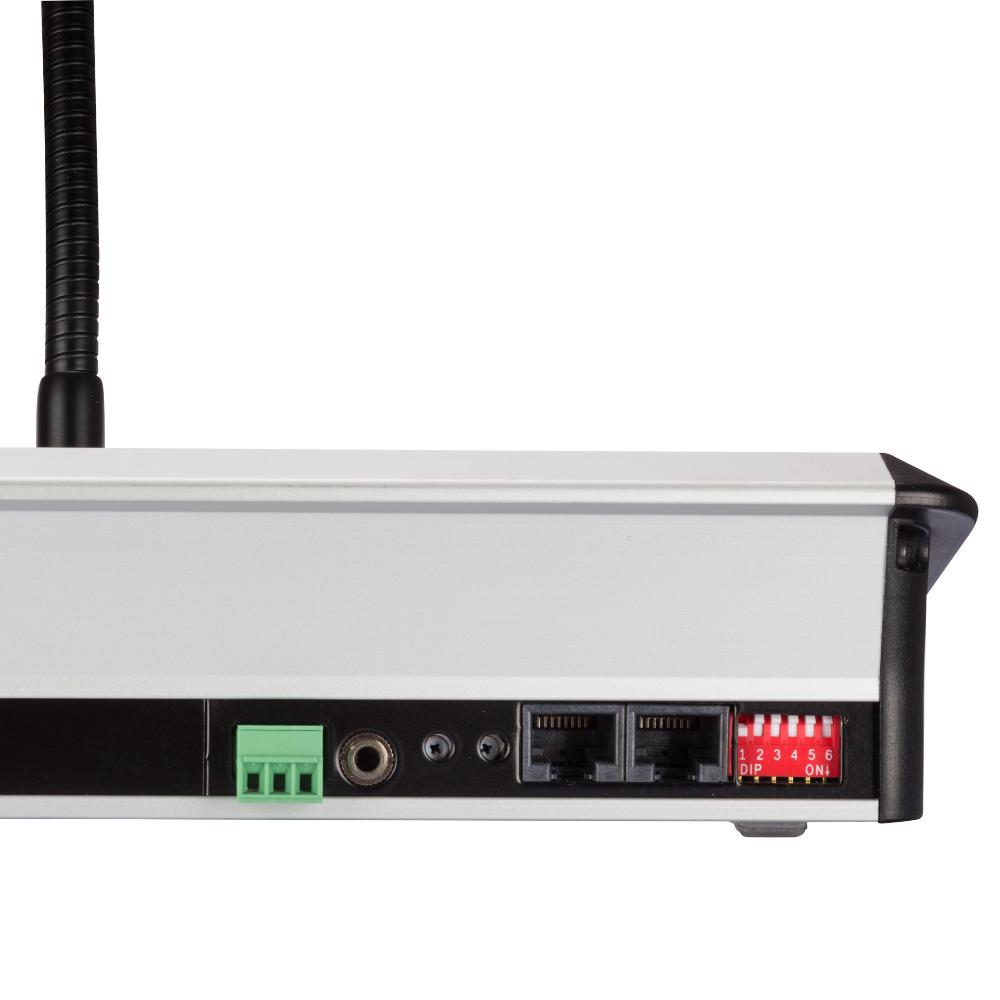

Connections
Connectors
RJ45
Cable
FTP CAT 5
Daisy-chain
Yes
Max number in daisy-chain
8
Interlock
Yes
Functionalities
Priority
Yes
Chime tone generator
Yes
Accessories
Cable included
Yes
Cable length (m)
5
Standard compliance
Safety agency
CE compliant
EN54-16 certified
Yes
CPR number
1438-CPR-1093
Physical specifications
Cabinet/Case Material
Metal
Size / Weight
Height
55 mm / 2.17 inches
Width
226 mm / 8.9 inches
Depth
135 mm / 5.31 inches
Weight
0.8 kg / 1.76 lbs
Shipping information
Package Height
2500 mm / 98.43 inches
Package Width
2400 mm / 94.49 inches
Package Depth
1500 mm / 59.06 inches
Package Weight
1.3 kg / 2.87 lbs
