C 5215-W MKIII TWO-WAY PROFESSIONAL SPEAKER
AVAILABLE ON ORDER
INSTALLED
C 5215-W MKIII
TWO-WAY PROFESSIONAL SPEAKER
- 500 W power handling (RMS)
- 133 dB max SPL
- 48 - 20000 Hz frequency range
- 90° x 40° constant directivity (rotatable horn)
Features
- 500 W power handling (RMS)
- 133 dB max SPL
- 48 - 20000 Hz frequency range
- 90° x 40° constant directivity (rotatable horn)
- 1 x 15" high power woofer
- 1 x 2.5" v.c. neodymium compression driver
- High quality baltic birch plywood cabinet
- Steel front grille
- Installation points available on top, bottom, rear and side panels
- Fullrange or bi-amp amplification design

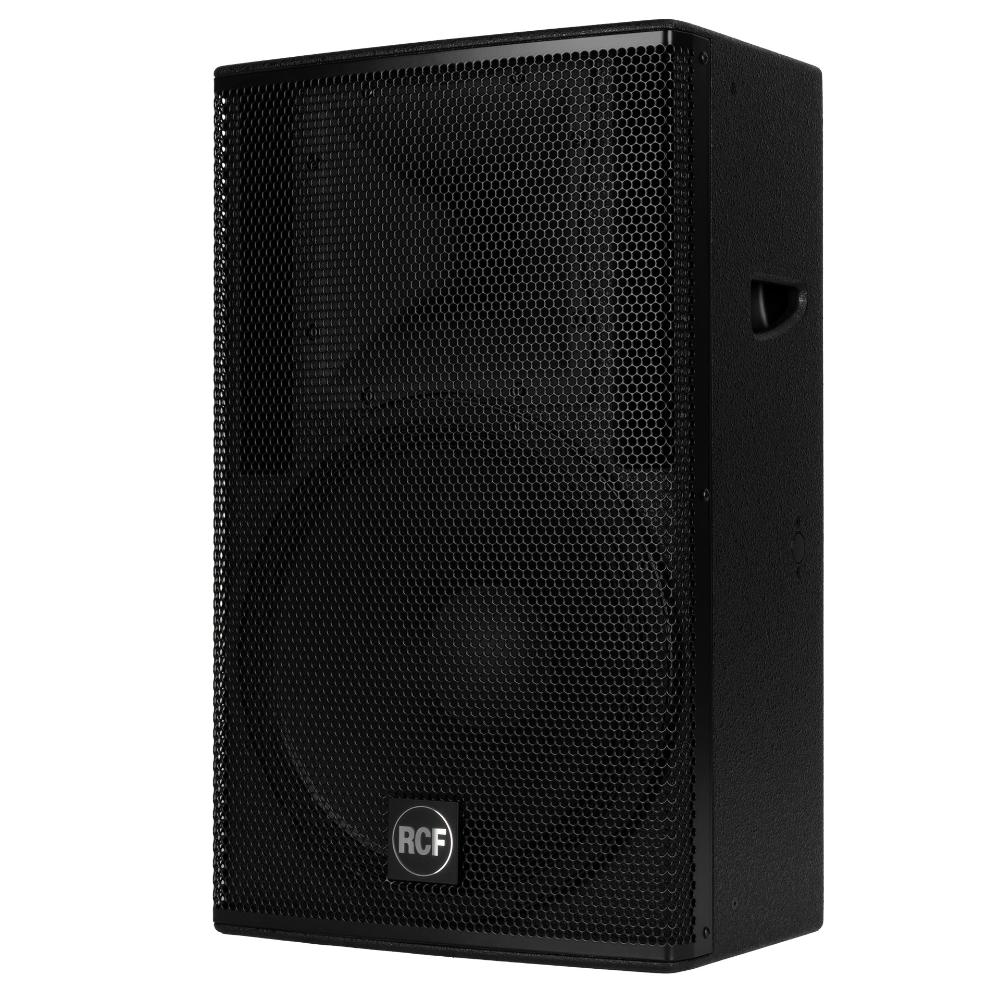

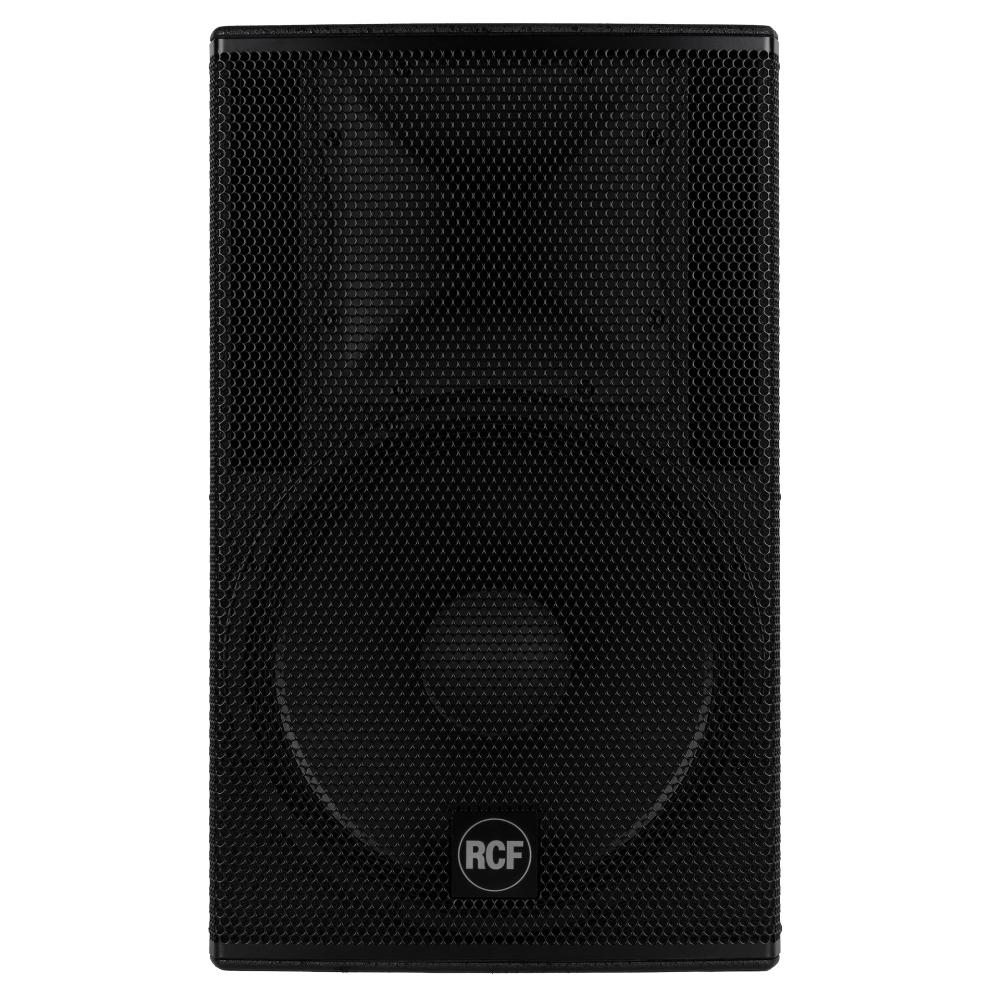

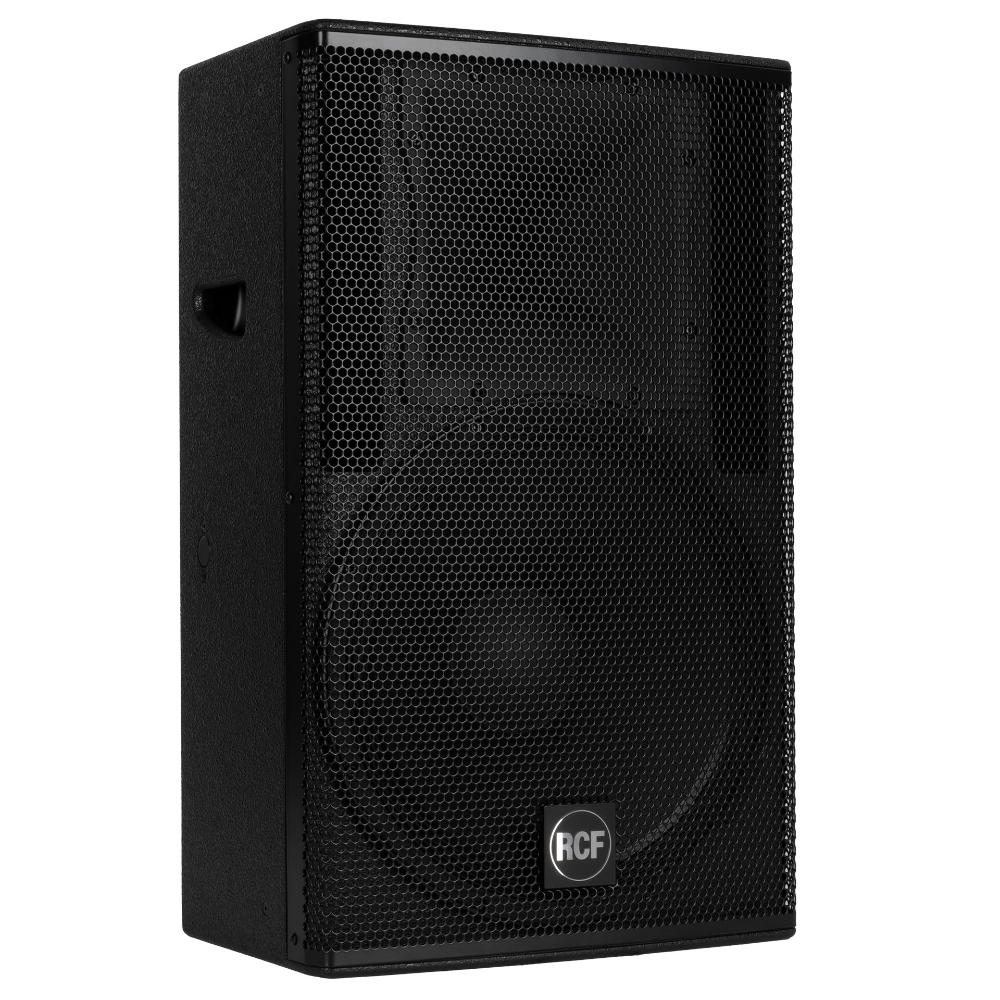

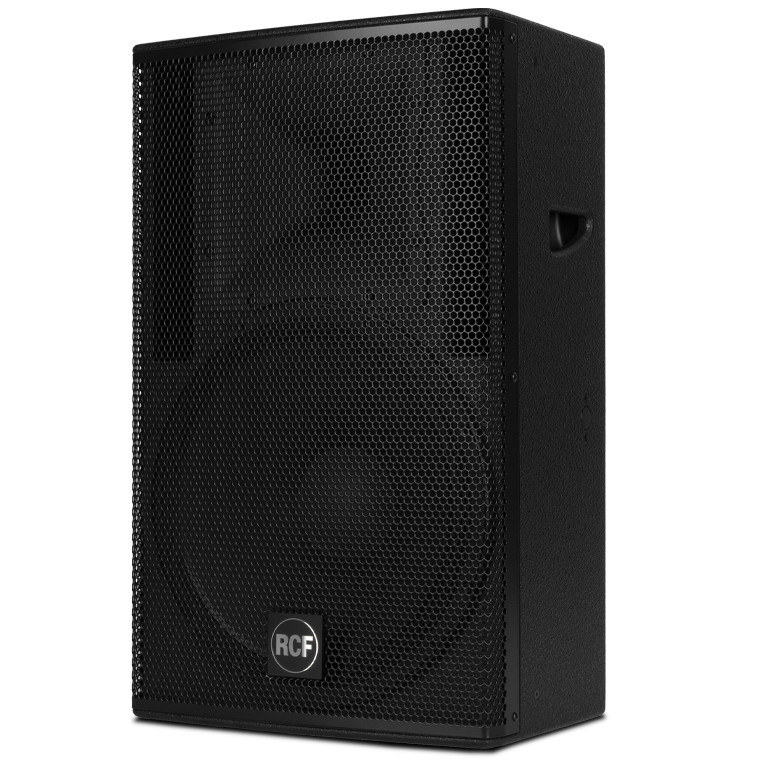

COMPACT C 5215-W MKIII is a multipurpose two-way point source speaker, suitable for a wide range of near and mid-distance applications. The combination of a 2.5" voice coil neodymium compression driver, a 15" woofer, and a constant directivity rotatable waveguide produces coherent 90° x 40° coverage for the listening area with high SPL, and distortion-free sound. The sleek and lightweight wood cabinet uses a special extra-durable coating and a robust powder-coated grille. Optional mounting accessories allow both horizontal and vertical wall installation. The crossover can be bypassed for bi-amplfication mode via a recessed changeover switch.
AVAILABLE ON ORDER
Part number:
13000660
C 5215-W MKIII
EAN 8024530017835
Acoustical specifications
Frequency Response (-10dB)
48 Hz - 20000 Hz
Max SPL @ 1m
133 dB
Horizontal coverage angle
90°
Vertical coverage angle
40°
Directivity index Q
14
System Sensitivity
100 dB
Power section
Amplification
Full Range
Nominal Impedance
8 ohm
Power Handling
500 W
Peak Power Handling
2000 W PEAK
Protections
Dynamic active mosfet
Crossover Frequencies
1200 Hz
Recommended Amplifiers
QPS 10K, QPS 6.0K, IPS 5.0K, IPS 2.5K, IPS 1.5K
Transducers
Compression Driver
1.4'' neo, 2.5'' v.c
Woofer
15'', 3.0'' v.c

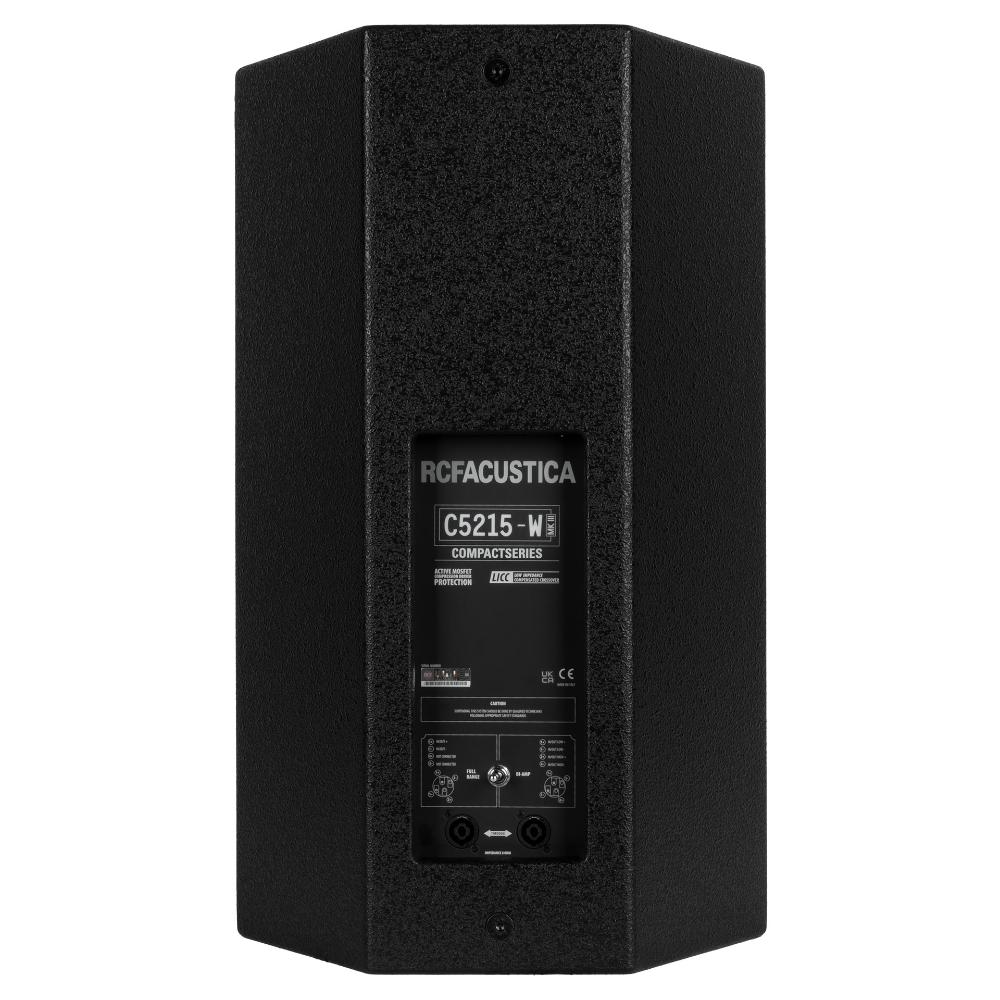

Input/Output section
Input connectors
Speakon® NL4
Output connectors
Speakon® NL4
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Baltic birch plywood
Hardware
9 x M10 inserts
Pole mount/Cap
35 mm insert
Grille
Steel
Color
Black - RAL 9005
Size / Weight
Height
669 mm / 26.34 inches
Width
408 mm / 16.06 inches
Depth
450 mm / 17.72 inches
Weight
30 kg / 66.14 lbs
Shipping information
Package Height
730 mm / 28.74 inches
Package Width
550 mm / 21.65 inches
Package Depth
510 mm / 20.08 inches
Package Weight
34 kg / 74.96 lbs
