PRECISION TRANSDUCERS

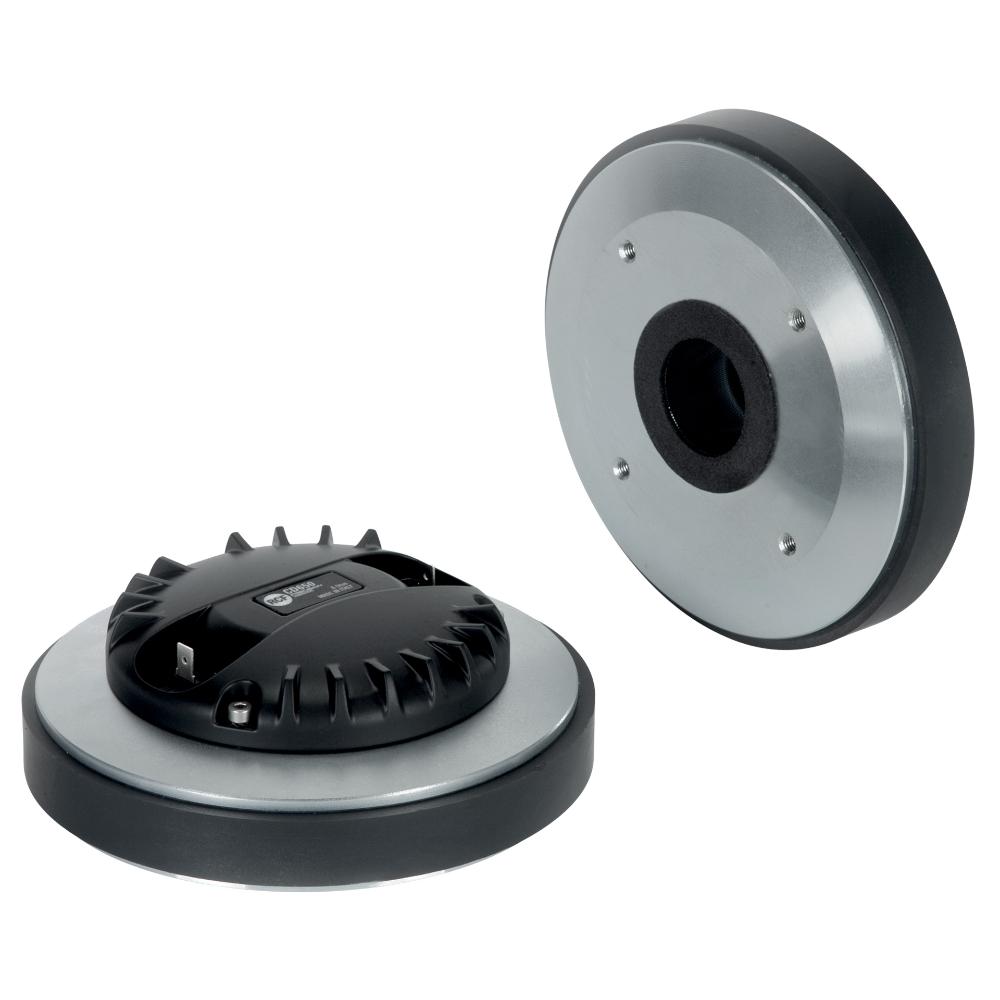

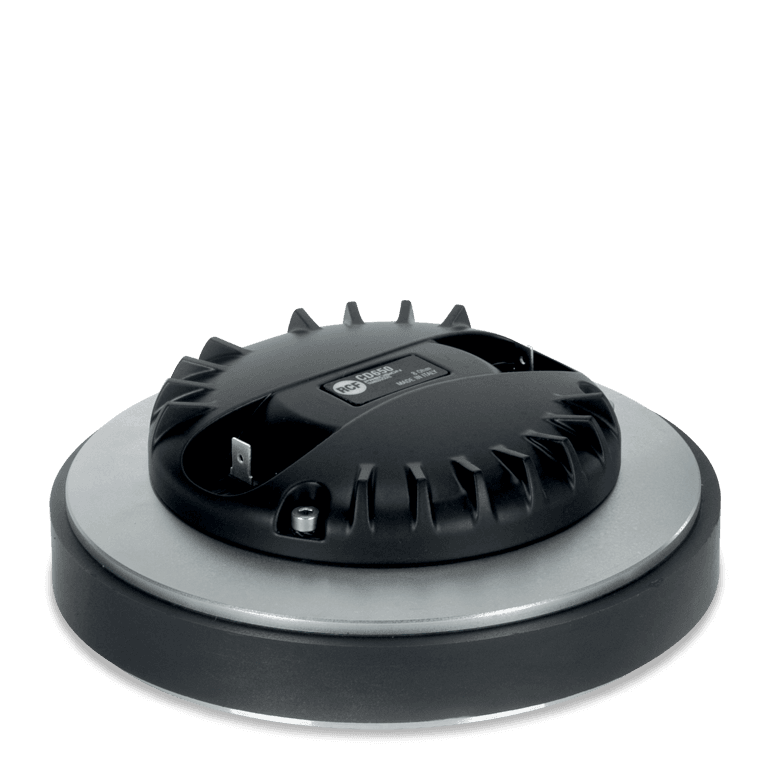

CD650
DRIVER
- 2.5-inch Diaphragm, 1.4-inch Exit Throat / Pure Titanium Compression Driver
- 180W continuous program power handling
- Frequency range: 700Hz - 20kHz
- 3-slot optimized geometry phase plug
Features
- 2.5-inch Diaphragm, 1.4-inch Exit Throat / Pure Titanium Compression Driver
- 180W continuous program power handling
- Frequency range: 700Hz - 20kHz
- 3-slot optimized geometry phase plug
- Titanium diaphragm
- Copper inductance ring for extended response
- Vented, damped, low distortion suspension system
- Ceramic magnet assembly
The CD650 is a high performance 2.5-inch diaphragm compression driver with a 1.4 inch exit throat featuring several state of the art technologies. The diaphragm are precision formed from pure titanium. The suspension is based on a vented Polyester design for low distorsion. Voice coil assembly is designed using high temperature kapton former.
Part number:
15129046
CD650
8ohm
Specifications
General specifications
Exit Throat Diameter
1.4 inch / 36 mm
Related Impedance
8 ohm
Program Power (watt)
180 W
Power handling capacity
90 W
Sensitivity
109 dB
Frequency range
700 - 20000 Hz
Suspension Design
Flat
Minimum Impedance (ohm)
7.50 ohm
Voice Coil Diameter
2.5 inch / 63 mm
Voice Coil Former Design
Straight - Kapton
Number of layers
1
Kind of layers
outside
Flux Density
1.9 T
Phase Plug Design
3 slot
Thiele - small parameters
Bl factor (Bl) (T x m)
9.80 T x m
Mounting information
Overall diameter
165 mm / 6.5 inches
Overall height
56 mm / 2.2 inches
Mounting
4 x 6 mm threaded holes at 90°
Size
Weight
4.33 kg / 9.55 lbs
Shipping information
Package Height
75 mm / 2.95 inches
Package Width
188 mm / 7.40 inches
Package Depth
190 mm / 7.48 inches
Package Weight
4.66 kg / 10.27 lbs
