Features
  • 600 Watt continuous program power handling Mid-Bass
  • 2.5-inch , fibreglass outside, aluminum voice coil
  • 99 dB Sensitivity
  • 65 Hz - 3.5 kHz Frequency range
  • Dual-forced air ventilation for minimum power compression
  • M -roll surround and exponential cone geometry
  • Demodulation ring
  • 100 Watt Continuous program power handling HF
  • 1.75-inch Diaphragm, 1.0-inch Exit Throat
  • Frequency range: 1200Hz – 20kHz

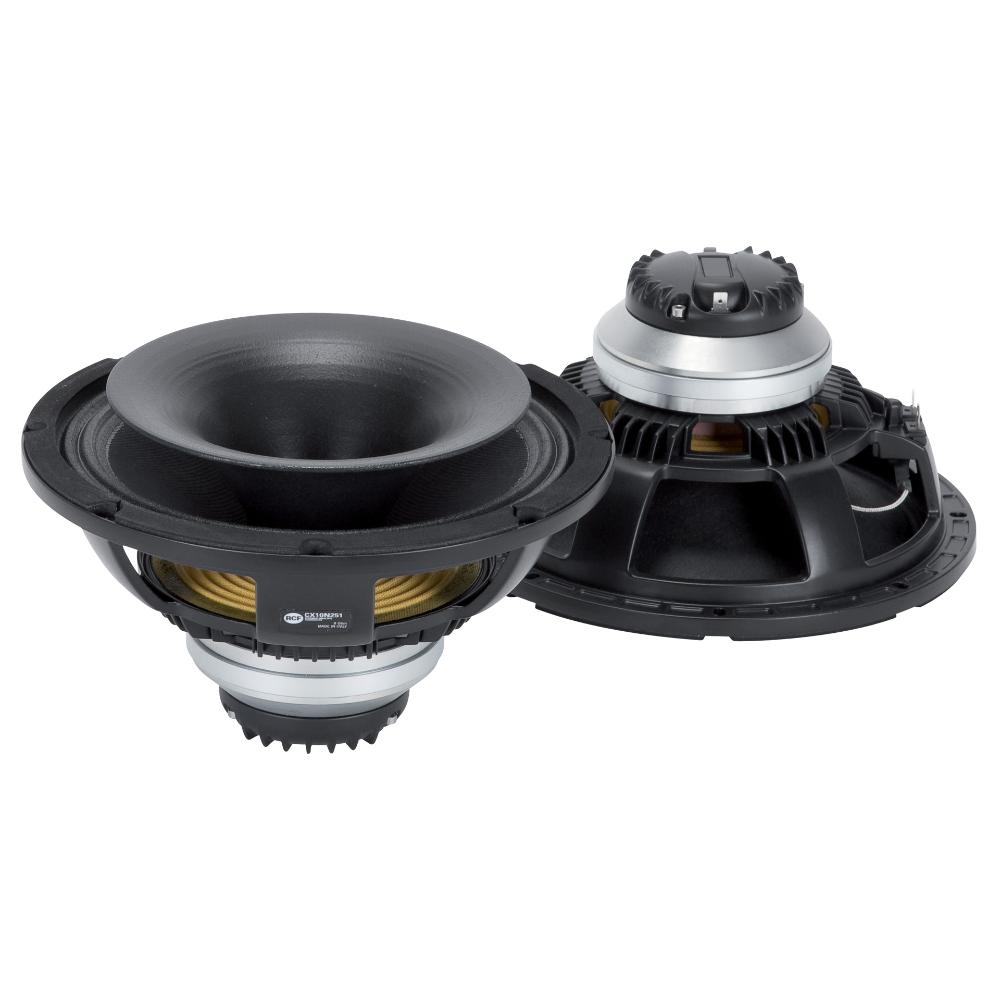

The CX10N251 is a lightweight coaxial driver with excellent linearity and high efficiency. The CX10N251 radiates a coherent single spherical wave front with perfect dispersion control. The design is powered from a large sized single neodymium ring magnet that provides an extremely high flux density and BL factor. The new hyper-vented aluminium basket and magnetic assembly design provide an excellent heat dissipation and lower power compression. Special air-forced ventilations are provided for voice coil, magnet assembly and basket. A 2,5” voice coil combined a strength fibreglass former and aluminium wire drives the mid-bass cone with high efficiency and a good extension. The 1,7” dome compression driver, loaded to a 60° conical waveguide, provides a clear vocal output and a perfect high frequency extension.


ARCHIVED

Part number:

11100068
CX10N251
8ohm

Specifications
General specifications
Nominal Diameter:
10 inch / 254 mm
Related Impedance:
8.00 ohm
Program Power (watt):
600 W
Power handling capacity:
300 W
Sensitivity:
99.0 dB
Frequency range:
65 - 3500 Hz
Effective piston diameter:
210 mm / 8.27 inch
Max. Excursion Before Damage:
30 mm / 1.18 inch
Minimum Impedance (ohm):
6.4 ohm
Voice Coil Diameter:
2.5 inch / 63 mm
Voice Coil Winding Material:
Aluminium
Voice Coil Length:
0.55 inch / 14 mm
Number of layers:
1
Kind of layers:
outside
Top Plate Thickness:
8 mm / 0.31 inch
Cone Design:
Curved
Surround Material:
Polycotton
Surround Design:
M-roll
Magnets:
Neodymium
Dual-force air ventilation:
Yes
Demodulation Rings material:
Aluminium
Spider:
Single
Thiele - small parameters
Resonance frequency (Fs):
72 Hz
DC resistance (Re) (ohm):
5.20 ohm
Mechanical factor:
4.50 Qms
Electrical factor:
0.25 Qes
Total factor:
0.23 Qts
Bl factor (Bl) (T x m):
17.50 T x m
Effective moving mass (Mms):
28.0 g
Equivalent Cas air loaded (Vas):
25.0 liters
Effective piston area (Sd):
0.040 m2
Max. linear excursion (Xmax):
5 mm
Voice coil inductance @ 1kHz (Le1k):
1.20 mH
Half-space efficency (Eff):
4.70%
General specifications driver
Exit Throat Diameter:
1.0 inch / 25 mm
Related Impedance:
8.00 ohm
Program Power (watt):
100 W
Power handling capacity (watt):
50 W
Sensitivity:
109 dB
Frequency range driver:
1200 - 20000 Hz
Diaphragm Material:
Polymide
Suspension Material:
Polymide
Suspension Design:
Flat
Minimum Impedance (ohm):
6.50 ohm
Voice Coil Diameter driver:
1.75 inch / 44 mm
Voice Coil Material:
Edgewound Aluminium
Number of layers:
1.00
Kind of layers:
outside
Flux Density:
1.9 T
Phase Plug Design:
2 slot
Phase Plug Material:
PP Composite
Magnetics:
Neodymium
General specifications horn
Throat Diameter:
25 mm / 1 inch
Horizontal coverage angle:
60°
Vertical coverage angle:
60°
Cut-off Frequency:
1800 Hz
Material:
Structural Polyurethane
Mounting informations
Overall diameter:
260 mm / 10.24 inches
Bolt circle diameter:
241-246 mm / 9.49-9.69 inch
Bolt hole diameter:
6 mm / 0.24 inch
Front mount baffle cut-out:
234 mm / 9.21 inch
Rear mount baffle cut-out:
234 mm / 9.21 inch
Volume occupied by the driver:
2.1 liters / 0.08 ft3
Standard compliance
CE compliance:
Yes
Size
Height:
136 mm / 5.35 inches
Diameter:
260 mm / 10.24 inches
Weight:
3.29 kg / 7.25 lbs
Shipping informations
Package Height:
199 mm / 7.83 inches
Package Width:
279 mm / 10.98 inches
Package Depth:
294 mm / 11.57 inches
Package Weight:
4.07 kg / 8.97 lbs
Downloads

RCF products are continually improved. All specifications are therefore subject to change without notice.
