ARCHIVED

COMMERCIAL AUDIO

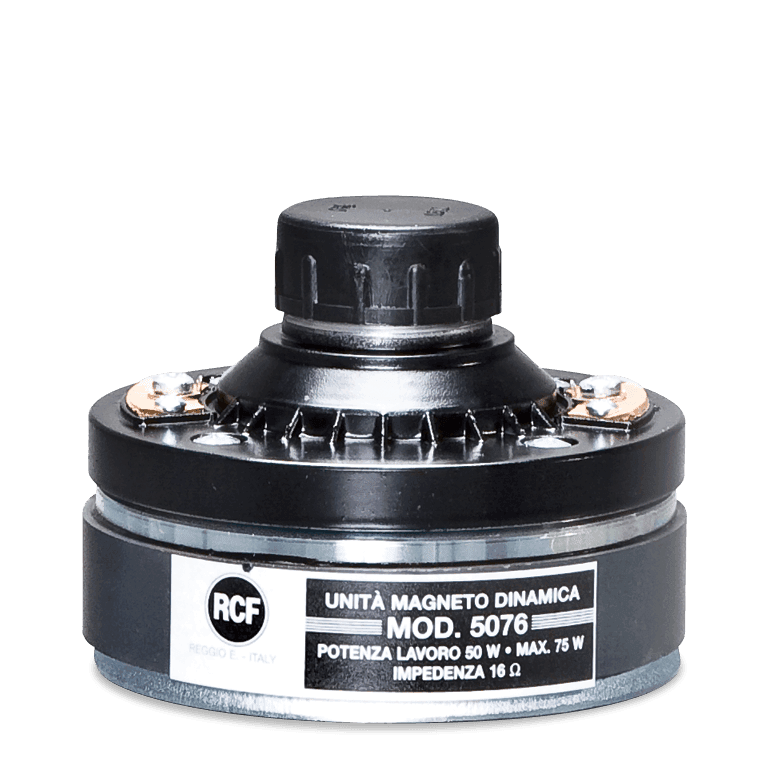

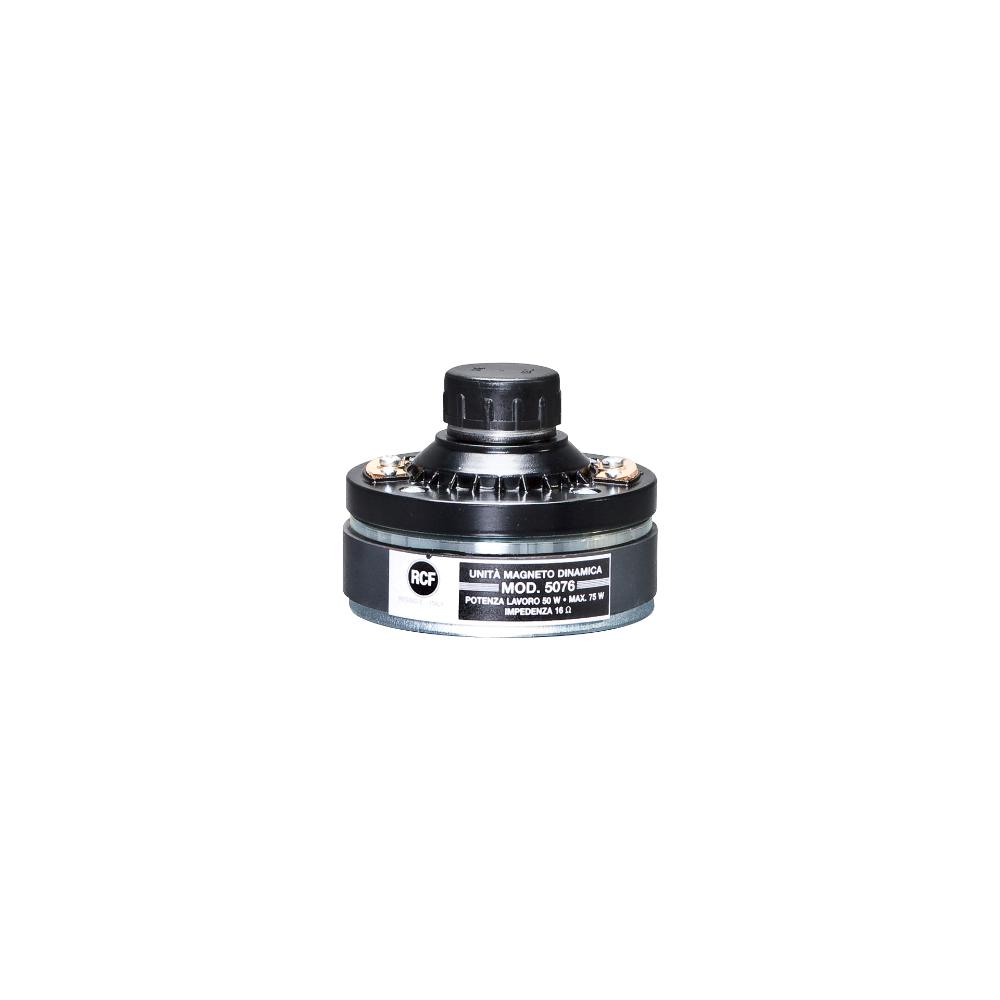

D 5076

DRIVER UNIT

Musical power/RMS: 75/50W
1 3/8” W - 18 N threaded horn attachment
Pressure die-cast compression chamber
Driver impedance 16 O

Support

Features

Musical power/RMS: 75/50W
1 3/8” W - 18 N threaded horn attachment
Pressure die-cast compression chamber
Driver impedance 16 O
Dimensions Ø 98 x 75 mm, weight 1.7 Kg
Optional TD 507 line transformer

ARCHIVED

Part number:

15110017
D 5076
EAN 8024530015978

Specifications

General specifications

Exit Throat Diameter

0.75 inch / 19 mm

Related Impedance

16 ohm

Program Power (watt)

50 W

Power handling capacity

25 W

Frequency range

80 - 12000 Hz

Mounting information

Overall diameter

100 mm / 3.94 inches

Overall height

75 mm / 2.95 inches

Standard compliance

Safety agency

CE compliant

Size / Weight

Depth

75 mm / 2.95 inches

Diameter

98 mm / 3.86 inches

Weight

1.65 kg / 3.64 lbs

Shipping information

Package Height

85 mm / 3.35 inches

Package Width

120 mm / 4.72 inches

Package Depth

110 mm / 4.33 inches

Package Weight

1.7 kg / 3.75 lbs
