Features

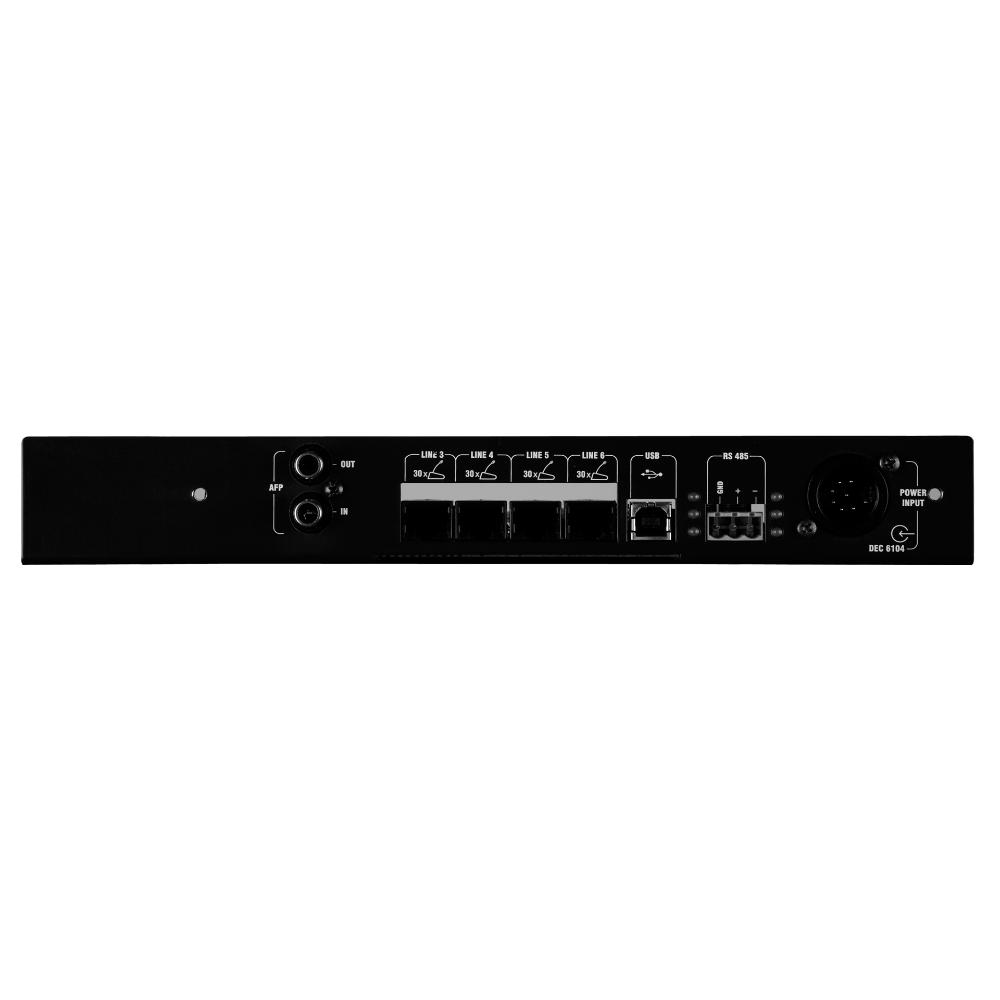

  • Up to 180 DMS 6410 microphone consoles on 6 lines (4 line outputs are on the DEC 6104 board)
  • The further 120 consoles shall be powered by the DPS 6202 power supply unit
  • USB port to connect the system to a PC
  • FORUM 6000 control software included
  • RS 485 port (alternative to the USB port) for long distance control (up to 1.2 km) of the system through the PC software
  • Anti-feedback processor, useful to avoid feedbacks due to loudspeakers too close to microphones, loudspeaker high volume and many open microphones at the same time. PLAY INPUT

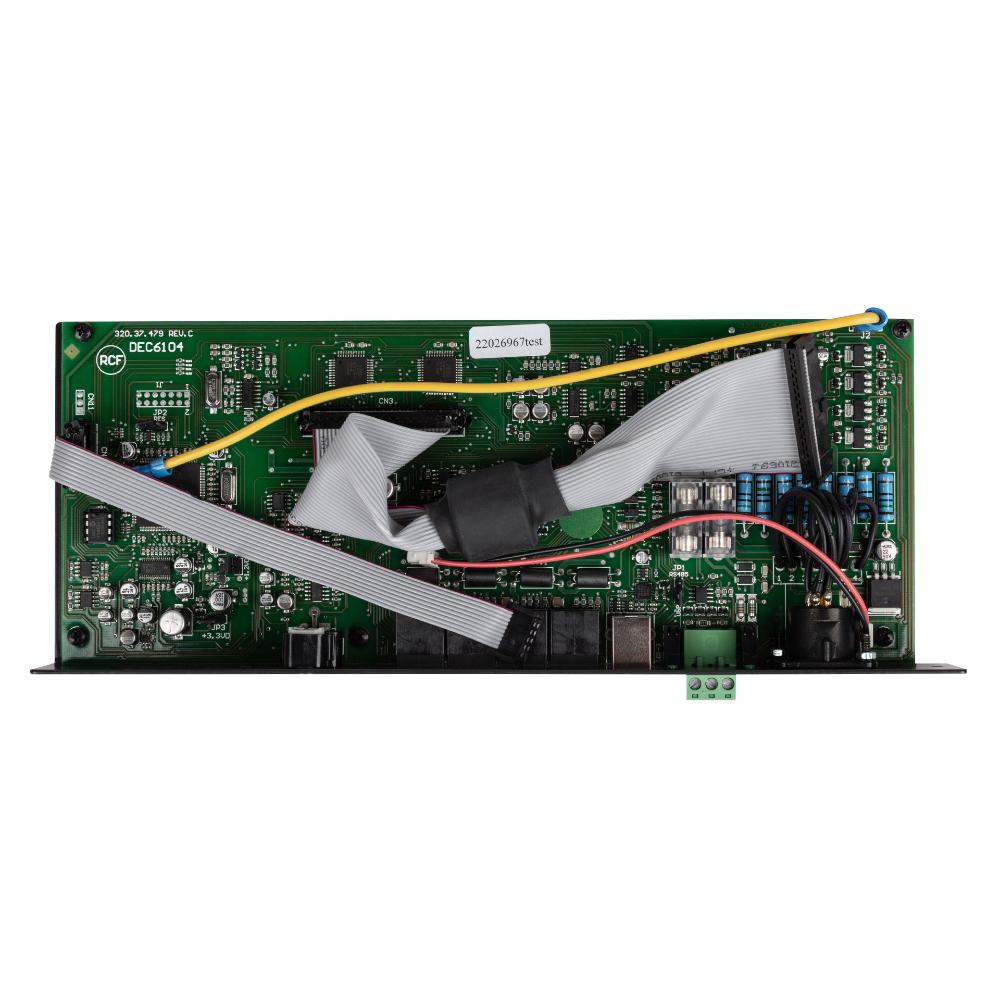

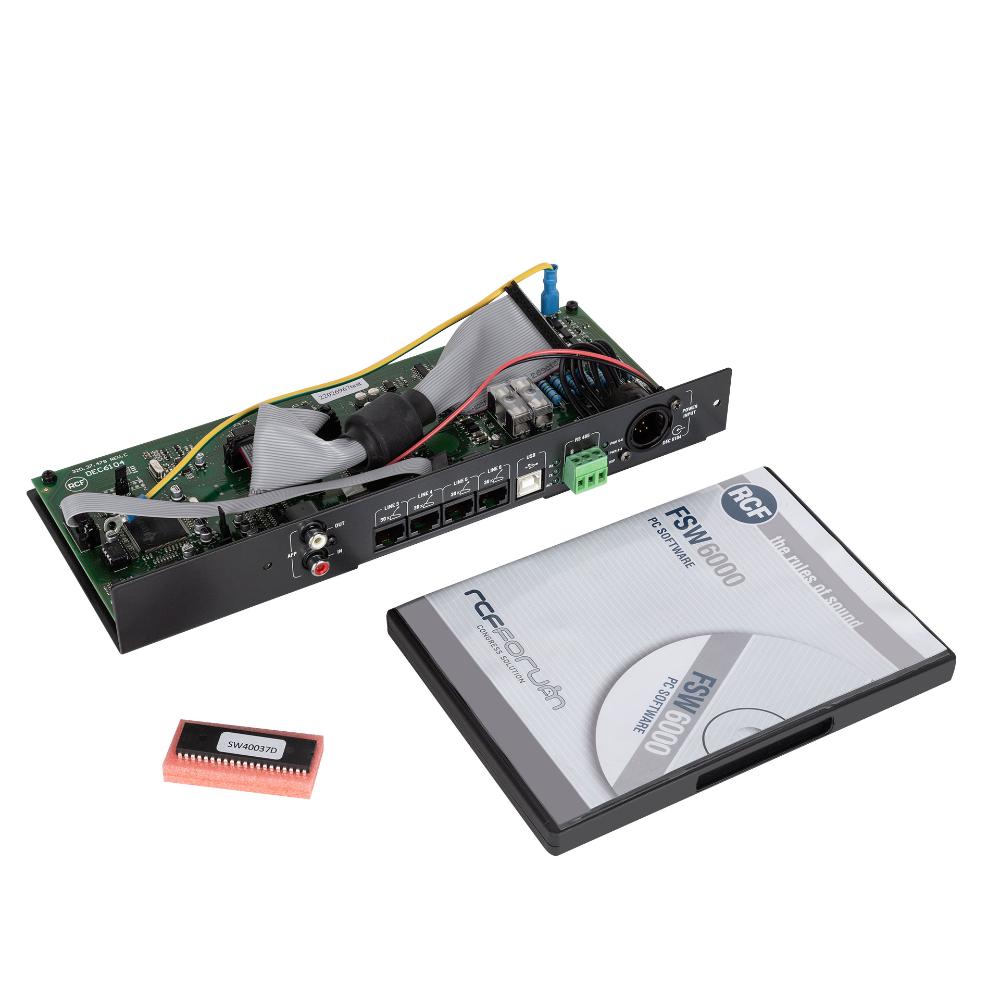

The DEC 6104 board is to be installed into the DMU 6100 main unit of the RCF FORUM 6000 conference system. This board adds features: Up to 180 DMS 6410 microphone consoles, USB port to connect the system to a PC, RS 485 port (alternative to the USB port), Anti-feedback processor, useful to avoid feedbacks due to loudspeakers too close to microphones, loudspeaker high volume and many open microphones at the same time. Included is the software FSW 6000 that manage and control the conference system.

Part number:

17180034
DEC 6104
EAN 8024530006723

Specifications
System specifications
Max number of consoles
120
Number of console buses
4
Communication bus
Serial
Input section
Total number of inputs
5
Balanced
4
Unbalanced
1
Mono
5
Line inputs
1
Line connectors
RCA
Paging inputs
4
Paging connectors
RJ45
Output section
Signal output number
1
Signal output connectors
RCA
Processing
DSP
Yes
Controls
Configuration
PC Software
Power requirement
DC power
Yes
DC power value
48 V
Size
Weight
0.82 kg / 1.81 lbs
Shipping information
Package Height
100 mm / 3.94 inches
Package Width
300 mm / 11.81 inches
Package Depth
200 mm / 7.87 inches
Package Weight
1 kg / 2.2 lbs
