INSTALLED SOUND

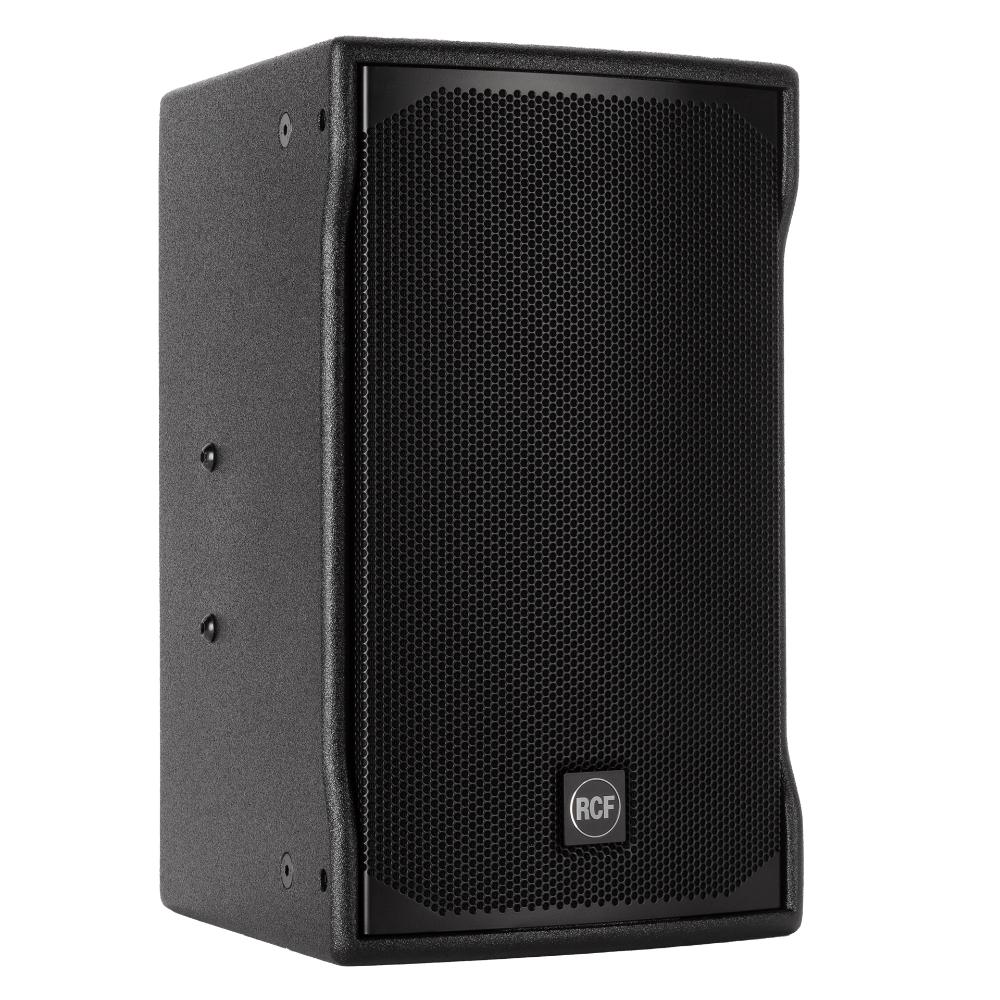

E-MAX 3110 MKII

HIGH POWER TWO-WAY SPEAKER
  • 128 dB SPL Max
  • 600 W program power handling
  • 60 – 20000 Hz Frequency Range
  • 1” Compression Driver, 10” Woofer Hi Resolution Transducers
Where to buy
Features
  • 128 dB SPL Max
  • 600 W program power handling
  • 60 – 20000 Hz Frequency Range
  • Plywood coated with black polyurea paint
  • 1” Compression Driver, 10” Woofer Hi Resolution Transducers
  • Perfectly Tuned Crossover

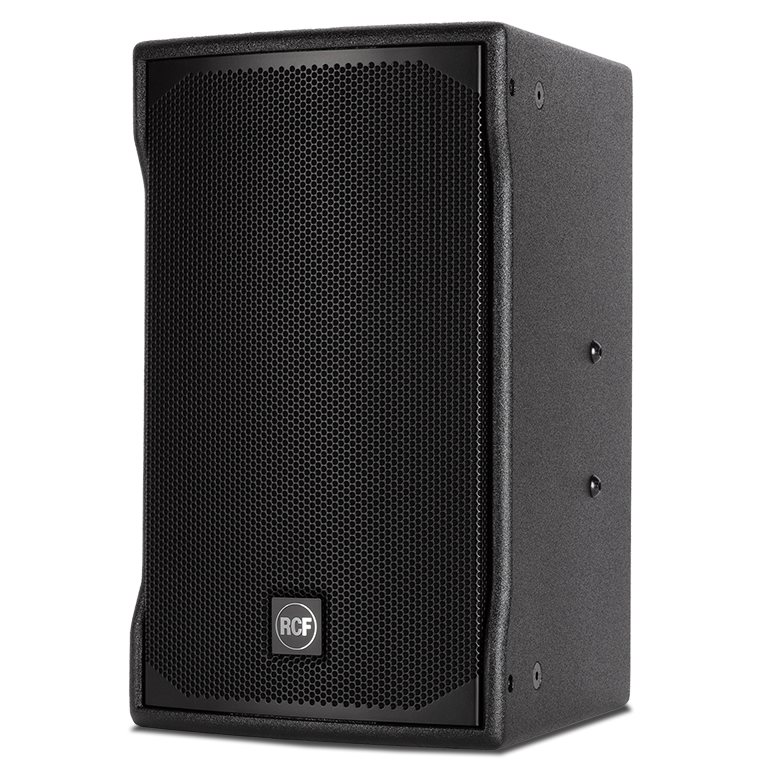

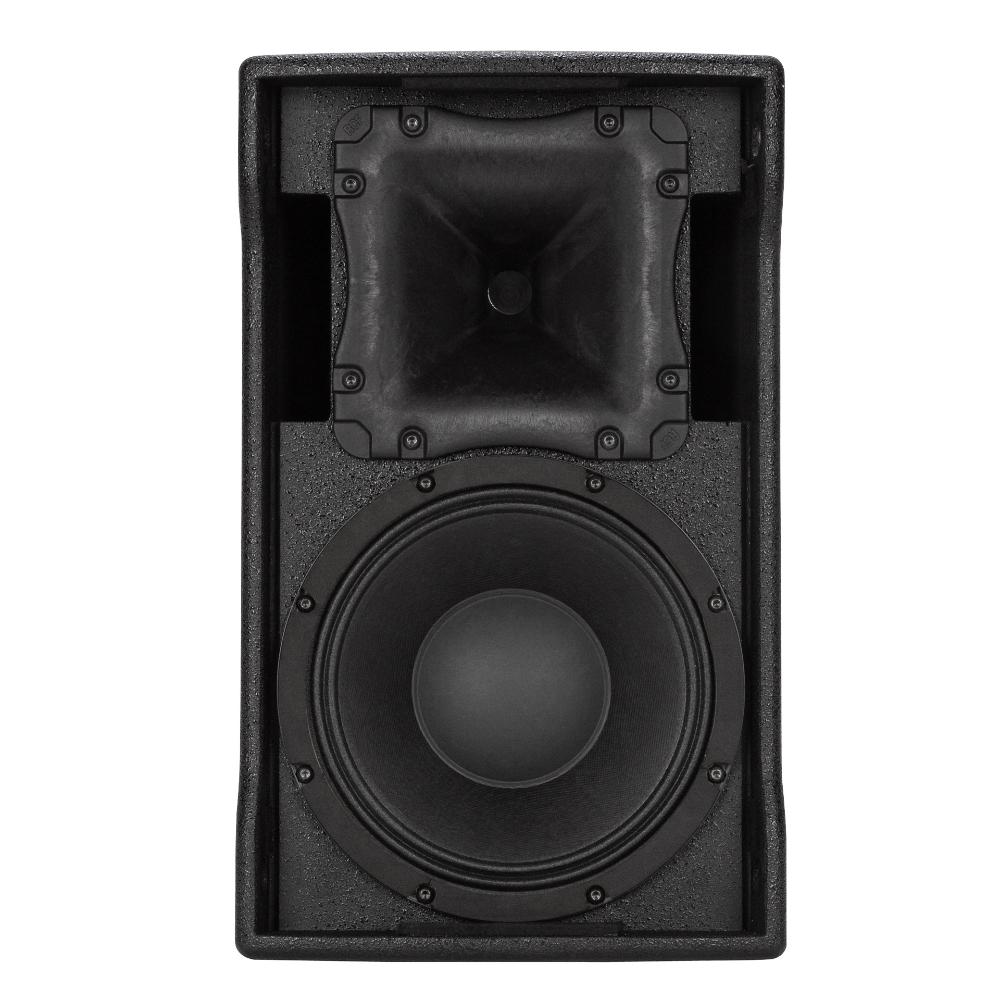

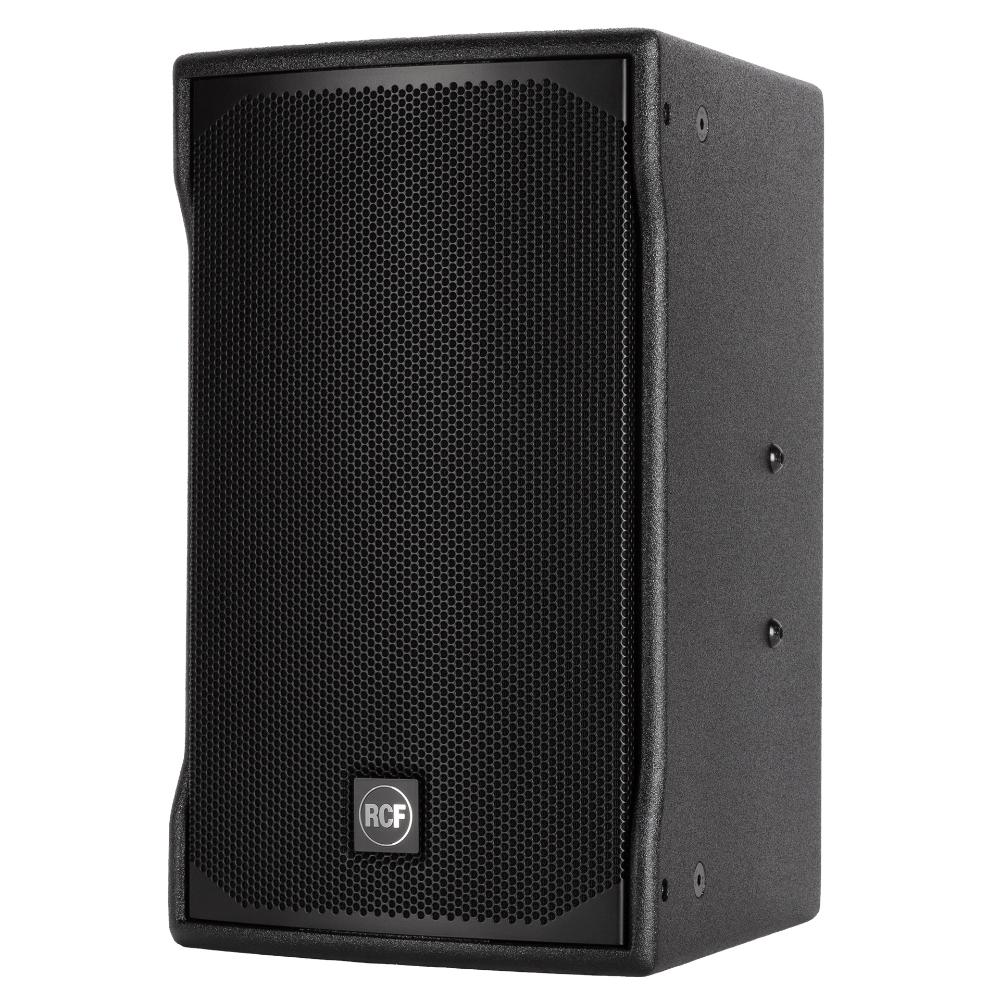

The full-range passive two-way RCF E-MAX series has been specifically designed as club systems for entertainment, to achieve the best nearfield quality, vocal coherence and a stable tonal balance even at high volume. The heavy-duty speaker cabinet is made of plywood coated with black polyurea paint. Featuring a 10” woofer with a 2.5” voice and a 1.0” compression driver with 1.4” voice coil. The LICC crossover design includes an electronic protection on high-frequency device. The rotatable 90°x70° horn allows installation of the loudspeaker either vertically or horizontally in any environment and architectural constraint.

Part number:

13000762
E-MAX 3110 MKII
EAN 8024530019693

Specifications
Acoustical specifications
Frequency Response (-10dB):
60 Hz ÷ 20000 Hz
Max SPL @ 1m:
128 dB
Horizontal coverage angle:
90°
Vertical coverage angle:
70°
Directivity index Q:
11
System Sensitivity:
98 dB
Power section
Amplification:
Full Range
Nominal Impedance:
8 ohm
Power Handling:
300 W
Peak Power Handling:
1200 W PEAK
Recommended Amplifier:
600 W
Protections:
Active mosfet
Crossover Frequencies:
1800 Hz
Transducers
Compression Driver:
1 x 1.0'' neo, 1.5'' v.c
Woofer:
10'', 2.5'' v.c

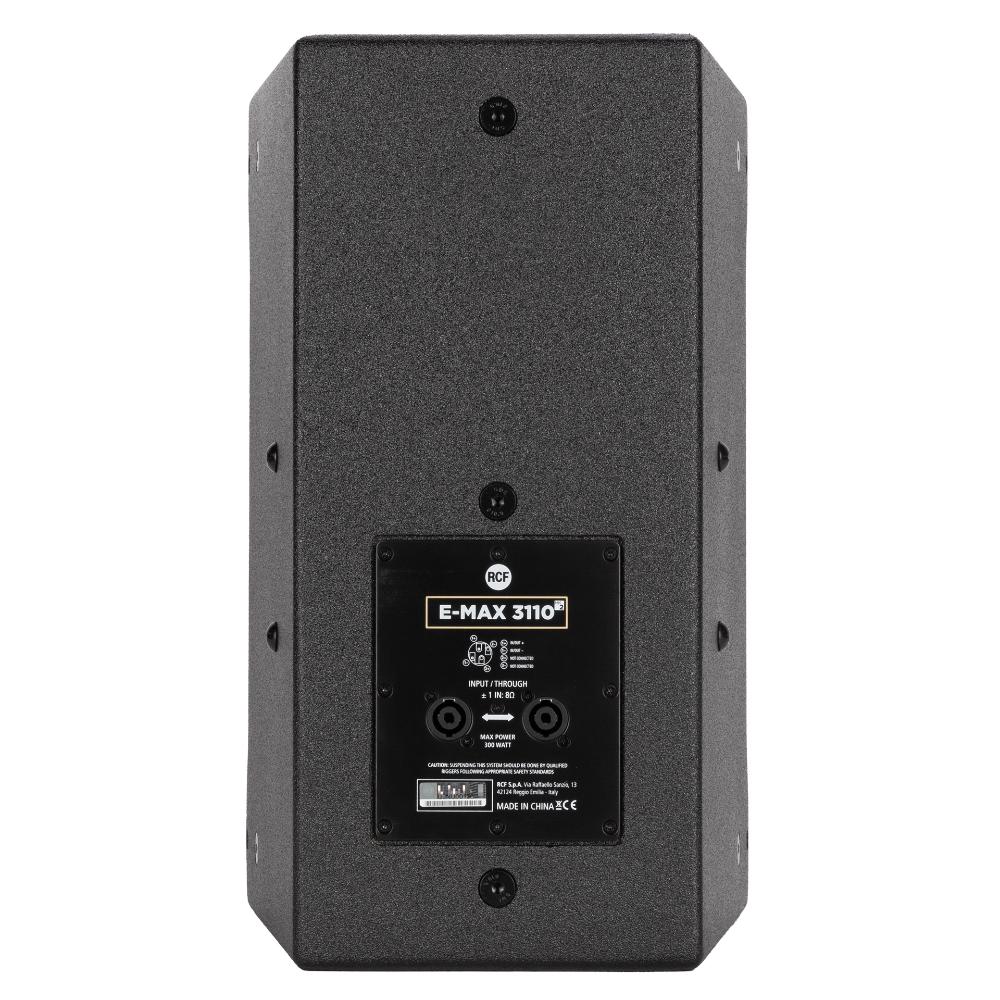

Input/Output section
Input connectors:
Speakon® NL4
Output connectors:
Speakon® NL4
Standard compliance
CE compliance:
Yes
Physical specifications
Cabinet/Case Material:
Plywood
Hardware:
17 x M10 2 x M8
Handles:
1 Top

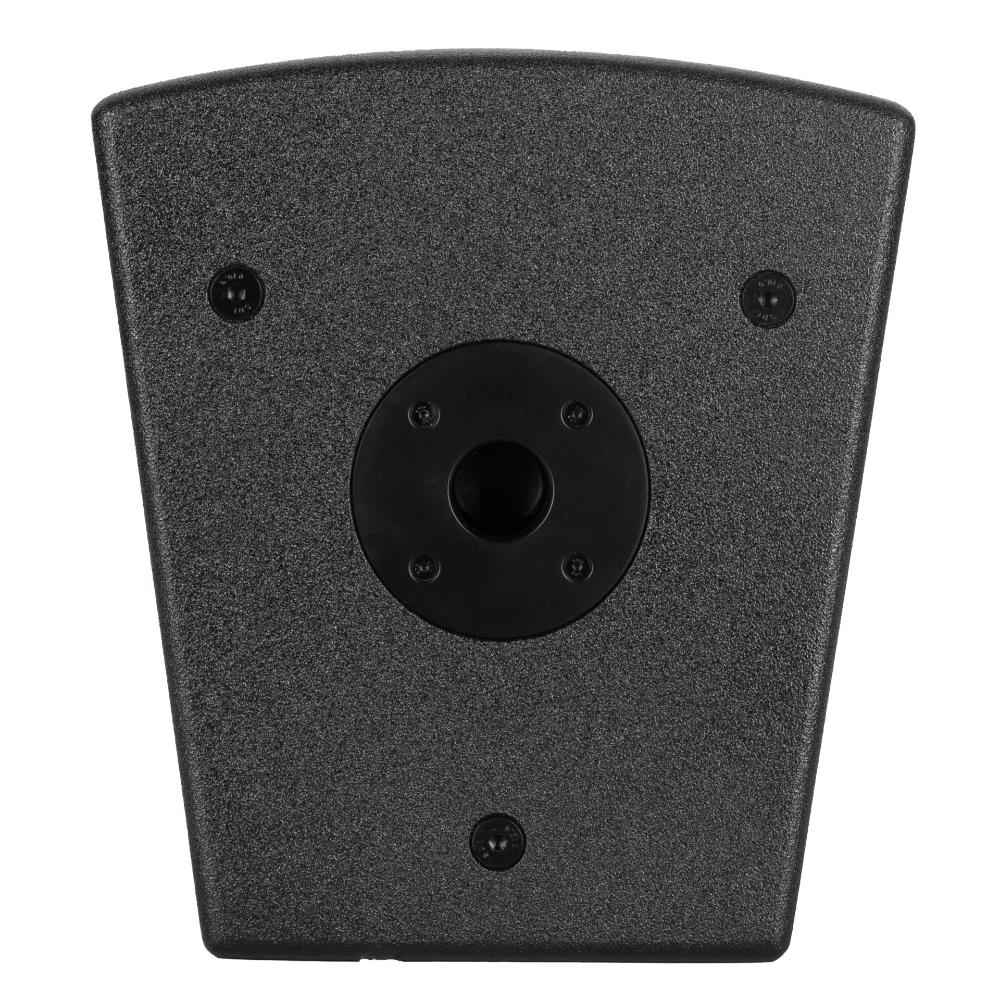

Pole mount/Cap:
Yes

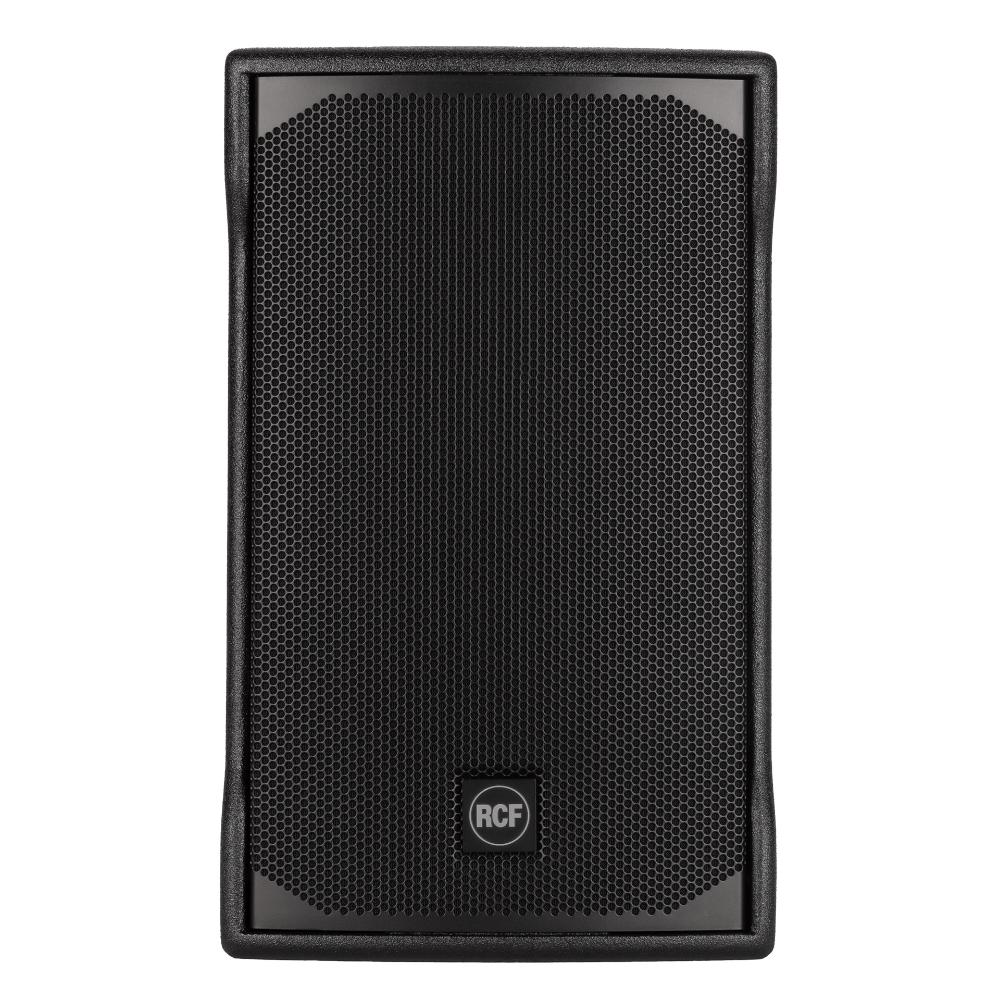

Grille:
Steel
Color:
Black
Size
Height:
500 mm / 19.69 inches
Width:
305 mm / 12.01 inches
Depth:
338 mm / 13.31 inches
Weight:
16.4 kg / 36.16 lbs
Shipping informations
Package Height:
565 mm / 22.24 inches
Package Width:
409 mm / 16.1 inches
Package Depth:
374 mm / 14.72 inches
Package Weight:
17.8 kg / 39.24 lbs
