EVOX 5

ACTIVE TWO-WAY ARRAY
  • 800 Watt
  • 10" Woofer, 2.0" v.c.
  • 5 x 2" Ultra compact fullrange, 1.0 v.c.
  • 125 dB max SPL
Support
Features Specifications Related products Downloads
Support
Features
  • 800 Watt
  • 125 dB max SPL
  • 45 Hz 20 kHz frequency response
  • 10" Woofer, 2.0" v.c.
  • 5 x 2" Ultra compact fullrange, 1.0 v.c.
  • 120° x 30° slightly tilted pattern control
  • Innovative DSP processing

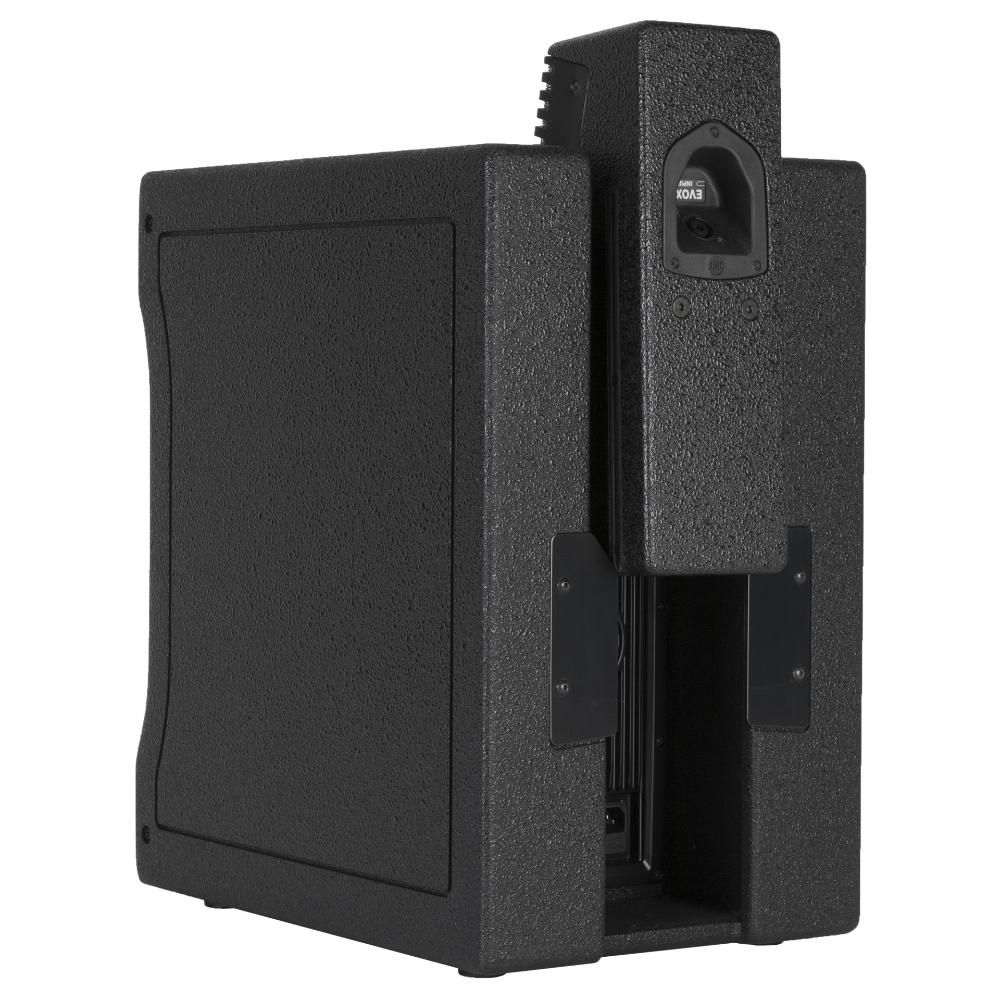

  • Pole mountable, easy set-up and transportation

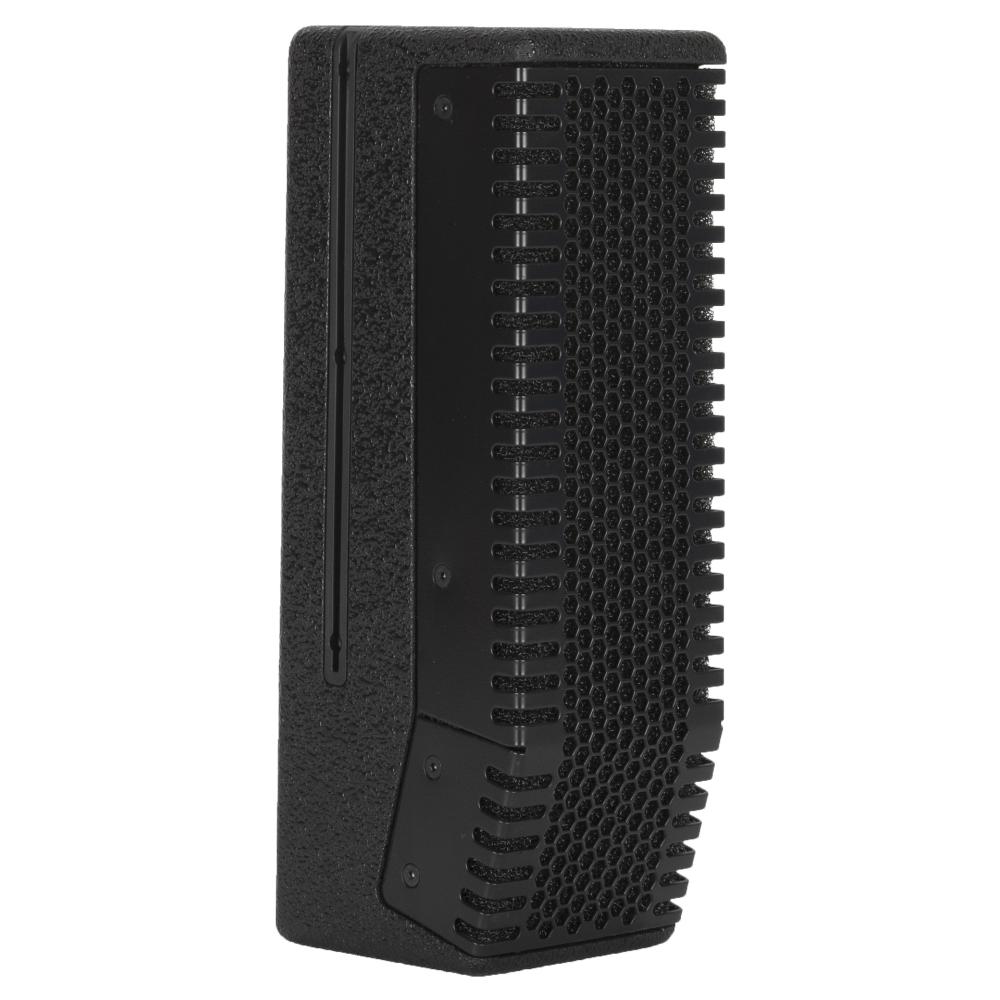

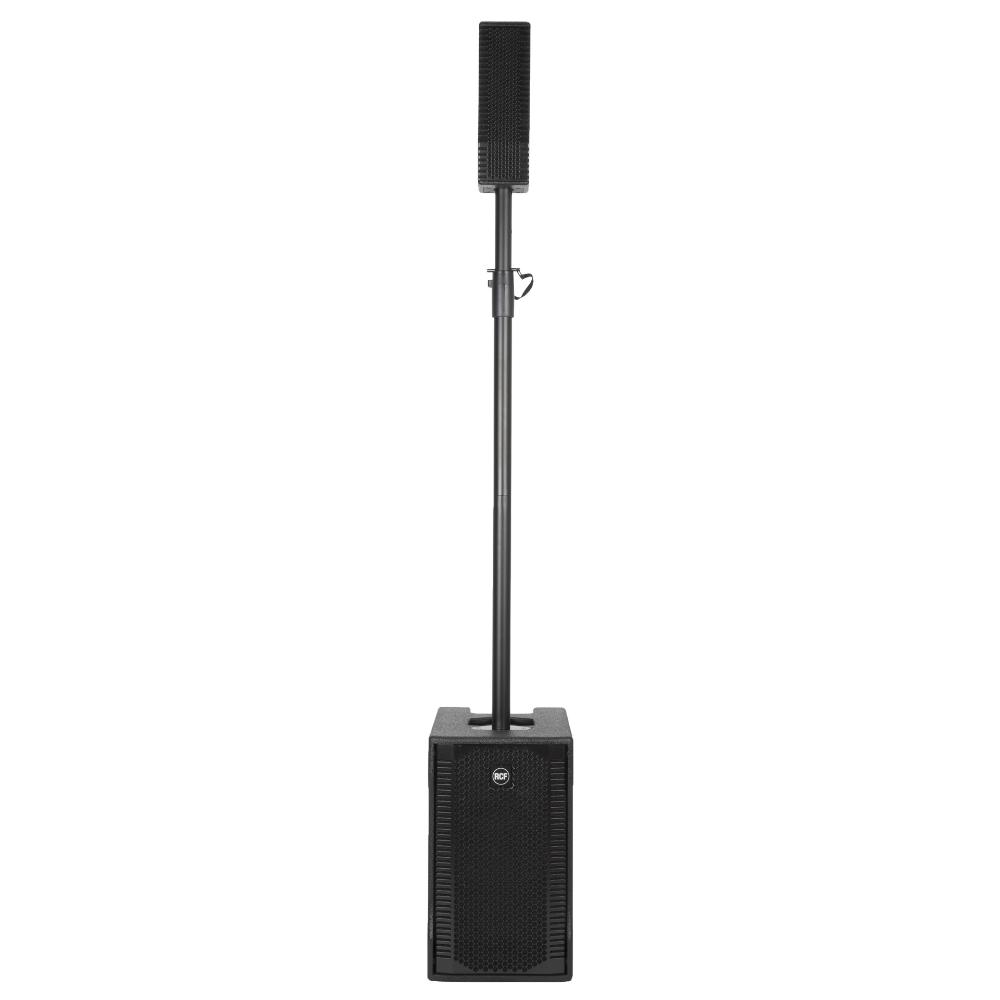

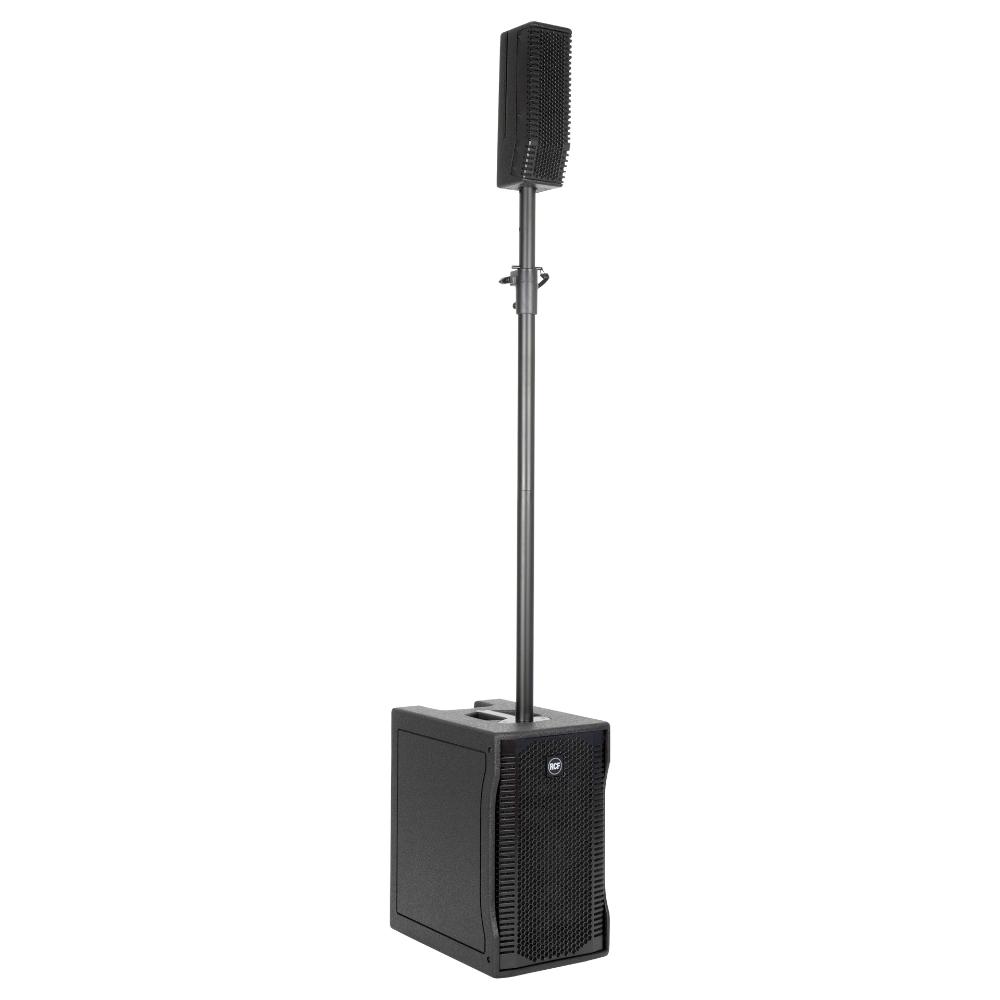

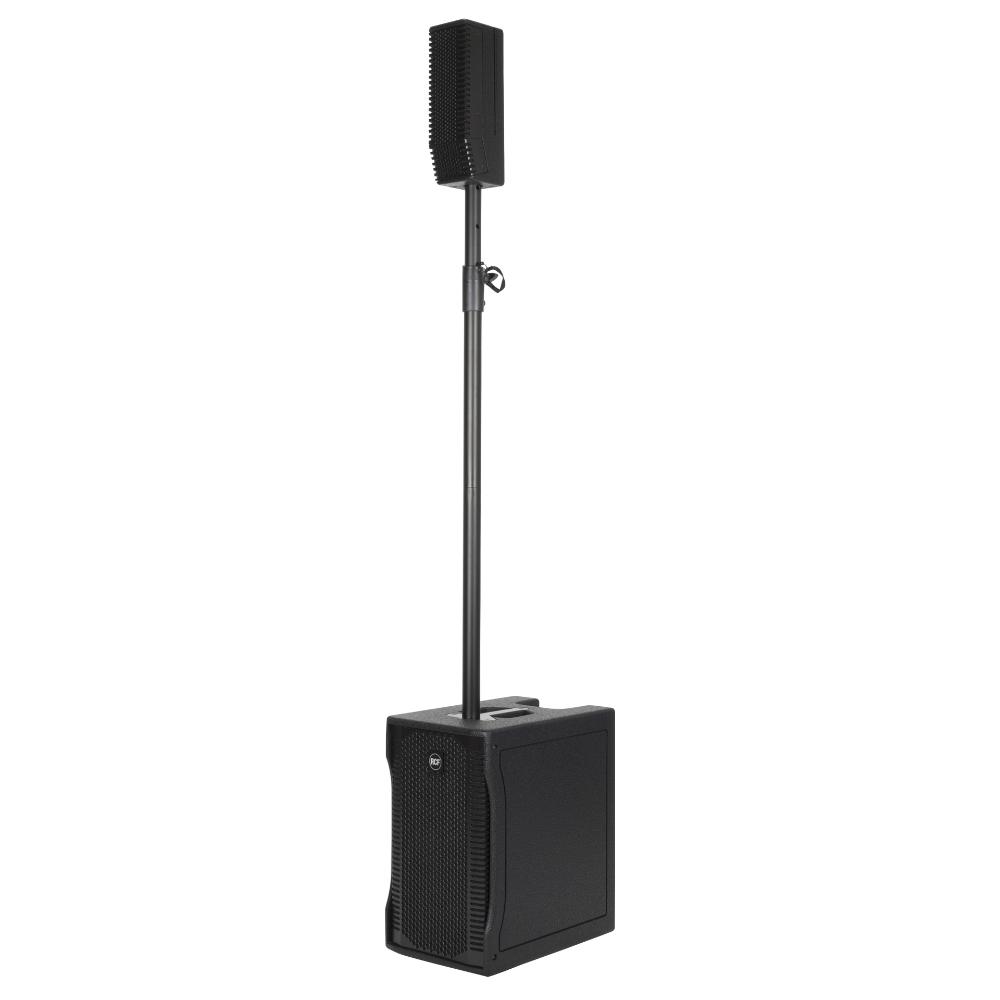

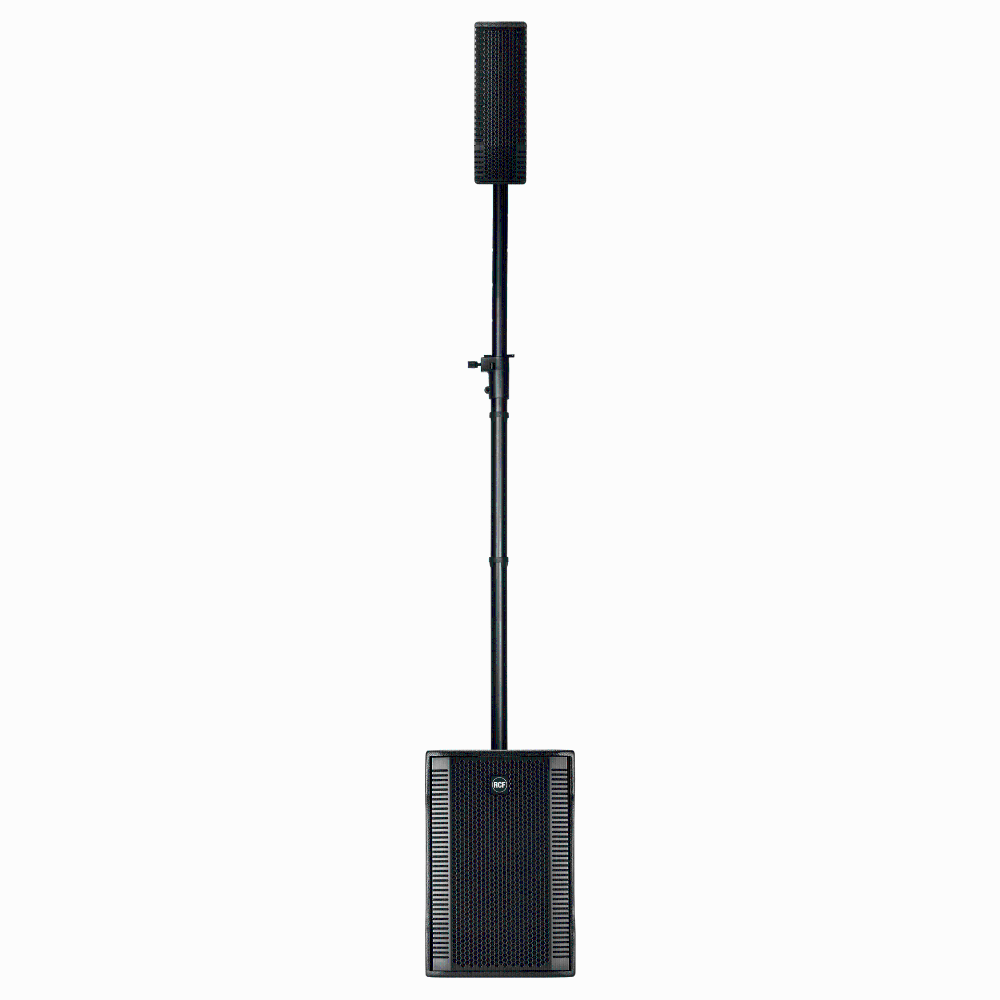

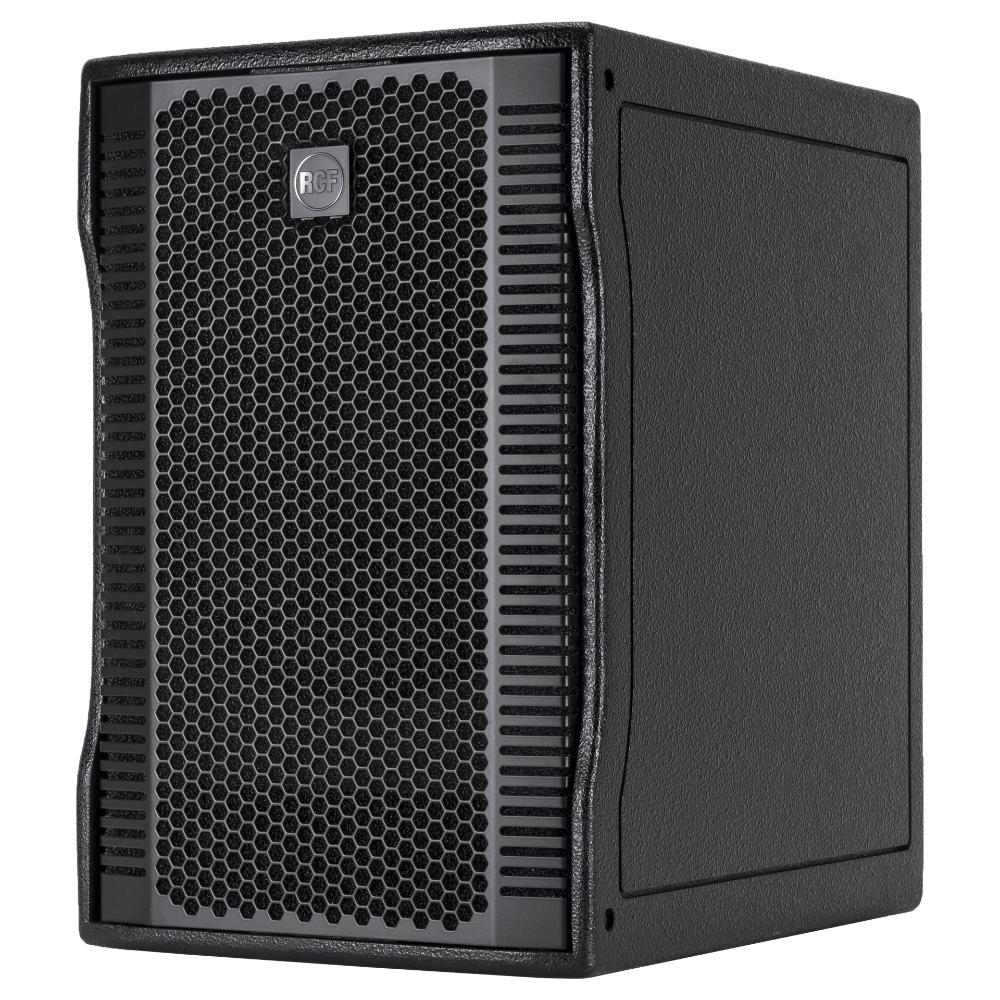

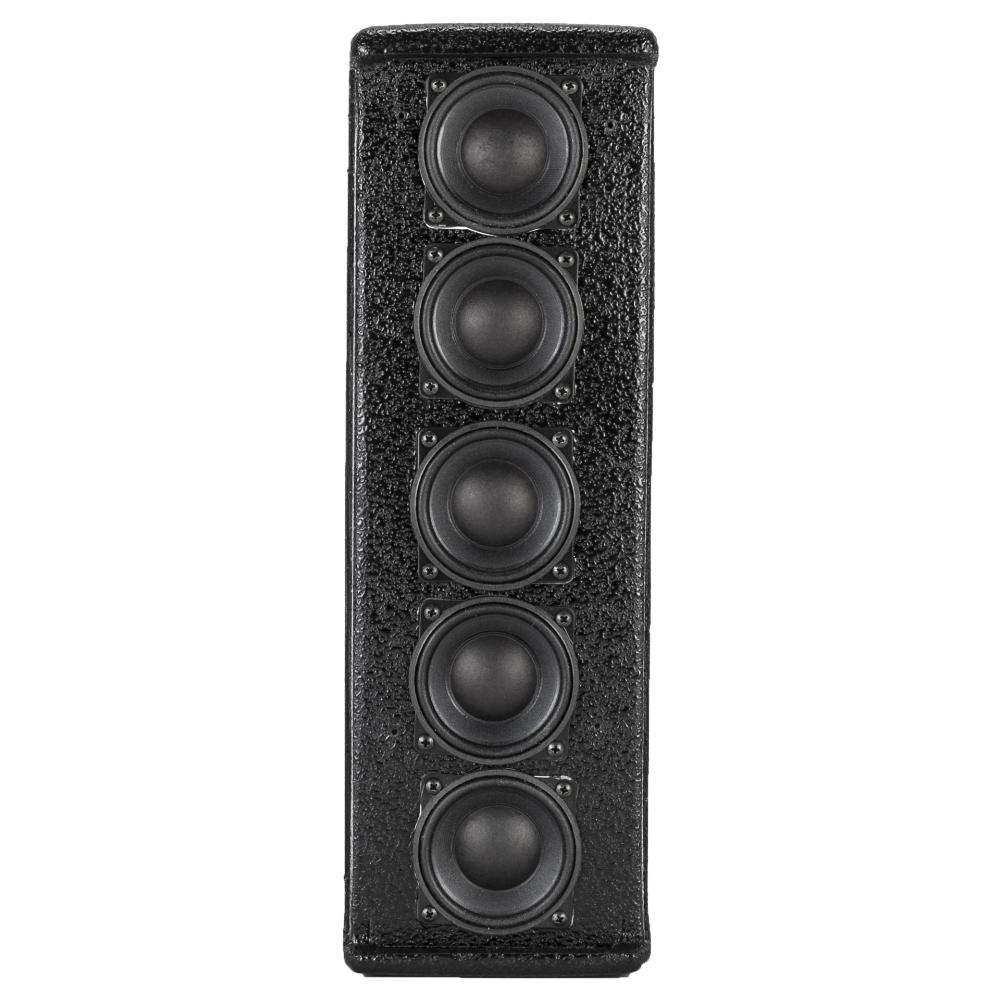

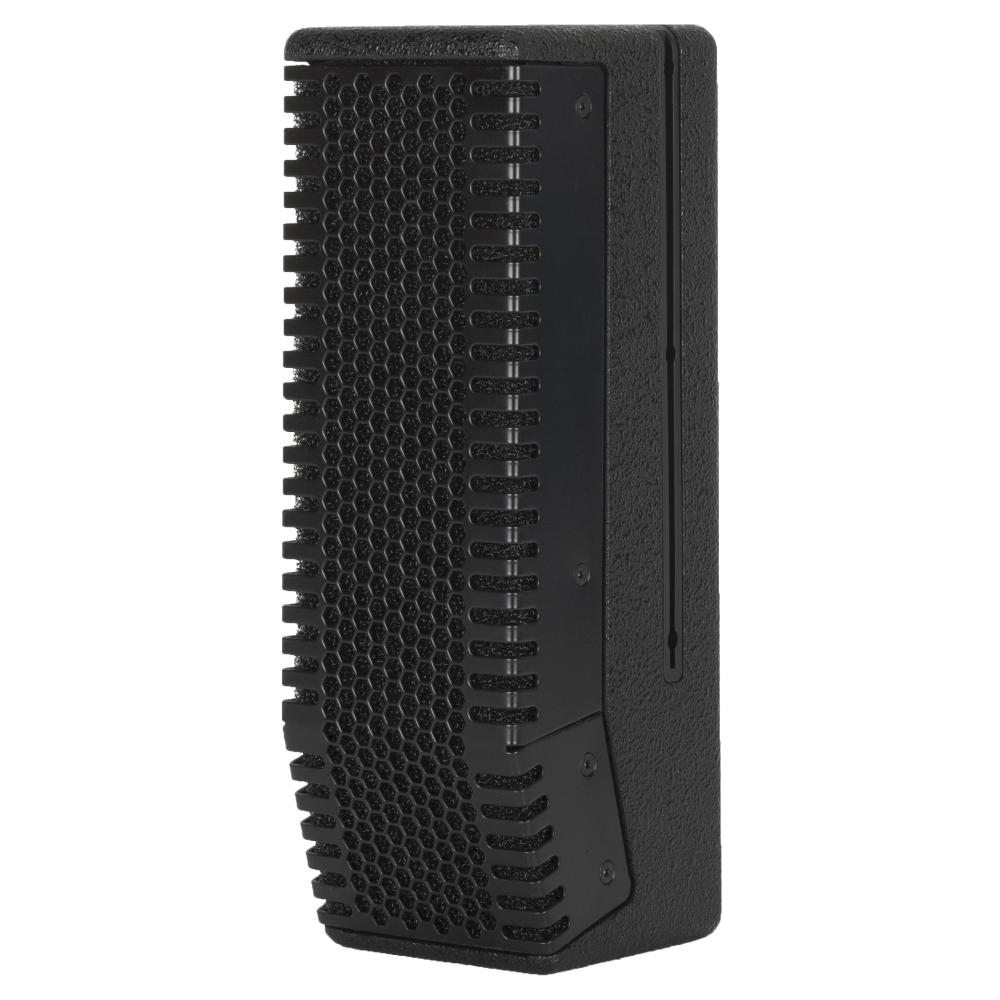

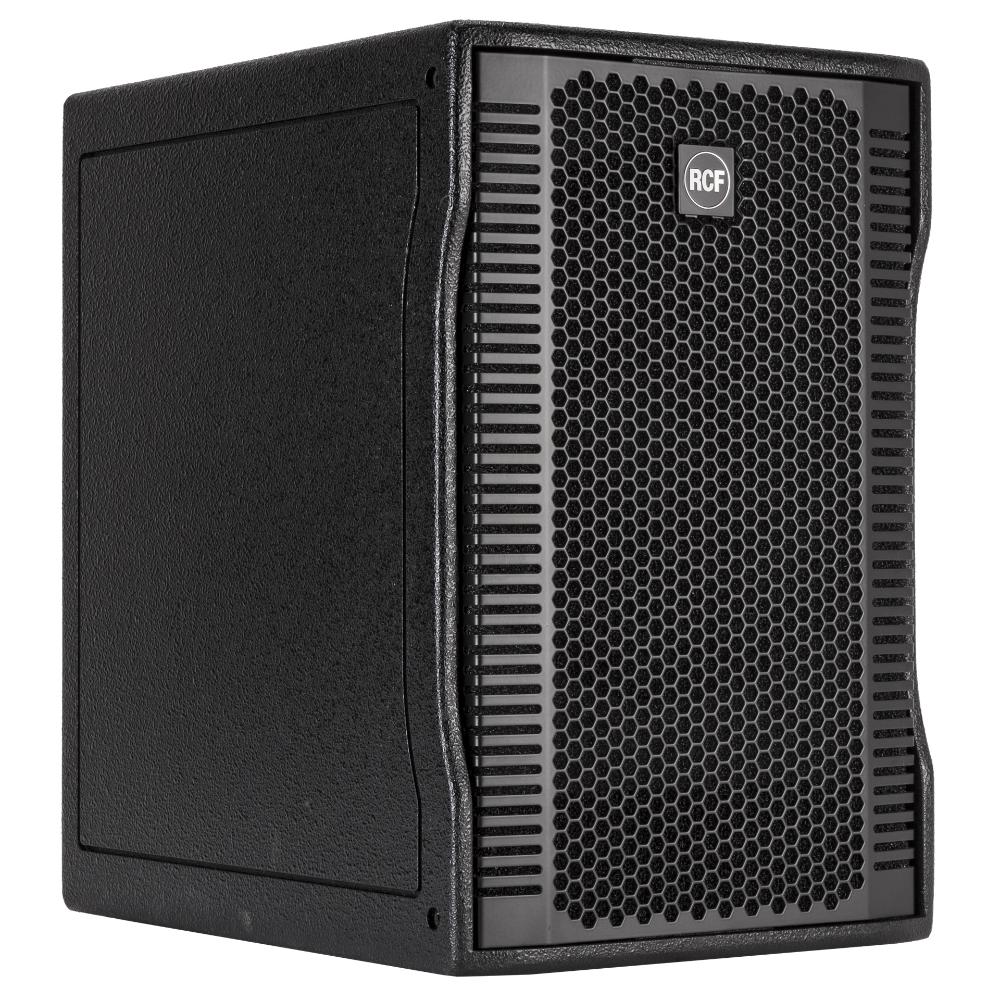

Evox 5 is a portable compact size sound reinforcement system. Evox 5 combines the quality and reliability of RCF transducers with a very high amplification power. The system features five 2.0” full range transducers in the line source satellite and a deep sounding 10” woofer in a bass reflex enclosure. The system is designed to be the perfect portable solution for live music and DJs. The unique vocal attitude and portability make Evox 5 the perfect tool for presentations, corporate events and congresses.

ARCHIVED

Part number:

13000440
EVOX 5
220-240V, EAN 8024530012144

13000441
EVOX 5
115V, EAN 8024530012380

Specifications
Acoustical specifications
Frequency Response
45 Hz ÷ 20000 Hz
Max SPL @ 1m
125 dB
Horizontal coverage angle
120°
Vertical coverage angle
30°
Transducers
Fullrange
5 x 2.0'', 1.0'' v.c
Woofer
10'', 2.0'' v.c

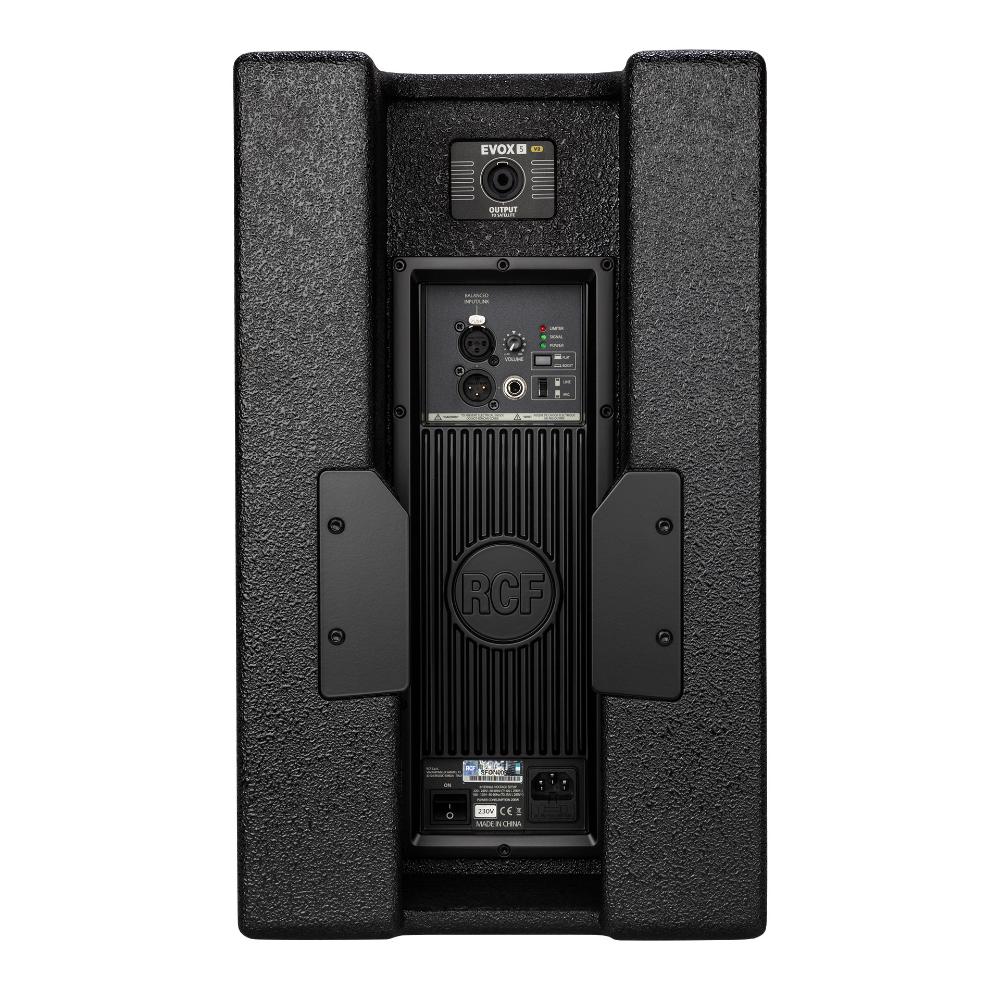

Input/Output section
Input signal
bal/unbal
Input connectors
XLR, Jack
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu
Processor section
Crossover Frequencies
220 Hz
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
Volume, EQ, Phase, Xover
Power section
Total Power
800 W Peak, 400 W RMS
High frequencies
200 W Peak, 100 W RMS
Low frequencies
600 W Peak, 300 W RMS
Cooling
Convection
Connections
VDE
Physical specifications
Hardware
2 x M6
Handles
1 Top
Pole mount/Cap
Yes
Color
Black
Size
Height
490 mm / 19.29 inches
Width
288 mm / 11.34 inches
Depth
427 mm / 16.81 inches
Weight
18.8 kg / 41.45 lbs
Shipping information
Package Height
650 mm / 25.59 inches
Package Width
345 mm / 13.58 inches
Package Depth
480 mm / 18.9 inches
Package Weight
22.8 kg / 50.27 lbs
