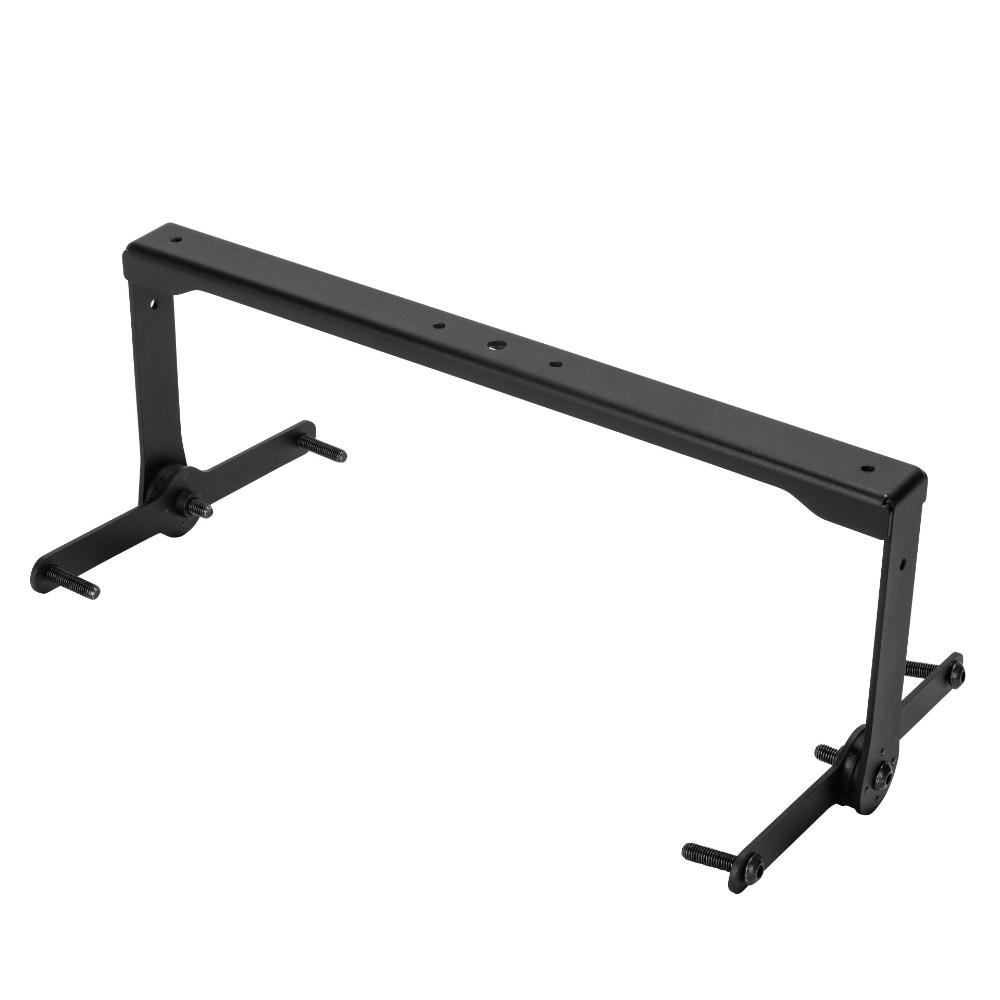

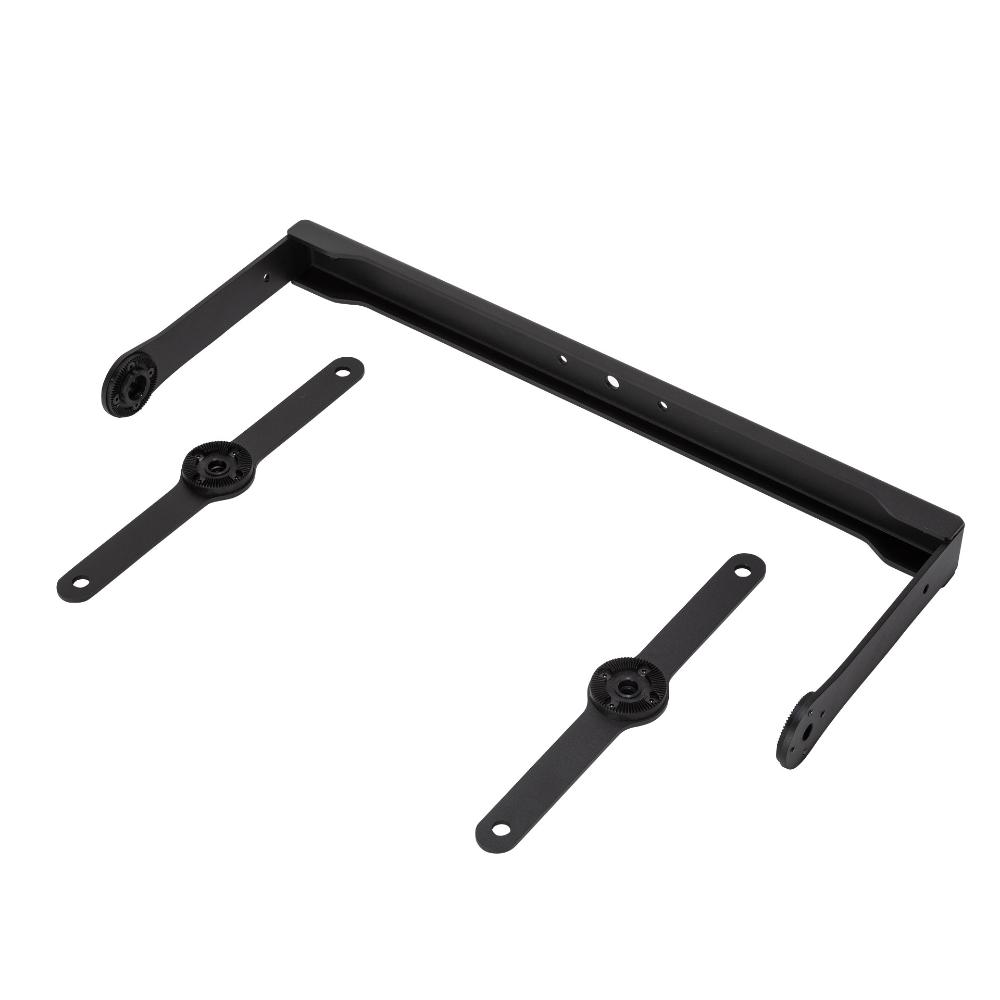

H-BR TT 10

HORIZONTAL BRACKET

SAFE AND QUICK SPEAKER INSTALLATION
ADJUSTABLE INCLINATION
PAINTED WITH BLACK, SCRATCH RESISTANT PAINT
STEEL CONSTRUCTION

Where to buy

Features

SAFE AND QUICK SPEAKER INSTALLATION
ADJUSTABLE INCLINATION
PAINTED WITH BLACK, SCRATCH RESISTANT PAINT
STEEL CONSTRUCTION

Part number:

13360402
H-BR TT 10
EAN 8024530016319

Specifications

Physical specifications

Cabinet/Case Material:

Metal

Color:

Black

Size

Height:

48 mm / 1.89 inches

Width:

505 mm / 19.88 inches

Depth:

194 mm / 7.64 inches

Weight:

2 kg / 4.41 lbs

Shipping information

Package Height:

60 mm / 2.36 inches

Package Width:

530 mm / 20.87 inches

Package Depth:

220 mm / 8.66 inches

Package Weight:

2.5 kg / 5.51 lbs

Compatible products

Downloads

RCF products are continually improved. All specifications are therefore subject to change without notice.

documentation

USER MANUAL

Rev: A
PDF file - 2.6 MB
Published on 08 April 2019

SPECSHEET - DEU

Rev: B
PDF file - 526 KB
Published on 15 March 2022

SPECSHEET - ENG

Rev: D
PDF file - 522 KB
Published on 15 March 2022

SPECSHEET - ITA

Rev: B
PDF file - 524 KB
Published on 15 March 2022

drawings

LINE ART 2D

Rev: A
DXF file - 1.3 MB
Published on 02 November 2021

LINE ART 2D

Rev: A
PDF file - 226 KB
Published on 02 November 2021

LINE ART 3D

Rev: A
DXF file - 1.6 MB
Published on 02 November 2021

H-BR TT 10 HORIZONTAL BRACKET
