COMMERCIAL AUDIO

HD 410T

ALUMINIUM HORN SPEAKER WITH DRIVER AND TRANSFORMER
  • Built-in line transformer with multitap power selector on rear cover
  • Hi-pass filter for protecting driver against out-of-range low-freq
  • IP 66 construction for indoor-outdoor environmental temperature between -25°C to +70°C
  • Aluminum flare with UV-stabilized autoextinguishing UL-HB ABS rear cover
IP66
Where to buy
Features Specifications Downloads
Where to buy
Features
  • Built-in line transformer with multitap power selector on rear cover
  • Hi-pass filter for protecting driver against out-of-range low-freq
  • IP 66 construction for indoor-outdoor environmental temperature between -25°C to +70°C
  • Aluminum flare with UV-stabilized autoextinguishing UL-HB ABS rear cover
  • Colour RAL 7035

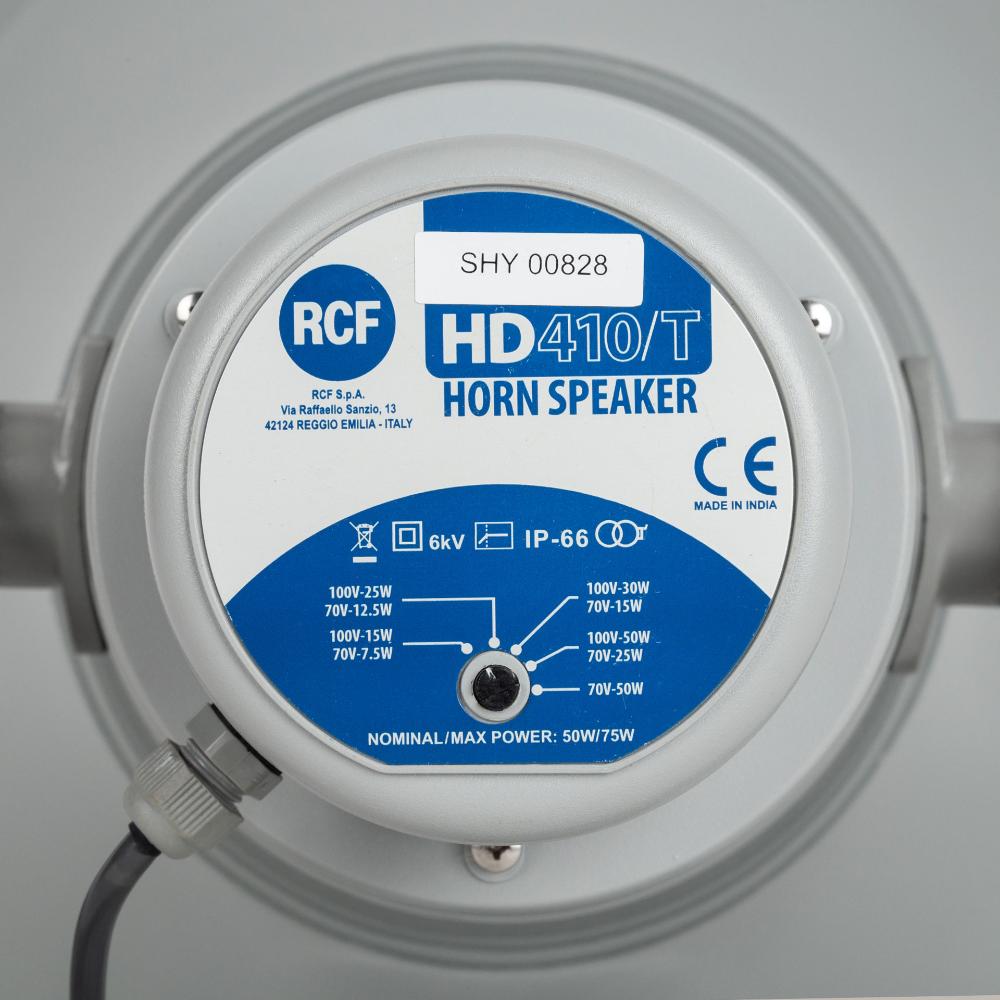

The HD 410/T are compact, lightweight and watertight horn speakers. They are designed to provide high efficiency and characterized by the high intelligibility of the reproduced sound with low distortion.The built-in line transformer makes it possible to connect the horn loudspeaker to both 70 and 100 V constant voltage lines, and select the delievered power by means of a rotary dial on the rear cover

Part number:

13133041
HD 410T
EAN 8024530001247

Specifications
Acoustical specifications
Frequency Response (-10dB)
180 Hz ÷ 7000 Hz
Max SPL @ 1m
130 dB
Coverage angle
90°
System Sensitivity
112 dB
Power section
Amplification
Full Range
Power Handling
50 W
Peak Power Handling
200 W PEAK
Transducers
Compression Driver
1 x 2.0''
Input/Output section
Input connectors
Cable
Output connectors
Cable
Constant Voltage Transformer
70/100 V
Power selection 1
50 W - 200 ohm
Power selection 2
30 W - 333 ohm
Power selection 3
25 W - 400 ohm
Power selection 4
15 W - 667 ohm
Power selection 5
7.5 W - 1333 ohm
Standard compliance
IP protection grade
IP 66
Safety agency
CE compliant
Physical specifications
Hardware
Stainless steel U bracket
Color
Grey - RAL 7035
Size
Depth
393 mm / 15.47 inches
Diameter
430 mm / 16.93 inches
Weight
3.57 kg / 7.87 lbs
Shipping information
Package Height
415 mm / 16.34 inches
Package Width
420 mm / 16.54 inches
Package Depth
430 mm / 16.93 inches
Package Weight
6.06 kg / 13.36 lbs
