PRECISION TRANSDUCERS

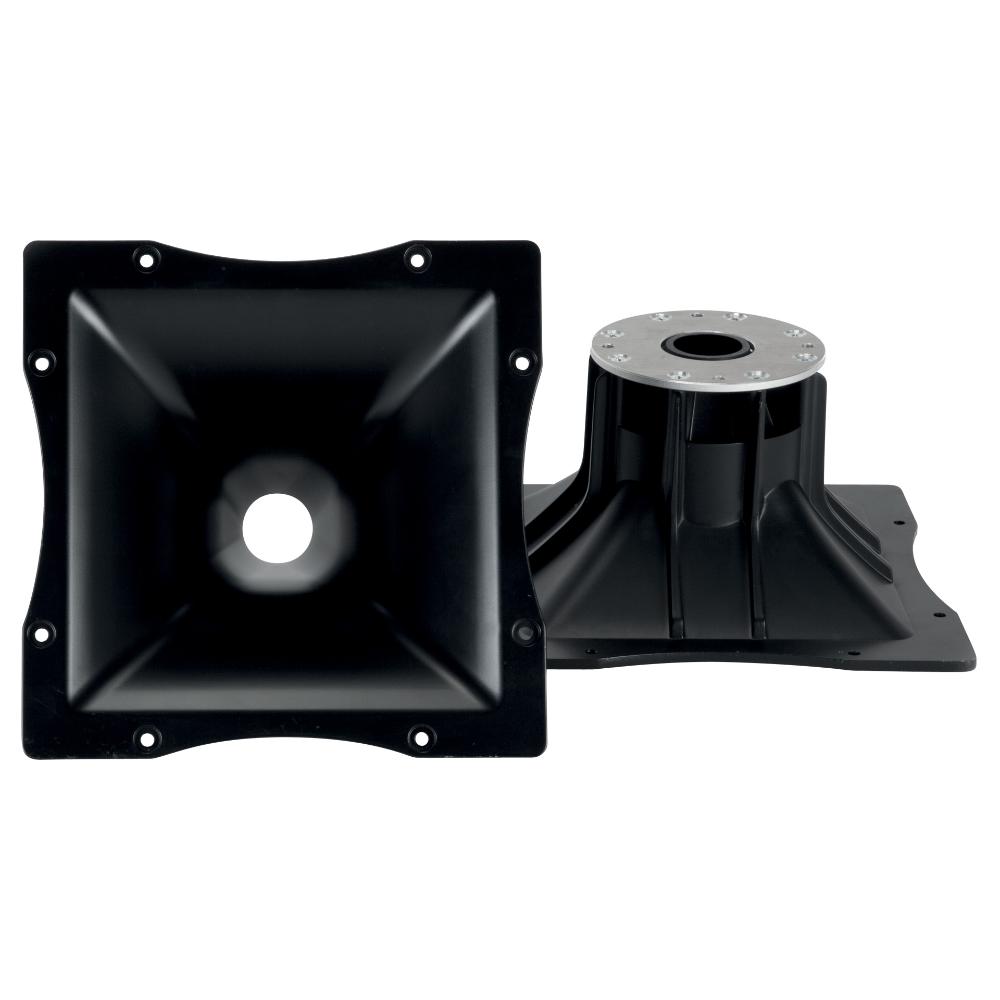

HF66

PRO HF HORN

1.4 inch Throat Adaptor
60° x 60° Constant Directivity Coverage
Loading down to 500 Hz
Thick Aluminum Body for best heat dissipation in conjuntion to Neodimium Compression Drivers

Support

Features

1.4 inch Throat Adaptor
60° x 60° Constant Directivity Coverage
Loading down to 500 Hz
Thick Aluminum Body for best heat dissipation in conjuntion to Neodimium Compression Drivers
Perfectly Controlled Dispertion

1-inch/1.4 inch Throat Adaptor.60° x 60° Constant Directivity Coverage. Thick Aluminum Body for best heat dissipation in conjuntion to Neodimium Compression Drivers. Perfectly Controlled Dispertion

ARCHIVED

Part number:

13133067
HF66

Specifications

General specifications

Throat Diameter

25-36 mm / 1.0-1.4 inch

Horizontal coverage angle

90°

Vertical coverage angle

40°

Cut-off Frequency

500 Hz

Material

Aluminum

Mounting information

Overall height

250 mm / 9.84 inches

Overall width

250 mm / 9.84 inches

Overall depth

135 mm / 5.31 inches

Baffle Cut-out height

205 mm / 8.07 inches

Baffle Cut-out width

205 mm / 8.07 inches

Mounting

4 x 7 mm holes, interaxes 101 mm

Standard compliance

Safety agency

CE compliant

Physical specifications

Color

Black

Size / Weight

Height

142 mm / 5.59 inches

Diameter

250 mm / 9.84 inches

Weight

1.35 kg / 2.98 lbs

Shipping information

Package Height

160 mm / 6.3 inches

Package Width

290 mm / 11.42 inches

Package Depth

290 mm / 11.42 inches

Package Weight

2.04 kg / 4.5 lbs
