Features
  • For paging and background music
  • Music power / RMS: 24 / 6 W
  • 2.5" extended range loudspeaker
  • High-pass filter for use with optional subwoofer
  • Low impedance (8O) or 100V

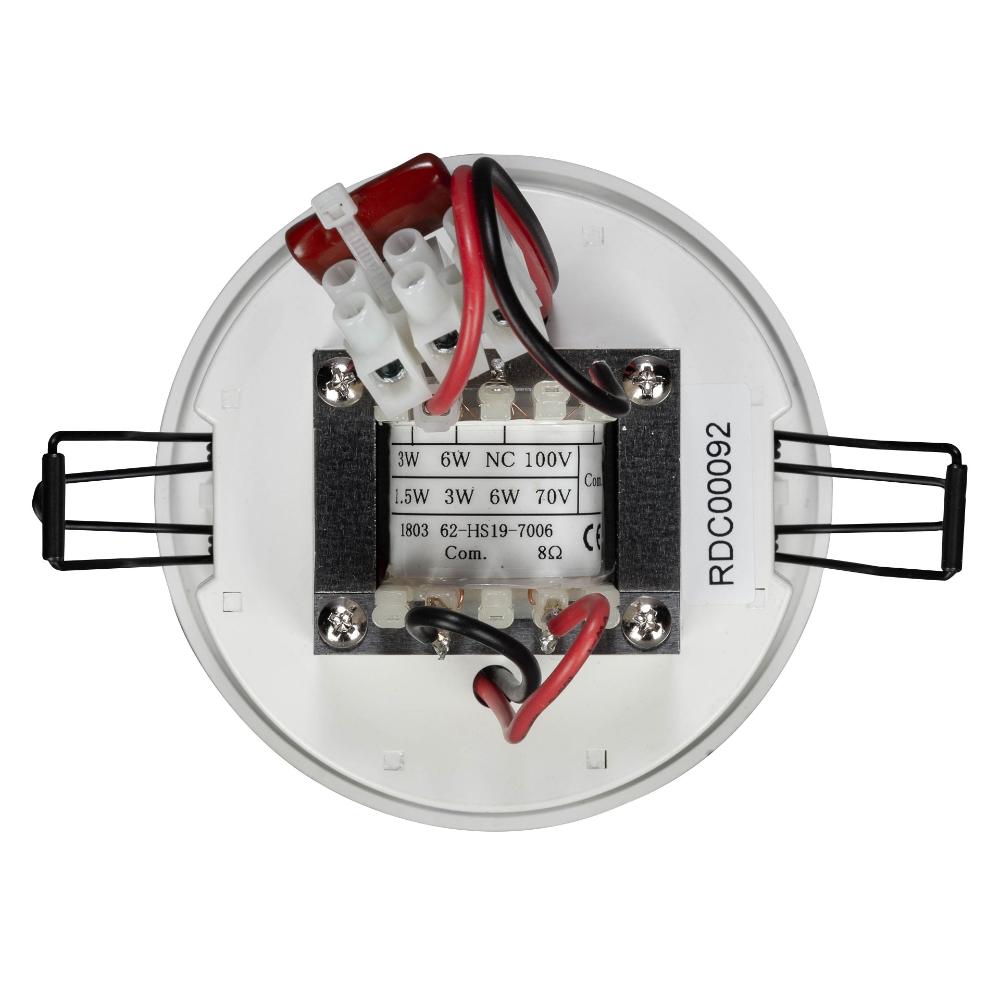

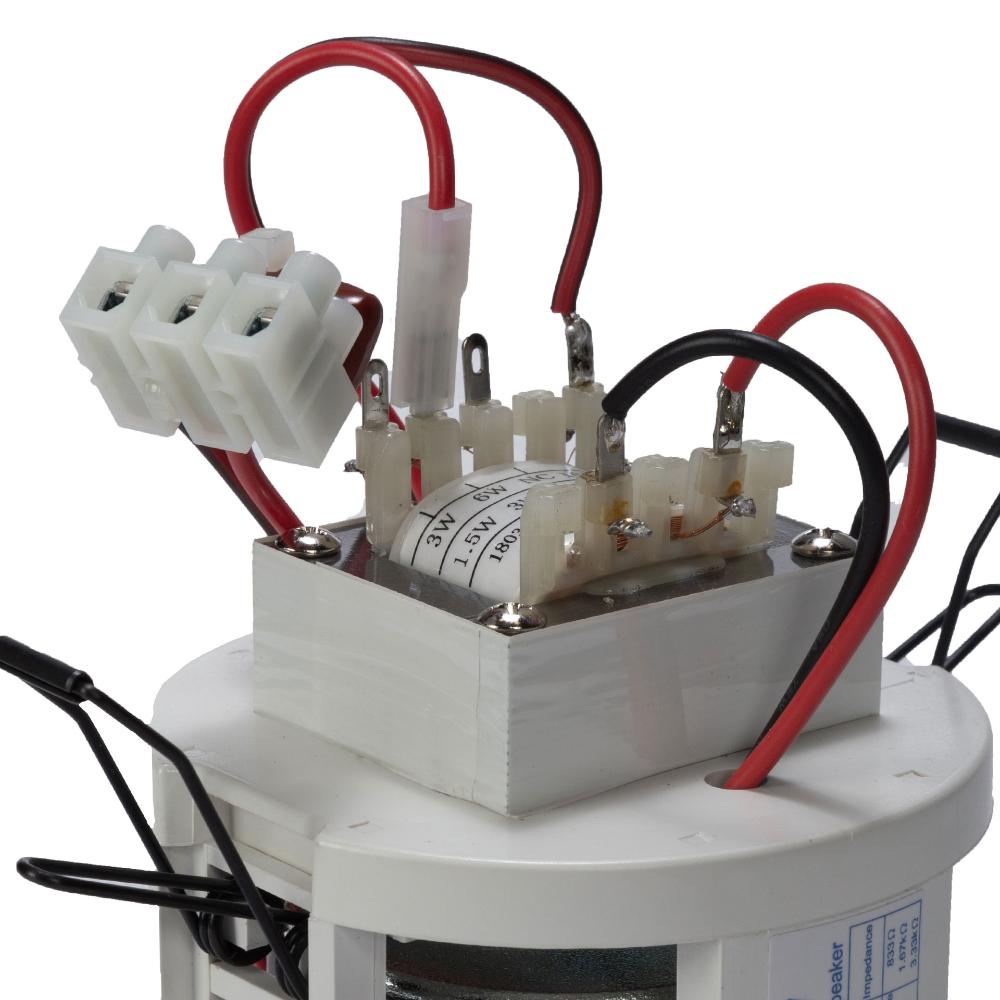

  • Built-in multi-tapped transformer for 100/70V constant voltage connection

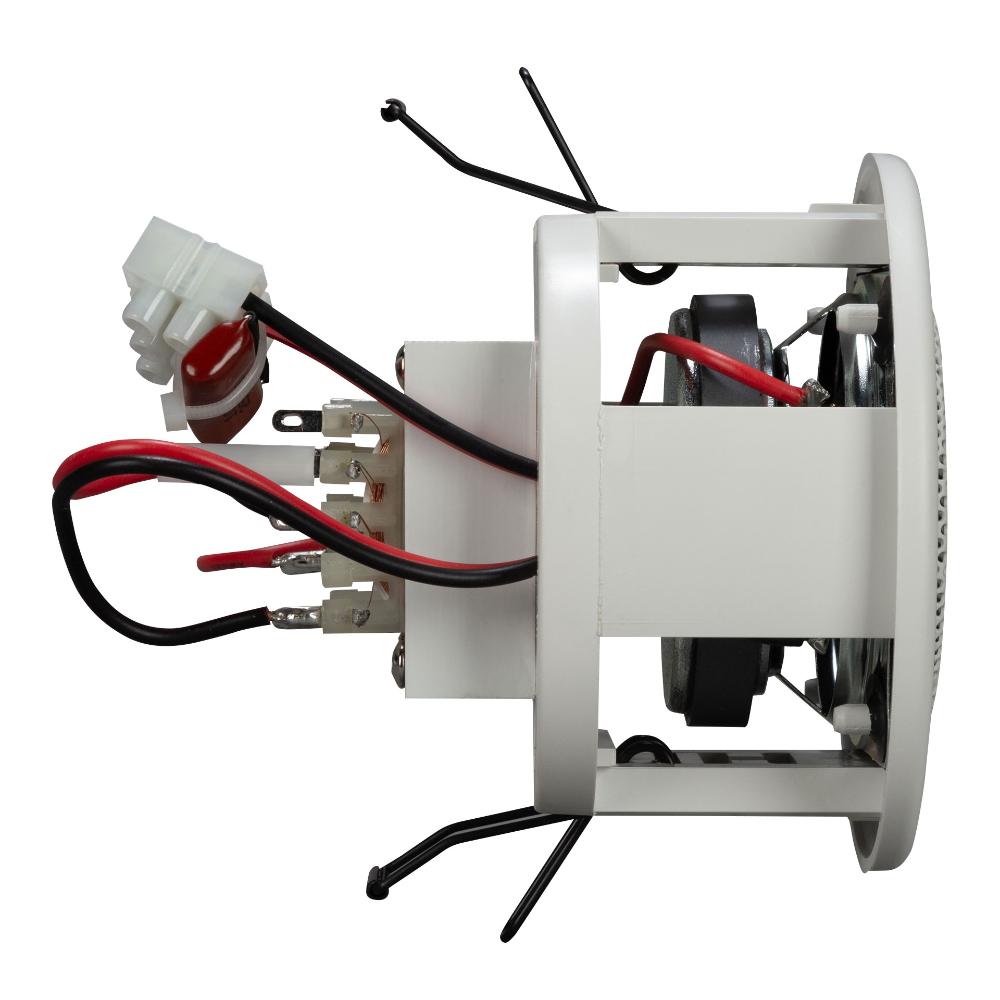

  • Ease of installation in standard holes used for lightspots

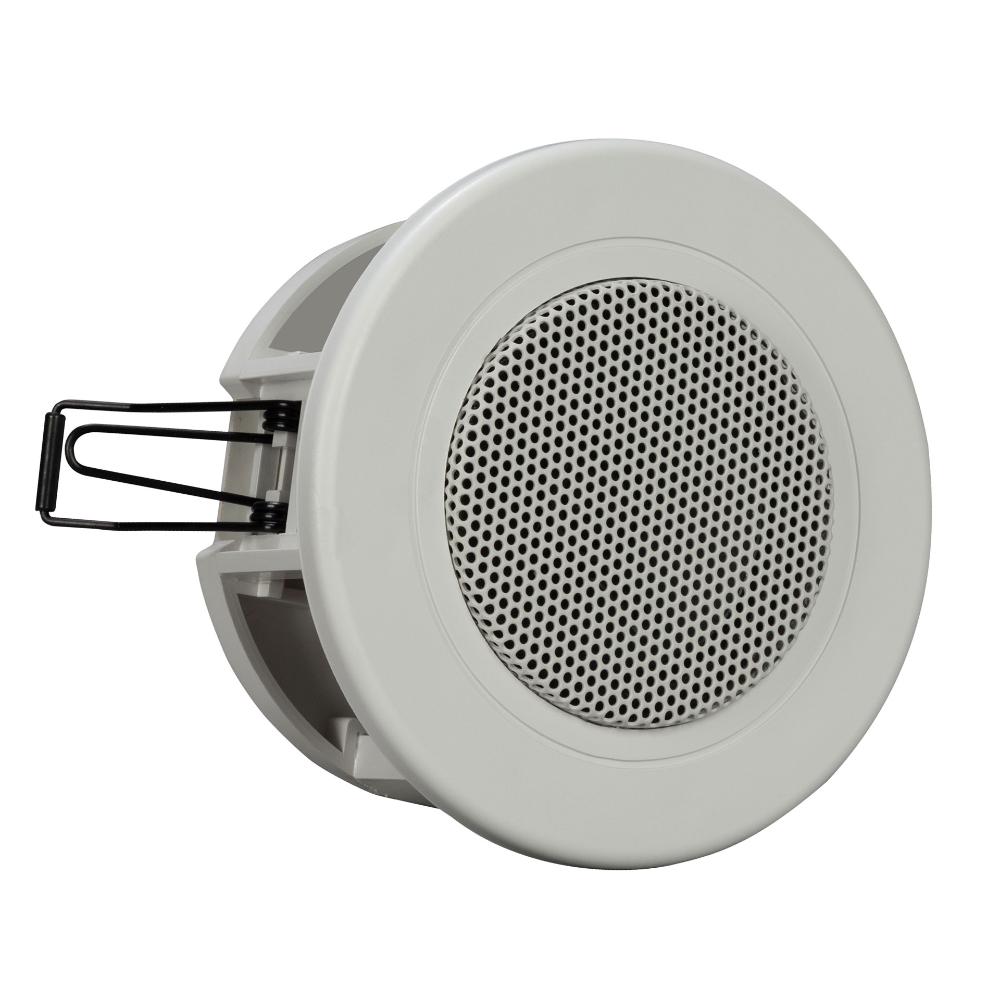

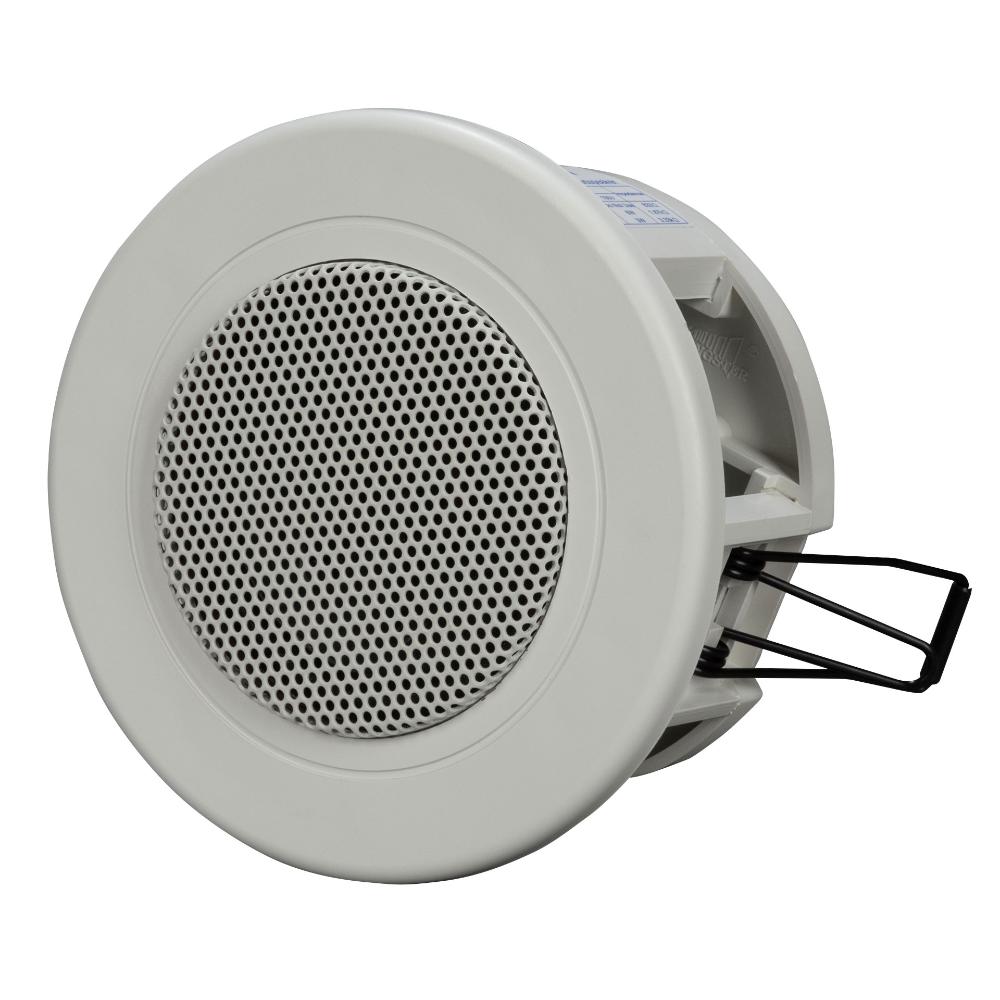

The HS Series are fullrange speakers that can be flush-mounted in false ceilings like normal halogen spots used in lighting systems. Quick and easy installation in false ceilings of varying thickness thanks to the adaptable spring hooks and the standard size of the mounting hole.


ARCHIVED

Part number:

13110062
HS 1026 W
EAN 8024530010096

Specifications
Acoustical specifications
Frequency Response (-10dB)
220 Hz ÷ 17000 Hz
Max SPL @ 1m
102 dB
Coverage angle
180°
System Sensitivity
89 dB
Power section
Nominal Impedance
8 ohm
Power Handling
6 W
Peak Power Handling
24 W PEAK
Transducers
Fullrange
1 x 3.5''
Input/Output section
Input connectors
Screw Terminals
Output connectors
Screw Terminals
Constant Voltage Transformer
70/100 V
Power selection 1
6 W - 1667 ohm
Power selection 2
3 W - 3333 ohm
Power selection 3
1.5 W - 6667 ohm
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
Plastic
Hardware
Metal clamps

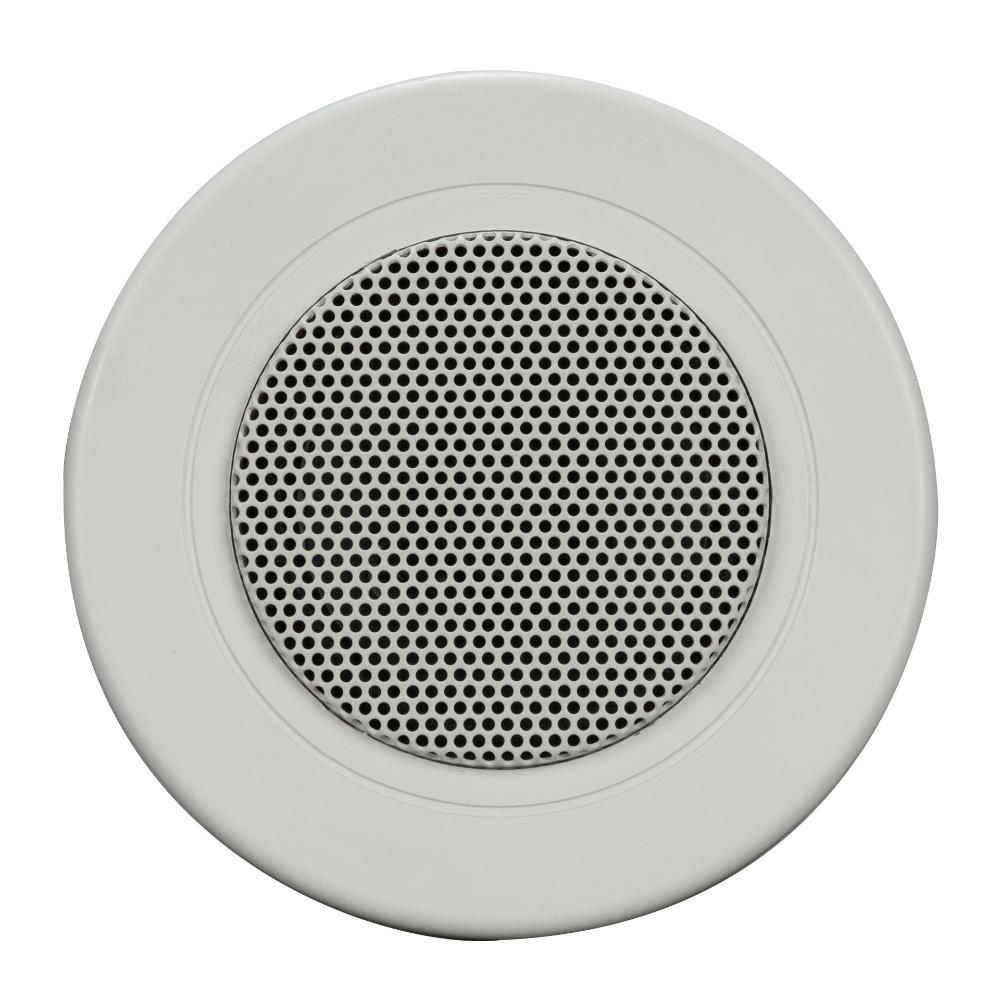

Grille
Steel
Color
White
Size / Weight
Depth
91 mm / 3.58 inches
Recessed Depth
85 mm / 3.35 inches
Diameter
104 mm / 4.09 inches
Cut out diameter
92 mm / 3.62 inches
Weight
0.08 kg / 0.18 lbs
Shipping information
Package Height
130 mm / 5.12 inches
Package Width
130 mm / 5.12 inches
Package Depth
110 mm / 4.33 inches
Package Weight
0.69 kg / 1.52 lbs
