Features
  • 4 mono INPUT + 4 stereo INPUT
  • 2 Compressors (Ch. 1-2)
  • 3band/2band EQ
  • 1 AUX send
  • External PSU 18V~ 1000mA

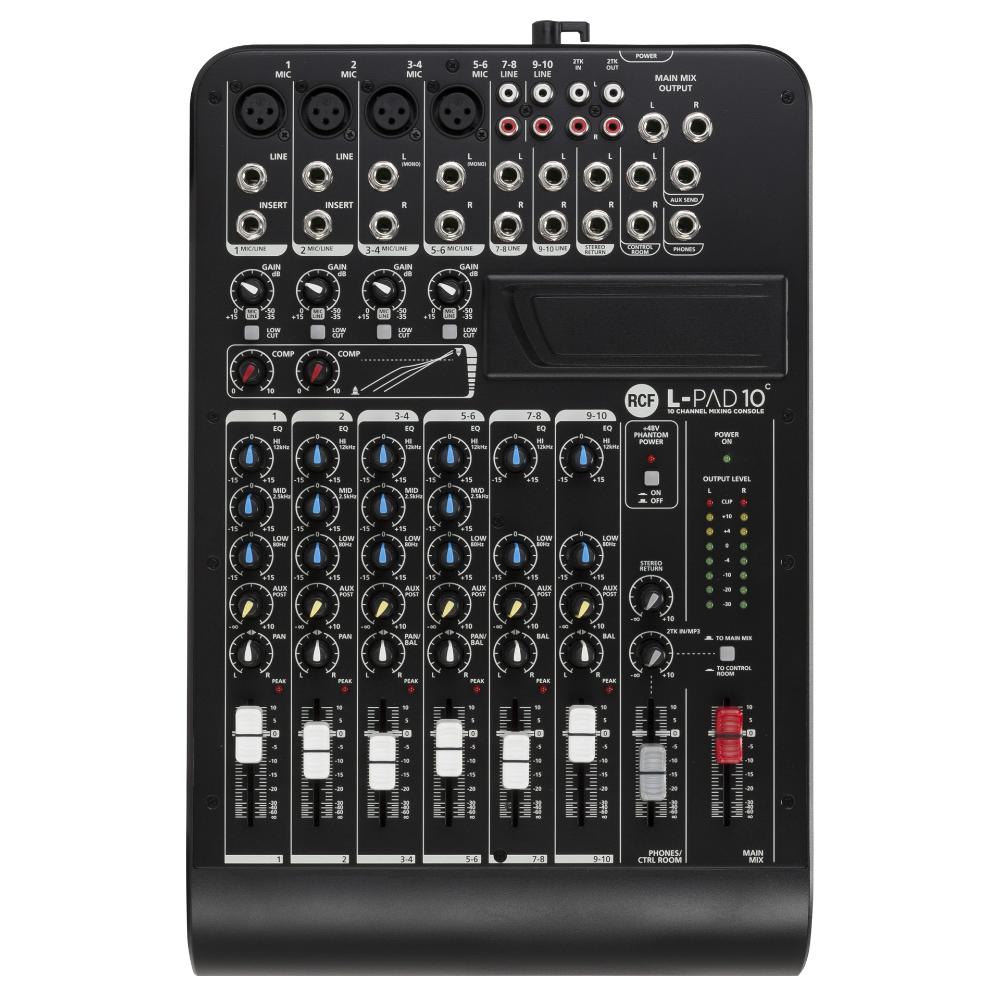

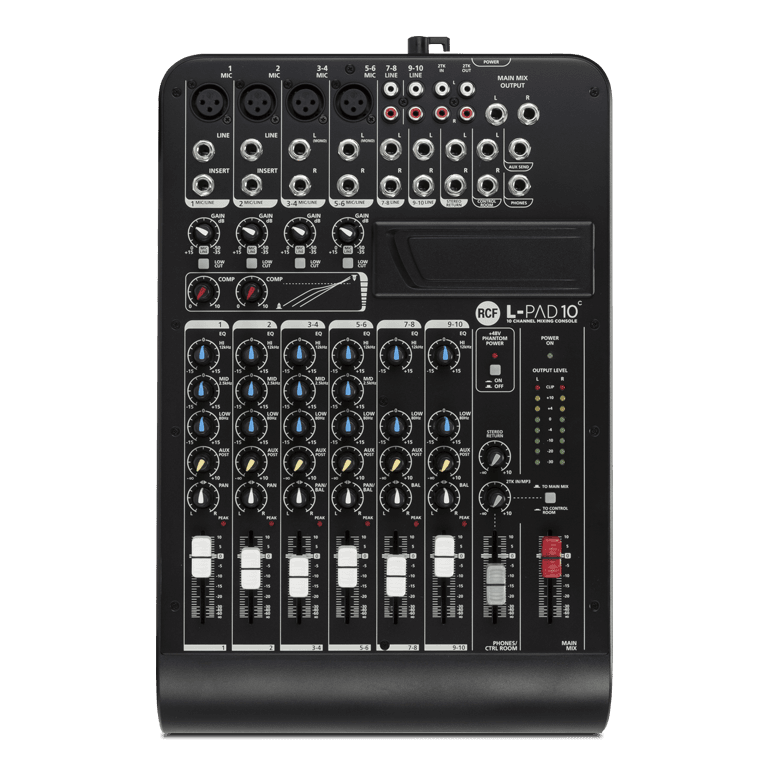

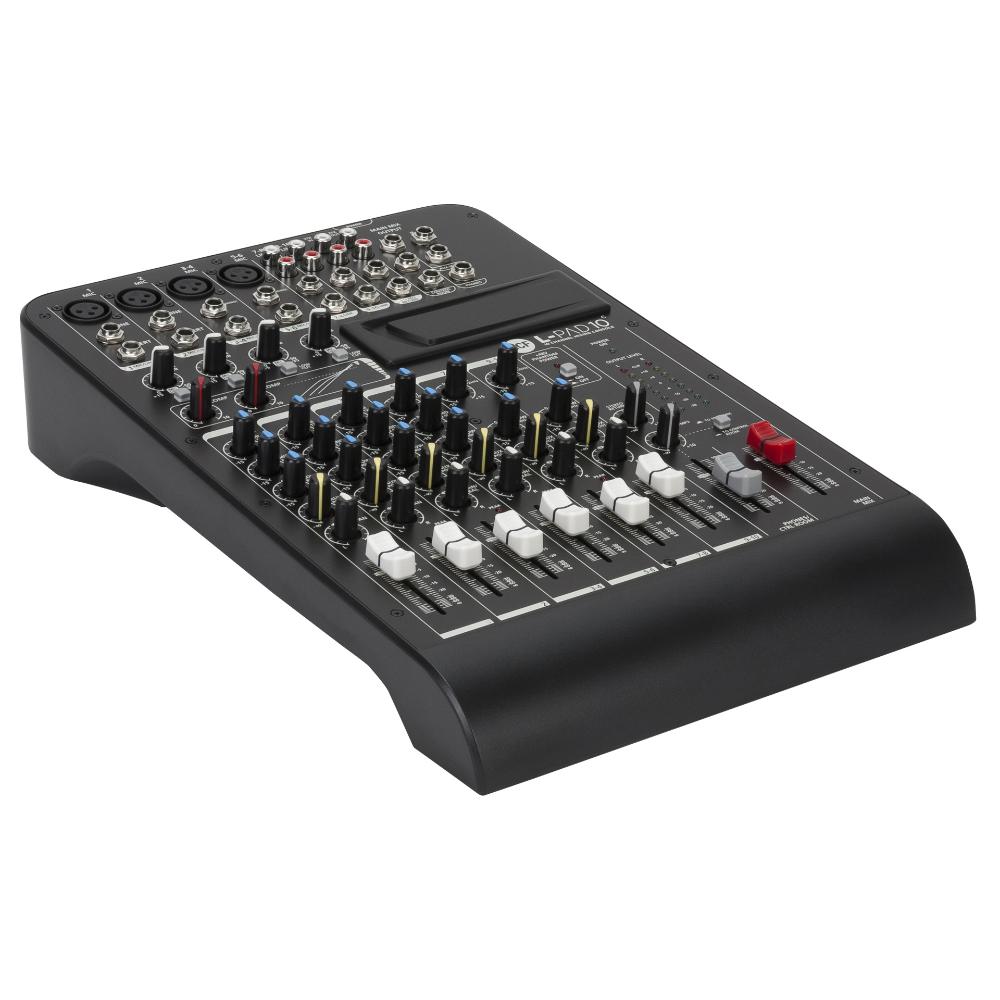

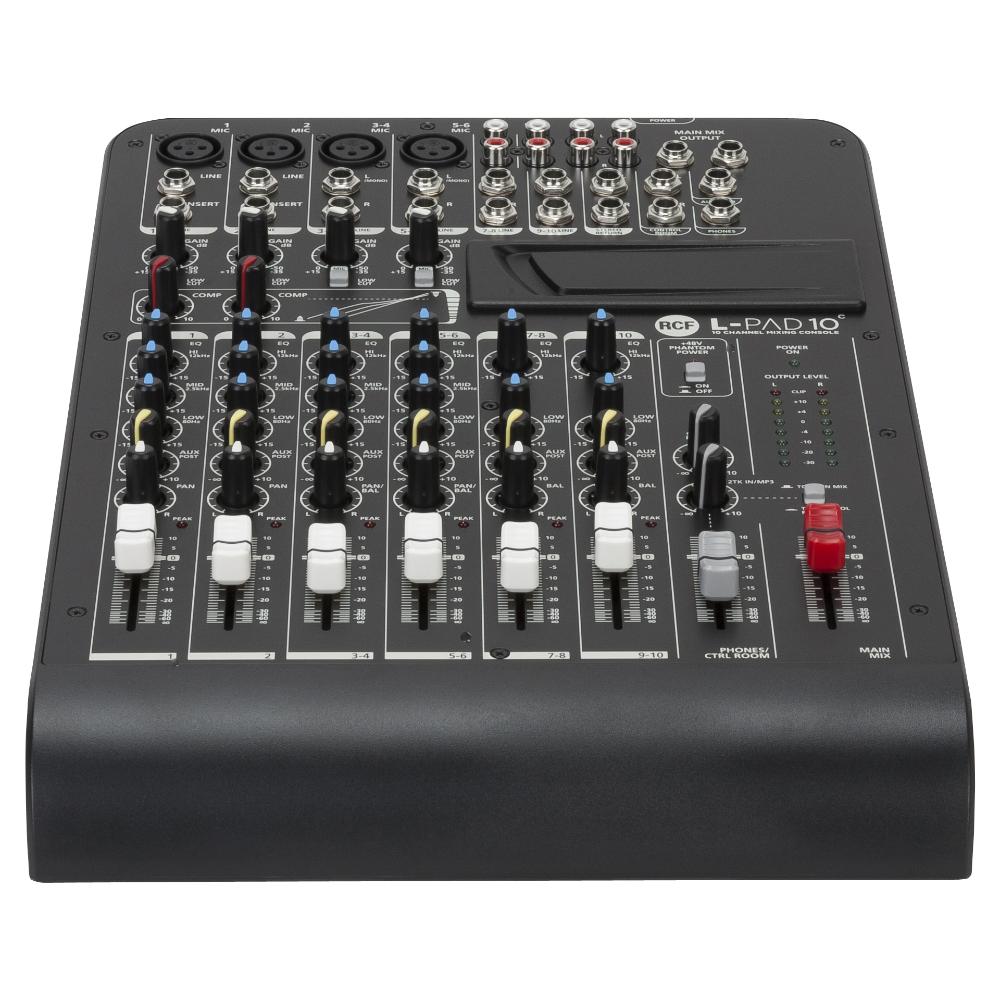

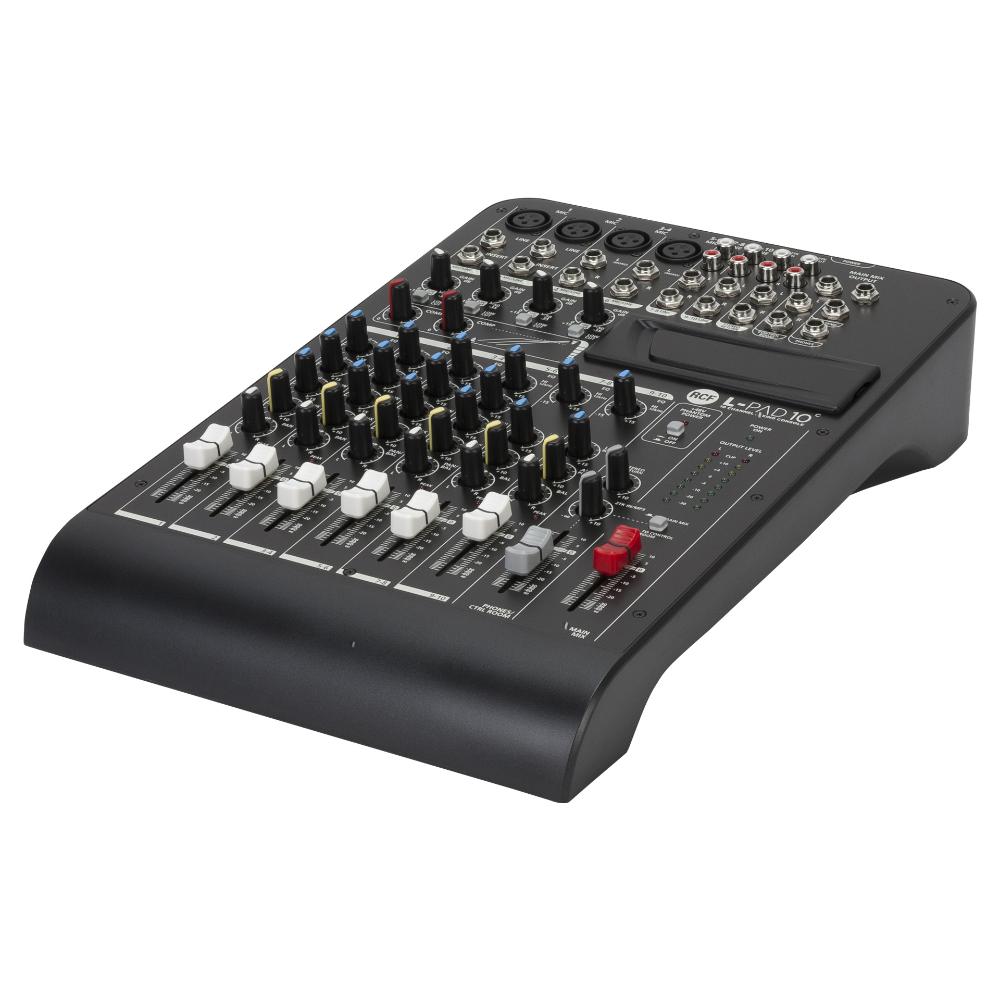

With four transparent sound mic inputs, four stereo line inputs and the 2tk in/out, L-PAD10C is the ideal tool for duo/trio gigs, speech, background music diffusion, parties and all activities requiring several stereo inputs to be mixed. Two single-control compressors on mic channels help to handle even the more dynamic complex signals. The super versatile L-PAD slot permits the optional L-PAD MP3 PLAYER, PLAYER/RECORDER or BLUETOOTH CONNECTION cards to be inserted for even more flexible use. Thanks to the accurate Italian design L-PAD10C is easy to grab, transport and handle in all live situations. It is possible to install L-PAD10C on a mic stand thanks to the dedicated optional accessory or in a rack using the dedicated optional rack ears.


ARCHIVED

Part number:

17140032
L-PAD 10C
220-240V, EU, EAN 8024530011208

17140039
L-PAD 10C
115V, US, EAN 8024530011192

17140042
L-PAD 10C
100V, JP, EAN 8024530011390

17140043
L-PAD 10C
240V, AU, EAN 8024530011406

17140060
L-PAD 10C
240V, UK, EAN 8024530011574

Specifications
Electronic specifications
Frequency Response
10 Hz ÷ 55000 kHz
Inputs
Mic
4
Gain Range
0 dB ÷ -50 dB
Mic Inputs Impedance
2 kohm
Low Cut
75 Hz
Phantom Power +48V
Yes
Mono Line
6
Gain Selection
15 dB ÷ -35 dB
Line Input Impedance
10 kohm
Outputs
Main MIX
1
Control Room
Yes
AUX Send
1
AUX Output
1
Phones
1
2 Track
Yes
Outputs specifications
Main Out Impedance
120 ohm
Main Out Level
22 dBu
Aux Out Impedance (ohm)
120 ohm
Aux Out Level
22 dBu
Compressors
RCF Compressors
On input 1 -2
EQ
Input Channels EQ
2 Shelving / 3 Generic
Auxiliary sends
AUX
1 POST
Electrical specifications
Power supply
External
Voltage requirements
100 V - 240 V
Power consumption (MAX)
24 W
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
ABS
Size / Weight
Height
16 mm / 0.63 inches
Width
257 mm / 10.12 inches
Depth
387 mm / 15.24 inches
Weight
2.65 kg / 5.84 lbs
Shipping information
Package Height
150 mm / 5.91 inches
Package Width
510 mm / 20.08 inches
Package Depth
310 mm / 12.2 inches
Package Weight
3.36 kg / 7.41 lbs
