MIXING CONSOLES

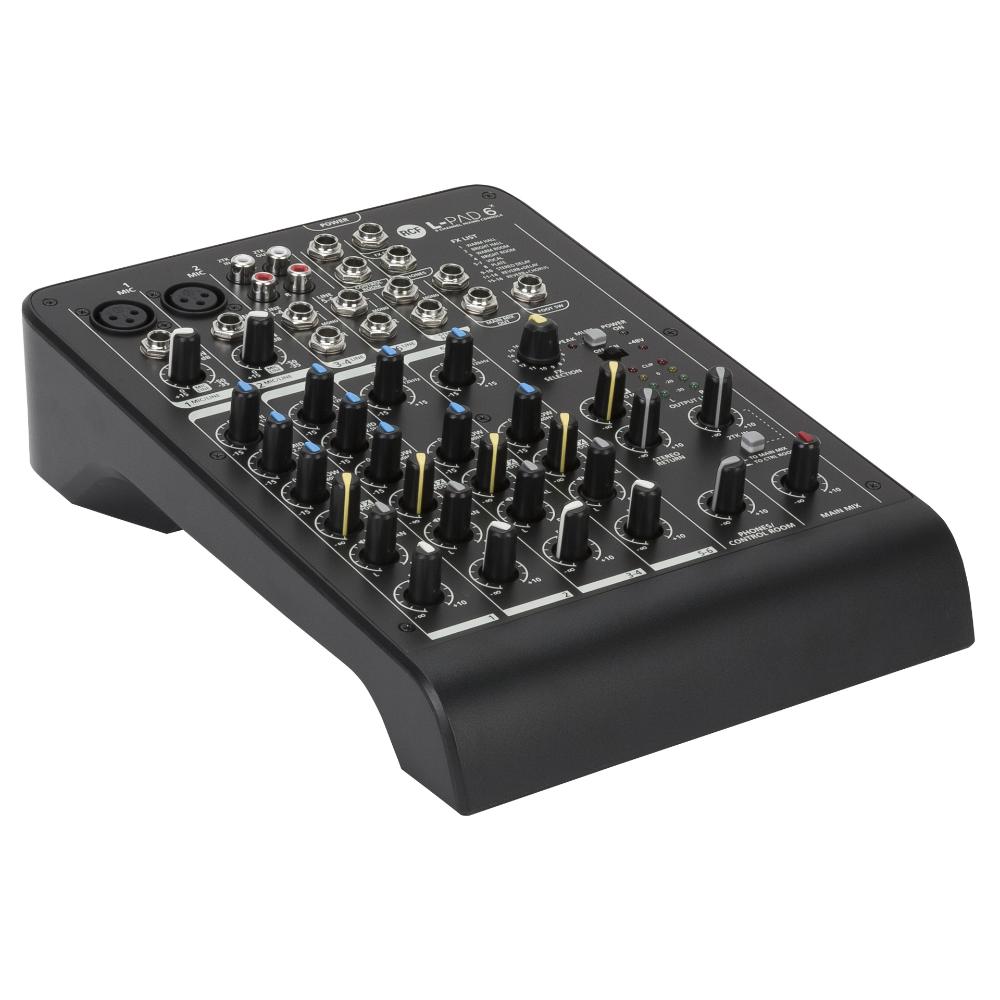

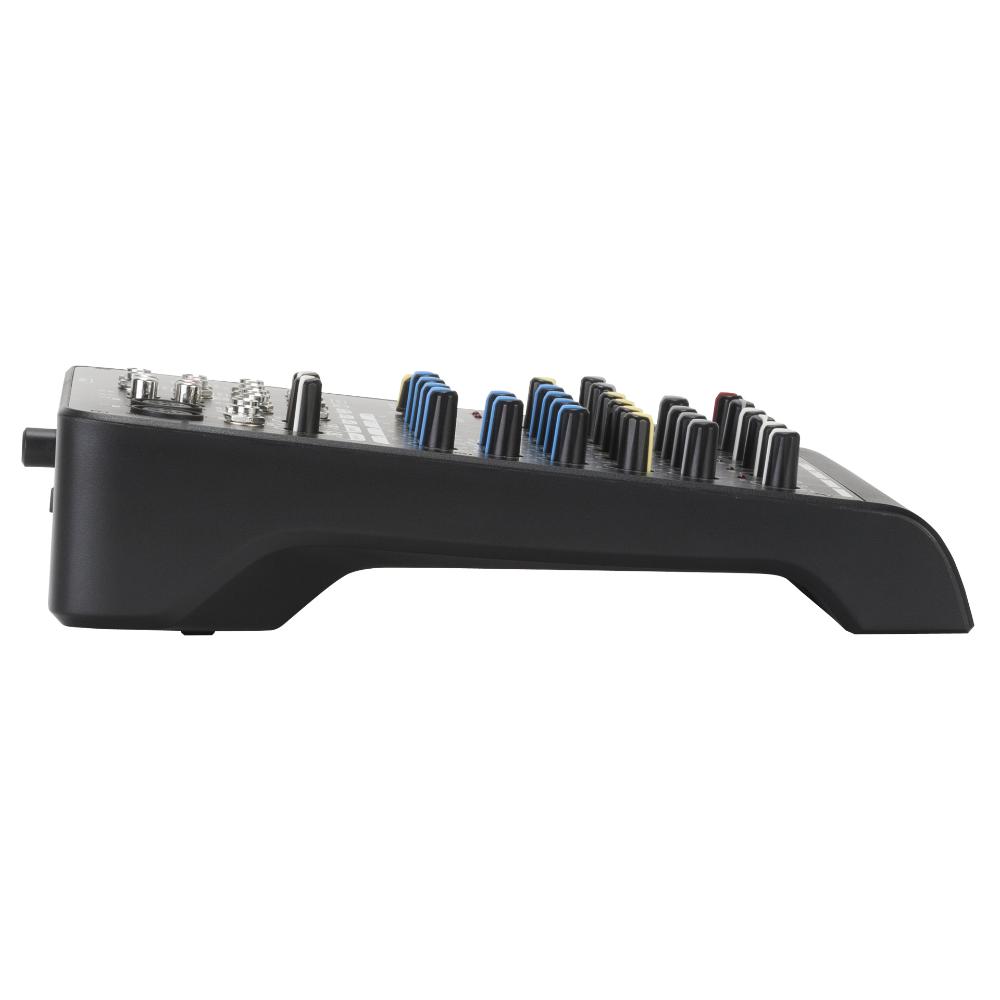

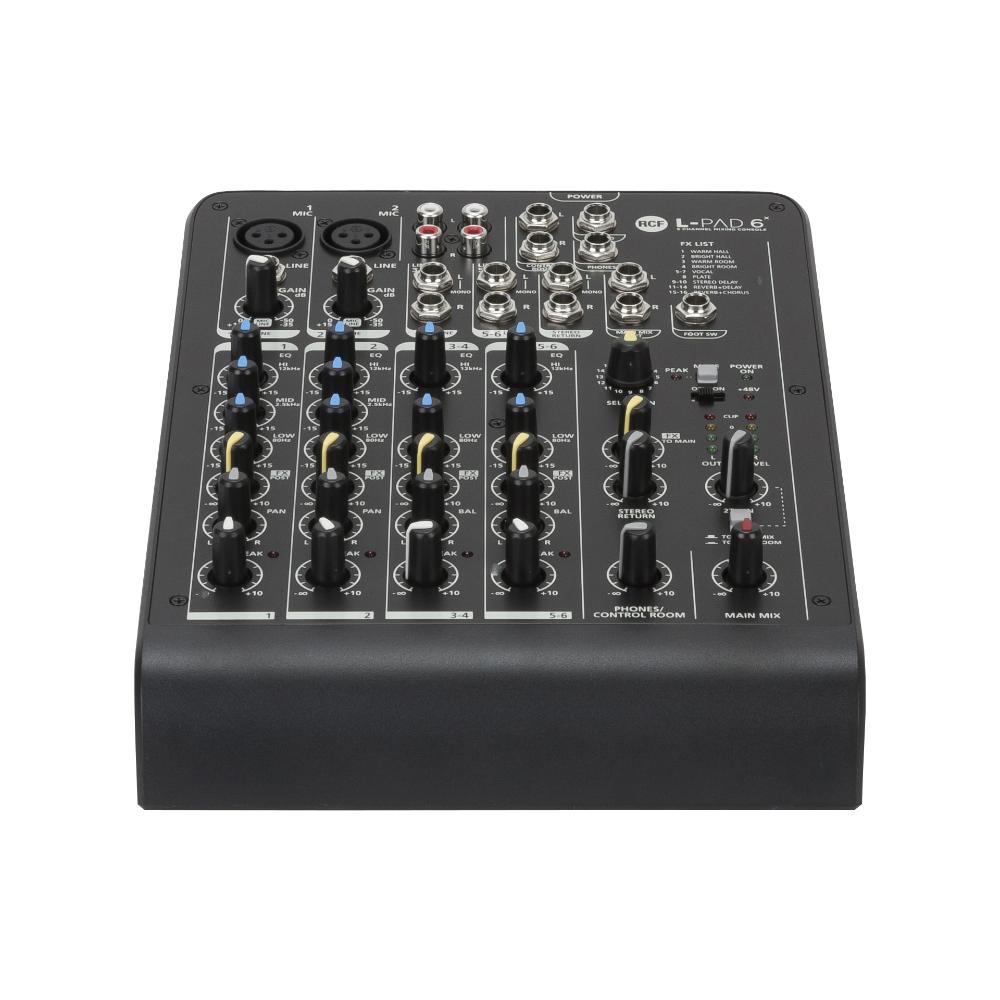

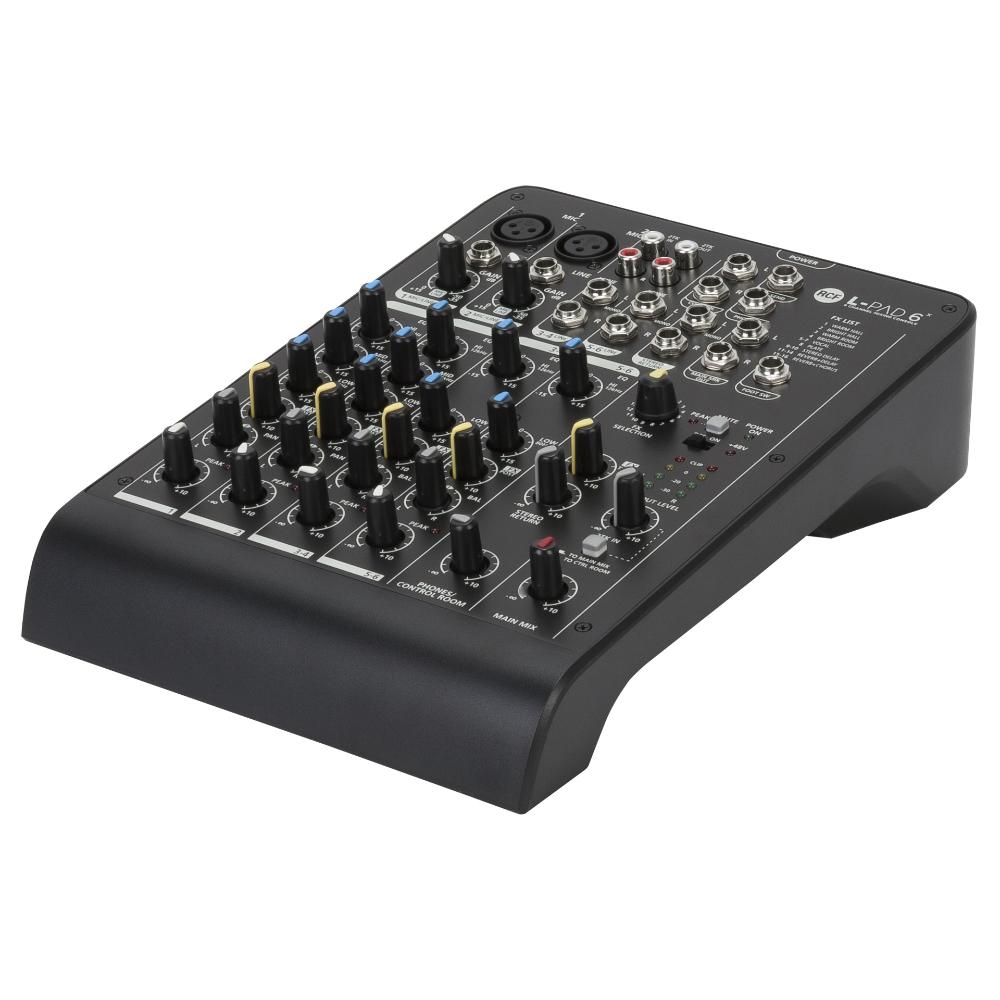

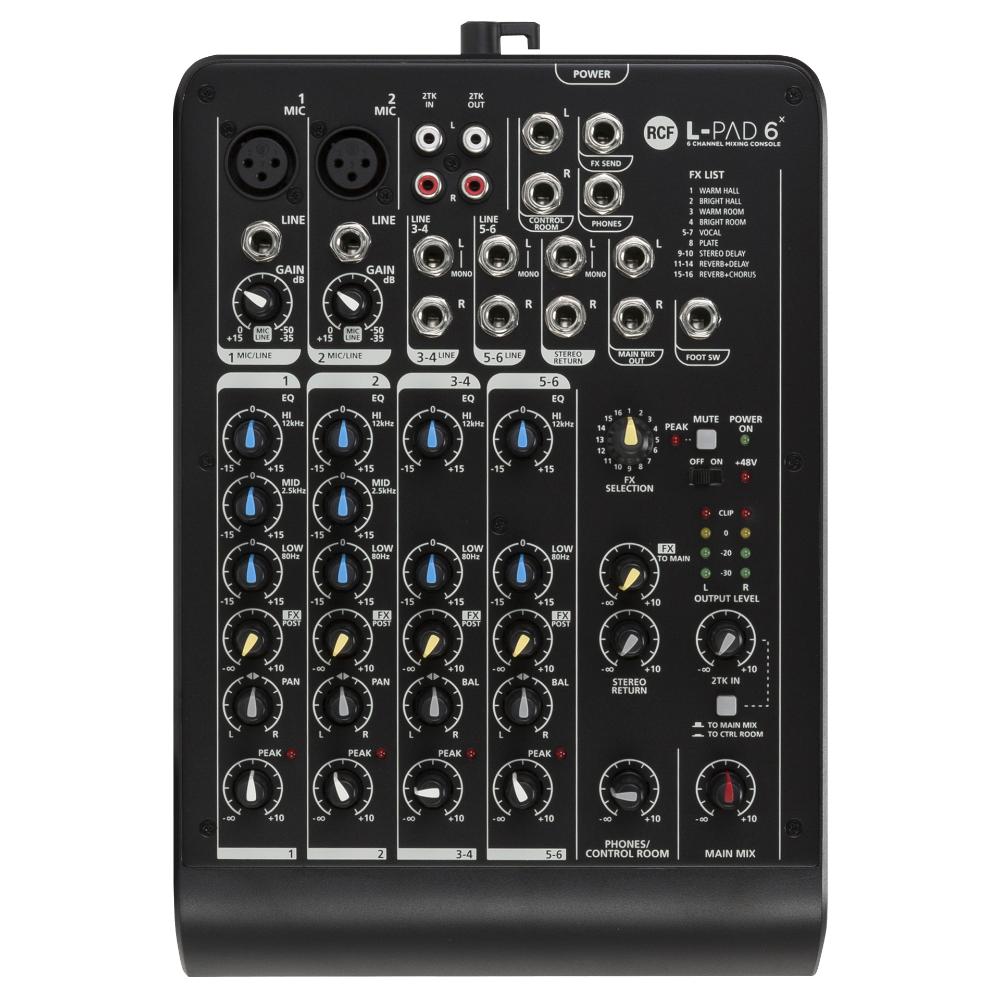

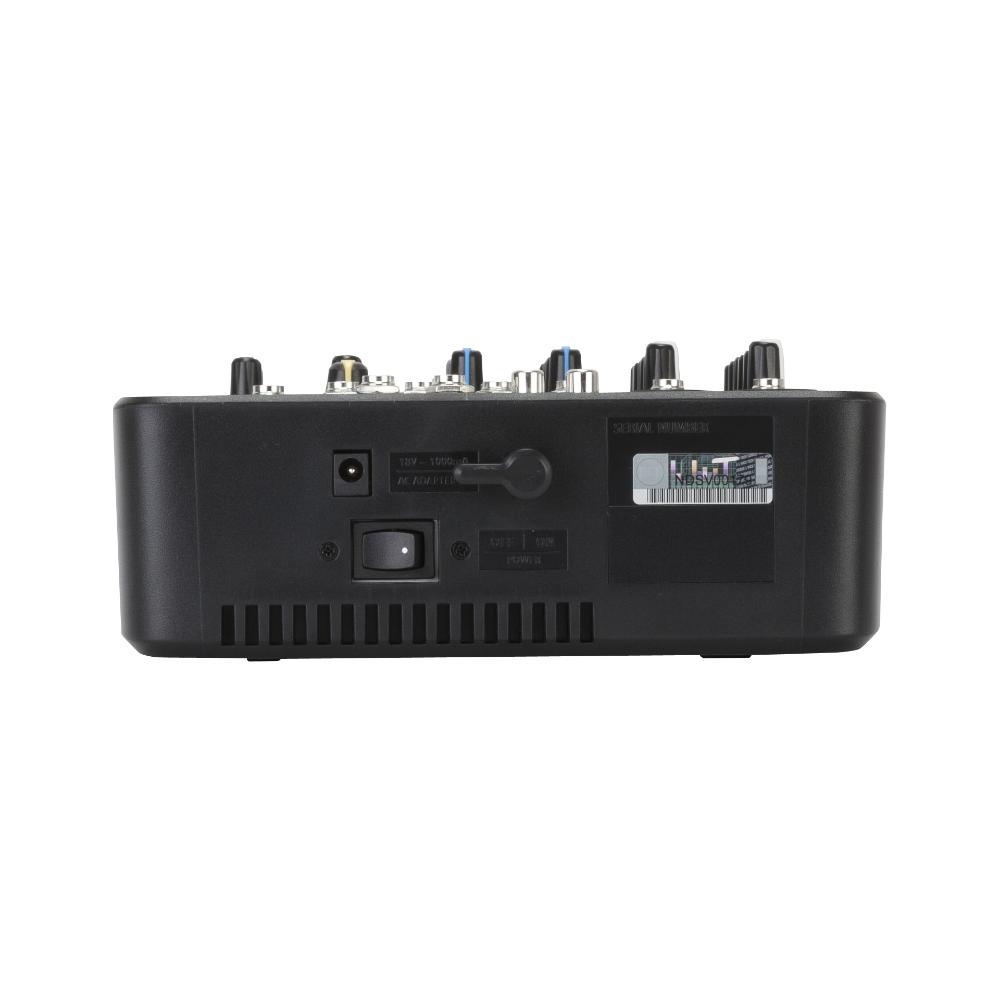

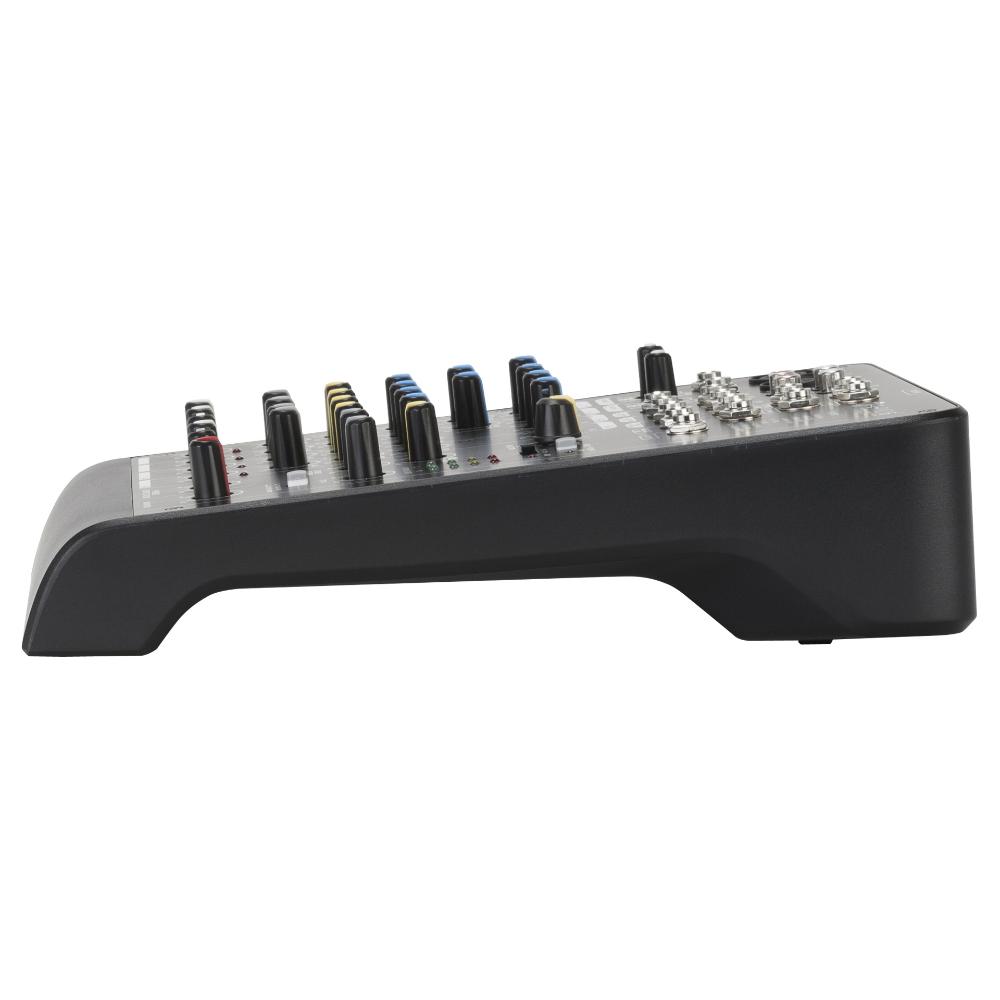

L-PAD 6X

6 CHANNEL MIXING CONSOLE WITH EFFECTS
  • 2 mono INPUT + 2 stereo INPUT
  • 3band/2band EQ
  • Internal Digital Effects: 99 preset
  • External PSU 18V~ 1000mA
Support
Features
  • 2 mono INPUT + 2 stereo INPUT
  • 3band/2band EQ
  • 1 FX send
  • Internal Digital Effects: 99 preset
  • External PSU 18V~ 1000mA

With two transparent sound mic inputs, two stereo line inputs and the 2tk in/out, L-PAD6X is the ideal tool for one man bands, speech, background music diffusion and parties.The 16-preset Internal FX DSP allows the sound to be improved, adding accurate and warm effects. Thanks to the accurate Italian design L-PAD6X is easy to grab and handle in all the situations. It is possible to install L-PAD6X on a mic stand with the dedicated accessories.

ARCHIVED

Part number:

17140029
L-PAD 6X
220-240V, EU, EAN 8024530011253

17140036
L-PAD 6X
115V, US, EAN 8024530011260

17140048
L-PAD 6X
100V, JP, EAN 8024530011451

17140049
L-PAD 6X
240V, AU, EAN 8024530011468

17140057
L-PAD 6X
240V, UK, EAN 8024530011543

Specifications
Electronic specifications
Frequency Response:
10 Hz ÷ 55000 kHz
Inputs
Mic:
2
Gain Range:
0 dB ÷ -50 dB
Mono Line:
4
Gain Selection:
15 dB ÷ -35 dB
Line Input Impedance:
10 kohm
Outputs
Main MIX:
1
Control Room:
Yes
FX Send:
1
Phones:
1
2 Track:
Yes
Outputs specifications
Main Out Impedance:
120 ohm
Main Out Level:
22 dBu
Aux Out Impedance (ohm):
120 ohm
Aux Out Level:
22 dBu
EQ
Input Channels EQ:
2 Shelving 3
Auxiliary sends
FX POST:
1
Internal Effects
Send Effects:
16
Other features
Footswitch:
Yes
Electrical specifications
Power supply:
External
Voltage requirements:
100 V - 240 V
Power consumption (MAX):
17 W
Physical specifications
Cabinet/Case Material:
ABS
Size
Height:
66 mm / 2.6 inches
Width:
197 mm / 7.76 inches
Depth:
281 mm / 11.06 inches
Weight:
1.82 kg / 4.01 lbs
Shipping information
Package Height:
80 mm / 3.15 inches
Package Width:
280 mm / 11.02 inches
Package Depth:
200 mm / 7.87 inches
Package Weight:
2.48 kg / 5.47 lbs
