Features
  • 4 mono INPUT + 3 stereo INPUT
  • 2 Compressors (Ch. 1-2)
  • Internal Digital Effects: 99 preset
  • 1 FX send
  • External PSU 18V~ 1000mA
  • 3band/2band EQ

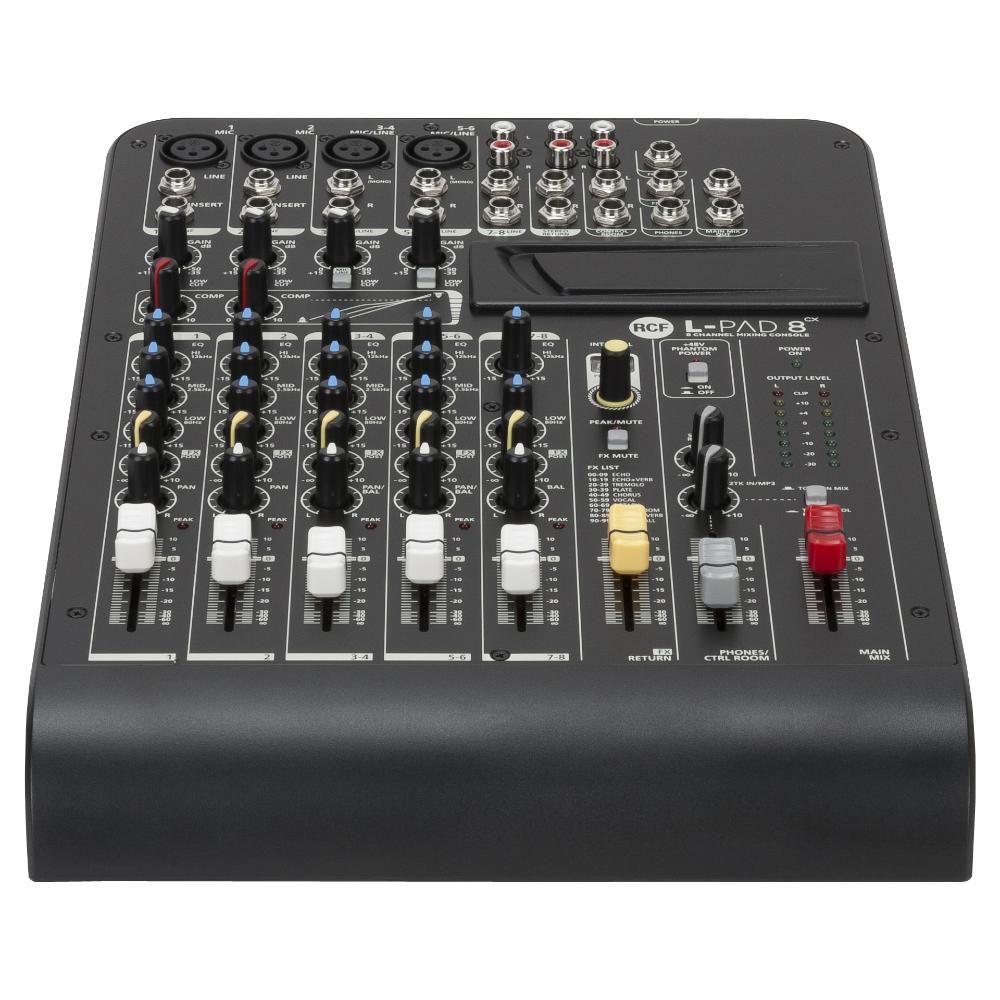

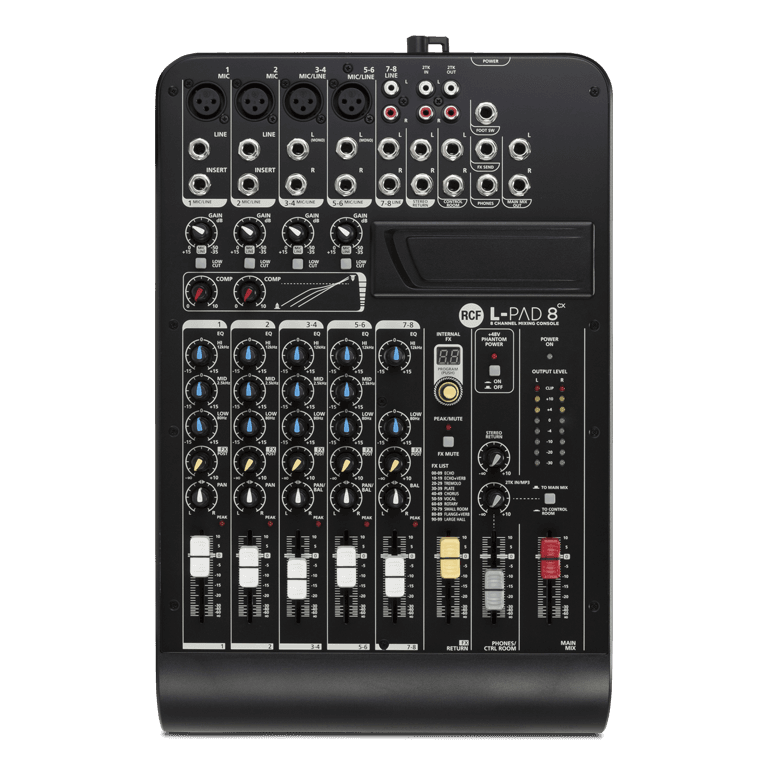

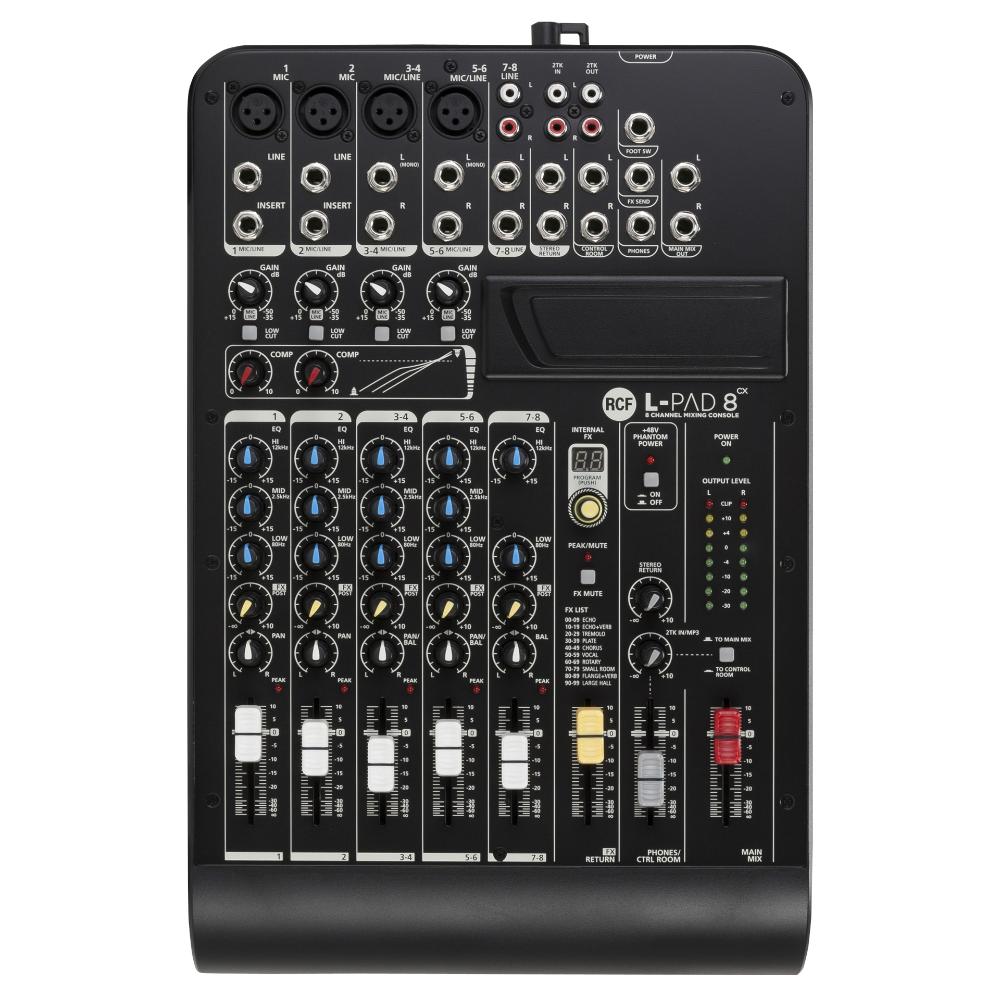

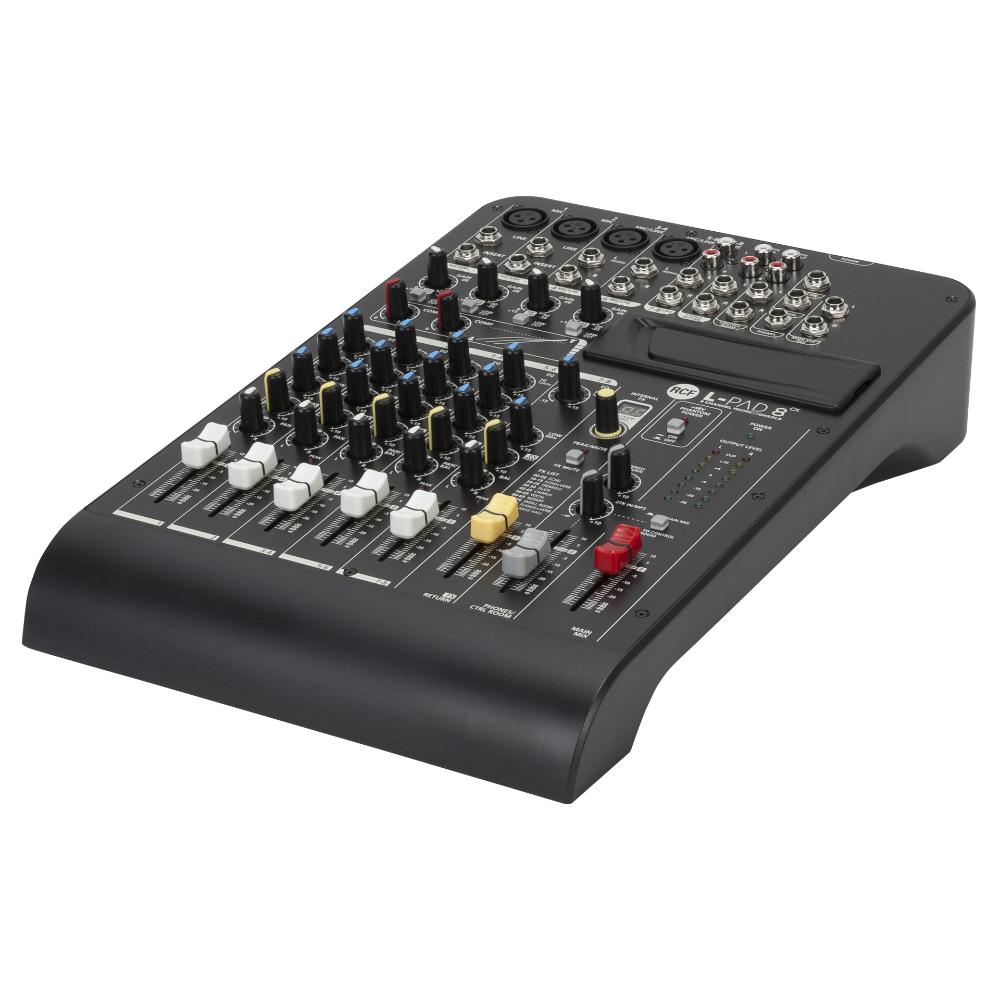

With four transparent sound mic inputs, three stereo line inputs and the 2tk in/ out, L-PAD8CX is the ideal tool for duo/trio gigs, speech, background music diffusion and parties. Two single-control compressors on mic channels help to handle even the more dynamic complex signals. The 99 preset Internal FX DSP allows the sound to be improved by adding accurate and warm effects. The super versatile L-PAD slot permits the optional L-PAD MP3 PLAYER, PLAYER/RECORDER or BLUETOOTH CONNECTION cards to be inserted for even more flexible use. Thanks to the accurate Italian design L-PAD8CX is easy to grab, transport and handle in all the situations.


ARCHIVED

Part number:

17140031
L-PAD 8CX
220-240V, EU, EAN 8024530011291

17140038
L-PAD 8CX
115V, US, EAN 8024530011307

17140052
L-PAD 8CX
100V, JP, EAN 8024530011499

17140053
L-PAD 8CX
240V, AU, EAN 8024530011505

17140059
L-PAD 8CX
240V, UK, EAN 8024530011567

Specifications
Electronic specifications
Frequency Response
10 Hz ÷ 55000 kHz
Inputs
Mic
4
Gain Range
0 dB ÷ -50 dB
Mic Inputs Impedance
2 kohm
Low Cut
75 Hz
Phantom Power +48V
Yes
Mono Line
5
Gain Selection
15 dB ÷ -35 dB
Line Input Impedance
10 kohm
Outputs
Main MIX
1
Control Room
Yes
FX Send
1
AUX Output
1
Phones
1
Outputs specifications
Main Out Impedance
120 ohm
Main Out Level
22 dBu
Aux Out Impedance (ohm)
120 ohm
Aux Out Level
22 dBu
Compressors
RCF Compressors
On input 1 - 2
EQ
Input Channels EQ
2 Shelving 3
Auxiliary sends
FX POST
1
Internal Effects
Send Effects
99
Electrical specifications
Power supply
External
Voltage requirements
100 V - 240 V
Power consumption (MAX)
24 W
Size
Height
74 mm / 2.91 inches
Width
257 mm / 10.12 inches
Depth
387 mm / 15.24 inches
Weight
2.67 kg / 5.89 lbs
Shipping information
Package Height
150 mm / 5.91 inches
Package Width
510 mm / 20.08 inches
Package Depth
310 mm / 12.2 inches
Package Weight
3.67 kg / 8.09 lbs
