PRECISION TRANSDUCERS

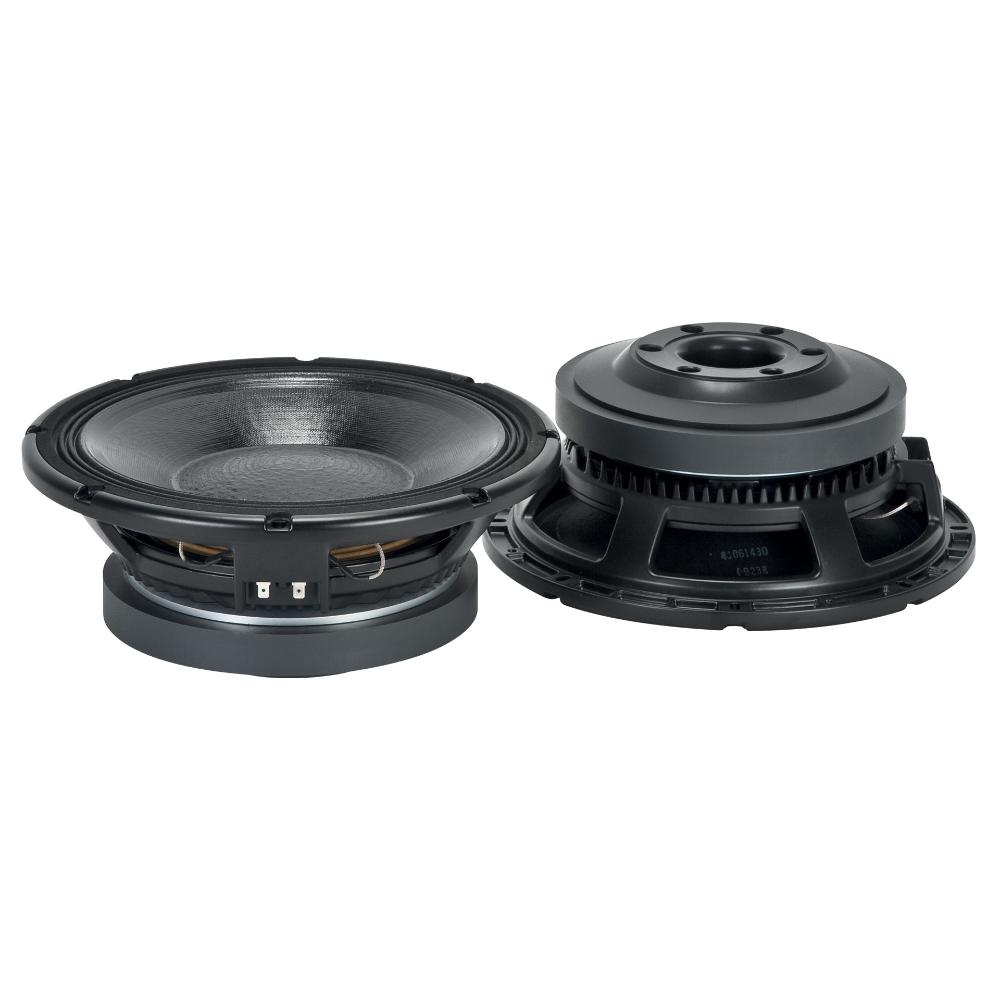

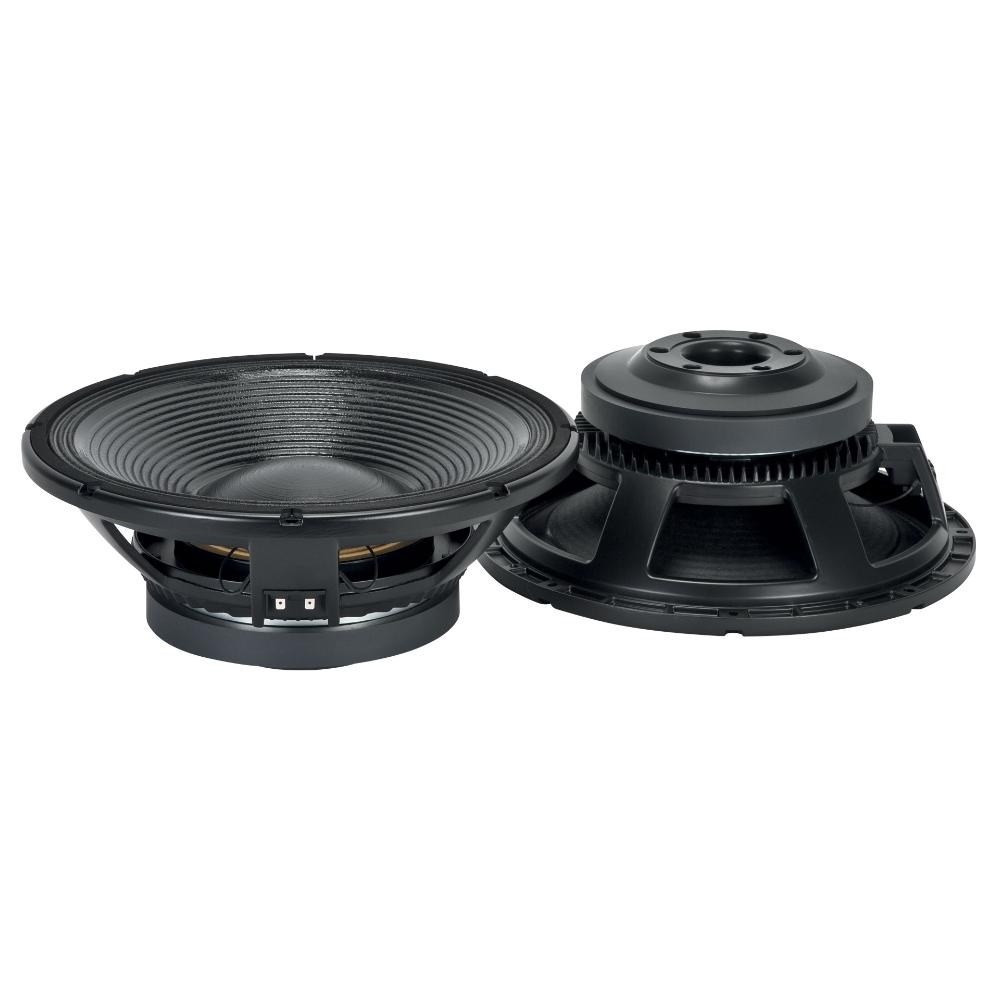

LF12X401

WOOFER

4-inch, fiberglass inside/outside copper voice coil
2000W continuous program power handling
96 dB Sensitivity
45 Hz – 1.5 kHz Frequency range

Support

Features

4-inch, fiberglass inside/outside copper voice coil
2000W continuous program power handling
96 dB Sensitivity
45 Hz – 1.5 kHz Frequency range
Dual Forced Hyperventing System
Single spider designed

Very linear frequency response characteristics, extreme high power handling while generating the lowest harmonic distortion of any comparable 18-inch transducer within its application range. The LF12X401 uses a fibre loaded cone assembly along with a high excursion triple roll surround. This combination provides remarkable strength and a peak to peak maximum excursion of 50 mm. The new dual forced hyper-venting system guarantee a very efficient voice coil ventilation for minimum power compression and incredible power handling.

ARCHIVED

Part number:

11100096
LF12X401
8ohm

Specifications

General specifications

Nominal Diameter

12 inch / 305 mm

Rated Impedance

8 ohm

Program Power (watt)

2000 W

Power handling capacity

1000 W

Sensitivity

96.5 dB

Frequency range

45 - 1500 Hz

Effective piston diameter

260 mm / 10.24 inch

Max. Excursion Before Damage

60 mm / 2.36 inch

Minimum Impedance (ohm)

6.5 ohm

Voice Coil Diameter

4.0 inch / 102 mm

Voice Coil Winding Material

Copper

Voice Coil Length

25 mm / 0.98 inch

Number of layers

Kind of layers

inside/outside

Top Plate Thickness

15 mm / 0.59 inch

Cone Design

Curved

Surround Material

Polycotton

Surround Design

Triple roll

Magnets

Ceramic

Dual-force air ventilation

Yes

Spider

Thiele - small parameters

Resonance frequency (Fs)

45 Hz

DC resistance (Re) (ohm)

5.20 ohm

Mechanical factor

8.00 Qms

Electrical factor

0.28 Qes

Total factor

0.27 Qts

Bl factor (Bl) (T x m)

26.10 T x m

Effective moving mass (Mms)

105.0 g

Equivalent Cas air loaded (Vas)

50.0 liters

Effective piston area (Sd)

0.050 m2

Max. linear excursion (Xmax)

9 mm

Voice coil inductance @ 1kHz (Le1k)

1.00 mH

Half-space efficency (Eff)

1.50%

Mounting information

Overall diameter

320 mm / 12.6 inches

Bolt circle diameter

293-304 mm / 11.54-11.97 inch

Bolt hole diameter

7 mm / 0.28 inch

Front mount baffle cut-out

282 mm / 11.1 inch

Rear mount baffle cut-out

284 mm / 11.18 inch

Volume occupied by the driver

2.9 liters / 0.11 ft3

Standard compliance

Safety agency

CE compliant

Size / Weight

Height

134 mm / 5.28 inches

Diameter

320 mm / 12.6 inches

Weight

11.37 kg / 25.07 lbs

Shipping information

Package Height

194 mm / 7.64 inches

Package Width

364 mm / 14.33 inches

Package Depth

354 mm / 13.94 inches

Package Weight

12.3 kg / 27.12 lbs

Downloads

SPECIFICATIONS

SPECSHEET - ENG

PDF

412 KB

19-08-2024

ACOUSTIC MEASUREMENTS

PDF

62 KB

11-07-2024

DRAWINGS

LINE ART 2D

PDF

317 KB
