ARCHIVED
INSTALLED SOUND

M 1001

TWO-WAY PASSIVE SPEAKER
  • 300W AES power handling
  • 1 x 10" woofer, vented
  • 1 x 1" driver, on 90°x60° CD horn
  • Steel Front Grille with robust double mesh polyester clothing
Support
Features Specifications Downloads
Support
Features
  • High Quality 2-way passive loudspeaker

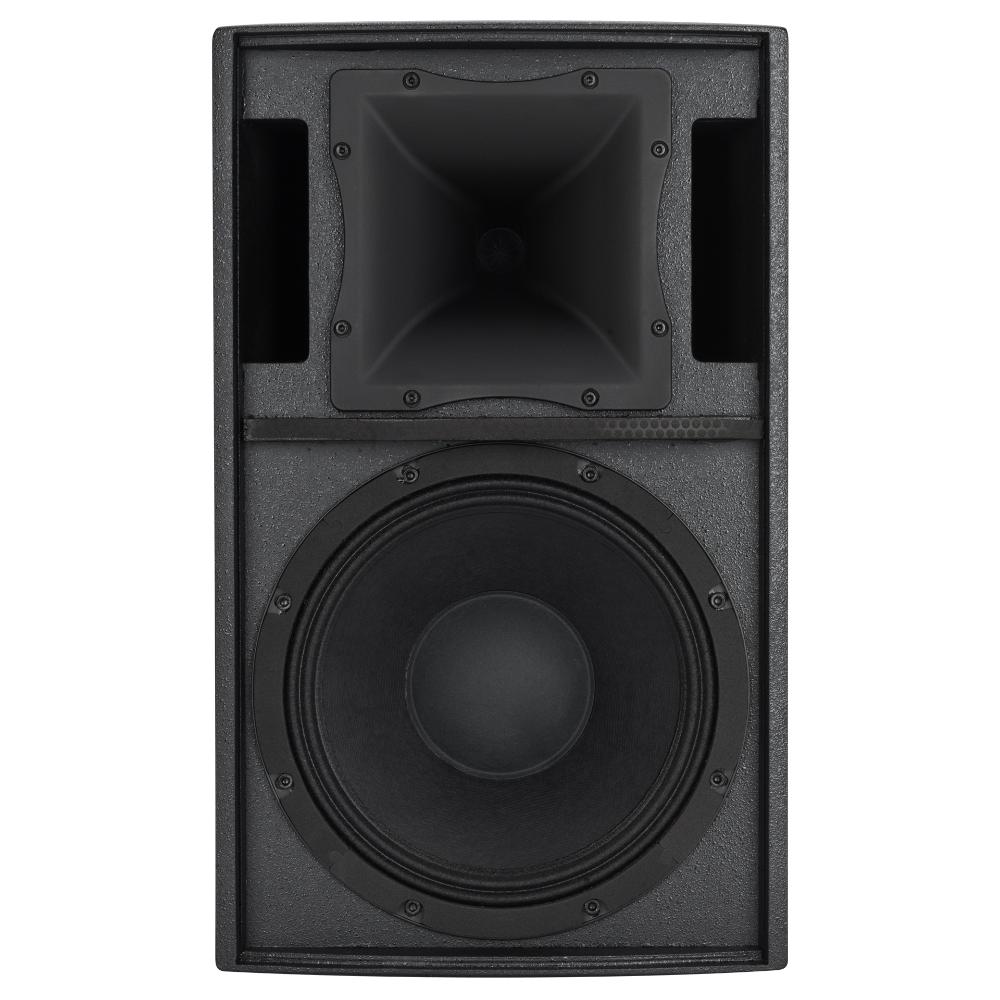

  • 1 x 10" woofer, vented
  • 1 x 1" driver, on 90°x60° CD horn
  • High Power Handling ‘Low Impedance Compensated Crossover', with electronic protection for the driver
  • 300W AES power handling
  • Rotatable RCF front logo

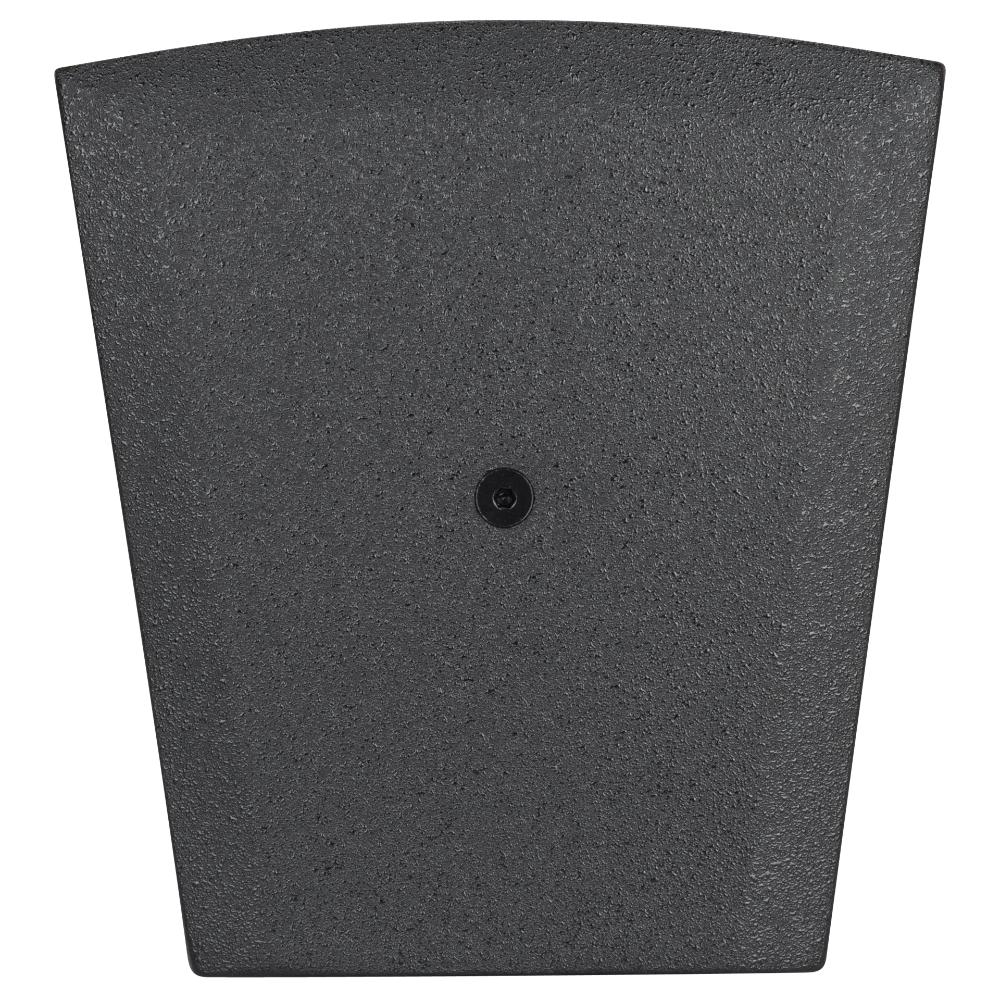

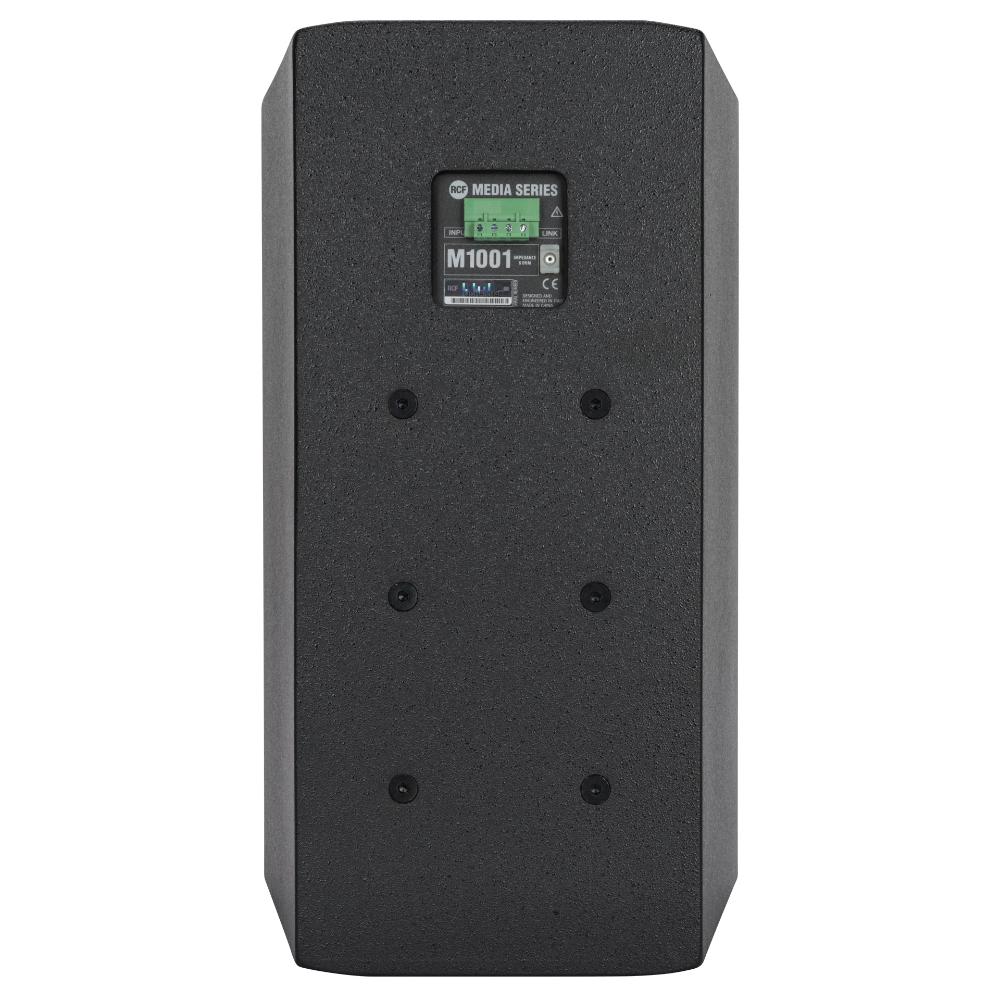

  • Installation points are available on the rear panel, top and bottom

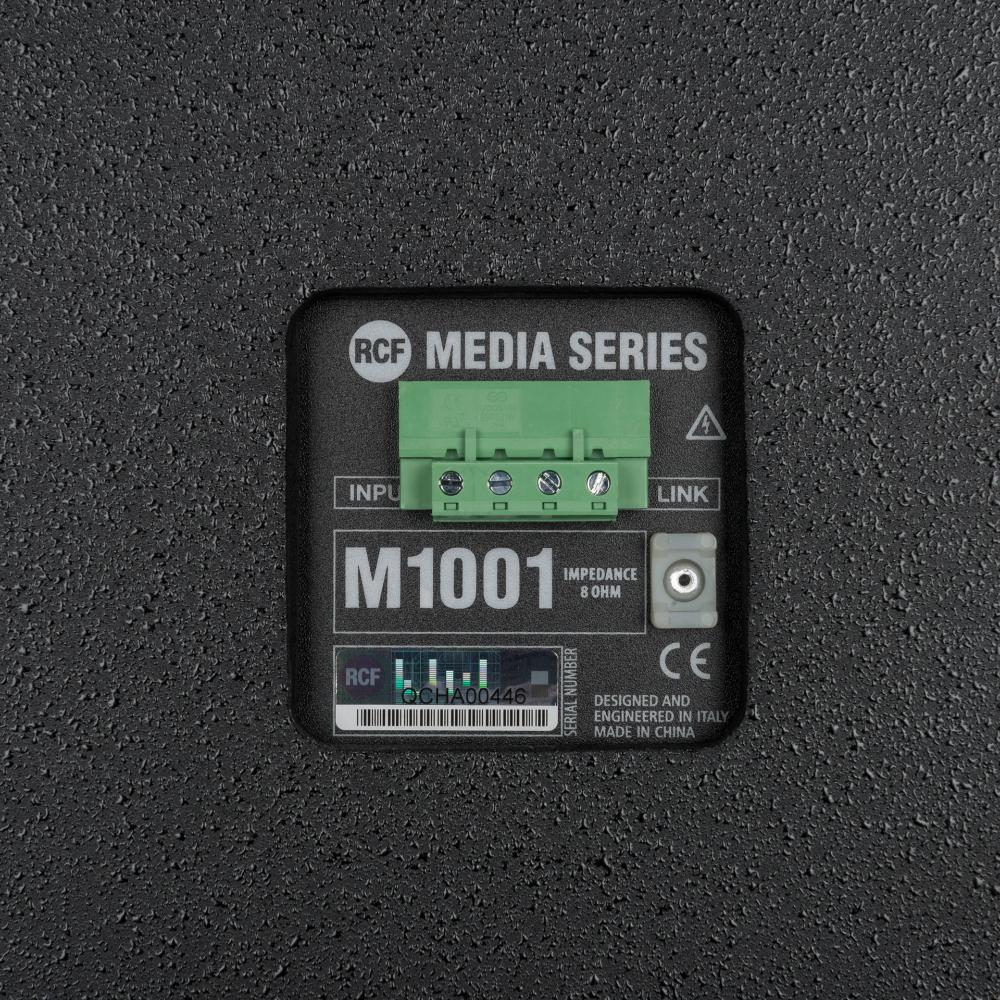

  • All models have a 4-pin EUROBLOCK connector (audio input and parallel link output)

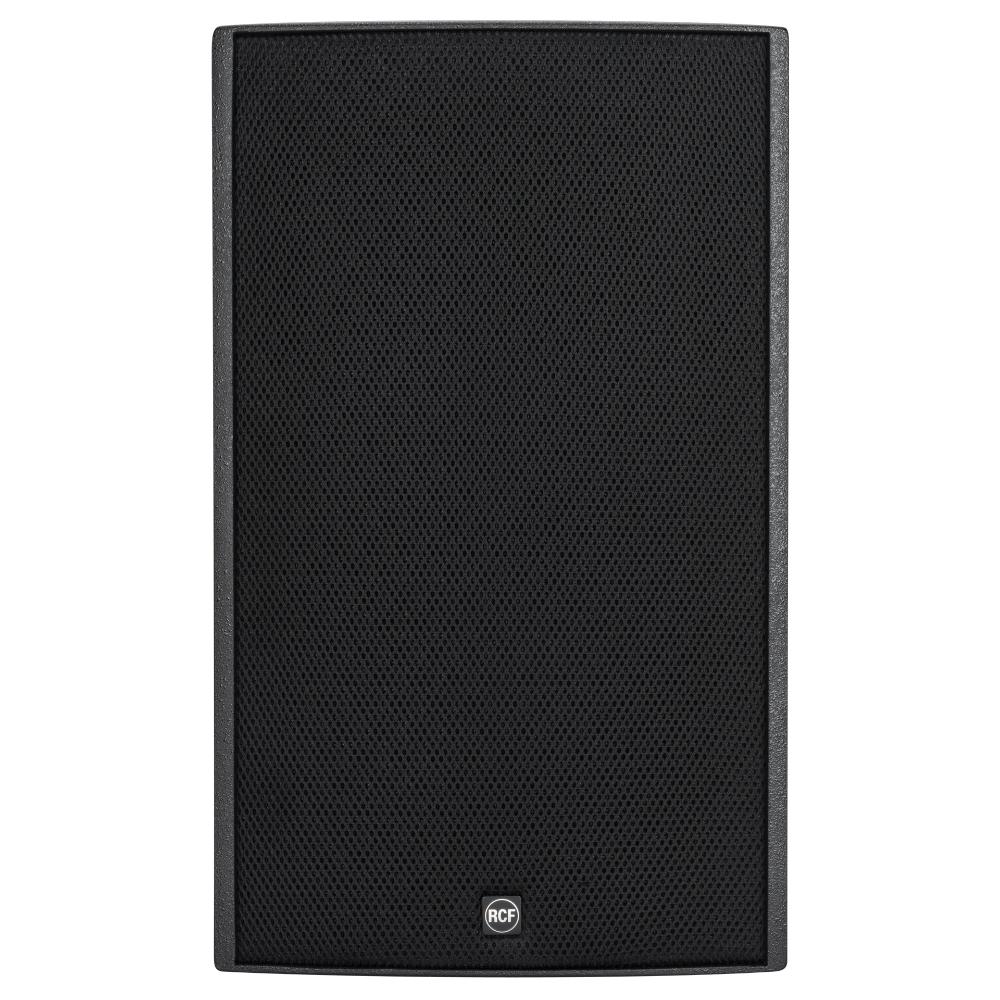

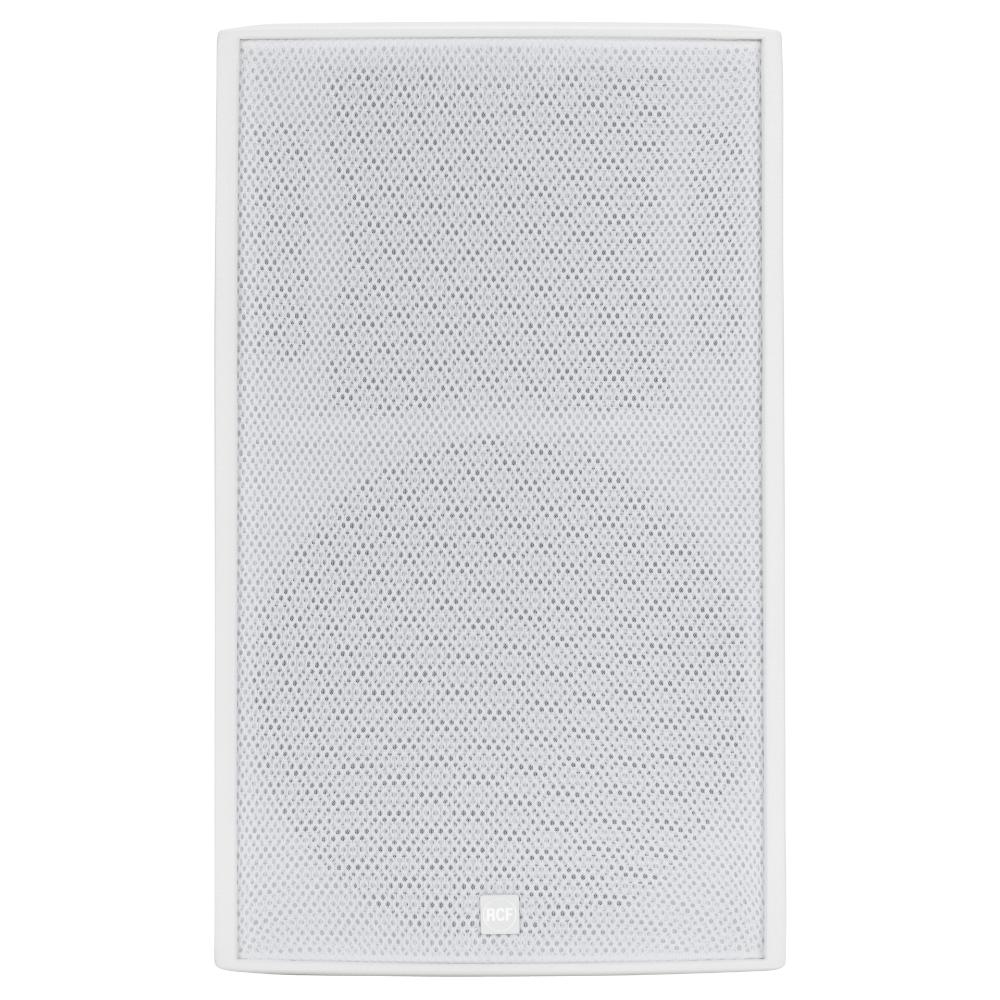

  • Steel Front Grille with robust double mesh polyester clothing

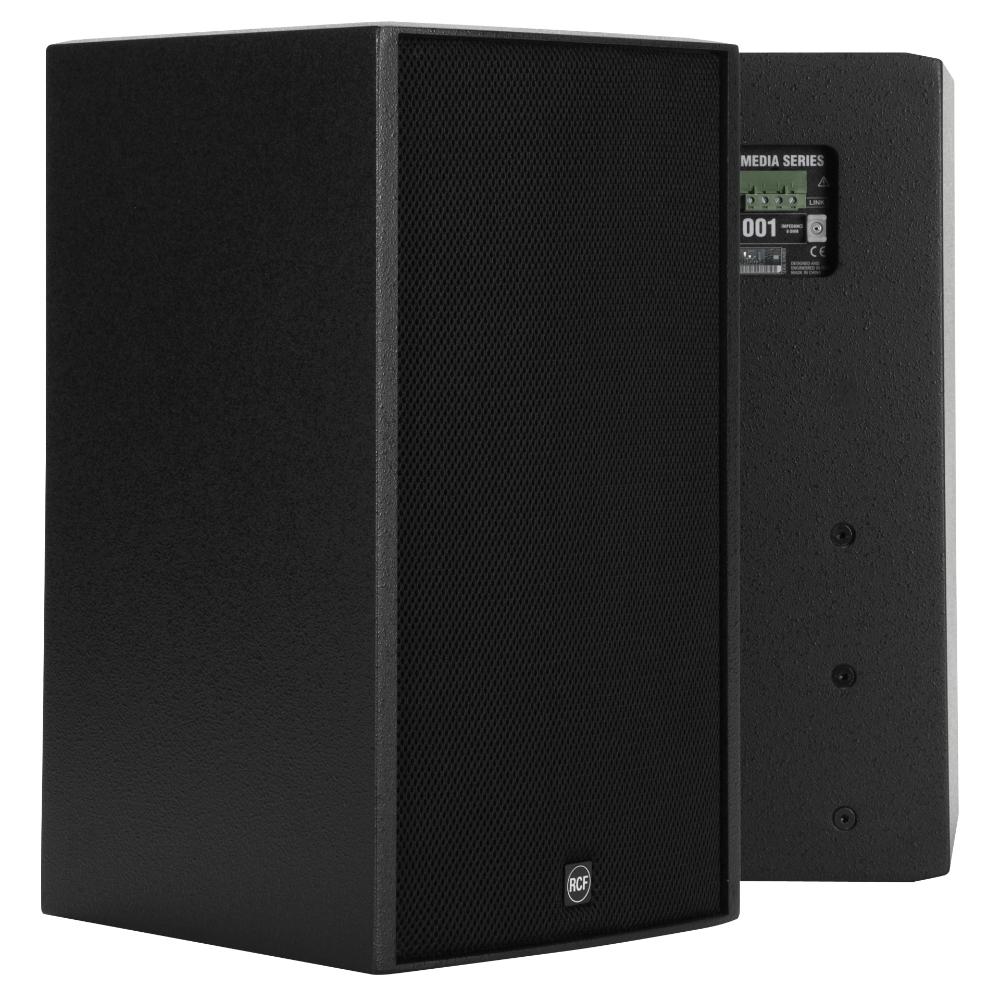

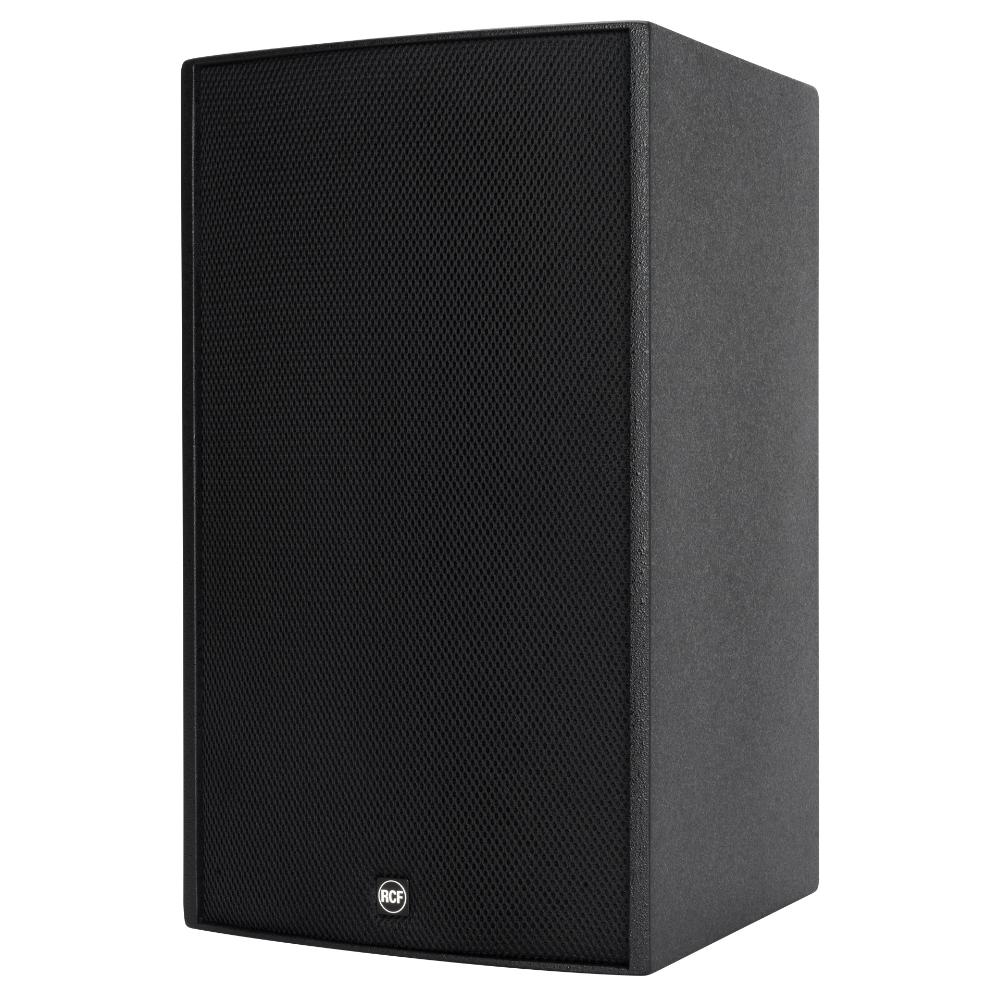

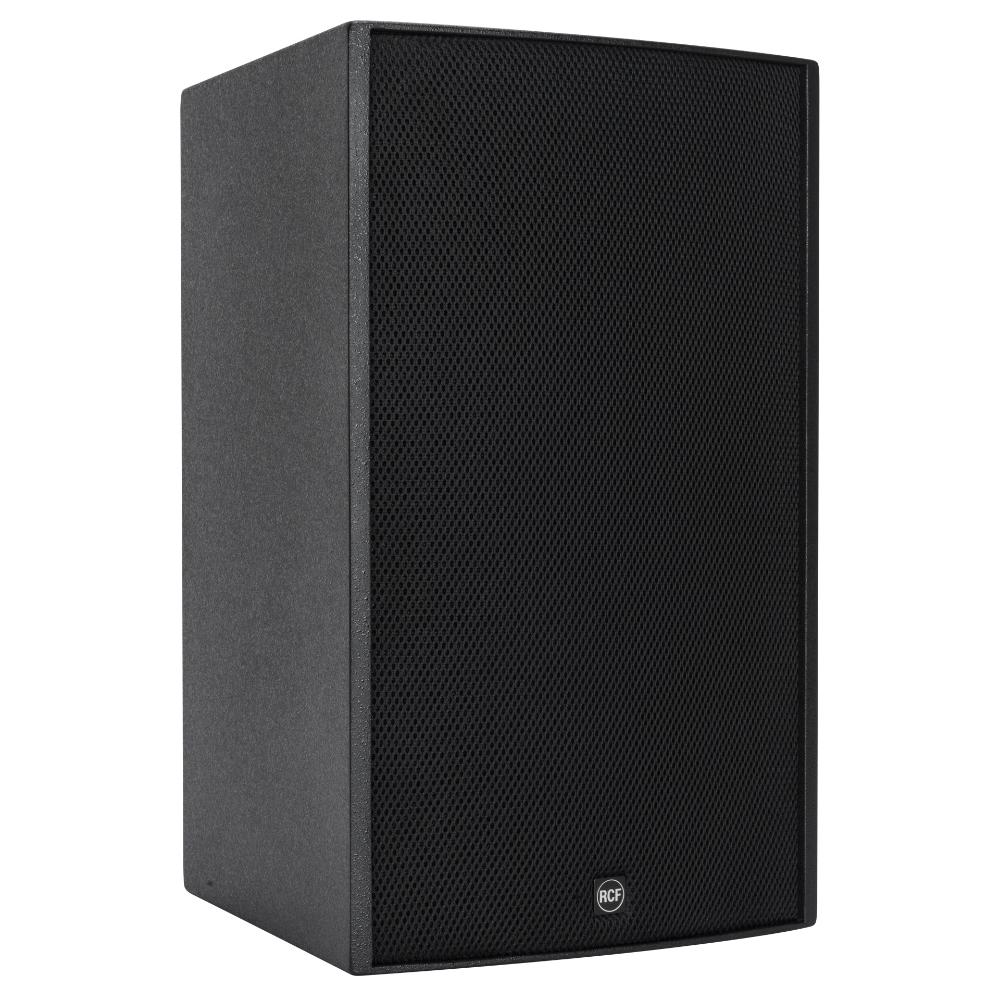

M1001 is a multipurpose two-way full-range speaker system, suitable in a wide range of installations. The compactness, together with the elegant and neutral design with accurate finishing make M1001 suitable for almost any environment and architectural constraint. Available mounting accessories allow you to use the M1001 wall or ceiling mounted, with reference to the several possible applications. The M1001 has a controlled dispersion and delivers undistorted SPL value above any expectation from such a compact speaker system. The M1001 features high sensitivity thanks to the use of oversized magnets and a comfortable sound quality with smooth and wide frequency response performed thanks to the Kapton diaphragm compression driver loaded on a constant directivity horn. The LICC crossover design includes an electronic protection on high frequency device.

ARCHIVED

Part number:

13000497

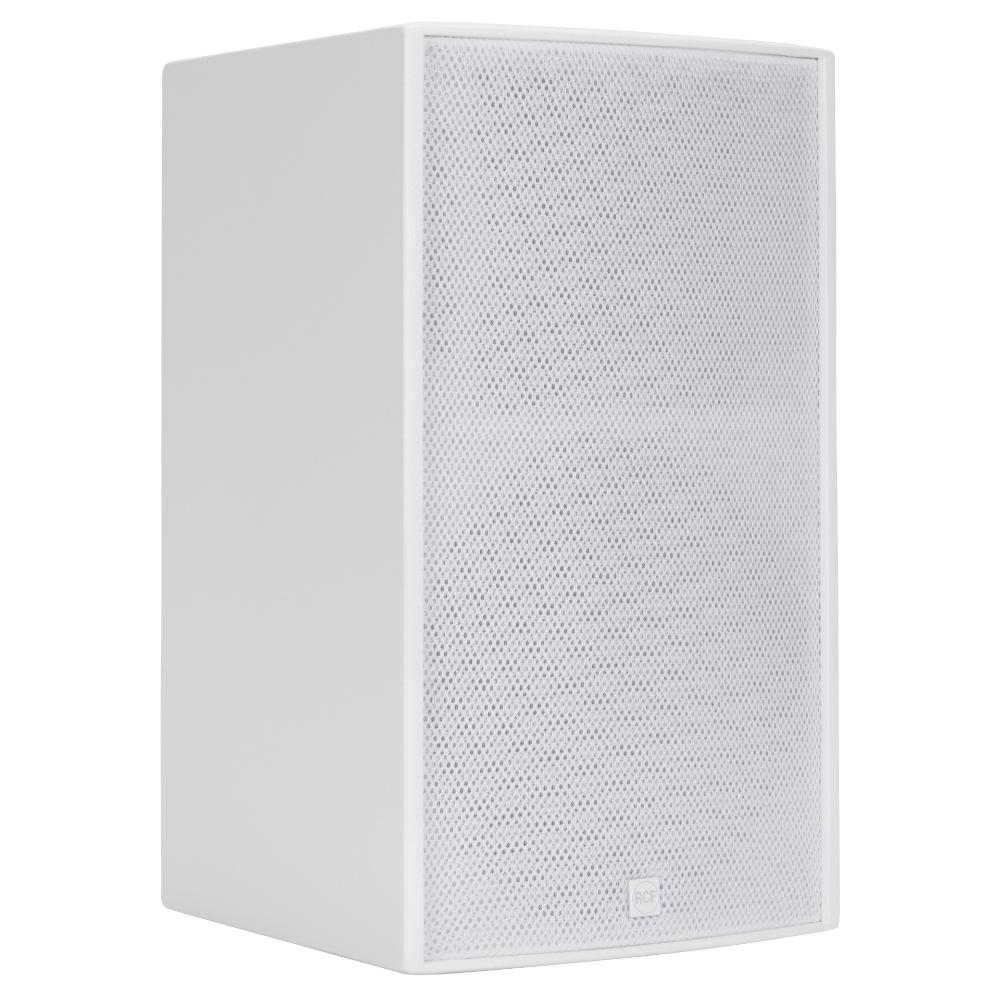

M 1001 W
White, EAN 8024530014049

13041015
M 1001
Black, EAN 8024530010072

Specifications
Acoustical specifications
Frequency Response (-10dB):
60 Hz ÷ 20000 Hz
Max SPL @ 1m:
128 dB
Horizontal coverage angle:
90°
Vertical coverage angle:
70°
Directivity index Q:
10
System Sensitivity:
97 dB
Power section
Nominal Impedance:
8 ohm
Power Handling:
300 W RMS
Peak Power Handling:
1200 W PEAK
Recommended Amplifier:
600 W
Protections:
Dynamic active mosfet
Crossover Frequencies:
1700 Hz
Transducers
Compression Driver:
1.0'', 1.4'' v.c
Woofer:
10'', 2.5'' v.c
Input/Output section
Input connectors:
Euroblock
Output connectors:
Euroblock
Physical specifications
Cabinet/Case Material:
MDF
Hardware:
6 x M8, 2 x M10
Grille:
Steel with robust double mesh polyester clothing
Color:
Black, White
Size
Height:
500 mm / 19.69 inches
Width:
298 mm / 11.73 inches
Depth:
320 mm / 12.6 inches
Weight:
13.2 kg / 29.1 lbs
Shipping information
Package Height:
590 mm / 23.23 inches
Package Width:
388 mm / 15.28 inches
Package Depth:
388 mm / 15.28 inches
Package Weight:
14.8 kg / 32.63 lbs
