Features
  • High Quality 2-way passive loudspeaker

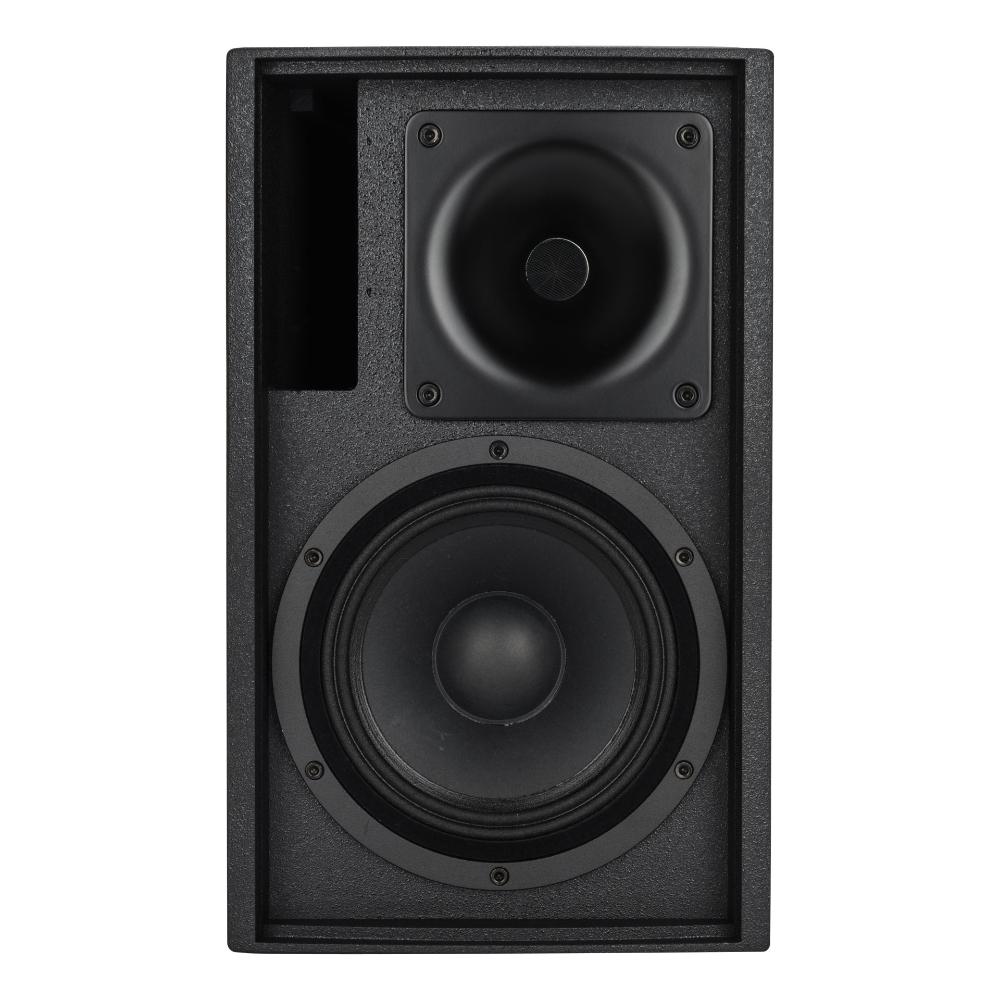

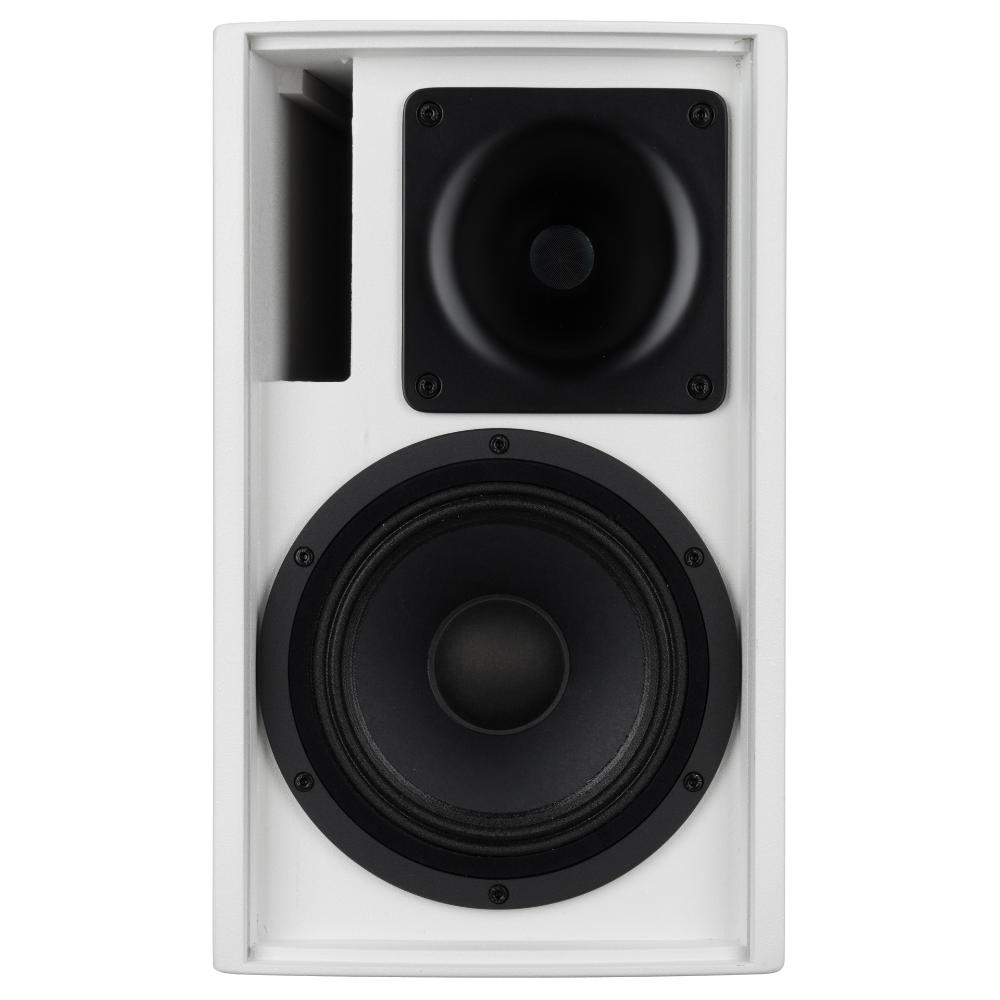

  • 1 x 6.5" woofer, vented
  • 1 x 1" in driver, on 90°x90° CD horn
  • High Power Handling ‘Low Impedance Compensated Crossover', with electronic protection for the driver
  • 100W AES power handling

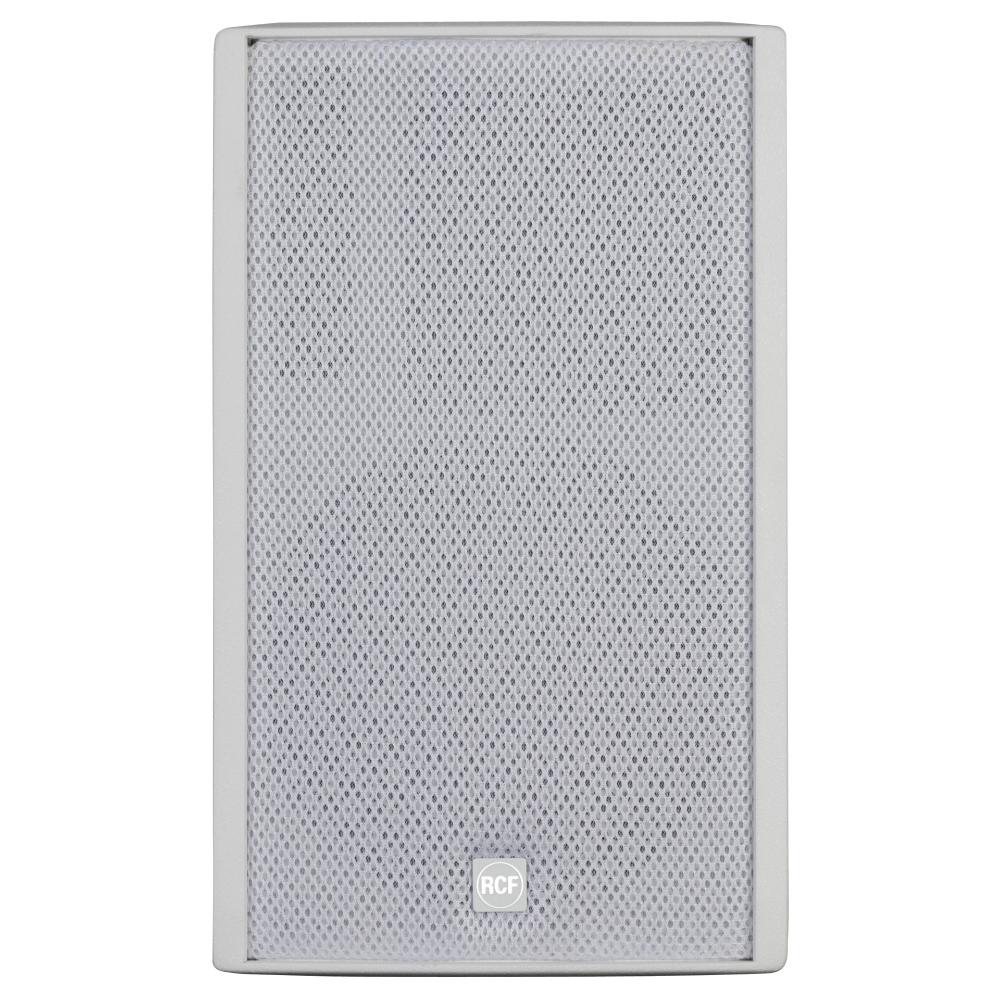

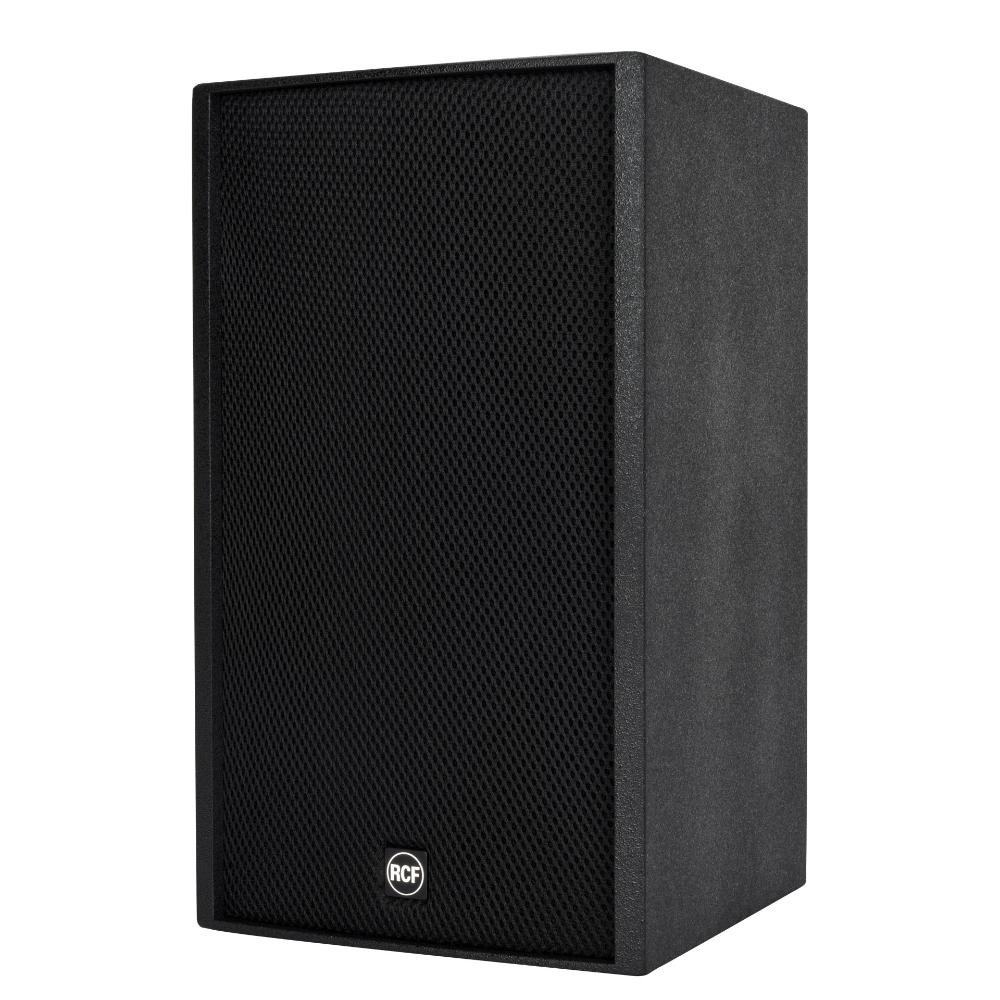

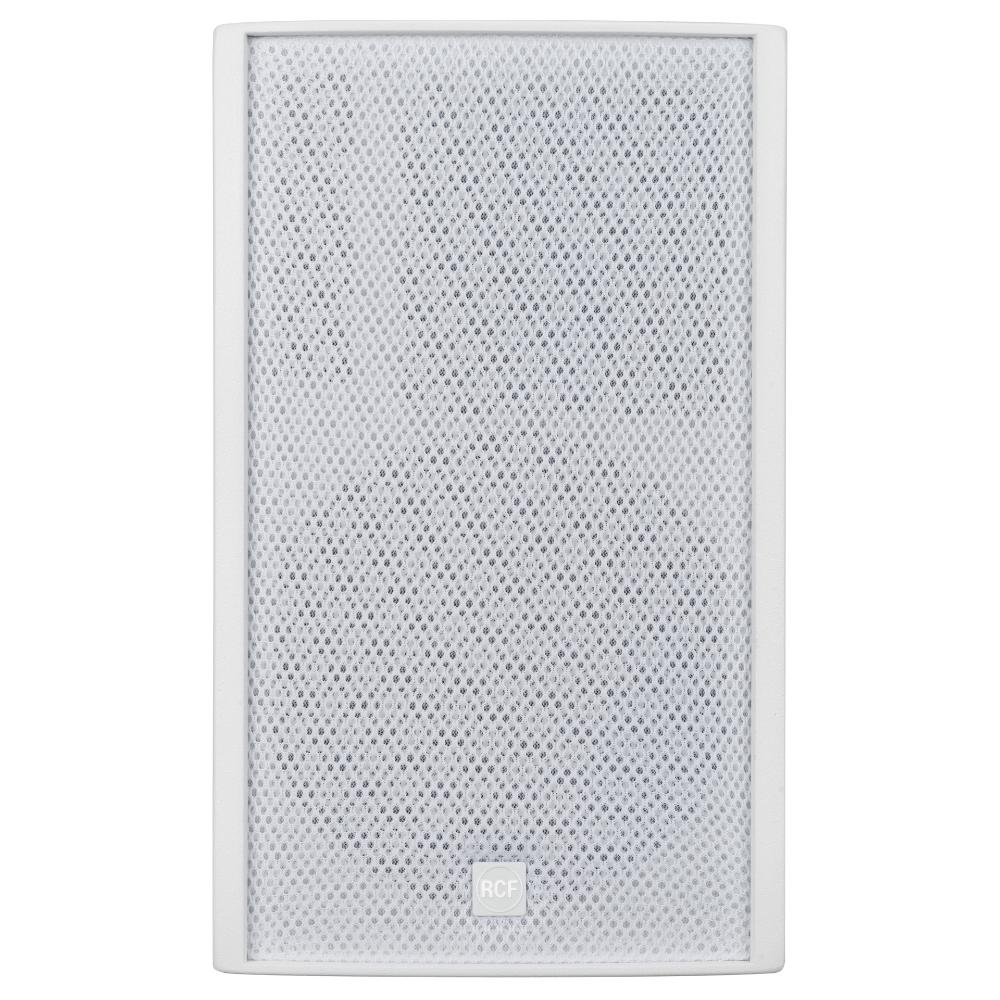

  • Steel Front Grille with robust double mesh polyester clothing
  • Rotatable RCF front logo

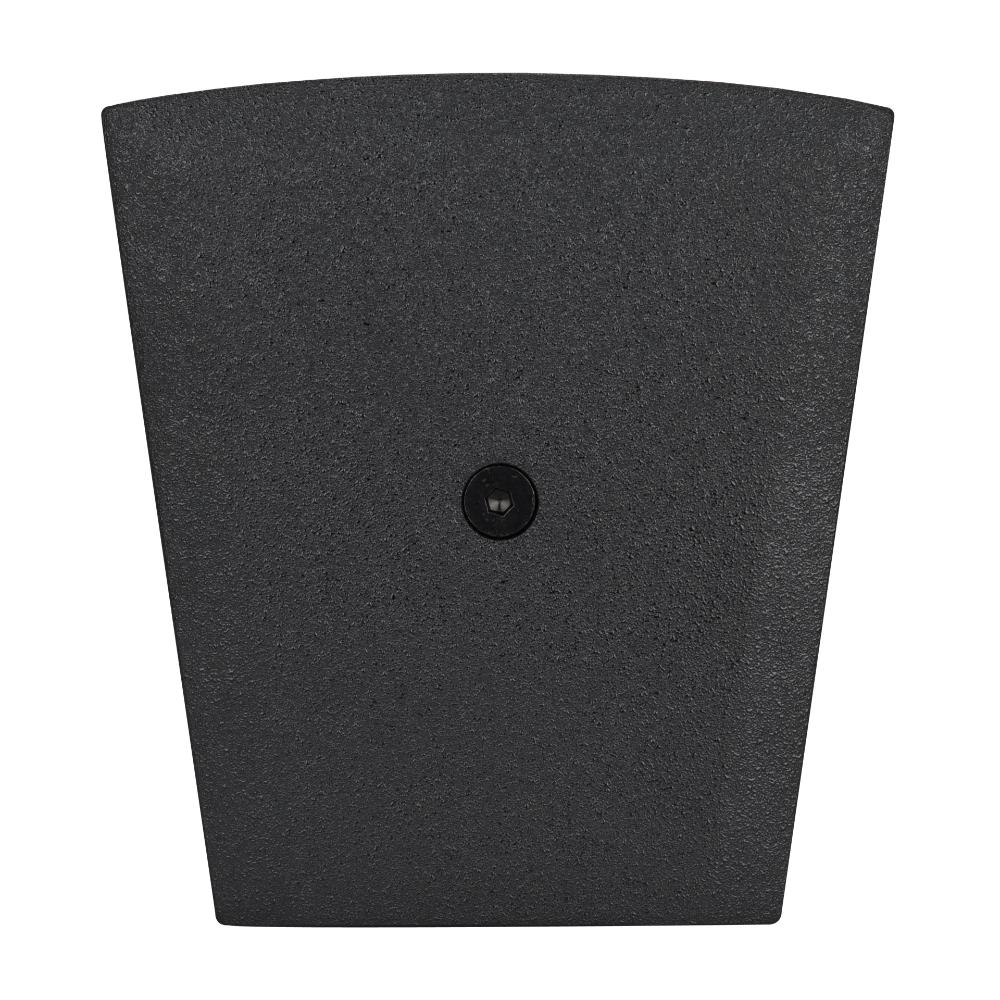

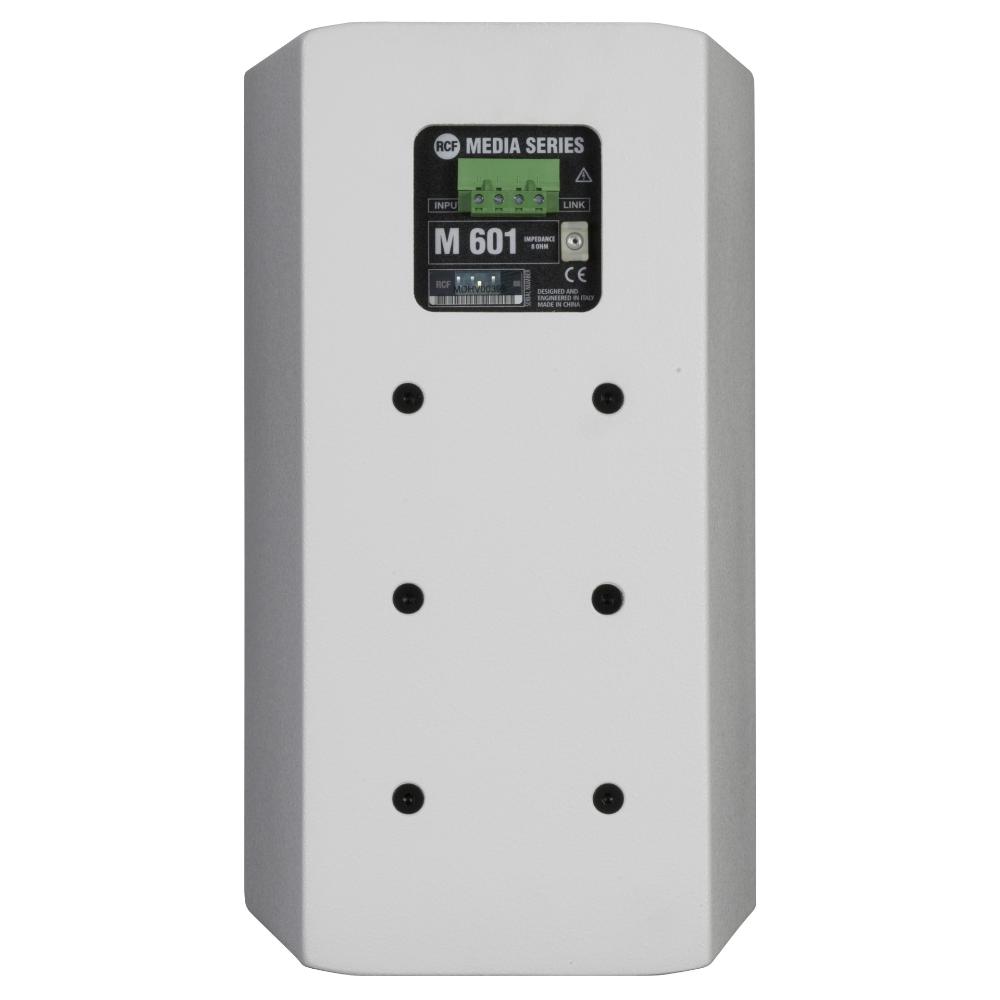

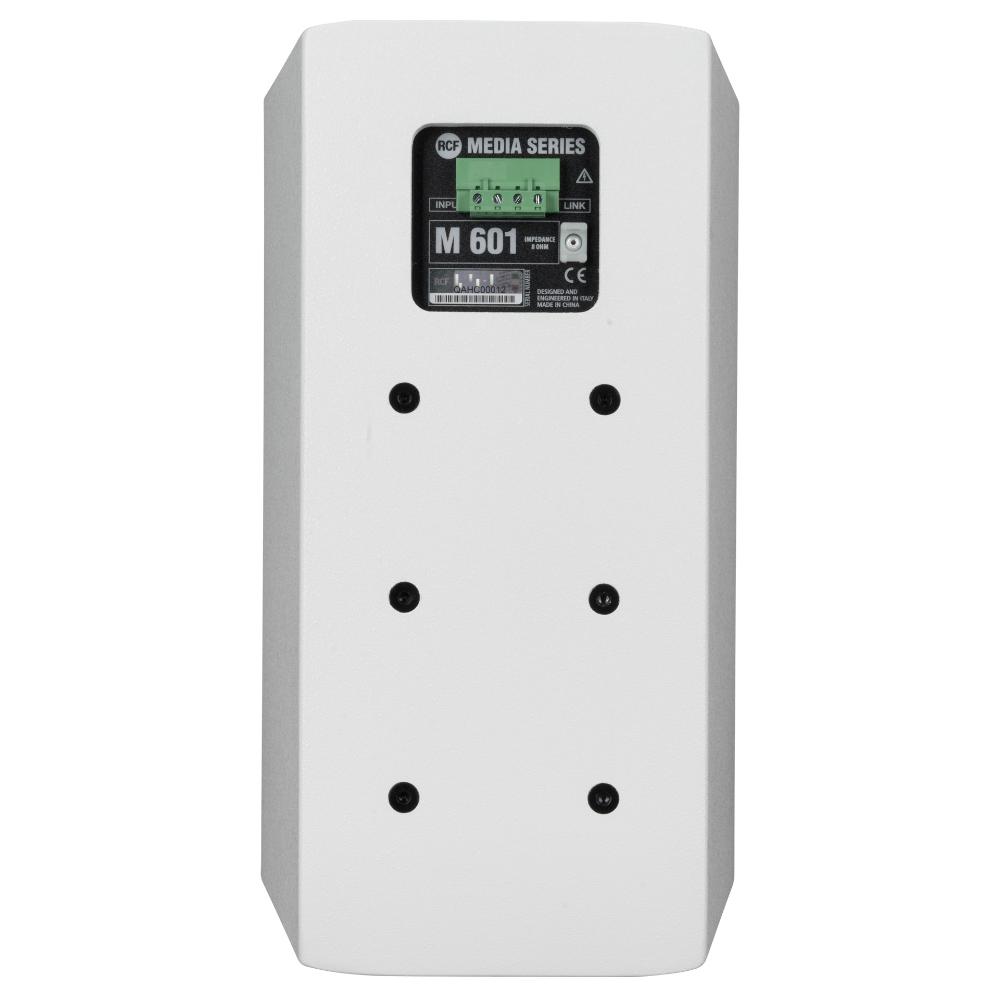

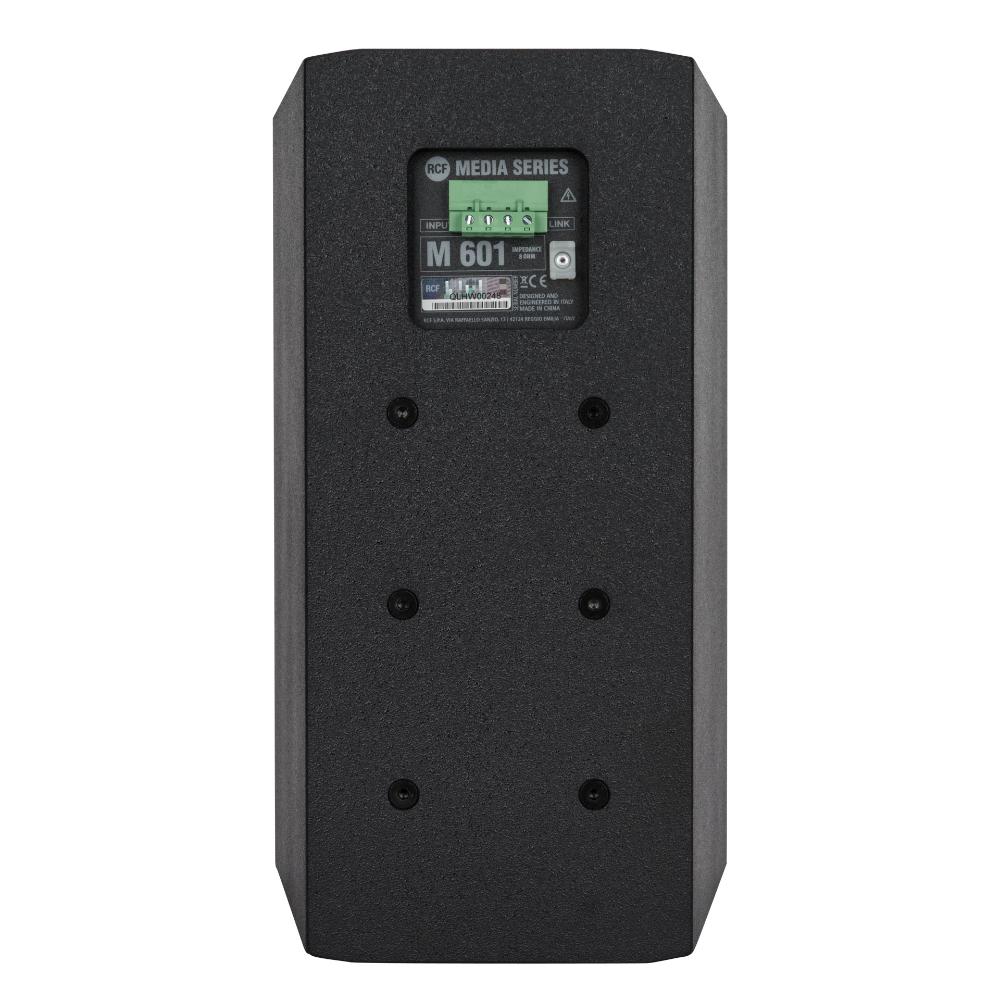

  • Installation points are available on the rear panel, top and bottom

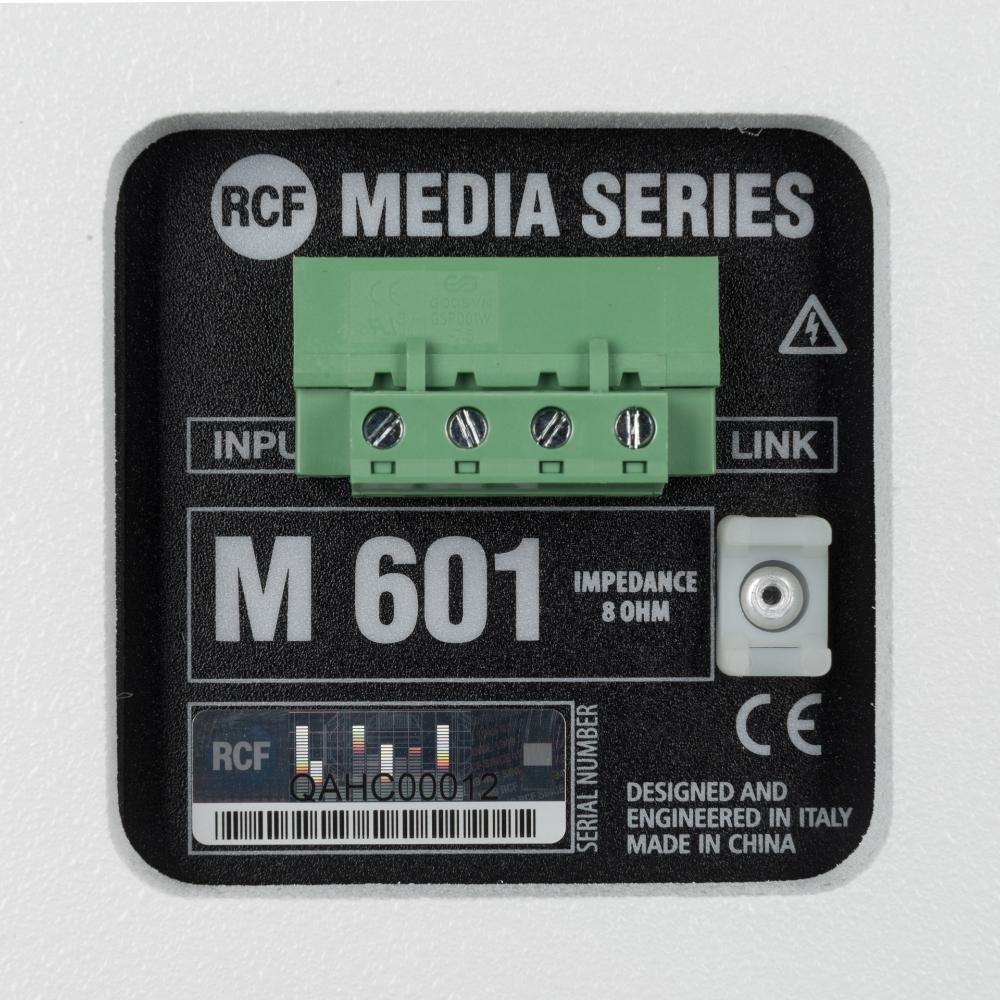

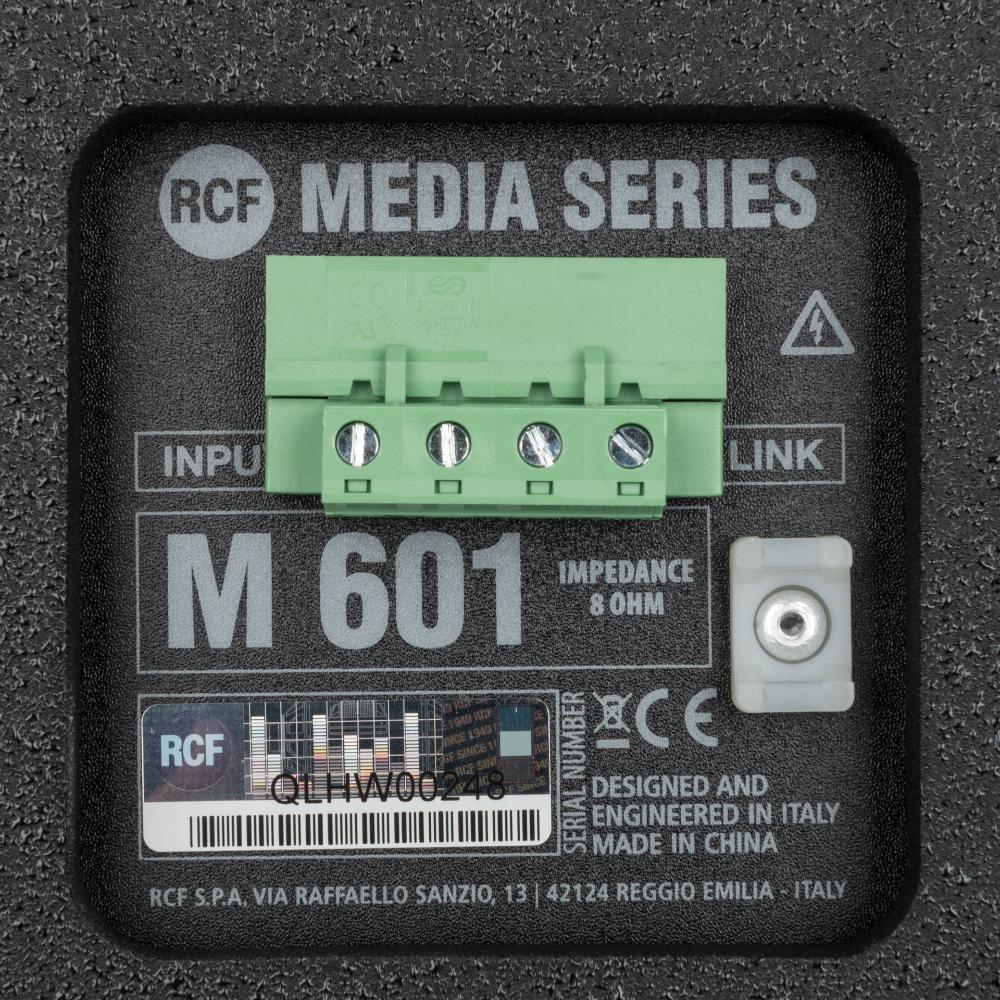

  • All models have a 4-pin EUROBLOCK connector (audio input and parallel link output)

M 601 is a multipurpose two-way full-range speaker system, suitable in a wide range of installations. The compactness, together with the elegant and neutral design with accurate finishing makes M 601 suitable for almost any environment and architectural constraint. Available mounting accessories allow you to use the M 601 wall or ceiling mounted, with reference to the several possible applications. The M 601 has a controlled dispersion and delivers undistorted SPL value above any expectation from such a compact speaker system. The M 601 features high sensitivity thanks to the use of oversized magnets and a comfortable sound quality with smooth and wide frequency response performed thanks to the Kapton diaphragm compression driver loaded on a constant directivity horn. The LICC crossover design includes an electronic protection on high frequency device.


ARCHIVED

Part number:

13041003
M 601

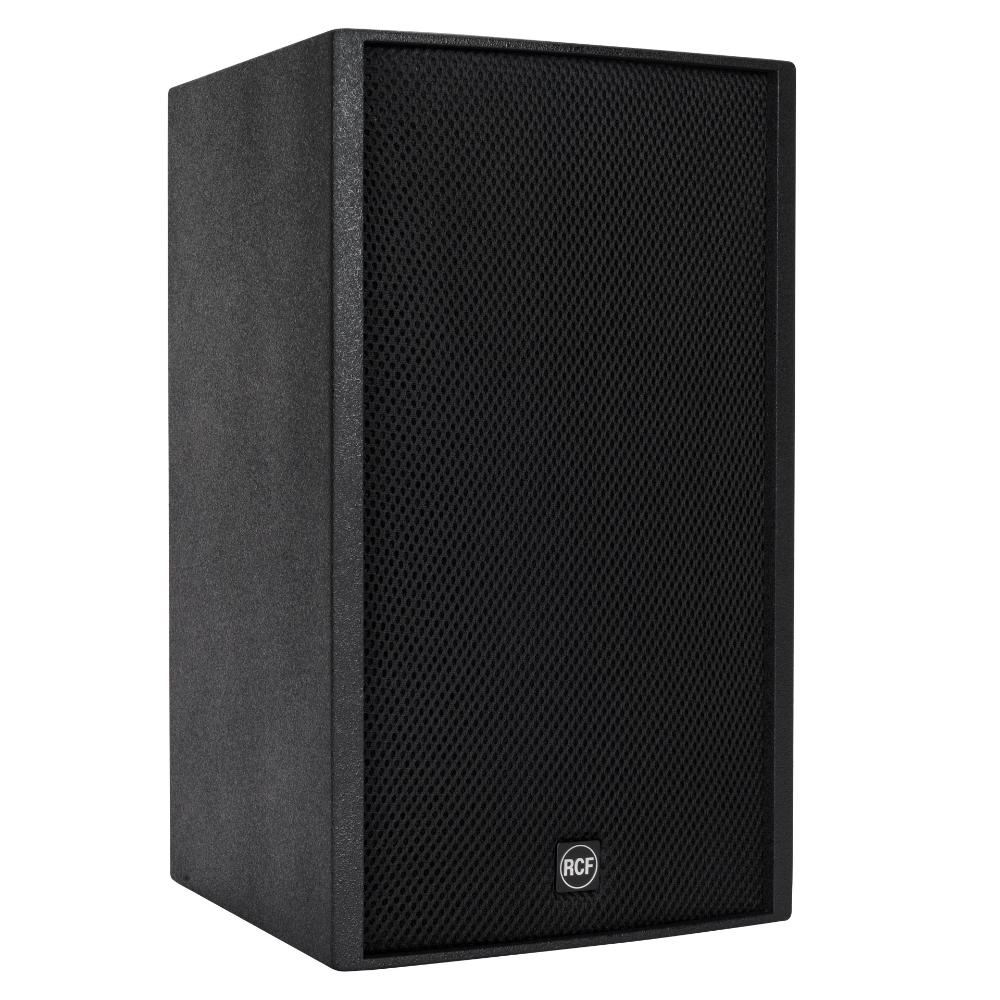

Black, EAN 8024530007546

13041024
M 601 W

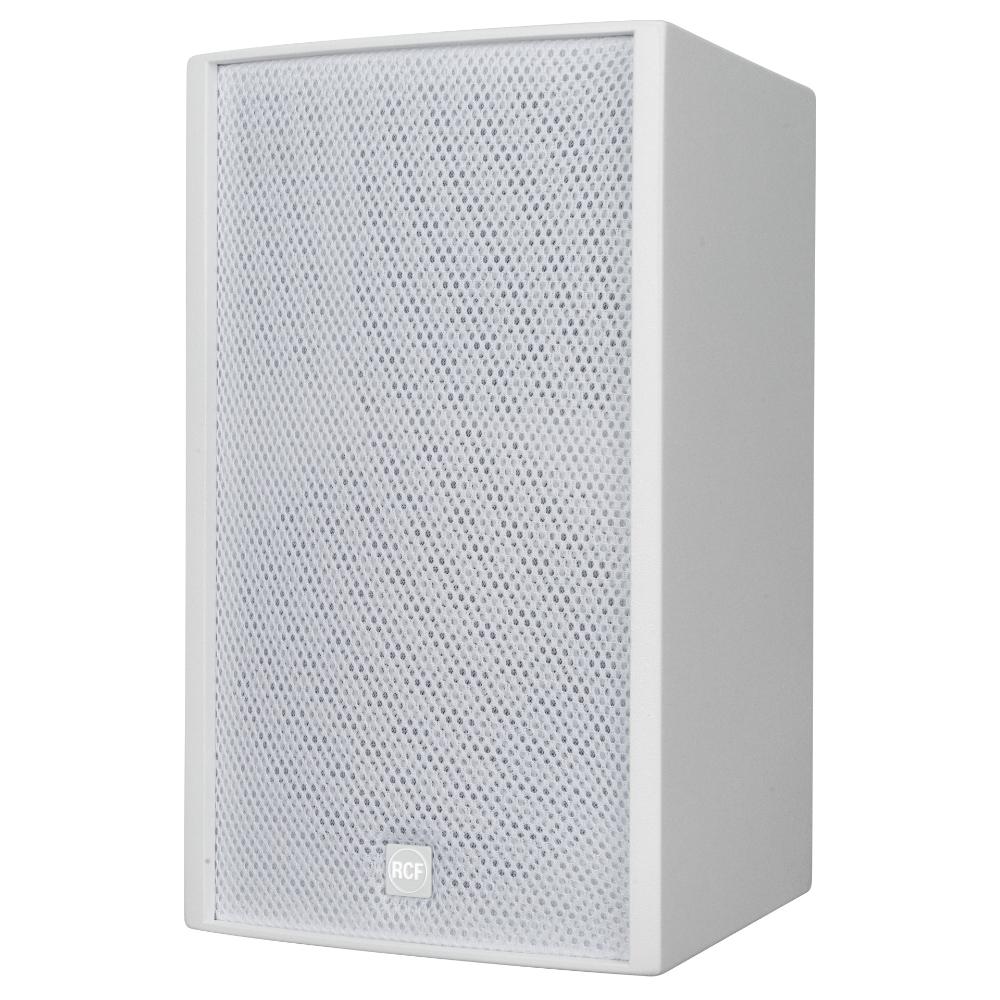

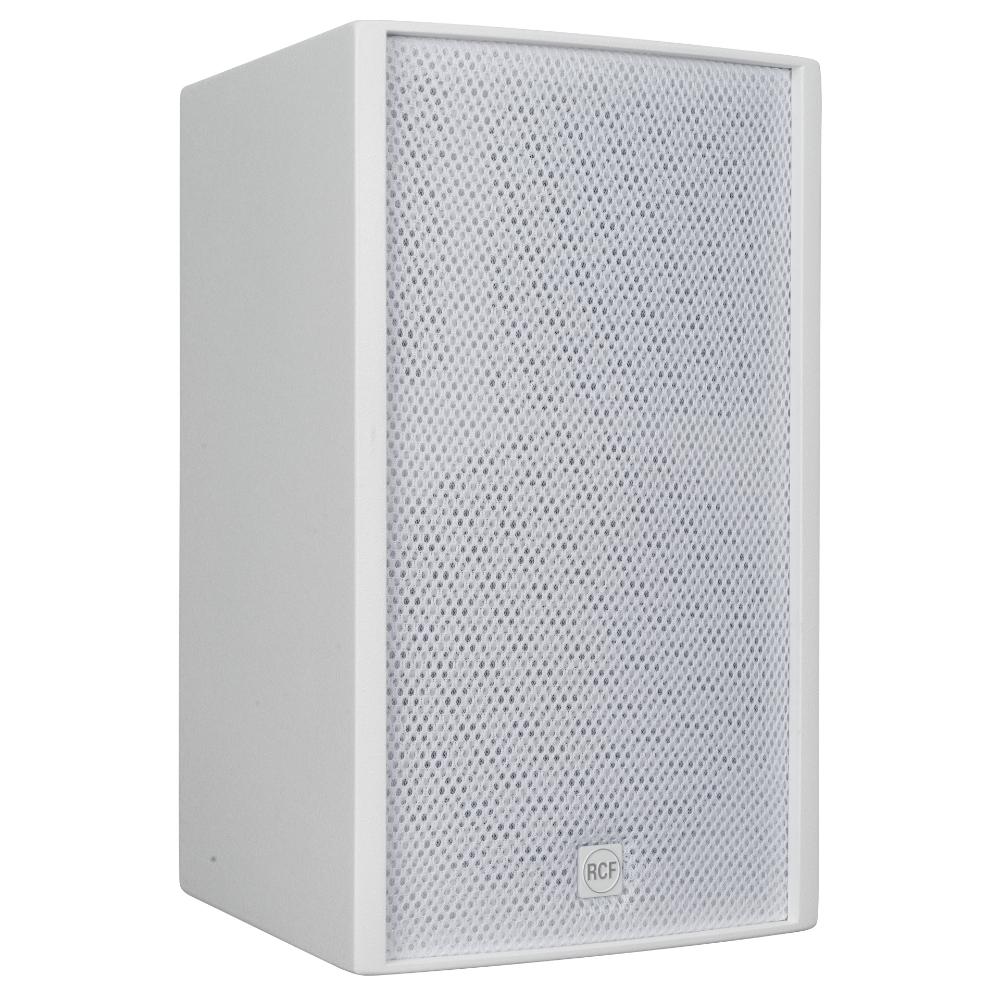

White, EAN 8024530011109

Specifications
Acoustical specifications
Frequency Response (-10dB)
80 Hz ÷ 20000 Hz
Max SPL @ 1m
118 dB
Horizontal coverage angle
90°
Vertical coverage angle
90°
Directivity index Q
10
System Sensitivity
92 dB
Power section
Nominal Impedance
8 ohm
Power Handling
100 W
Peak Power Handling
400 W PEAK
Protections
Dynamic active mosfet
Crossover Frequencies
2200 Hz
Transducers
Compression Driver
1.0'', 1.5'' v.c
Woofer
6.5'', 1.2'' v.c
Input/Output section
Input connectors
Euroblock
Output connectors
Euroblock
Standard compliance
Safety agency
CE compliant
Physical specifications
Cabinet/Case Material
MDF
Hardware
6 x M6, 2 x M10
Grille
Steel with robust double mesh polyester clothing
Color
Black, White
Size
Height
359 mm / 14.13 inches
Width
215 mm / 8.46 inches
Depth
230 mm / 9.06 inches
Weight
7.2 kg / 15.87 lbs
Shipping information
Package Height
440 mm / 17.32 inches
Package Width
302 mm / 11.89 inches
Package Depth
287 mm / 11.3 inches
Package Weight
8 kg / 17.64 lbs
